Product Overview

Description



Jinan Kelin Automation Equipment Co., Ltd.
The device offers a custom service.We will design drawings according to your requirements and provide solutions.




Products Description

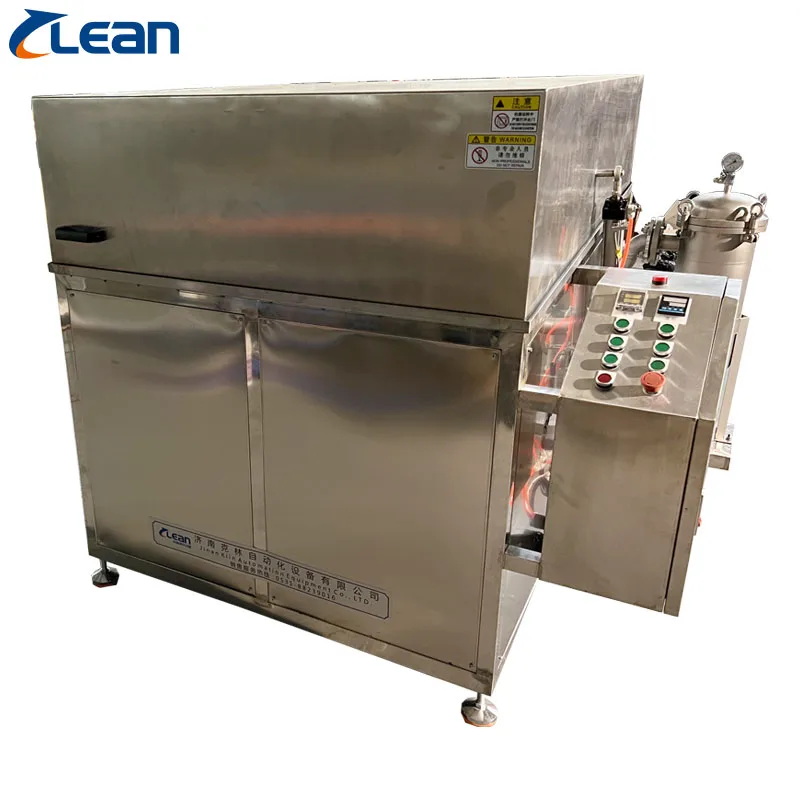

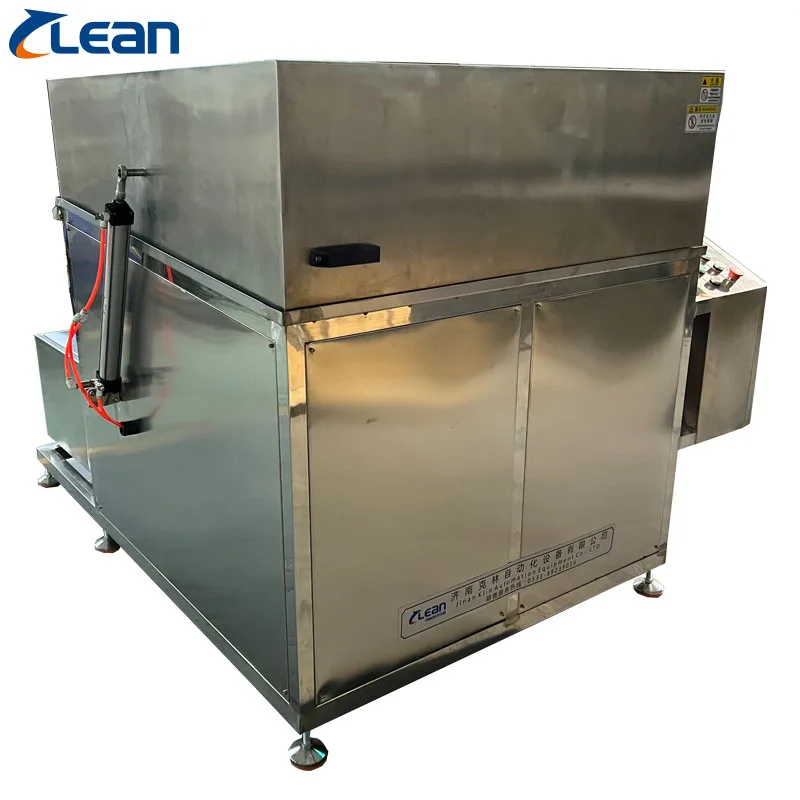

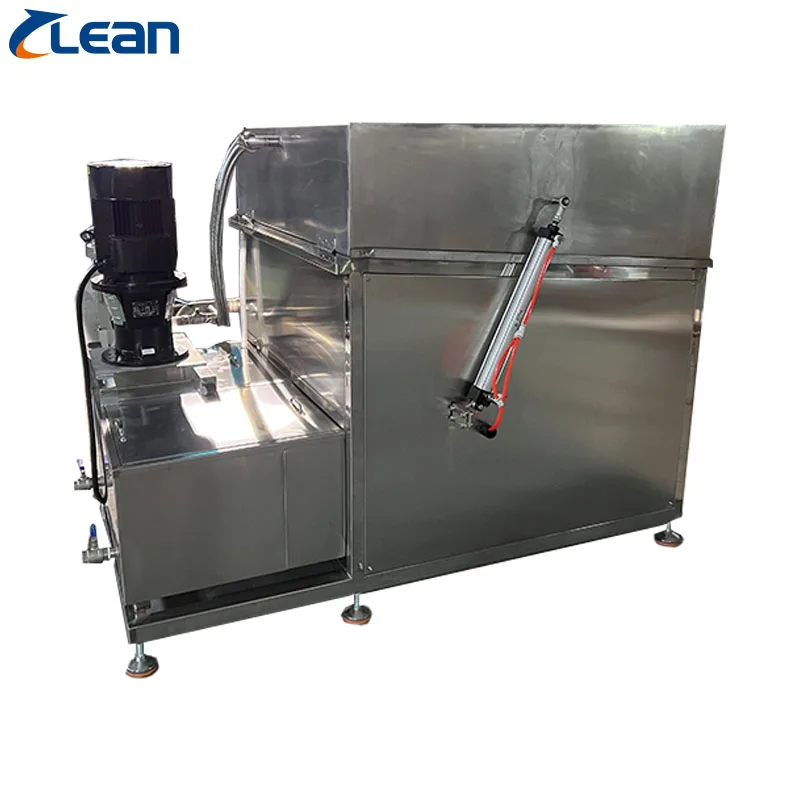

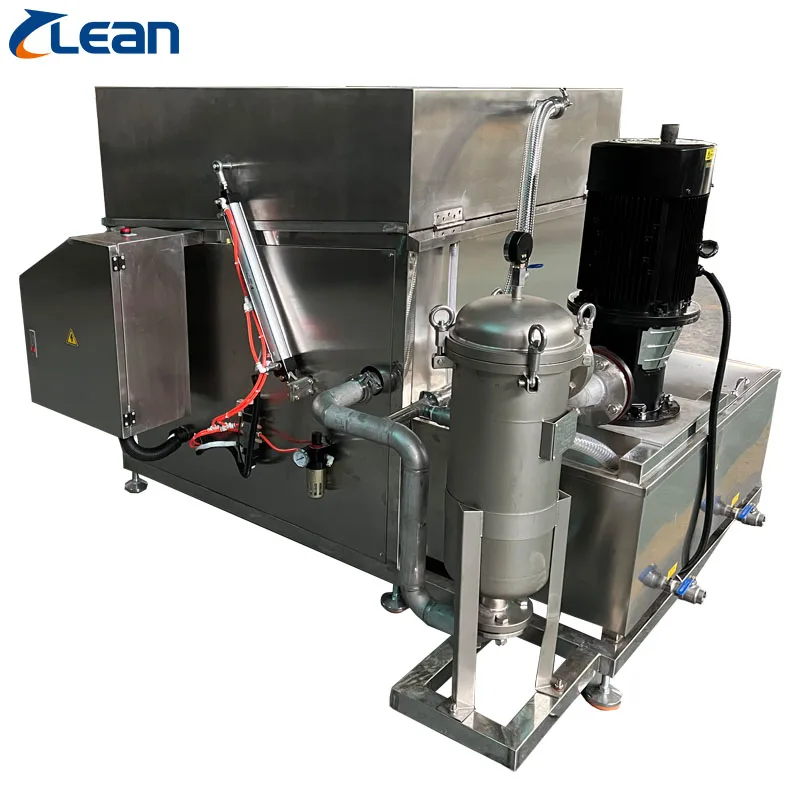

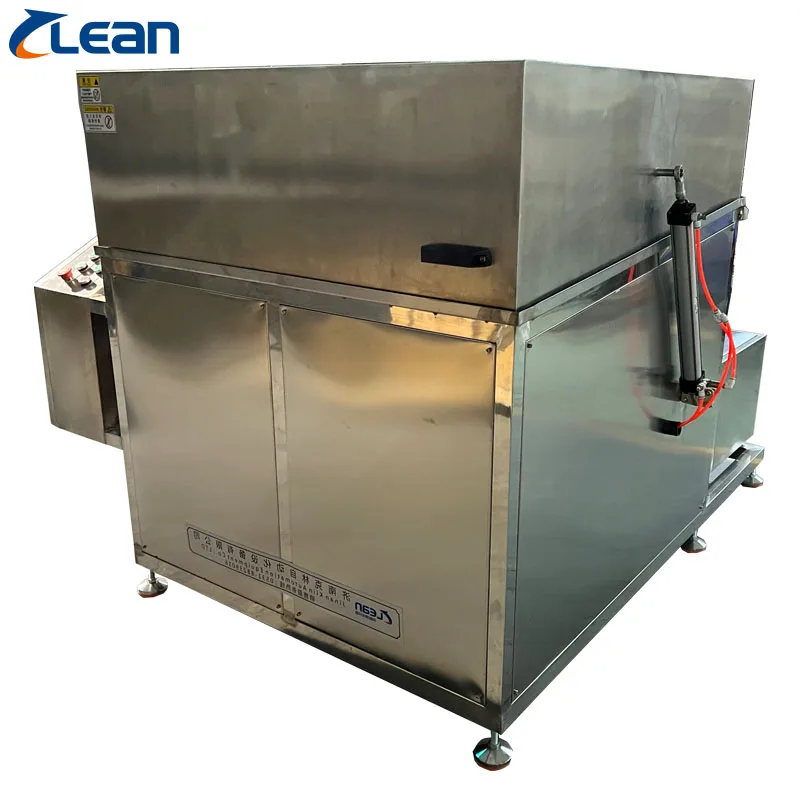

Spray cleaning machine
1.Cleaning process without manual intervention,for large labor costs saving.
2. Low cost,practical and high efficiency cleaning equipment, with no water consumation during the operation process, and cleaning solvent can be recycling used,so for energy and resources saving.
3.No pollution to the environment and no damage to the workpiece.
4.Both inside and outside of the equipment are made of high quality stainless steel material.
5. Key components are of imported brands or domestic well-known brands, to ensure the stable operation of the device, and the long service life of more than ten years.
6.Compact structure, integrated cabinet design, a relatively small volume and small occupied area availabie.High space utilization rate.
7.Several series of maturity standardized design,which are founded through customer feedback experience and continuous improvement as well as optimization of technology and design, fullyguarantees the quality of the equipment, and minimizes the failure rate.
8. In the design, fully embodies the humanistic care, such as to configure the observation window,from which you can check the workpiece status at any time required.
9.Optional function of spray cleaning, rinsing, cutting water, drying.Easily for combination and choosing. Customized products are also of modular design,can realize a large number of functional expansion.





Model


Dimensions (cm)
Effective size of cleaning chamber Φ*H (cm)

Pallet load
(Kg)
Reservoir volume Wash/Rinse (L)
Spray pressure Cleaning pressure [high pressure]/ Rinsing pressure (bar)
Heating power Cleaning/Rinsing (KW)


Cleaning machine
CL-60AP
110*161*135
Φ58*38
100
40
2.5[6.0]
4,0
CL-80AP
125*173*140
Φ78*43
100
130
2.5[6.0]
6,0
CL-100AP
142*190*140
Φ98*54
200
240
2.5[6.0]
8,0
CL-120AP
157*205*160
Φ117*70
300
300
2.5[6.0]
10,0
CL-130AP
245*185*135
Φ130x45
300
320
2.5[6.0]
10,0

Cleaning and rinsing machine
CL-60BP
140*160*145
Φ58*38
100
60/60
2,5[6,0]/2,5
4,0/4,0
CL-80BP
158*178*152
Φ78*43
100
130/130
2,5[6,0]/2,5
6,0/6,0
CL-100BP
165*185*158
Φ98*54
200
240/240
2,5[6,0]/2,5
8,0/8,0
CL-120BP
185*208*165
Φ117*70
300
300/300
2,5[6,0]/2,5
10,0/10,0
CL-1200BP
260*190*180
Φ120*20
300
320/320
2,5[6,0]/2,5
12,0/12,0
More models are customized according to requirements.
365 x 480 x 236
Φ200 x 100
1000
800/800
5,0[7,5]/2,5
30,0/30,0




Cleaning Contrast




Cleaning Scope




Production Process




Hot Products




Company Information




Packaging &Shipping




FAQ


Questions
(1) ARE YOU MANUFACTURER OR TRADING COMPANY?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) arehome-made by ourselves.
(2) DO YOU ACCEPT OEM AND ODM?
Yes, we also have professional R&D teams ( ultrasonic transducer team, ultrasonic generator teamand mechanical design team) to respond your special needs quickly.
(3)DELIVERY TIME?
Standard products can be shipped within 7 working days.Customized machines depend on thedesign.
(4) WARRANTY?
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty,we' ll provide free spare parts or repairing service.
(5) DO YOU PROVIDE TRIAL CLEANING SERVICE?
Yes, you're welcome to send the work pieces for trial cleaning.We'll send you video and report aftertesting . It's free service.
(6)CAN YOU PROVIDE ULTRASONIC TRANSDUCER OR GENERATOR IF ANY FAILURE?
Yes,ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves.we can send the right parts quickly for replacement.
(7)WHICH ULTRASONIC FREQUENCY AND ULTRASONIC POWER ARE SUITABLE FOR OURWORK PIECE?
Please contact us and provide details as specific as you can. Information includes:the size, material,weight and dirt of your work
piece and cleaning tank dimension etc.
