2.8 Kw 3 Phase Silent 8500w Generator
US $90.00-$110.00
Powered By Yangdong 27Kw 24Kw Silent Planta Electrica 30Kva Diesel Generator Price
- Category: Generators >>>
- Supplier: Jiangsu,Wellpower,Generator,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
With Diesel Engine | ||
Engine model | Y495D | |
Engine manufacturer | YANGDONG | |
Number of Cylinders | 4 Cylinders in line | |
Cycle | 4 Stroke | |
Aspiration | Natural | |
Bore×Stroke | 90mm x 110mm | |
Coolant capacity | 2.545 L | |
Prime power | 20 KW | |
Standby Power | 22 KW | |
Steady speed droop | ≤1% | |
Governor | Mechanical | |
100% Prime power fuel Consumption | 6.87 L/h | |
Compression Ratio | 18 : 1 | |
Oil Capacity | 8L | |
Current | 36 A | |
Cooling System | Water cooled | |
Starter Motor | DC12V | |
Alternator | DC12V | |
With Alternator | ||
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… | |
Prime power | 24kw | |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) | |
Exciter type | Single bearing, Brushless, Self-excited | |
Power factor | 0.8 | |
Voltage adjust range | ≥5% | |
Voltage regulation NL-FL | ≤±1% | |
Insulation Grade | H | |
Protection Grade | IP23 | |

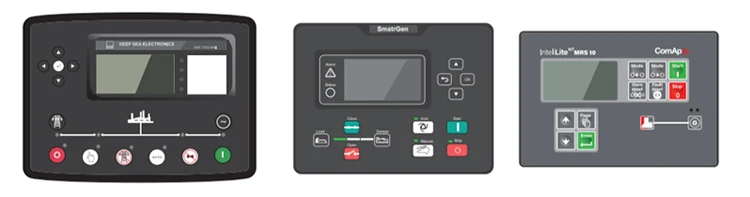

Control panel Model：DeepSea/SmartGen/ComAp
The control module gives digital readouts of:
Generator voltage;Output frequency;Engine speed;Battery voltage;Engine hours run
The control module has indicators for failure information:
Overspeed/underspeed;Emergency stopLow oil pressure;High water temperature;Failure to start;Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;High engine water temperature;Overspeed/underspeed;Failure to start after three attempts
Generator voltage;Output frequency;Engine speed;Battery voltage;Engine hours run
The control module has indicators for failure information:
Overspeed/underspeed;Emergency stopLow oil pressure;High water temperature;Failure to start;Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;High engine water temperature;Overspeed/underspeed;Failure to start after three attempts
Rated power | Engine | Alternator | Control panel |
20 kw~1300kw | Cummins | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen |
8kw~1600kw | Perkins | ||
68kw~504kw | Volvo | ||
20 kw~500kw | Deutz | ||
220 kw-2400kw | MTU | ||
280kw-800kw | MAN | ||
600kw-1800kw | Mitsubishi | ||
50kw-650kw | Doosan | ||
2kw~2500kw | Chinese engine |
Optional-addtional parts
Engine | Fuel System | Cooling system | Exhaust system | |||
Coolant Heater Lube oil heater Electronic governor Engine oil temperature | External Tank Water Separator | 50-60 Radiator, Remote radiator Cooling tower | Heavy Duty air filter Silencer Enclosures | |||
Alternator | Control System | Others | Voltage Connections | |||
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling | Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet | Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts | 480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/127V 208/120V | |||
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | ||||||
Product Comparison
Related Products
Buyer feedback
Company Profile

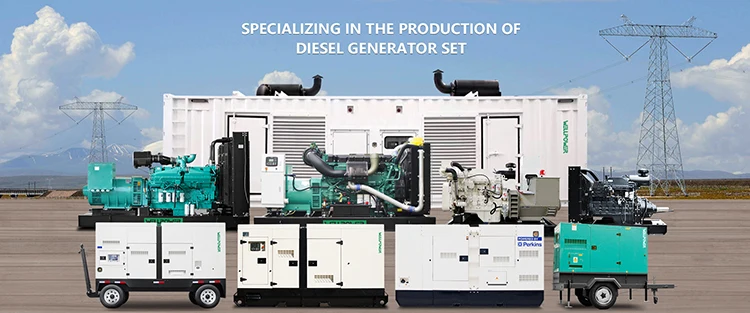

WELLPOWER GENERATORS, PROFESSIONAL POWER SOLUTION.
Jiangsu WellPower Generator Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland.Until now,Wellpower has been exported to more than 80 countries and regions and have got a lot of praise from our customers.Our production capacity amounts to 9000 sets per year. We are specialized in making 5kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA...Our generator mainly use DEEPSEA and SMARTGEN control panel.According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts,customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Application scenarios
FAQ
1.Q: What is your MOQ of this item?
2.Q: What is the lead time?
3.Q: Is it all right to make customer's own brand name?
4.Q: Where is your Loading Port?
5.Q: What are your payment terms?
6.Q: What is your company's available production capacity?
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
