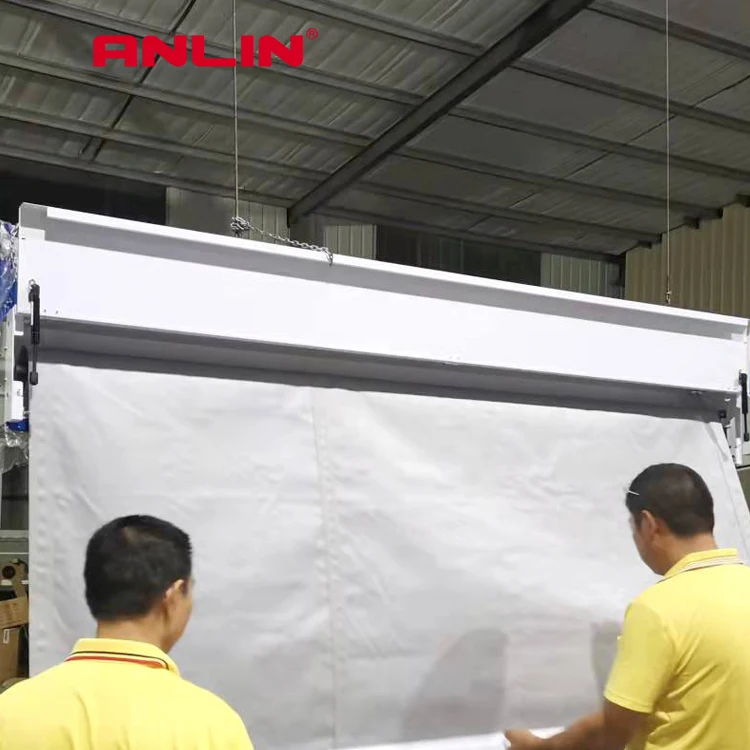

European stand elevator door smoke curtain non combustible fire safe curtains
- Category: >>>
- Supplier: Fujian Anlin Intelligent Science And Technology Co. Ltd.
Share on (1600630236409):
Product Overview
Description
Customized Service

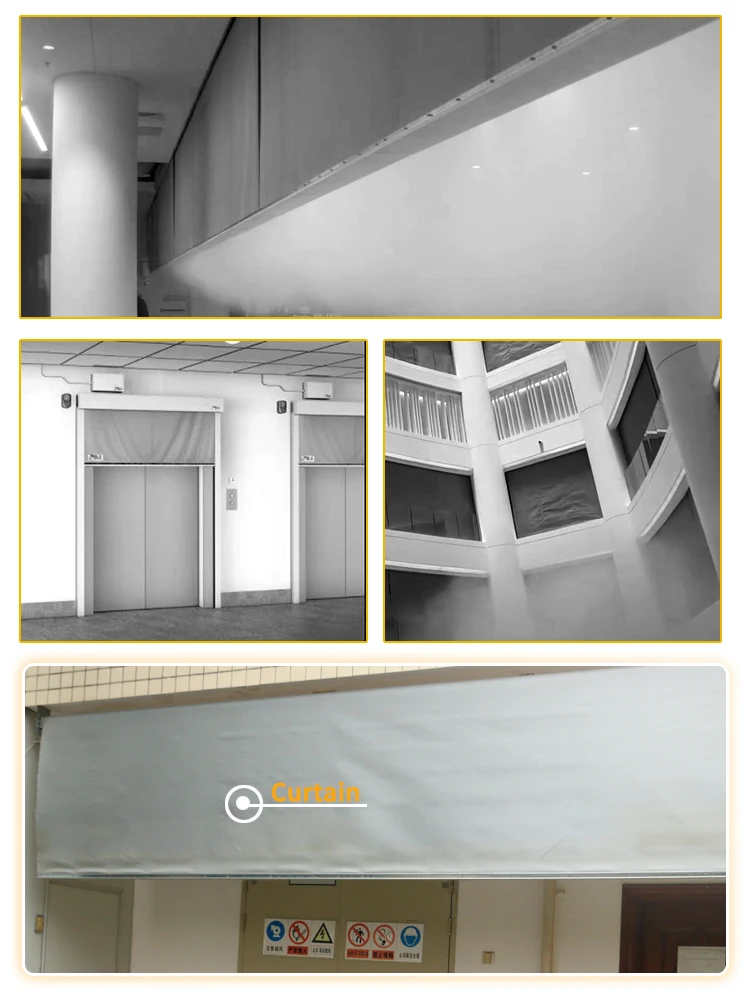

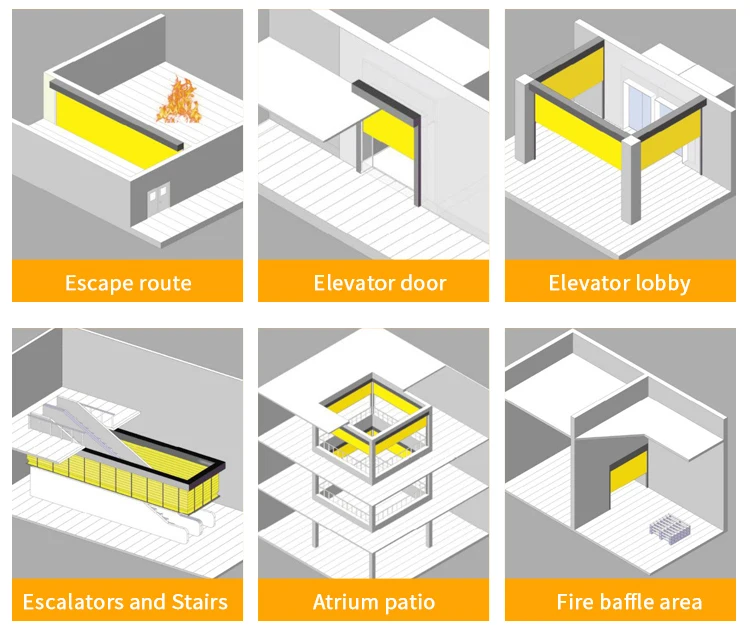

FIRE & SMOKE CURTAIN APPLICATIONS
We can customize the fire curtains and smoke curtains according to your actual needs for elevator,
escape route, escalators and stairs,and atrlum patio,etc.
escape route, escalators and stairs,and atrlum patio,etc.
Product Paramenters
Product model | Fire curtain | Smoke curtain |
Product description | Double sided silicone coating fiberglass cloth reinforced with steel wire | Double sided silicone coating fiberglass cloth reinforced with steel wire |
Gram weight | 710+/- 10% g/m2 | 660+/- 10% g/m2 |
Thickness | 0.7 +/-0.01 mm | 0.6+/-0.01 mm |
Color | silver bright | silver bright |
Tensile strength warp | 2370 N/inch | 2238 N/inch |
Tensile strength weft | 2361 N/inch | 2316 N/inch |
Tear strength warp | 154N | 160.3N |
Tear strength weft | 171N | 160.6N |
Reaction to fire | self-extinguishing | self-extinguishing |
Working temperature | 180°C (coating), 550°C (base fabric) | 660°C (120 mins) |
Fabric width | 1500mm | 1000mm,1300mm, 1550mm |
Recommended use | Thermal insulation, fire curtain | Fire & Smoke curtain |

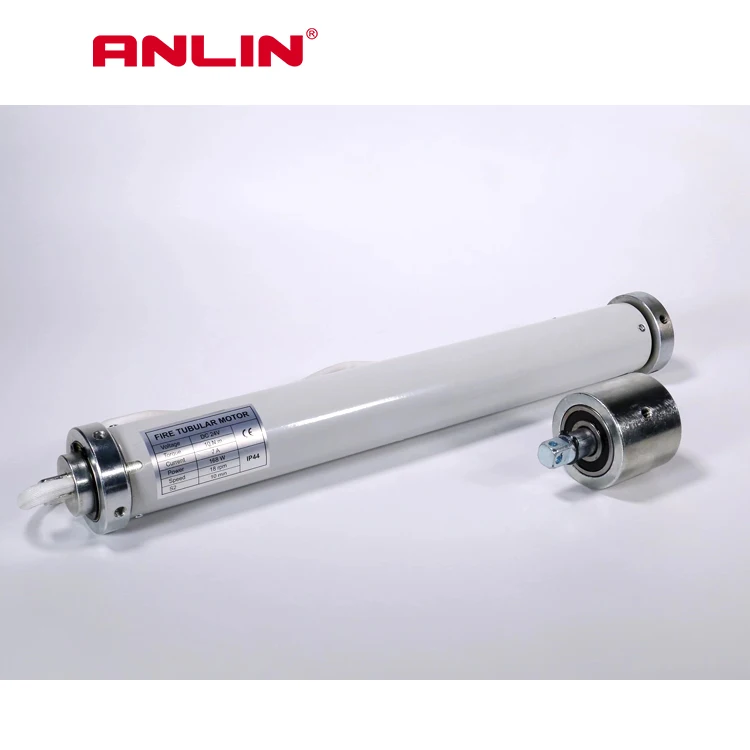

Motor parameters
Rated voltage: DC21V
Motor diameter.59mm
Rated curent:8A
Rated power:192W
Rated torque: 30 N.m
Rated speed: 18 rpm
IP level:IP44
Battery standby time: 2h
Motor diameter.59mm
Rated curent:8A
Rated power:192W
Rated torque: 30 N.m
Rated speed: 18 rpm
IP level:IP44
Battery standby time: 2h

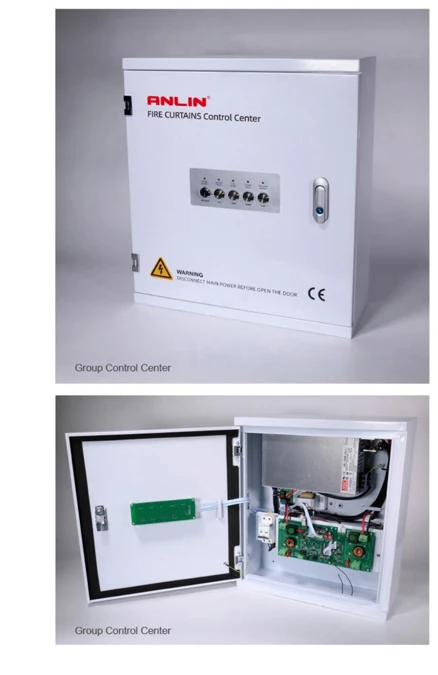

Group control center parameters
Rated voltage: AC 220V-240V 50Hz Output voltage: DC24V
3 models: can control 4, 8, 12 motors respectively
●Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit.
● Automatic reset function: After the fire alarm disappears,the curtain automatically rises to the upper limit.
●Automatic descending function without mains power:
When there is no mains power, the curtain automatically descends to the lower limit.
3 models: can control 4, 8, 12 motors respectively
●Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit.
● Automatic reset function: After the fire alarm disappears,the curtain automatically rises to the upper limit.
●Automatic descending function without mains power:
When there is no mains power, the curtain automatically descends to the lower limit.
Certifications

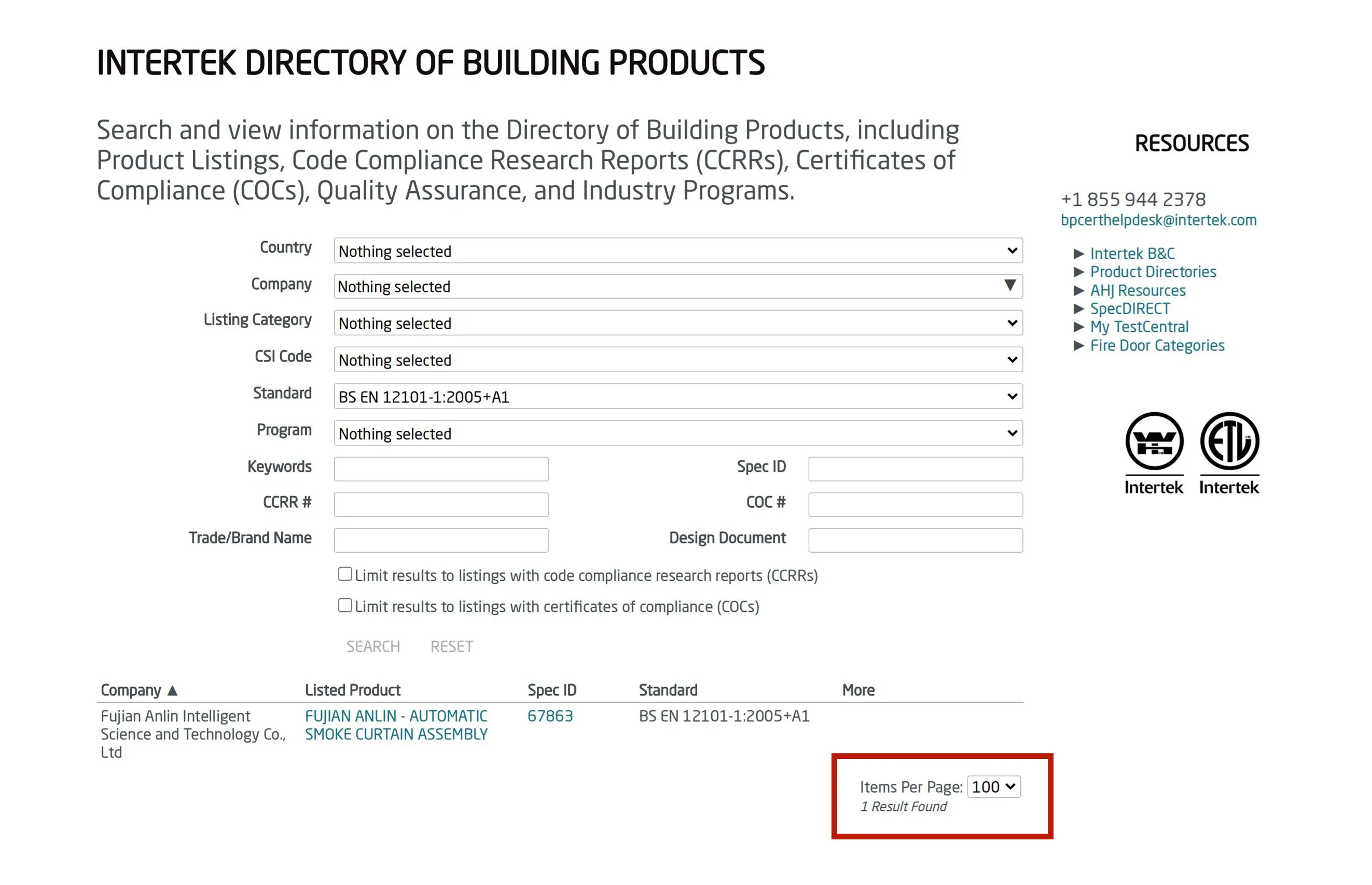

ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.
Products Description
NOT JUST QUALITY

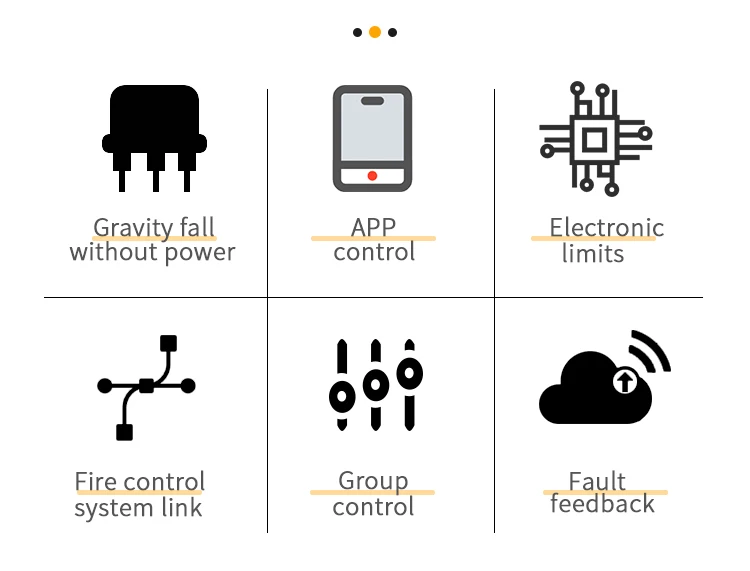

More optional functions
integrate multiple technologies

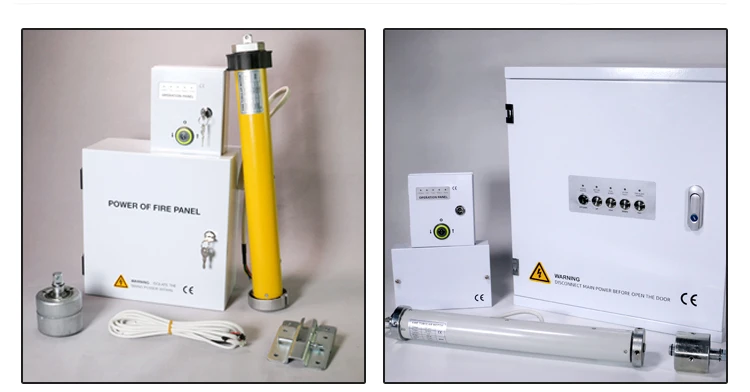

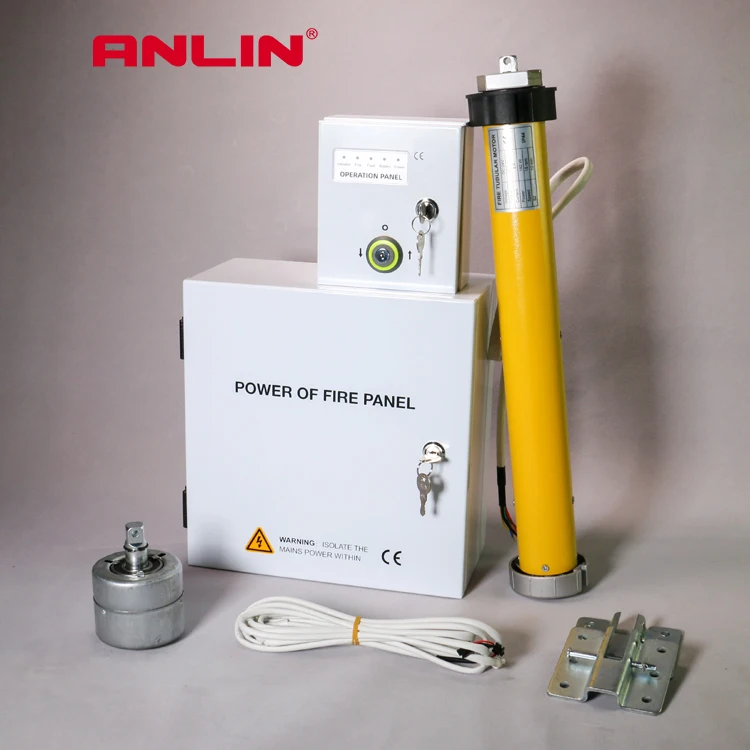

Option 1: 1 control 1 set
Inclusions:Motor,Controller,operation lock box

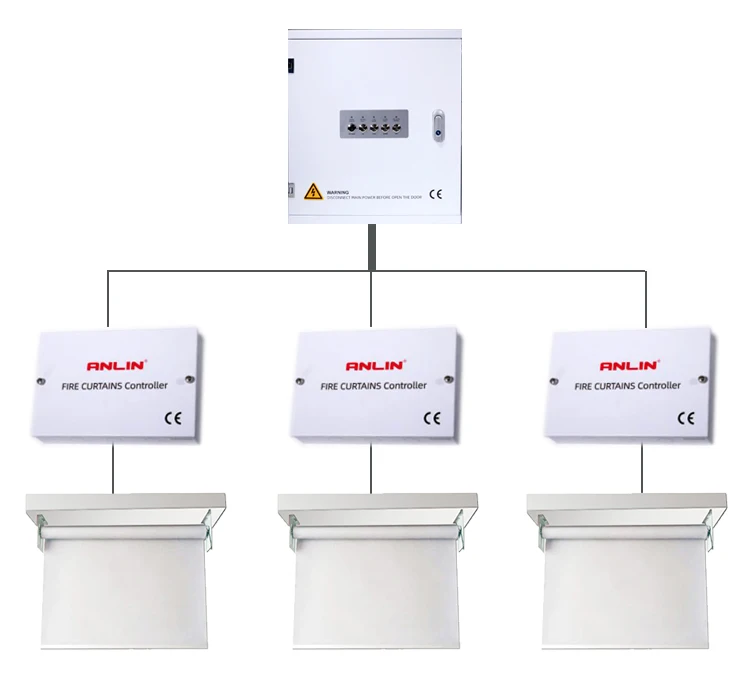

Option 2: 1 control 4, 1 control 8, 1 control 12 set
Inclusions:Motor,Group controller, Sub-controller,
operation lock box

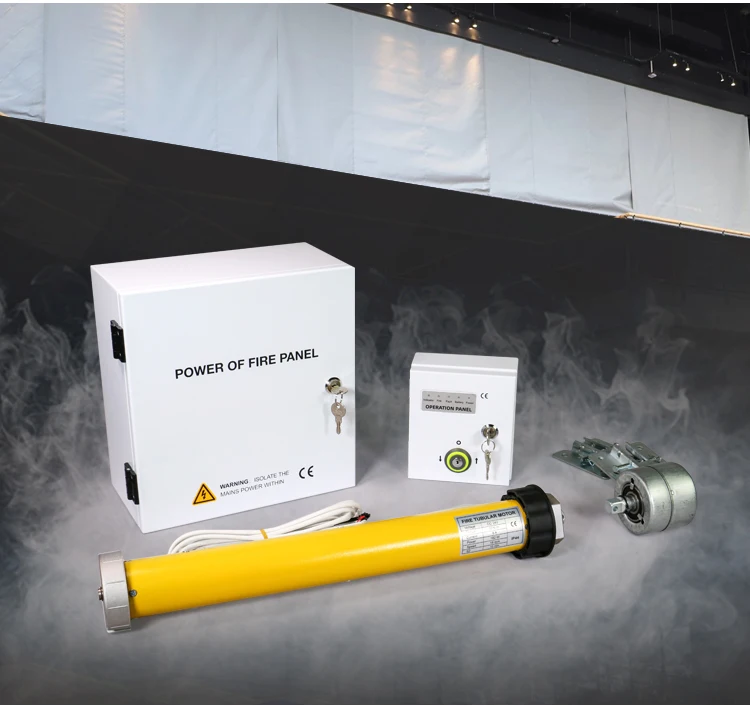

ANLIN fire & smoke curtain system is composed of two parts: drive and control.

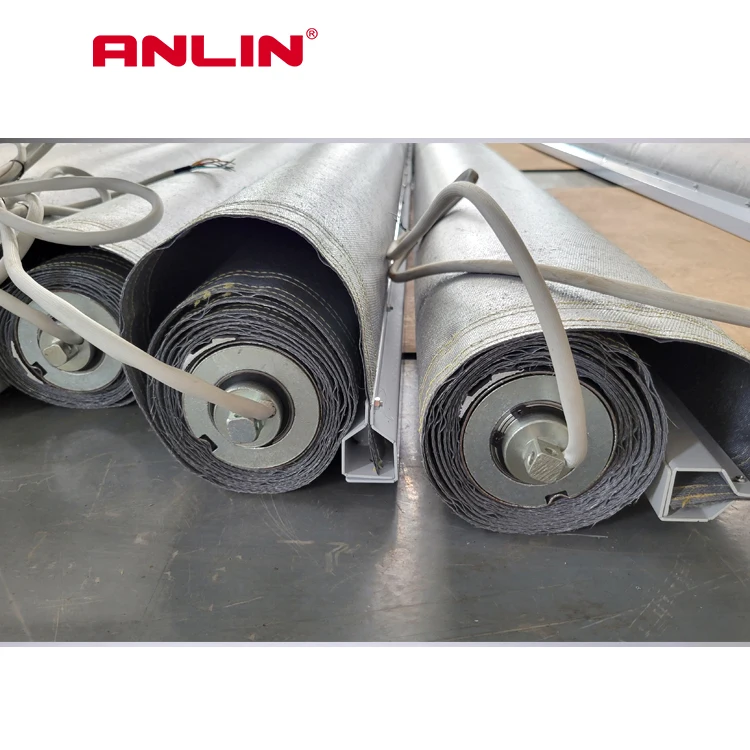

The drive part is mainly composed of motor,roller, idler and fire fabric.

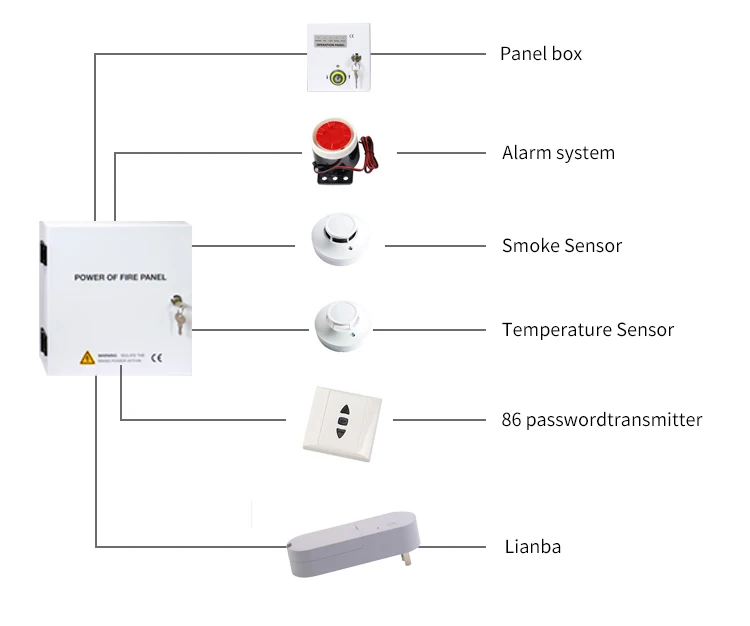

The control part is composed of group control center, motor controller and operation panel.
Design advice and problem solving
Our experts have an in-depth knowledge of technologies and techniques across a wide
spectrum.
We have the experience to advise on the best combination of products and systems that will
achieve the desired effect and performance.
spectrum.
We have the experience to advise on the best combination of products and systems that will
achieve the desired effect and performance.
ANLIN design and technical support
In Anlin,we scale across multiple markets,
which means we have the staff and expertise to develop customized systems.
which means we have the staff and expertise to develop customized systems.
Our systemsensure your fire safety.
