Ventilation Duct Manufacturer Flexible Duct Hvac Canvas Duct Connector

Product Overview

Description

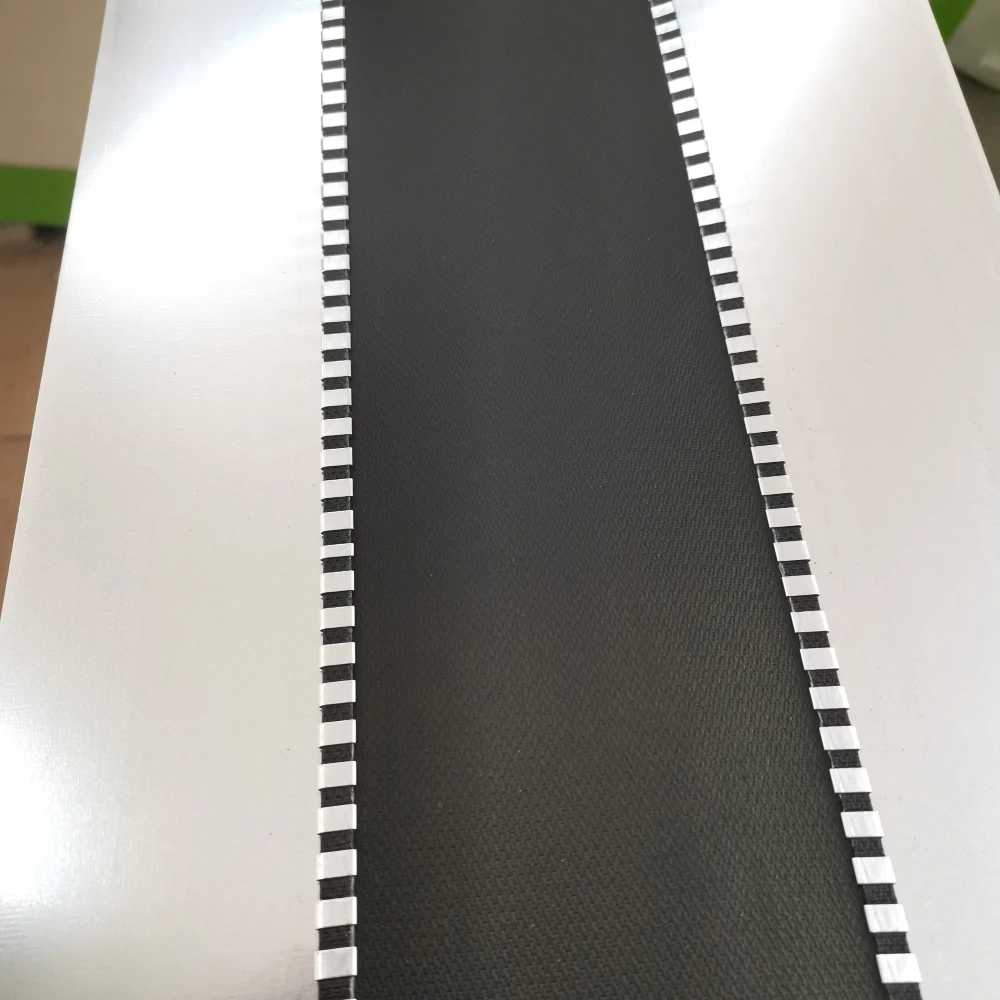

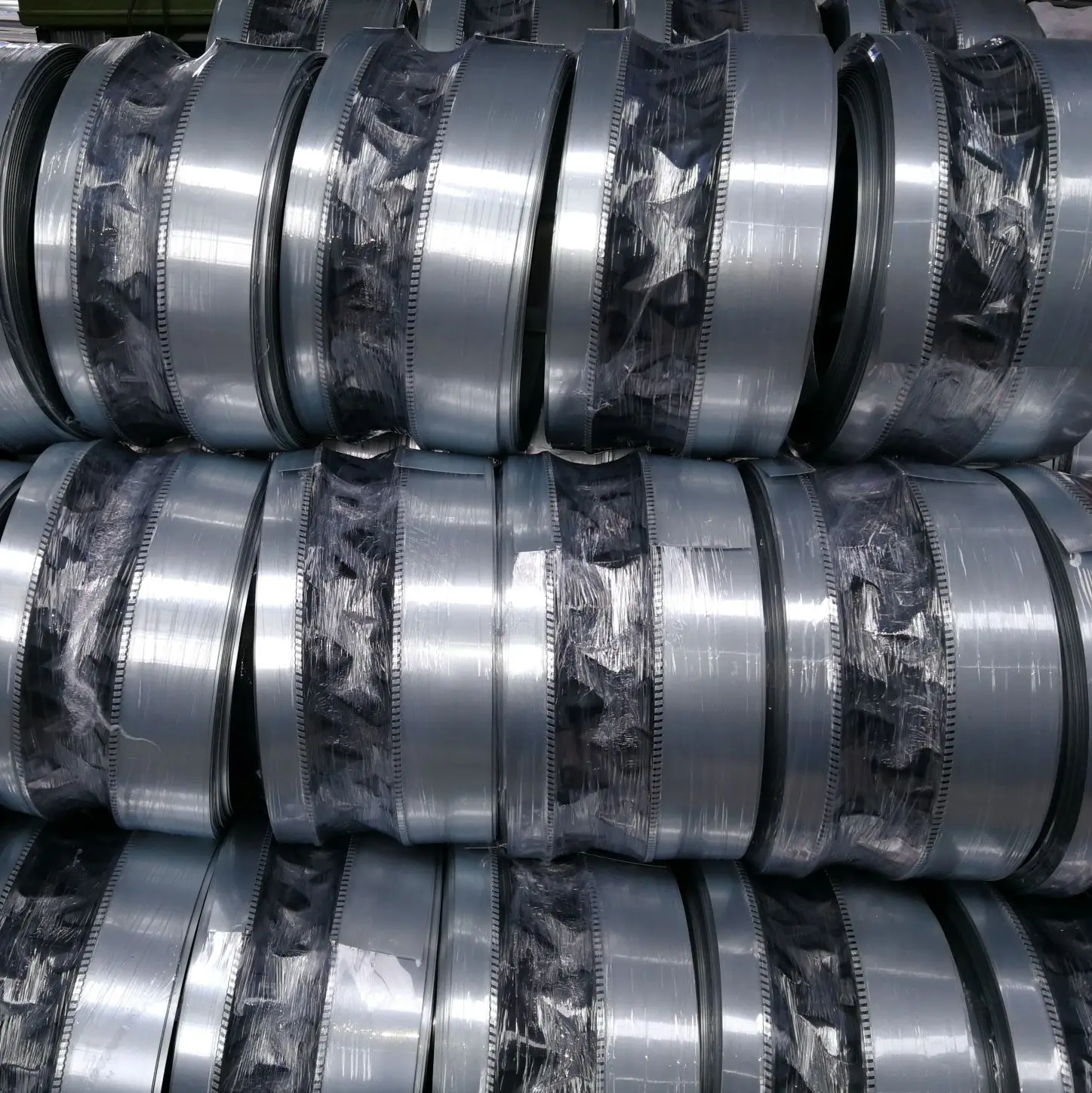

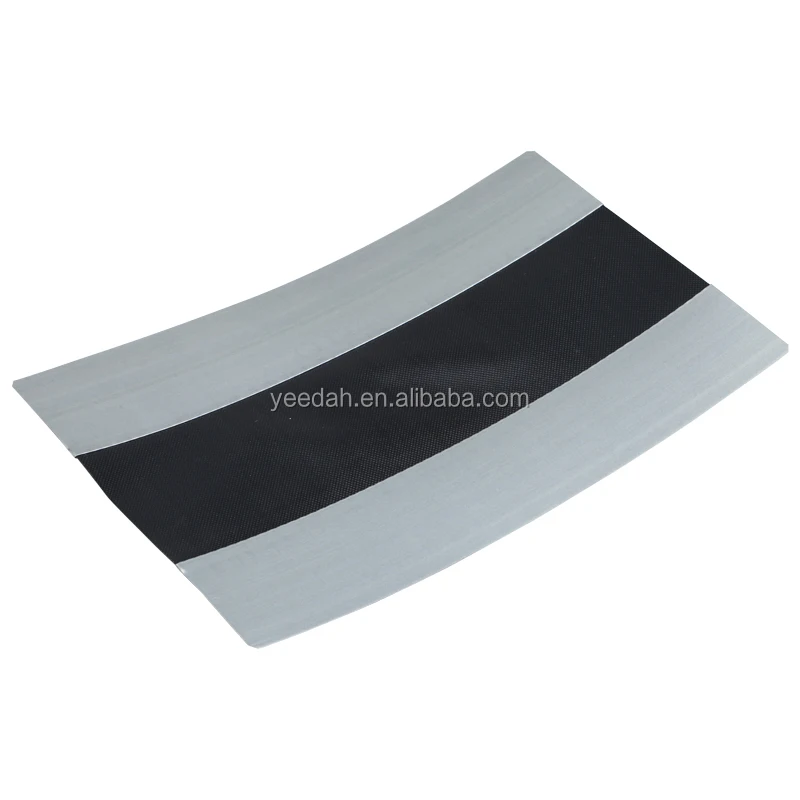

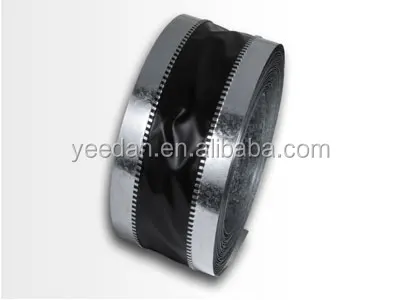

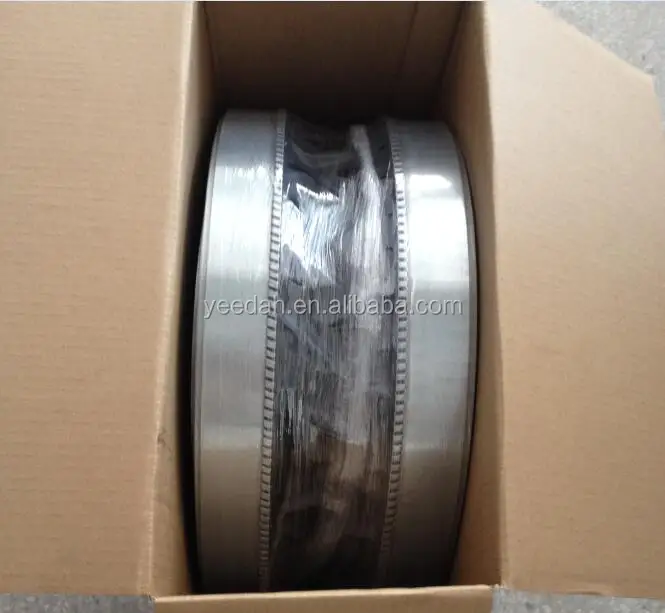

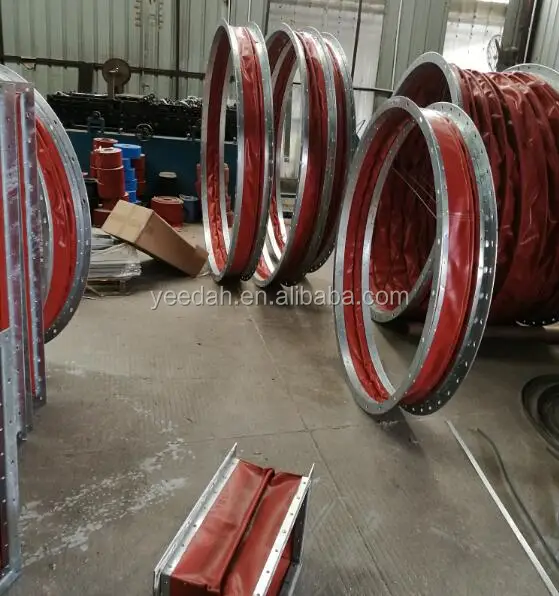

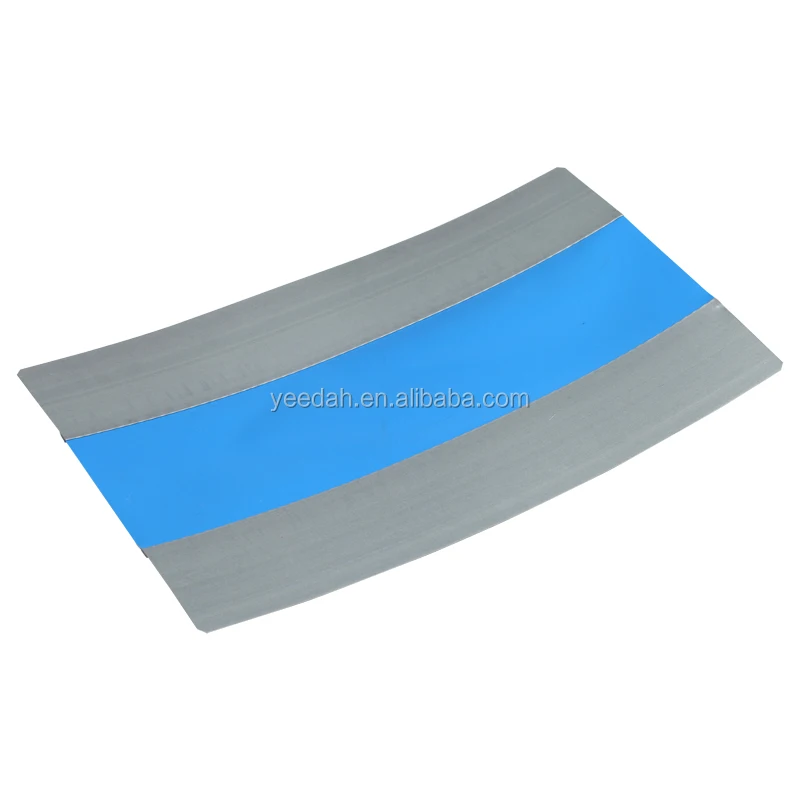

Ventilation Duct Manufacturer Flexible Duct Hvac Canvas Duct Connector  is made of  fabrics and galvanized iron plate. The two tight special seams between the fabric, and metal plate are air proof.







Apply for industrial, commercial and residential, ventilation systems



All air duct installations for heating, cooling or ventilation are connected to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from the operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system.



In order to isolate vibrations and noises caused by air handling units, fans or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.





Features:


1. easy and quick to be installed;

2. strong air tight lock seams;

3. available in various widths of fabric and metal.

4. high temperature resistant.

5. fire resistant.



Size	Metal Thickness	Length/roll	Materials

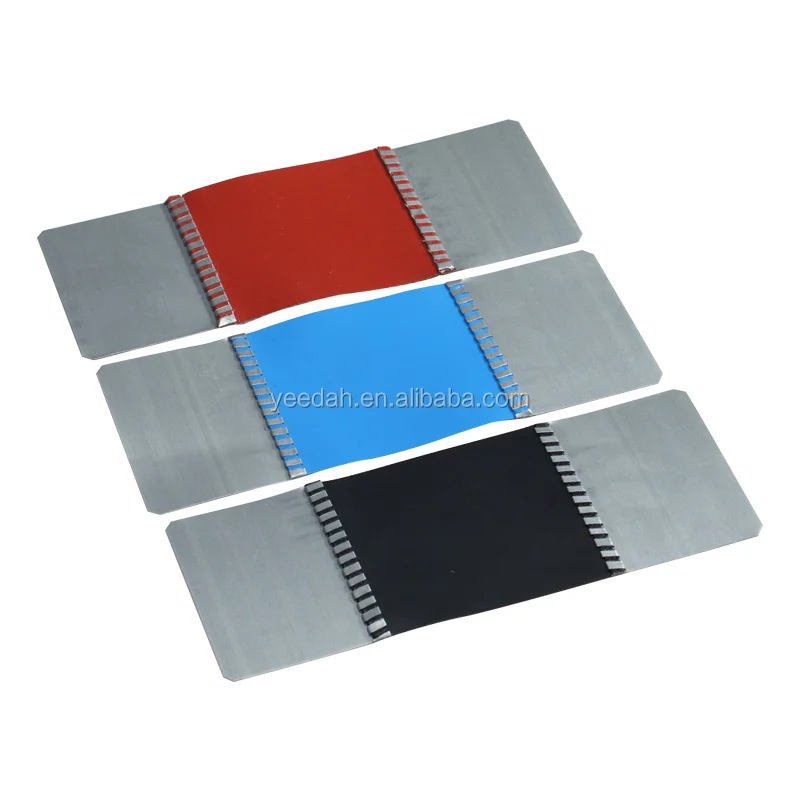

45 X60X45mm	0.4/0.5/0.6mm	25/30/45/50m	Vinyl/PU/Neoprene/Silicone for option
45 X75X45mm	0.4/0.5/0.6mm	25/30/45/50m
45X100X45mm	0.4/0.5/0.6mm	25/30/45/50m
45X150X45mm	0.4/0.5/0.6mm	25/30/45/50m
75X100X75mm	0.4/0.5/0.6mm	25/30/45/50m
75X150X75mm	0.4/0.5/0.6mm	25/30/45/50m
93X100X93mm	0.4/0.5/0.6mm	25/30/45/50m
Customized sizes are available
