Electric Steam Tablecloth Curtain Fully Automatic Industry Laundry Roller Ironing Machine

Product Overview

Description

Good price big rollers to iron table cloths

(Please choose 1 rolls,2rolls,3rolls,4rolls steam heating , Electric heating or LPG gas heating)



Advantages of rollers to iron table cloths:



1.Use for :bedsheets, quilts, tablecloth, towel, curtain, bath towel etc.

2.Heating way:Steam heating and Electric heating.

3.Motor: Variable speed motor can adjust the speed according to heating temperature and the fabric thickness .

4.Rooller : Large diameter roller drum,stainless steel, smooth surface minimize the fabric abrasion.

5.Steady movement: Reducer connected to the pulley and chain wheel. transmission is reliable.

6.Seal:Sealed rotary joints, prevent leakage, safety and reliability, save energy.

7. Anti-corrosion: All vice-rollers use zinc spraying, durable and strong anti-corrosion.

8. Structures: Frame and auxiliary,high-quality steel carbon structures, strong and durable

9: Protection System:Three-phase electrical system, overload protection, voltage and short circuit protection, emergency stop switch.



Machine parameter for rollers to iron table cloths



Mode	YZⅢ-2500	YZⅢ-2800	YZⅢ-3000	YZⅢ-3200
Max Ironing Smooth Width(mm)	2500	2800	3000	3200
Ironing Speed(m/min)	3-20	3-15	3-20	3-20
Max Heating Temperature(°C)	158	158	158	158
Steam Presure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Steam Consumption(kg)	300	350	380	400
Motor Power(kw)	2.2	2.2	2.2	2.2
Rated Voltage (V)	380	380	380	380
Dimension(L.W.H) (mm)	3700*3100*1385	4000*3100*1385	4200*3100*1385	4400*3100*1385
Total Weight(kg)	3300	3500	3800	4000

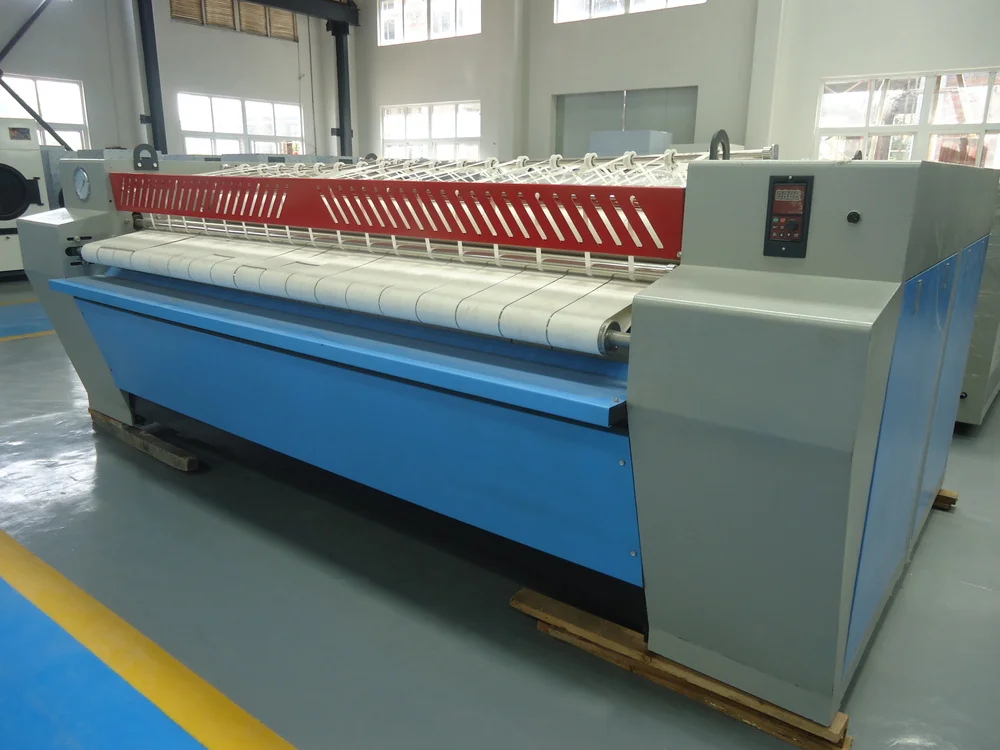

Product photos for rollers to iron table cloths
