Product Overview

Description



Product Description


Features:
1.Hot water up to 65ºC,suitable for underfloor/radiator heating/fan coil
2.With EVI system,can work stable at ambient temperature -25C to 45C
3.E-Heater,diverter valve and water pump can be inclueded
4. A+++ Energy Rating Level
5.Full inverter system,Stable and efficient performance.
6.R32 System,environment friendly
7.Application Scope:Hotels,clubs,hospitals,villas and any place in need of air conditioning,heating and hot water
8.With Wifi App control

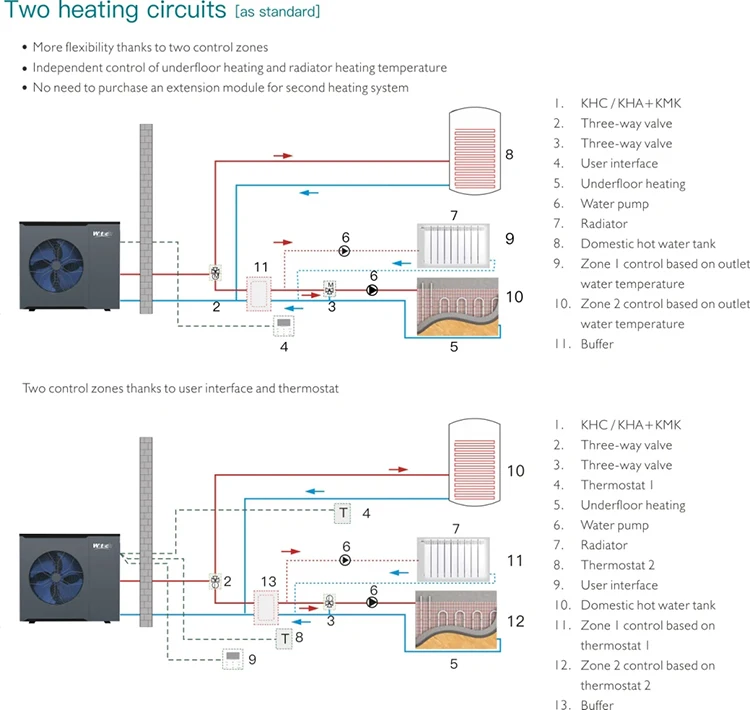

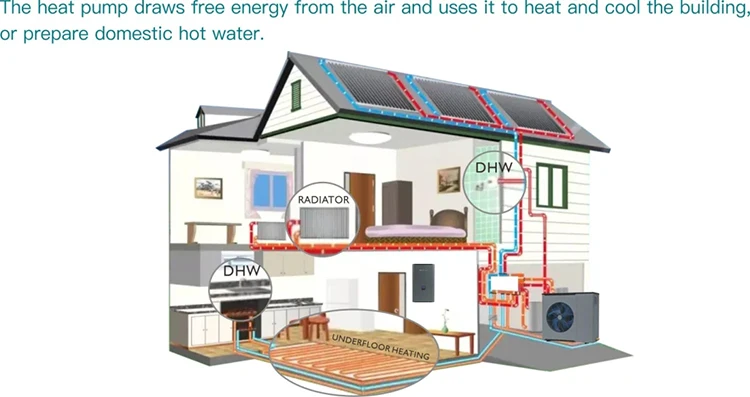

Installation Diagram:






Market model
WW08V-S
WW10V-S
WW12V-S
WW14VM-S
Heating1
Output Capacity
3.40~8.65
3.70~10.30
4.95~12.46
5.92~14.94
Input Power
0.59~1.65
0.62~2.05
0.90~2.48
1.15~3.20
COP
5.23~5.72
5.02~5.90
5.03~5.50
4.67~5.12
Input Current
2.82~7.92
2.96~9.81
4.31~11.85
5.50~15.3
Heating2
Output Capacity
3.43~7.77
3.90~9.84
4.37~12.43
5.18~14.30
Input Power
0.91~2.41
1.01~3.12
1.21~3.95
1.33~4.69
COP
3.23~3.80
3.15~3.81
3.15~3.61
3.05~3.89
Input Current
2.56~11.52
4.83~14.93
5.78~18.89
6.36~22.45
Heating3
Output Capacity
4.11~10.37
5.10~13.25
6.25~14.63
7.52~16.57
Input Power
0.74~2.28
0.94~13.73
1.14~3.12
1.37~3.56
COP
4.55~5.56
4.61~5.42
4.69~5.46
4.66~5.47
Input Current
3.54~10.91
4.50~12.49
5.45~14.93
6.55~17.03
Cooling4
Output Capacity
3.04~7.57
3.82~8.21
5.05~11.45
6.02~12.31
Input Power
0.94~2.75
1.18~3.02
1.54~4.13
1.87~4.53
EER
2.75~3.23
2.72~3.25
2.77~3.28
2.73~3.22
Input Current
4.50~13.15
5.64~14.45
7.37~19.76
8.95~21.67
Power Supply
220-240V/1/50Hz
ErP level(35ºC)
A+++
A+++
A+++
A+++
ErP level(55ºC)
A++
A++
A++
A++
Water Side Heat Exchanger
Plate heat exchanger
Display controller
LCD touch screen
Backup heater (Optional)
3kW
Expansion vessel
5L
Refrigerant Type
R32
Max Water Temperature
(without backup heater)
60
Working Ambeint Temperature
-25~43
Water connection
G1-1/4
Sound pressure Level @1m
outdoor unit
50
50
52
53
indoor unit
27
27
27
27
Net Dimension (L*W*H)
outdoor unit
995*410*800
995*410*800
1065*410*960
1065*410*960
indoor unit
475*220*800
475*220*800
475*220*800
475*220*800


Market model
WW14VT-S
WW16V-S
WW18V-S
WW20V-S
WW22V-S
Heating1
Output Capacity
5.92~14.94
6.48~16.38
7.29~18.51
8.10~20.56
8.91~22.35
Input Power
1.15~3.20
1.29~3.58
1.39~3.98
1.56~4.49
1.73~5.06
COP
4.67~5.12
4.57~5.01
4.65~5.25
4.58~5.20
4.42~5.13
Input Current
2.05~5.71
2.31~6.41
2.49~7.12
2.79~8.03
3.09~9.06
Heating2
Output Capacity
5.18~14.30
5.93~16.58
6.67~18.65
7.41~20.68
8.15~21.15
Input Power
1.33~4.69
1.39~5.63
1.58~6.43
1.77~7.18
1.97~7.50
COP
3.05~3.89
2.94~4.26
2.90~4.22
2.88~4.18
2.82~4.13
Input Current
2.38~8.39
2.48~10.07
2.83~11.50
3.17~12.84
3.52~13.42
Heating3
Output Capacity
7.52~16.57
8.95~19.42
10.07~21.85
11.18~24.05
12.30~25.5
Input Power
1.37~3.56
1.62~4.21
1.84~4.77
2.08~5.31
2.33~5.73
COP
4.66~5.47
4.61~5.52
4.58~5.46
4.53~5.38
4.45~5.28
Input Current
2.45~6.37
2.90~7.53
3.29~8.53
3.72~9.50
4.17~10.25
Cooling4
Output Capacity
6.02~12.31
7.23~14.82
8.13~15.72
9.03~16.67
9.93~17.50
Input Power
1.87~4.53
2.27~5.43
2.64~5.86
3.00~6.36
3.35~6.78
EER
2.73~3.22
2.73~3.18
2.68~3.08
2.62~3.01
2.58~2.96
Input Current
3.34~8.10
4.06~9.71
4.72~10.48
5.37~11.38
6.00~12.13
Power Supply
380-415V/3/50Hz
ErP level(35ºC)
A+++
A+++
A+++
A+++
A+++
ErP level(55ºC)
A++
A++
A++
A++
A++
Water Side Heat Exchanger
Plate heat exchanger
Display controller
LCD touch screen
Backup heater (Optional)
3kW
Expansion vessel
5L
Refrigerant Type
R32
Max Water Temperature
(without backup heater)
60
Working Ambeint Temperature
-25~43
Water connection
G1-1/4
Sound pressure Level @1m
outdoor unit
53
56
56
58
58
indoor unit
27
27
27
27
27
Net Dimension (L*W*H)
outdoor unit
1065*410*960
1065*410*960
1150*430*1350
1150*430*1350
1150*430*1350
indoor unit
475*220*800
475*220*800
475*220*800
475*220*800
475*220*800


Note:
1.Outdoor air temperature 7ºC DB,6ºC WB;EWT 30ºC,LWT 35ºC.
2.Outdoor air temperature 7ºC DB,6ºC WB;EWT 47ºC,LWT 55ºC.
3.Outdoor air temperature 20ºC DB,15ºC WB;EWT 15ºC,LWT 55ºC.
4.Outdoor air temperature 35ºC DB,24ºC WB;EWT 12ºC,LWT 7ºC.
5.The Specifications are subject to changes without notice.






Order Process




Company Profile




Weiguan , has supplied more than 3GW photovoltaic solar panels and millions of units of batteries , solar charger controllers and solar inverters .Weiguan Solar is focusing on product development , production , system integration , sales and service . Products include Poly-crystalline PV panel , Mono-crystalline PV panel , Lithium Battery ,Valve Regulated Lead Acid ( VRLA) Battery ,solar charge controller, solar inverter, Turn-key completed Off Grid and On Grid solar systems ,High/Low frequency hybrid solar inverter, Solar variable-frequency Drive, MPPT/PWM solar charger controller.
Our company has been specialized in the manufacture and export of home power supply for more than 20 years. Adhere to the integrity management, sustainable development,and create a win-win service purposes with our customers as our ultimate development philosophy.

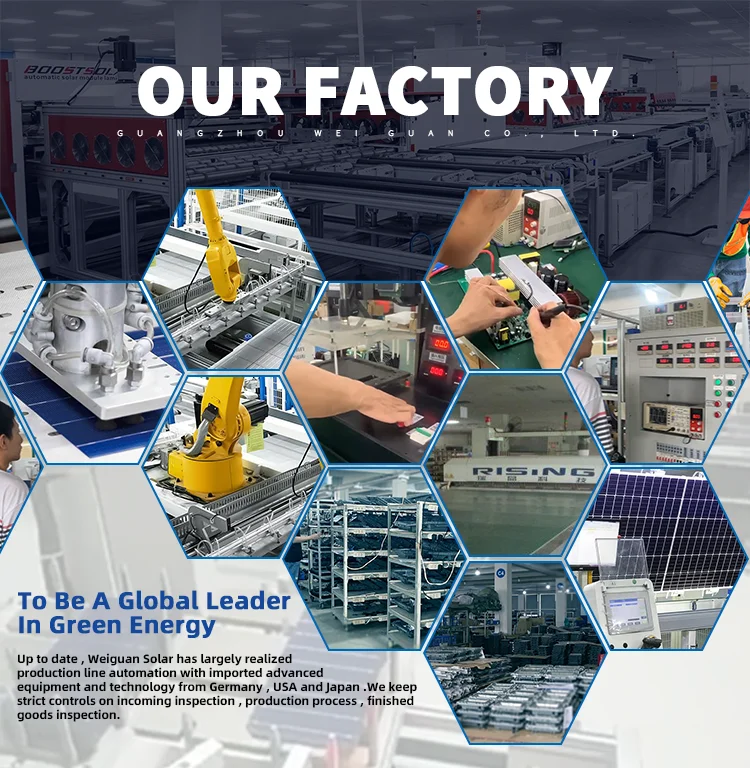

Up to date , Weiguan Solar has largely realized production line automation with imported advanced equipment and technology from Germany , USA and Japan .We keep strict controls on incoming inspection , production process ,
