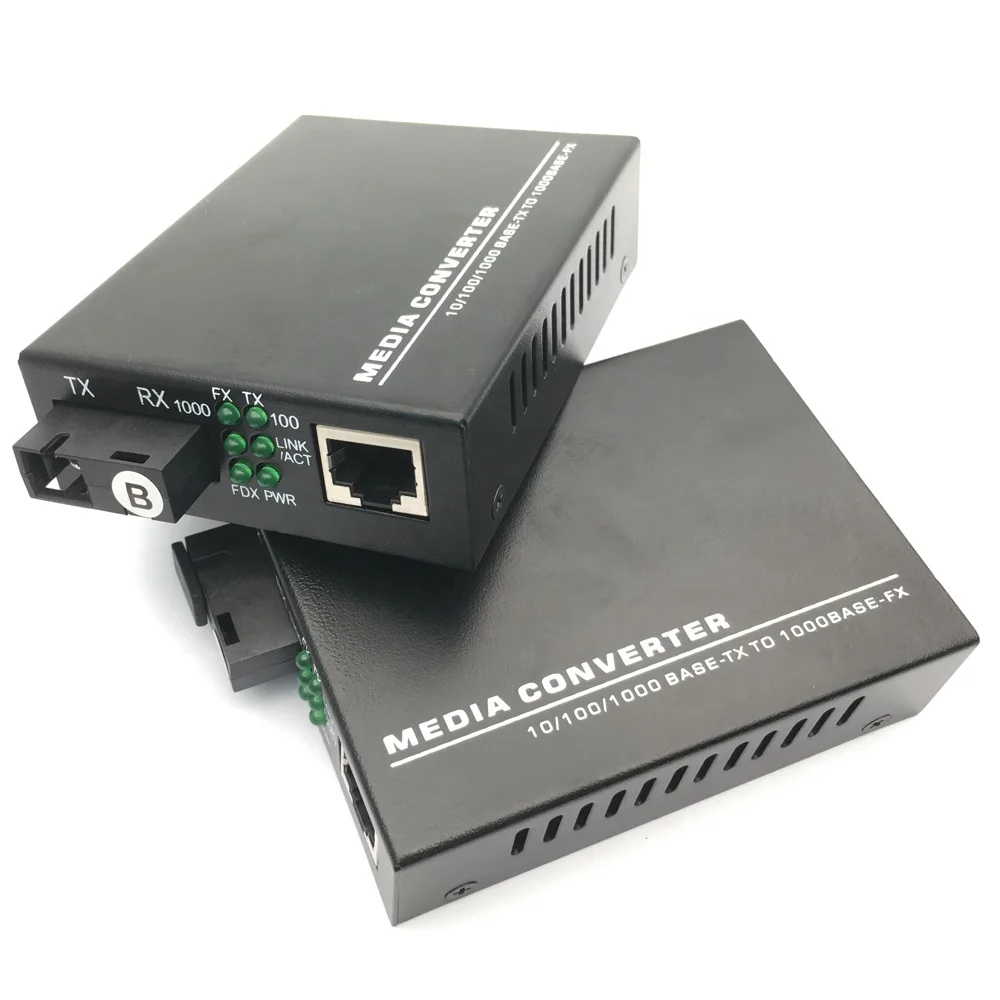

20KM 40KM 60KM 80KM Fiber Optic Transceivers 10/100/1000Mbps Singlemode & Multimode Duplex SC to RJ45 Media Converter
- Category: >>>
- Supplier: Shenzhen Hicorpwell Technology Co. Ltd.
Share on (1600630299207):
Product Overview
Description
Product Description
Hicorpwell 10/100/1000Mbps Adaptive Gigabit Ethernet fiber converter using switching technology for media conversion,
which meets the standards of IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab
It can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals.
It extends the transmission distance of a network from 100m over copper wires to 120Km. This fiber converter supports transmission in dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode fibers.
which meets the standards of IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab
It can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals.
It extends the transmission distance of a network from 100m over copper wires to 120Km. This fiber converter supports transmission in dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode fibers.
Main Features
* 10/100/1000Mbps autosensing, auto-MDI/MDIX
* Auto-MDI/MDIX copper RJ45 port
* Link fault pass through (LFPT)
* 1600byte super data packet transmission
* Full duplex-flow control, half duplex-back pressure

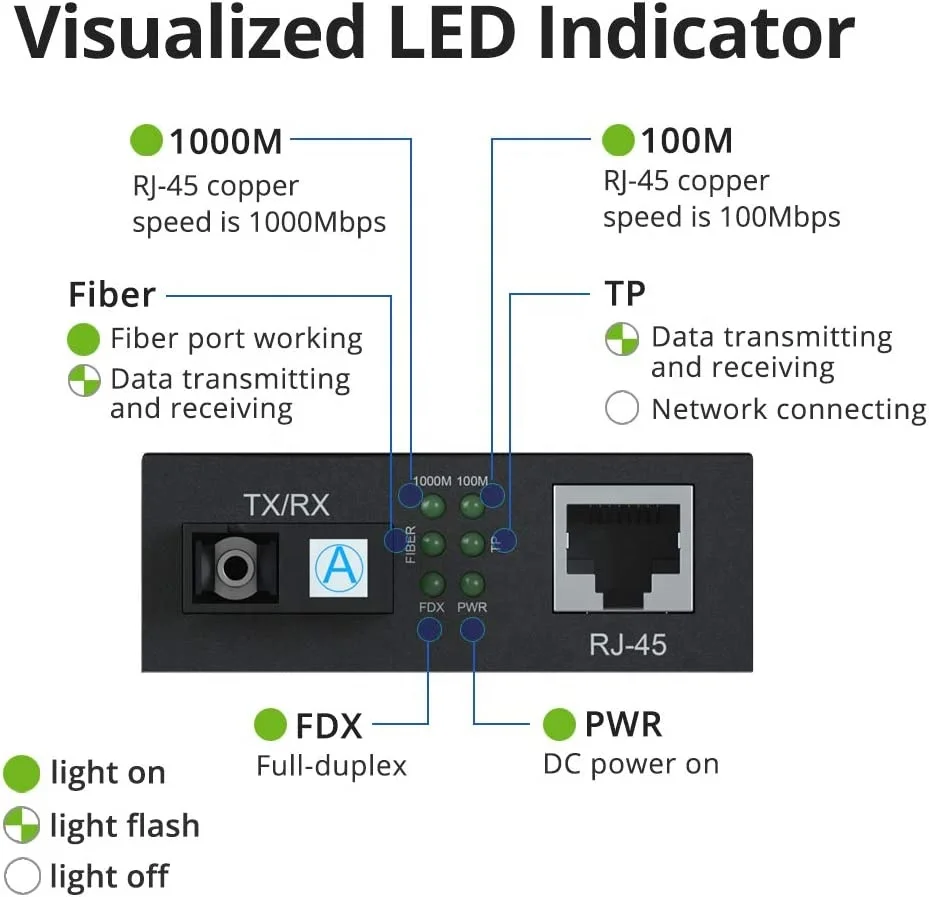

* Full- positioned LEDs to indicate power and network status
* Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Optical Port Types :
* Gigabit SC Connector
* MM, 500m, SC connector, 850nm
* SM, 40km, SC connector, 1310nm
* SM, 60km, SC connector, 1550nm
* SM, 80km, SC connector, 1550nm
* Auto-MDI/MDIX copper RJ45 port
* Link fault pass through (LFPT)
* 1600byte super data packet transmission
* Full duplex-flow control, half duplex-back pressure
* Full- positioned LEDs to indicate power and network status
* Standard : IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Optical Port Types :
* Gigabit SC Connector
* MM, 500m, SC connector, 850nm
* SM, 40km, SC connector, 1310nm
* SM, 60km, SC connector, 1550nm
* SM, 80km, SC connector, 1550nm
Supporting mutual signal conversion between 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX;
Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation
Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
Supporting the transmission of extra-long packets over VLAN;
Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation
Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
Supporting the transmission of extra-long packets over VLAN;
Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;

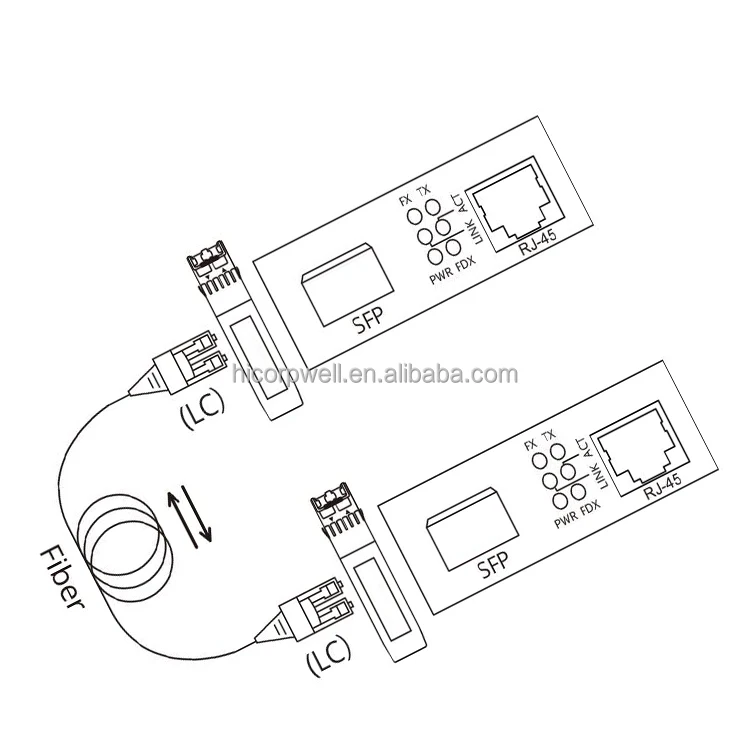

Supporting multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to
satisfy the extended requirements of users.

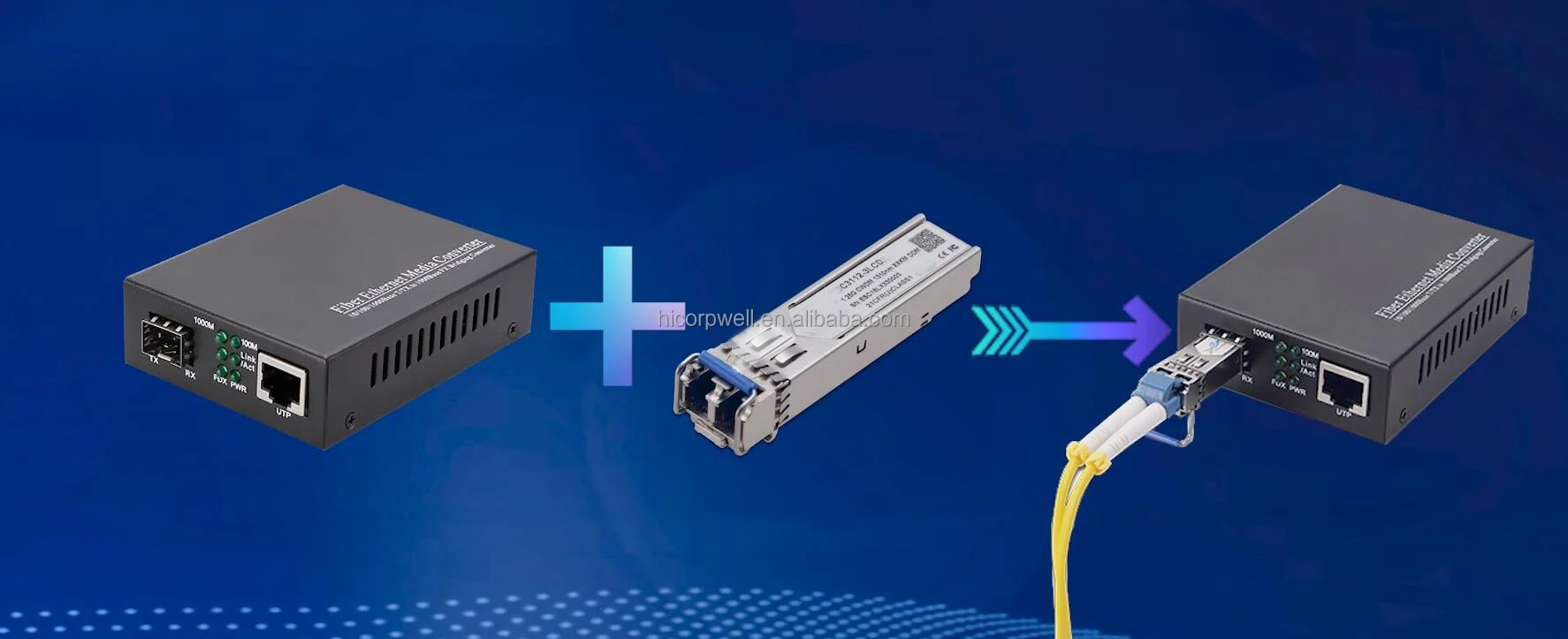

Support ZTE ZTE SFP-GE-S10K optical module docking
Supporting multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to
satisfy the extended requirements of users.
Support ZTE ZTE SFP-GE-S10K optical module docking
Part Number | Optic Fiber | Wavelength | Power | Rx Sensitivity | Reach | Loss Allowed |
HCW-20A/B | Single mode | 1310/1550nm | -6~-1db | -22db | 20km | 22db |
HCW-40A/B | Single mode | 1310/1550nm | -5~0db | -22db | 40km | 23db |
HCW-60A/B | Single mode | 1490/1550nm | 0~2db | -25db | 60km | 25db |
HCW-80A/B | Single mode | 1490/1550nm | 0~2db | -25db | 80km | 25db |
Specification
Rate | Single Fiber Optic Transceivers 10/100/1000Mbps Media Converter |
Protocolsupported | IEEE802.3/IEEE802.3Uetc. |
Fibertype | singlefiber |
Opticmode | single mode |
Transmissionmode | half/fullduplex |
Ethernetinterface | RJ45 |
Opticinterface | SC/FC/ST |
Opticwavelength | 1310/1550nm,1490/1550nm |
BER | <1/1000000000 |
MTBF | 3years |
POWER | 2.5W |

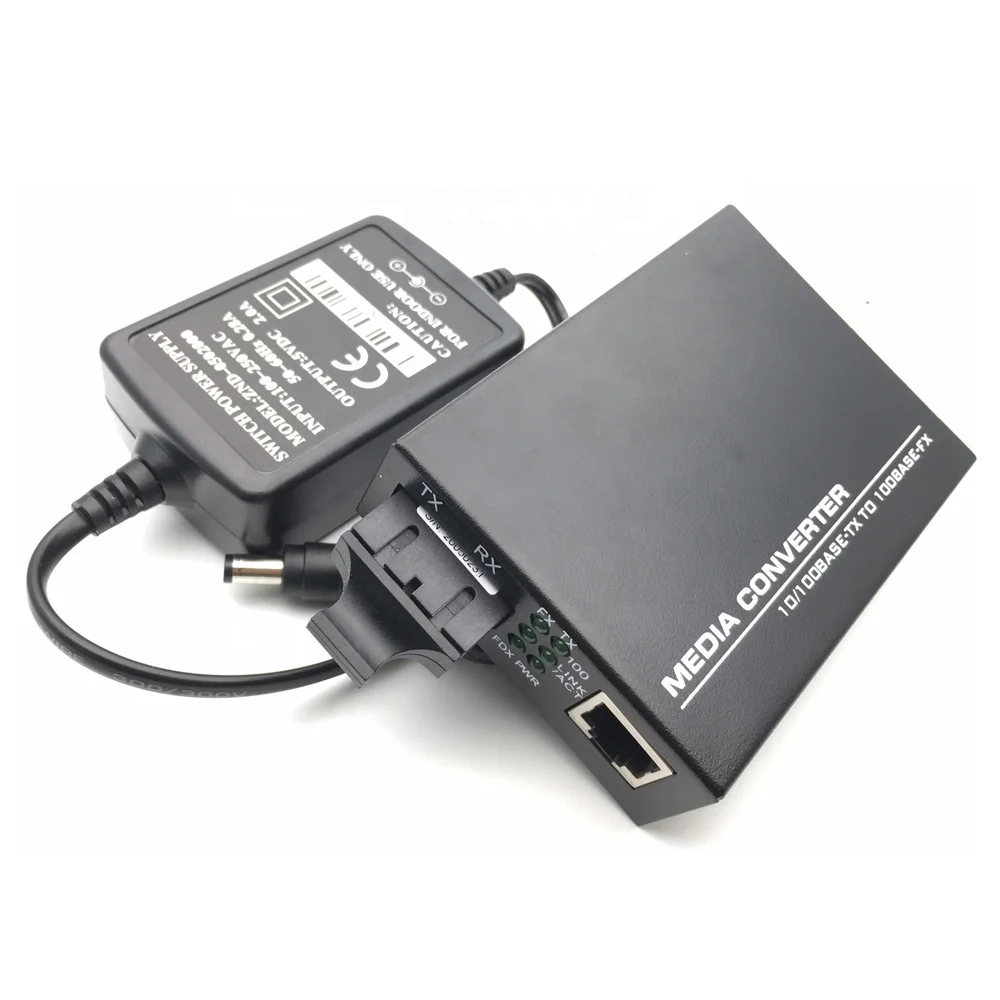

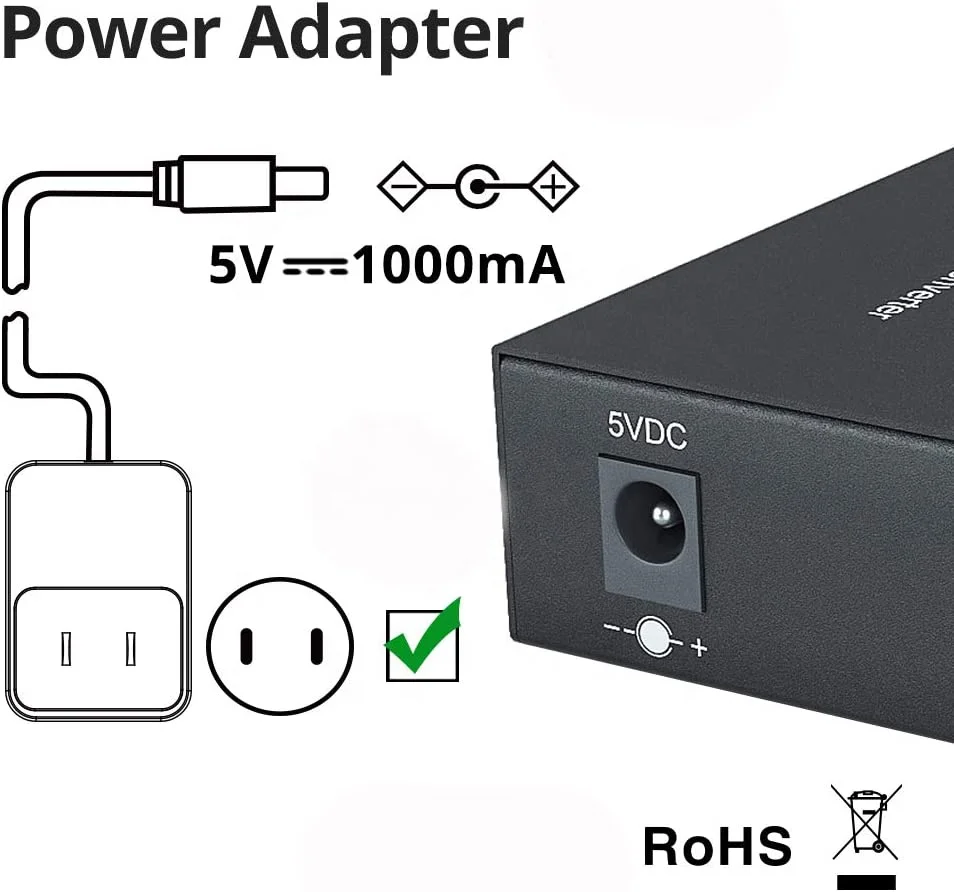

Powersupply | AC220V/0.5A,DC-48V/0.5A,DC5V/1A |

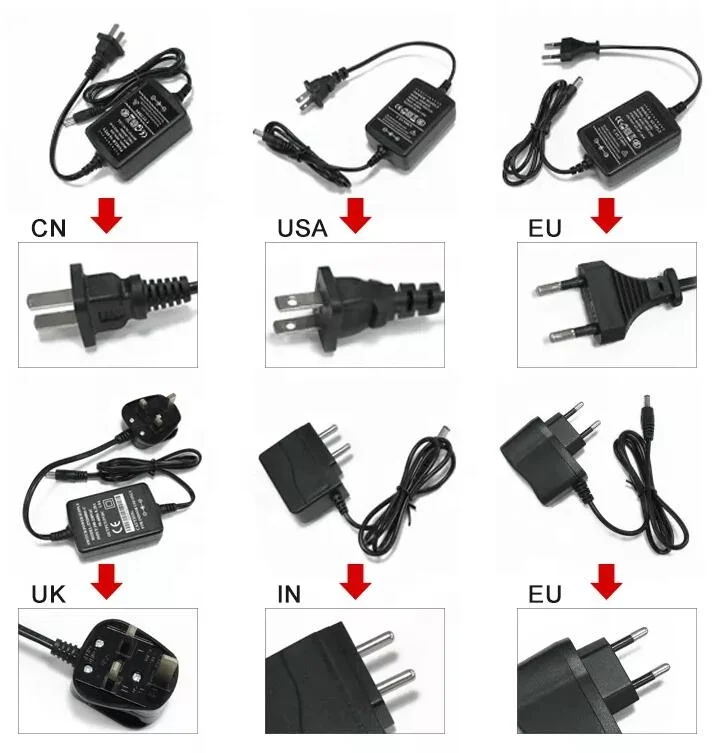

Plug kinds | Euro Standard, American Standard, UK Standard,etc |
Workingtemperature | Normal 0~50℃ or Industrial -40~85℃ |
Workinghumidity | 5%-95% |
Storagetemperature | -40℃~70℃ |
Storagehumidity | 5%~95%(no-condensing) |
Weight | 0.38KG |
Dimensions | 229x122x50mmforpacking, 94x70.6x26.5mmfordevice |
Q1: Are your trading company or manufacture ?
A: We are factory verified by TUV
Q2: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q3: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q4: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q5: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal. For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
A: We are factory verified by TUV
Q2: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q3: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q4: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q5: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal. For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
