Automatic Industrial Magnetic Robotic Gripper for Manipulator Workholding In The Assembly Line
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (1600630307244):
Product Overview
Description
Product Description

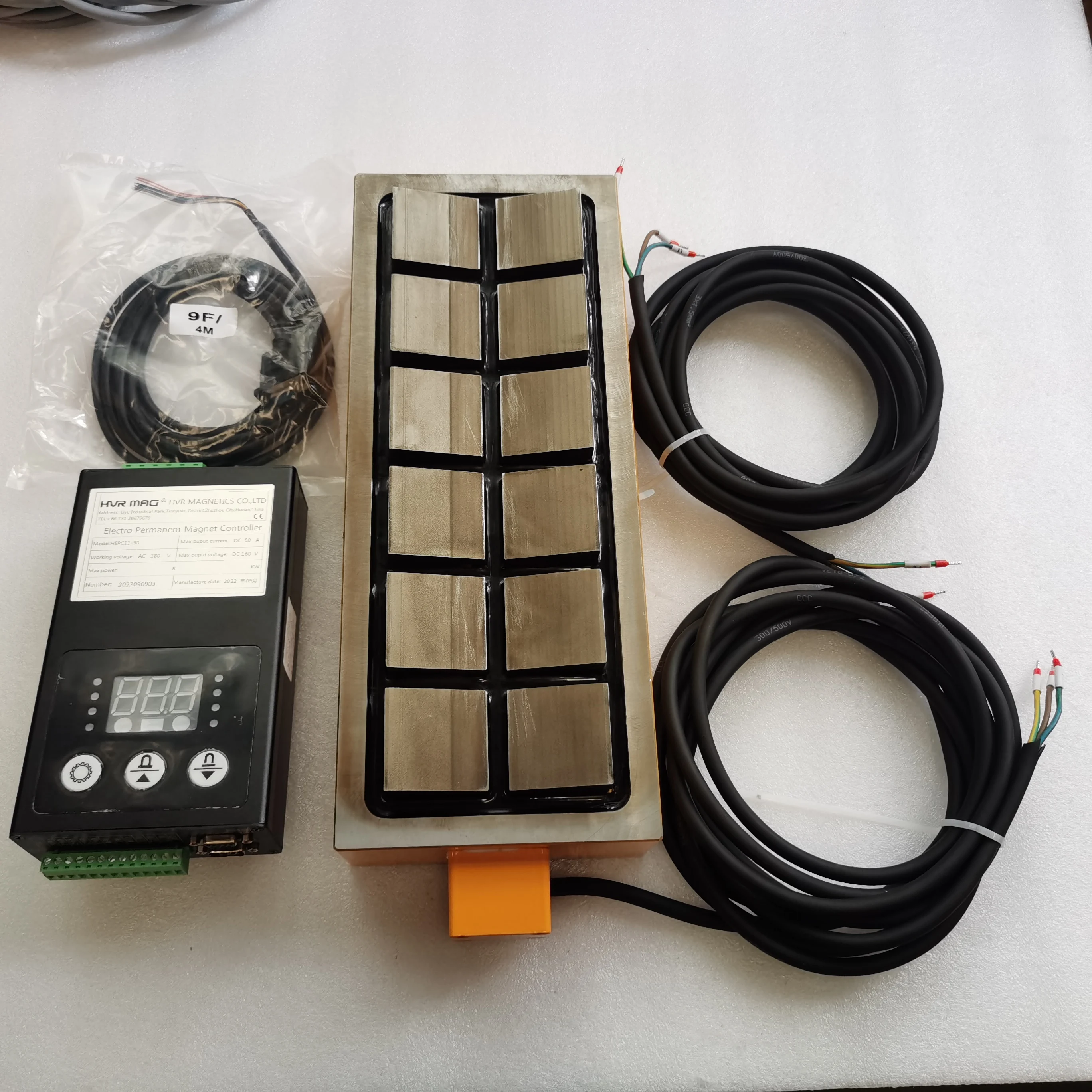

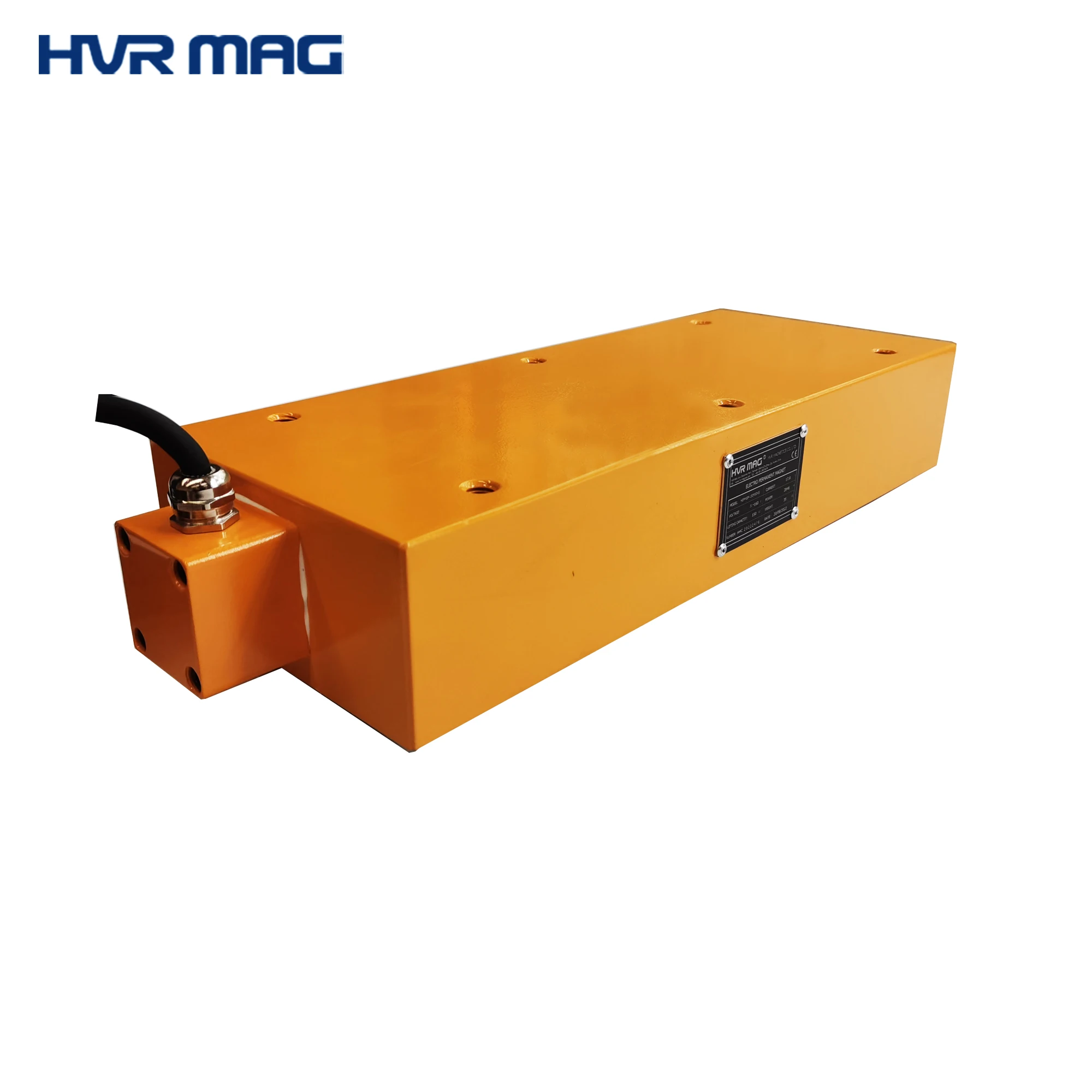

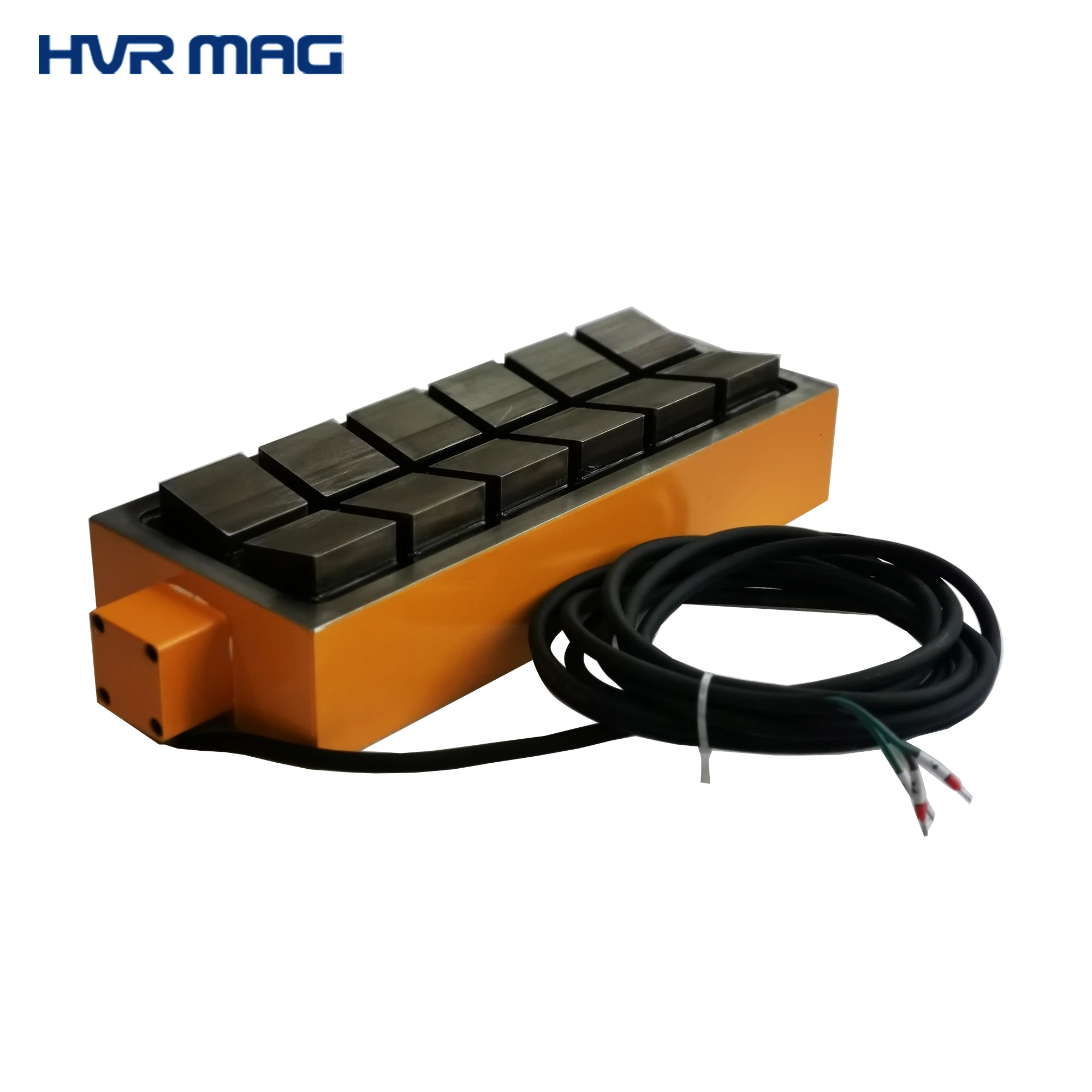

Electro-permanent Magentic Gripper For Automation
The electromagnetic gripper is a type of end effector mounted at the end of the robotic arm, which can catch and transfer steel parts or ferrous materials in automated assembly operations. It was applied in many industries, due to the powerful suction force, uniformity magnetism, and stable structure.
Specification
Model | Rated lifting force （≥16mm） | Plate thickness | Max. pulling-out force | L(mm) | W(mm) | H(mm) | Weight | Pole | Pole number |
HEPMP-1510P50 | 160kg | ≥6mm | 650KG | 150 | 100 | 72 | About 8kg | 50X50 | 2 |
HEPMP-320P50 | 320kg | ≥6mm | 1300kg | 180 | 180 | 72 | About 17kg | 50X50 | 4 |
HEPMP-500P50 | 500kg | ≥6mm | 1950kg | 250 | 180 | 72 | About 23kg | 50X50 | 6 |
HEPMP-720P50 | 720kg | ≥6mm | 2925kg | 250 | 250 | 72 | About 32kg | 50X50 | 9 |
HEPMP-2012P70 | 320kg | ≥8mm | 1100kg | 190 | 110 | 72 | About 12kg | 70X70 | 2 |
HEPMP-2020P70 | 640kg | ≥8mm | 2200kg | 200 | 200 | 72 | About 22kg | 70X70 | 4 |
Packing & Delivery

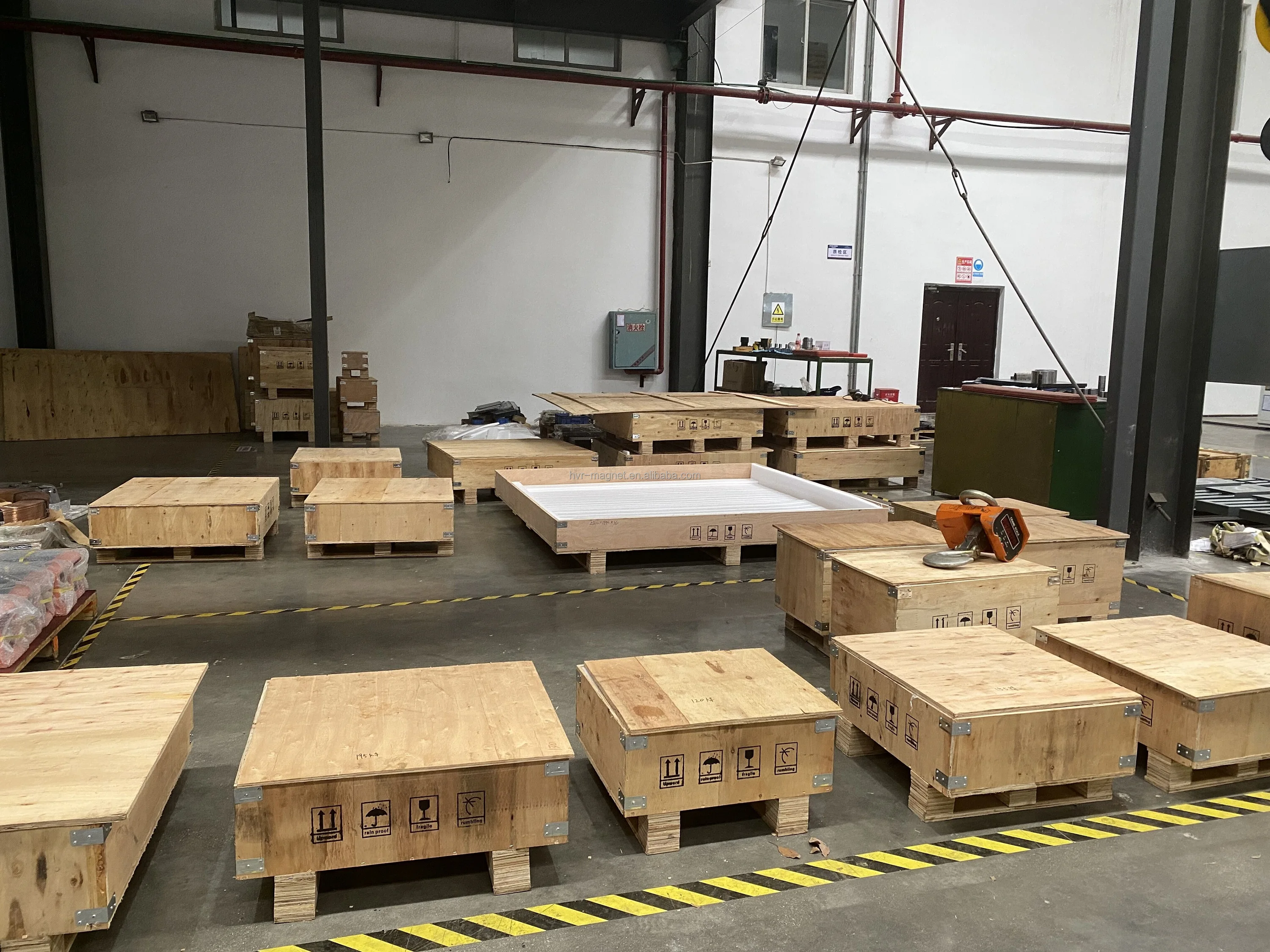

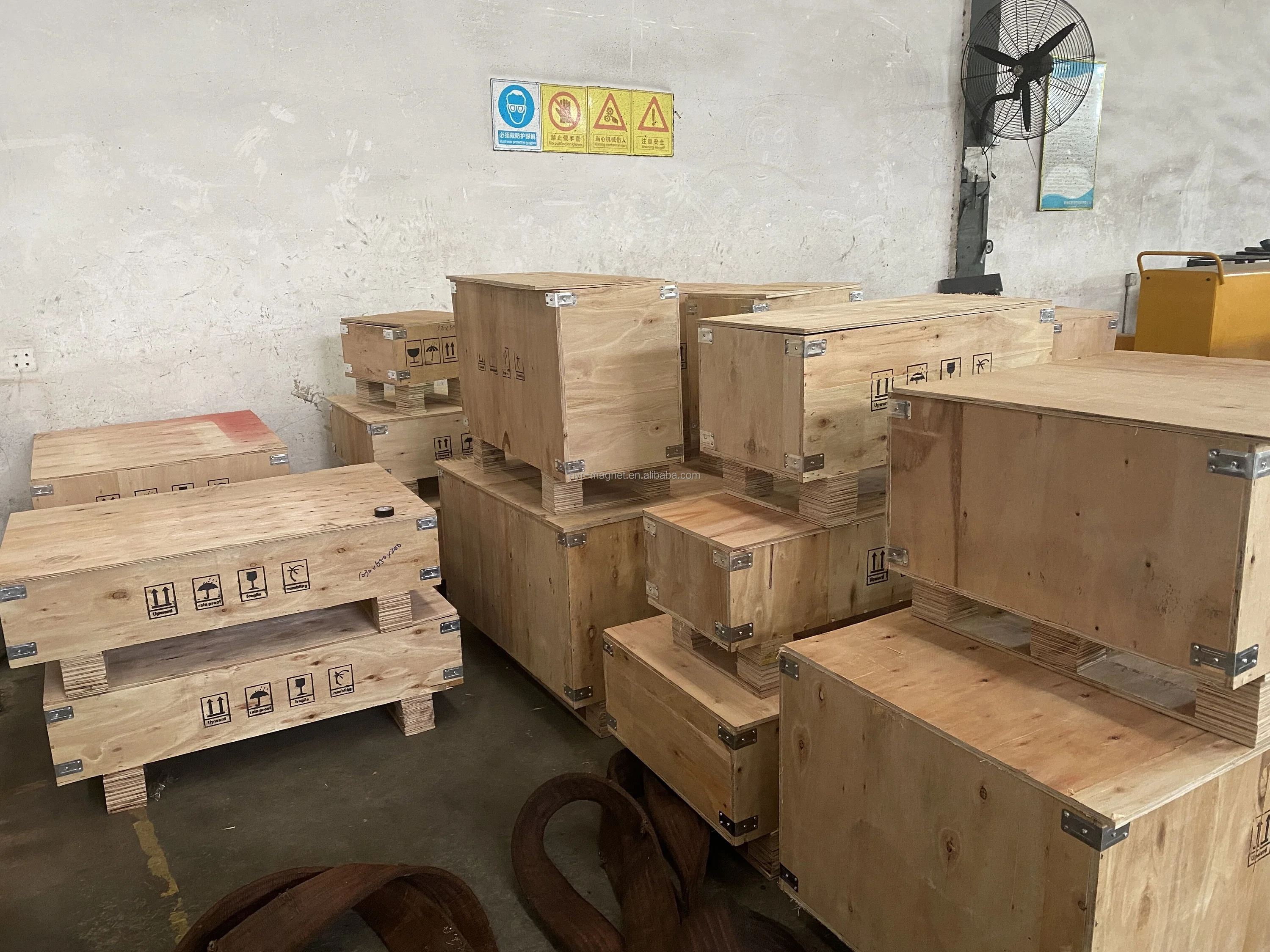

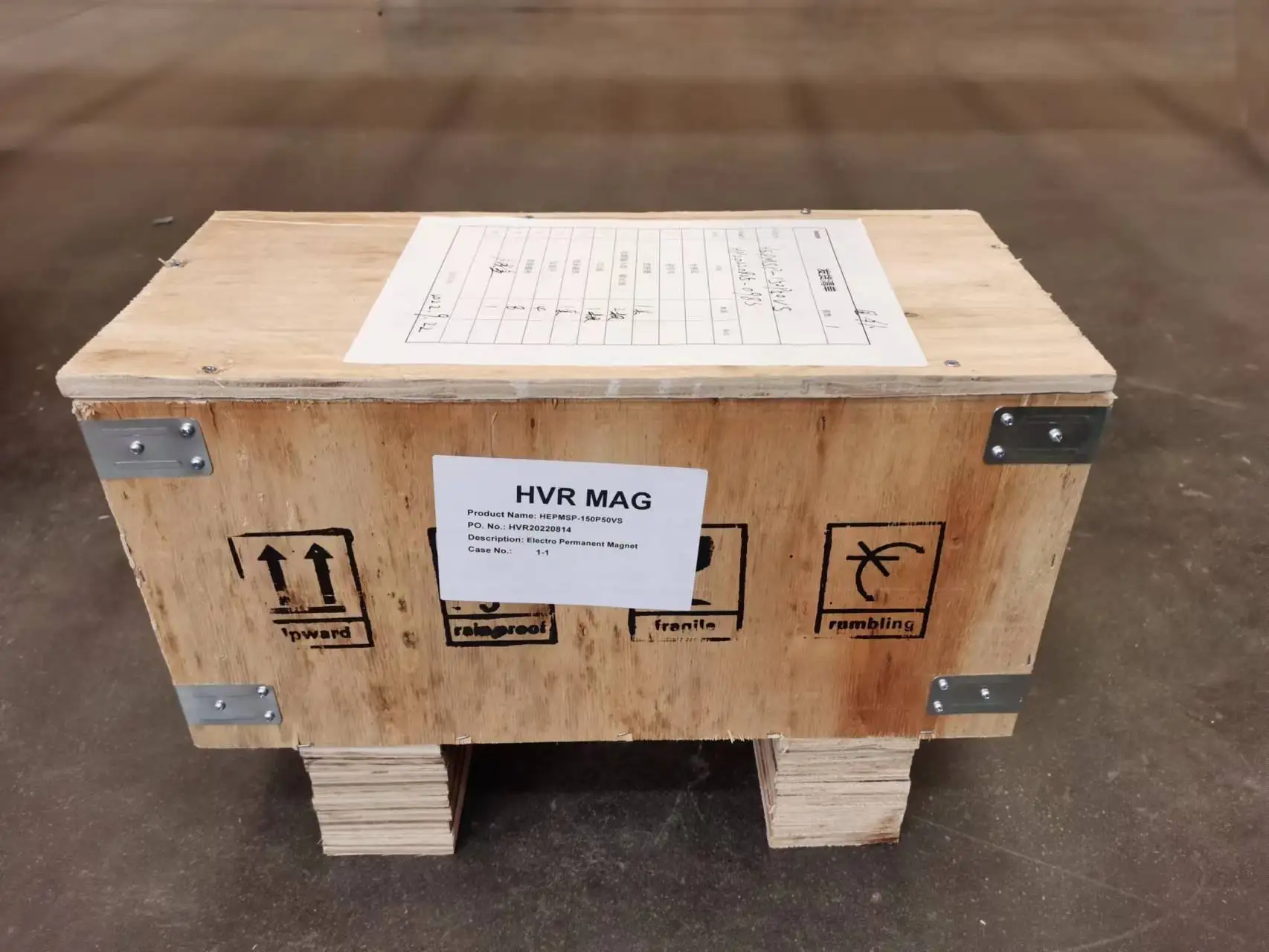

wooden case suitable for export
Certifications
Recommend Products
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB,BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Why choose us
Our products and services have spreaded all the world ,and also have been recognized by customers.
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q:How to guarantee the quality of products?
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A:Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation,we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity ,only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents.
2. CE & ISO 9001:2015 standard.
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q:How to guarantee the quality of products?
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A:Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation,we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity ,only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents.
2. CE & ISO 9001:2015 standard.
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
