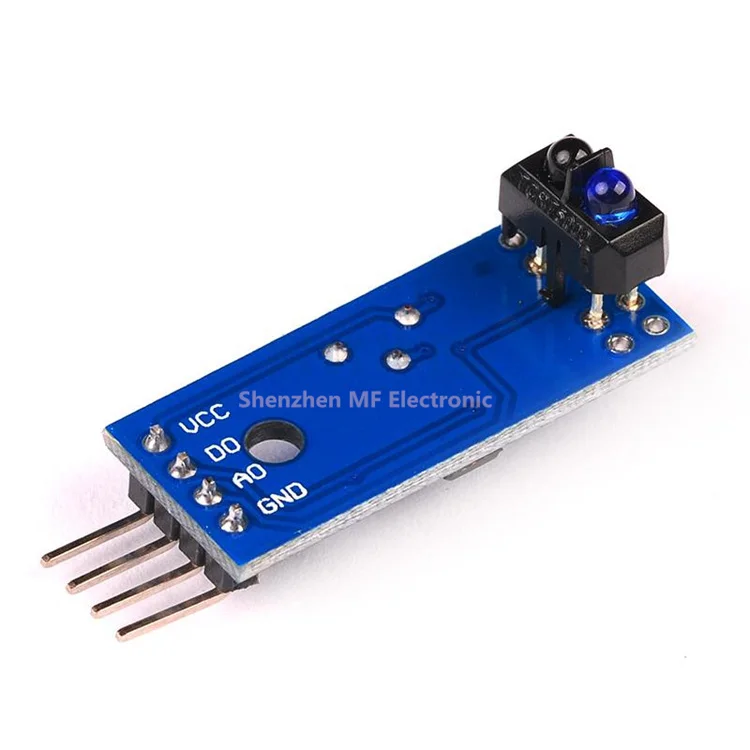

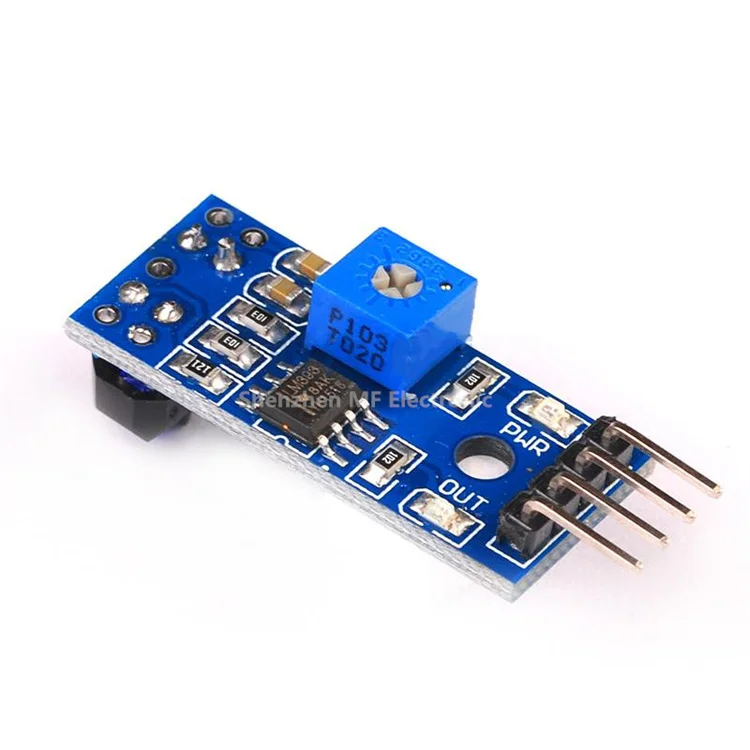

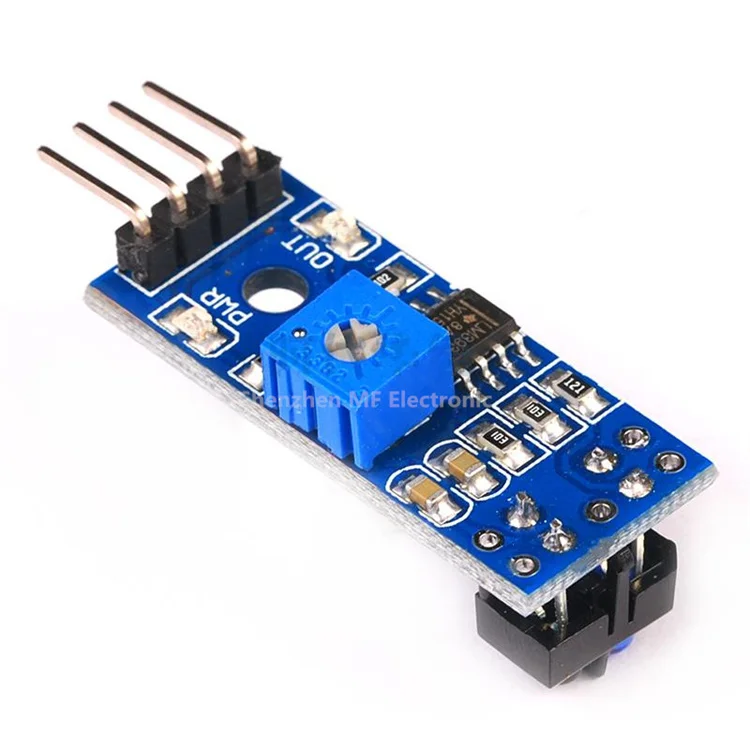

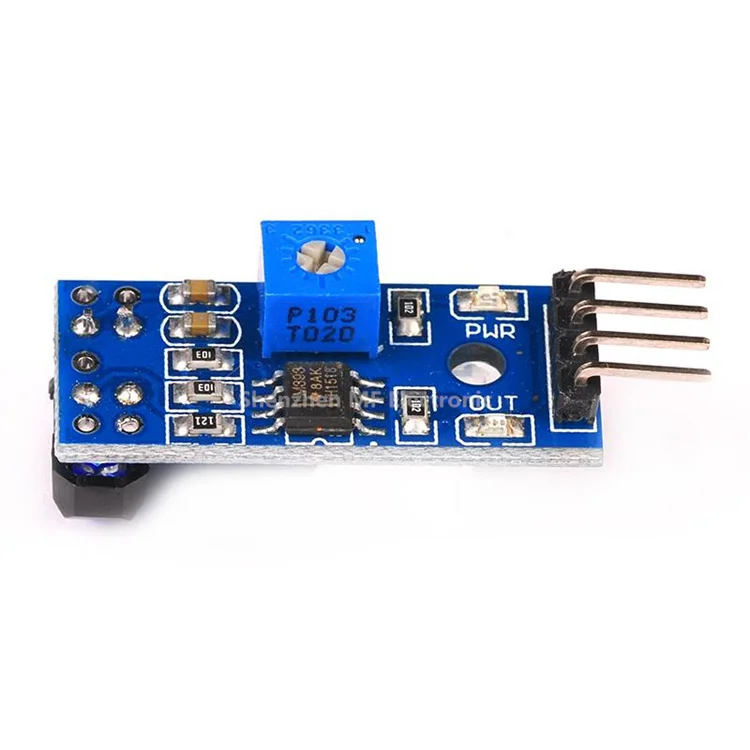

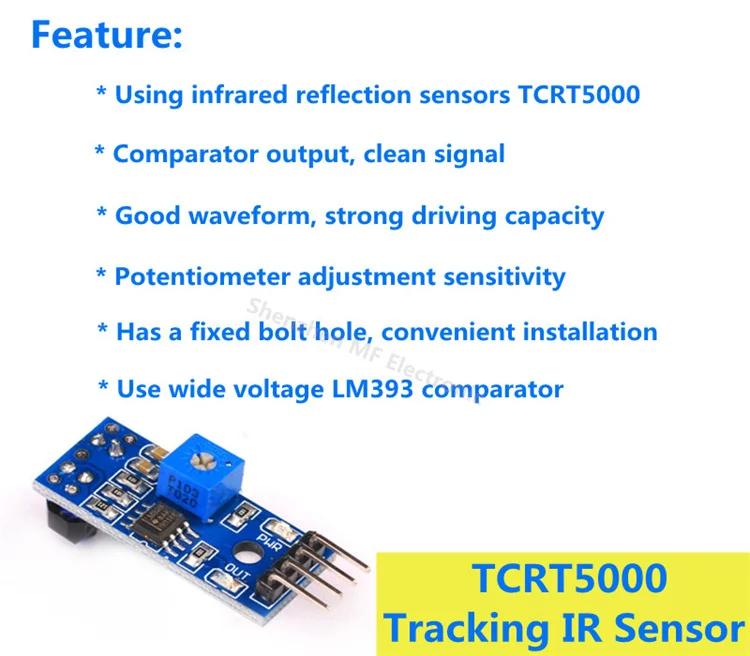

Small Tracking Obstacle Avoidance Infrared Proximity Sensor Module TCRT5000 with Wide Voltage LM393 Comparator

Product Overview

Description

Small Tracking Obstacle Avoidance Infrared Proximity Sensor Module TCRT5000 with Wide Voltage LM393 Comparator

TCRT5000 sensor of infrared emission diode constantly launch infrared, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the light activated triode has been in the off state, the output end of the module at this time for the high level, indicating diode has been put out state; Detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, light activated triode saturation, at this time the output of the module for the low level, instructs the diode lights.

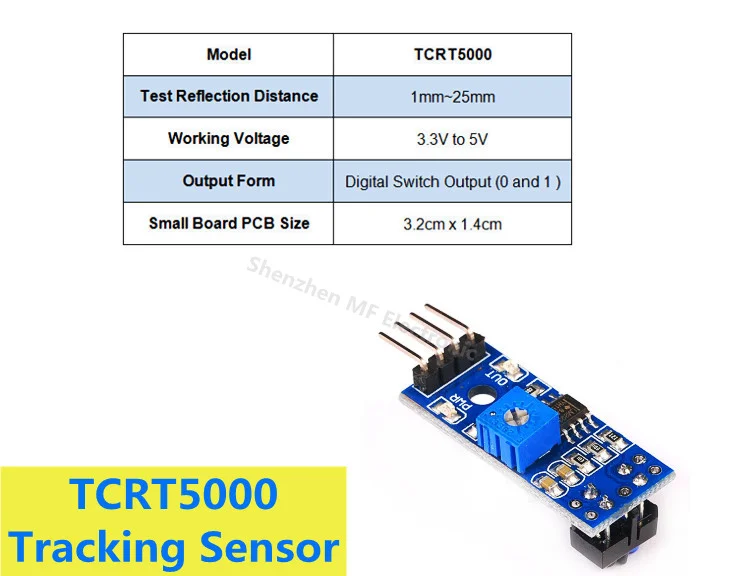

Model	TCRT5000
Test Reflection Distance	1mm~25mm
Working Voltage	3.3V to 5V
Output Form	Digital Switch Output (0 and 1 )
Small Board PCB Size	3.2cm x 1.4cm
