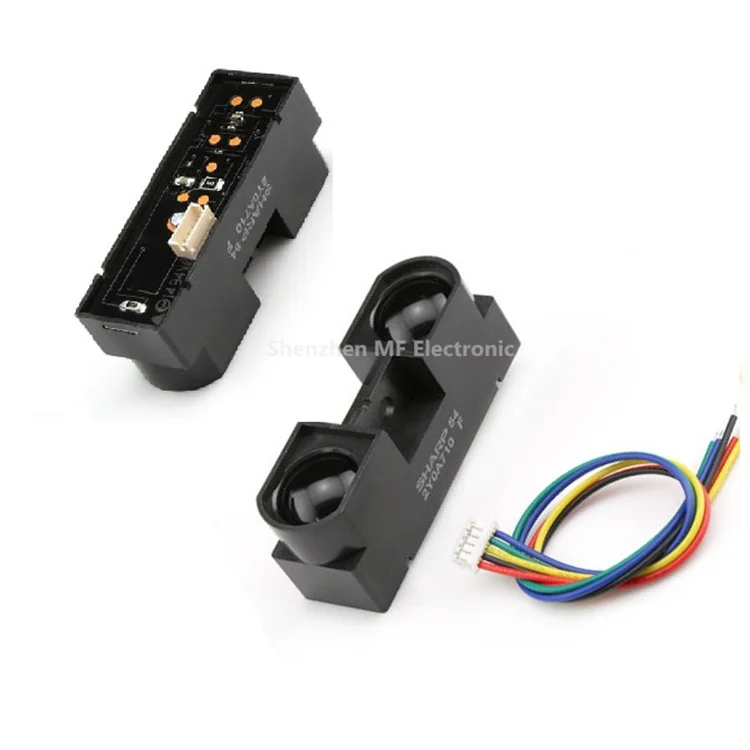

Good Price Sharp Infrared Distance Measuring IR Sensor GP2Y0A710K0F with Long Range 100 550cm For Robot Cleaner

Product Overview

Description

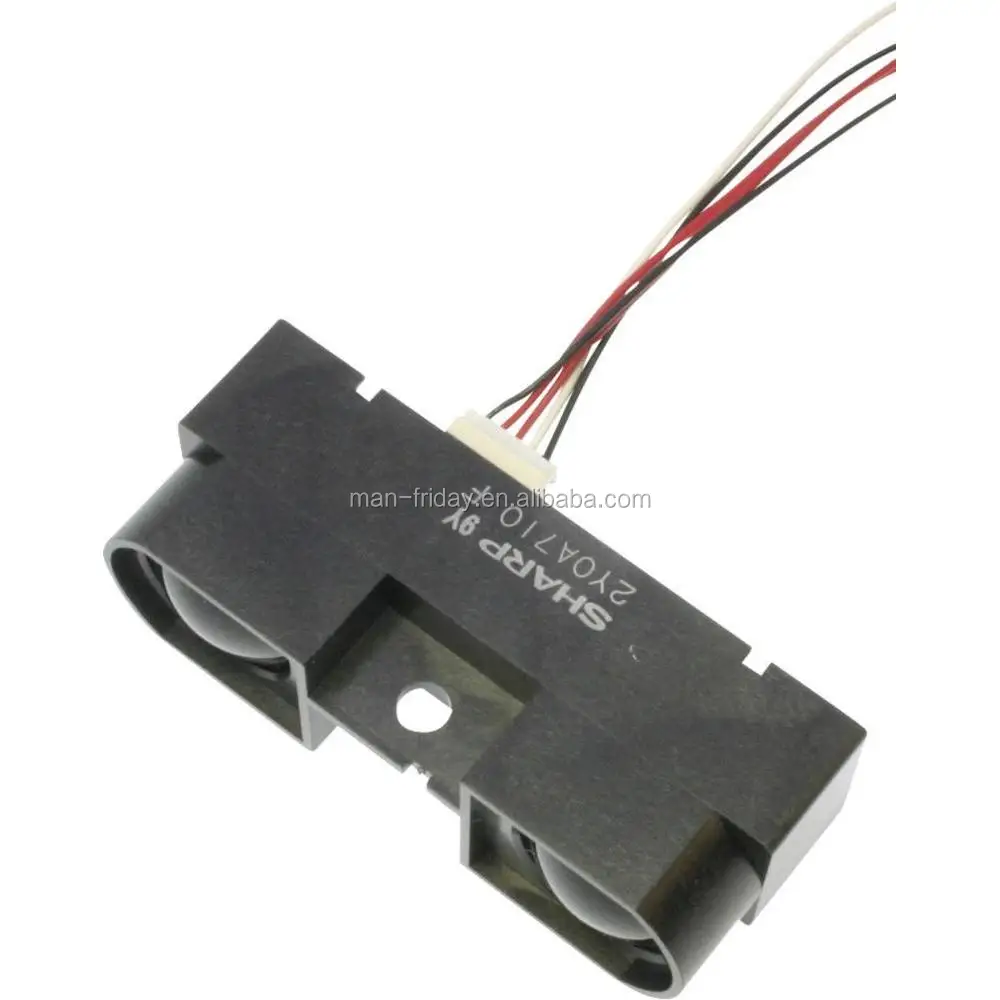

Good Price Sharp Infrared Distance Measuring IR Sensor GP2Y0A710K0F with Long Range 100-550cm For Robot Cleaner

GP2Y0A710K0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector), IR-LED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environment temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.



This device outputs the voltage corresponding to the detection distance. So this sensor can also be used has a proximity sensor.





Model	GP2Y0A710K0F
Distance Measuring Range	100 to 550 cm
Output Type	Analog
Short Measuring Cycle	16.5ms
Average Supply Current	12~22mA
Supply Voltage	4.5 to 5.5 V
Consumption current	Typ. 30 mA
Operating Temperature	-10~+60℃
Storage Temperature	-40~+70℃
Packaging Size	58*17.6*22.5mm
