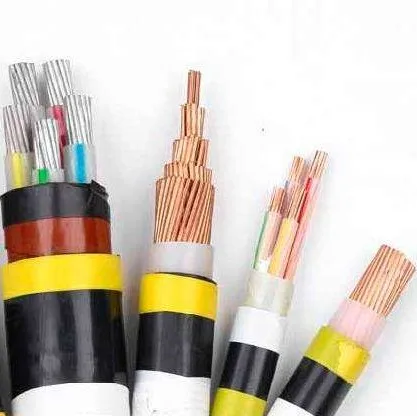

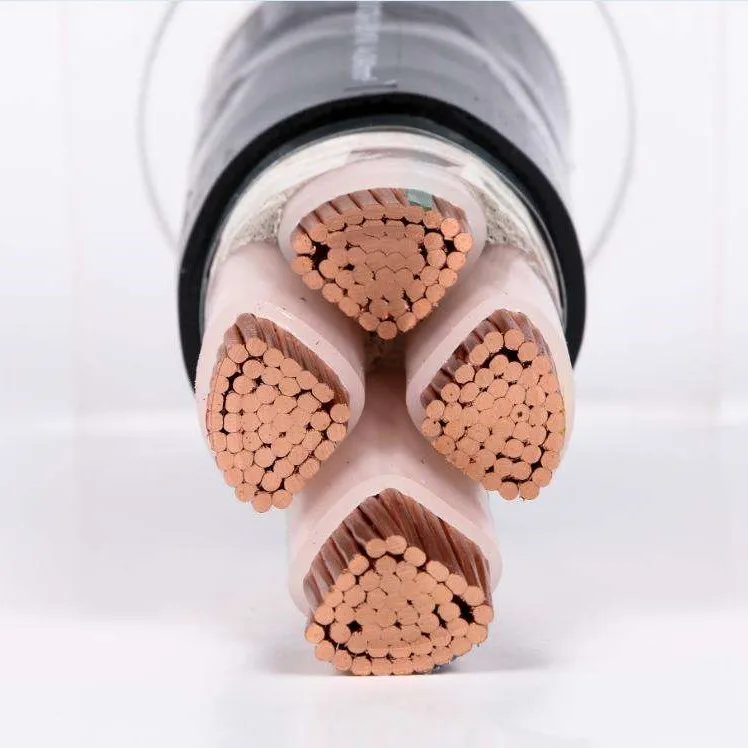

Aluminum 2 3 4 5 Core 500mm2 0.6/1 Kv Copper Conductor Xlpe Insulated Pvc Sheathed Power Cable
- Category: >>>
- Supplier: Huashuo Cable Technology (henan) Co. Ltd.
Share on (1600630636324):
Product Overview
Description
Specification
Product features and uses:
1. XLPE insulated power cable has the characteristics of high mechanical strength, strong resistance to environmental stress, excellent electrical performance, strong compressive ability, and chemical corrosion resistance.
2. In addition, the product is light and simple, easy to use. This product is suitable for transmission and distribution systems with rated voltage of 0.6/1kv.
3. The main feature of the flame retardant cable is that the cable is not easy to be ignited or the continuous ignition is limited to a certain range.
4.It is suitable for densely distributed cables in power stations, subways, tunnels, high-rise buildings, large industrial and mining enterprises, oil fields, coal mines and other places.
Operating Standard:
GB/T 12706, IEC 60502 and related domestic and foreign standards. Such as BS, VDE, JIS, AEIC, etc.
Product performance:
The maximum allowable working temperature of the cable conductor: 90°C under normal conditions, and 250°C under short-circuit conditions, the longest short-circuit duration is 5s).
1. XLPE insulated power cable has the characteristics of high mechanical strength, strong resistance to environmental stress, excellent electrical performance, strong compressive ability, and chemical corrosion resistance.
2. In addition, the product is light and simple, easy to use. This product is suitable for transmission and distribution systems with rated voltage of 0.6/1kv.
3. The main feature of the flame retardant cable is that the cable is not easy to be ignited or the continuous ignition is limited to a certain range.
4.It is suitable for densely distributed cables in power stations, subways, tunnels, high-rise buildings, large industrial and mining enterprises, oil fields, coal mines and other places.
Operating Standard:
GB/T 12706, IEC 60502 and related domestic and foreign standards. Such as BS, VDE, JIS, AEIC, etc.
Product performance:
The maximum allowable working temperature of the cable conductor: 90°C under normal conditions, and 250°C under short-circuit conditions, the longest short-circuit duration is 5s).
Three core cable | ||||||||||||||||||
NO.of cores×section (mm²) | Normal insulation thickness(mm) | Normal thickness of oversheath | Approximate overall diameter of cable(mm) | Approximate weight of cable(kg/km) | ||||||||||||||
Cu | AL | |||||||||||||||||
Unarmoured | Armoured | Unarmoured | Armoured | YJV | YJV22 | YJLV | YJLV22 | |||||||||||
4×4 | 0.7 | 1.8 | 1.8 | 12.5 | 18.1 | 282 | 430 | / | / | |||||||||
4×6 | 0.7 | 1.8 | 1.8 | 14.7 | 17 | 383 | 545 | / | / | |||||||||
4×10 | 0.7 | 1.8 | 1.8 | 16.9 | 19.1 | 565 | 752 | 390 | 517 | |||||||||
4×16 | 0.7 | 1.8 | 1.8 | 19.3 | 21.6 | 783 | 1020 | 416 | 663 | |||||||||
4×25 | 0.9 | 1.8 | 1.8 | 23.5 | 25.7 | 1241 | 1502 | 593 | 902 | |||||||||
4×35 | 0.9 | 1.8 | 1.8 | 26.7 | 28.7 | 1631 | 1957 | 776 | 1096 | |||||||||
4×50 | 1.0 | 1.8 | 1.9 | 28.0 | 32.6 | 2080 | 2812 | 961 | 1770 | |||||||||
4×70 | 1.1 | 2.0 | 2.1 | 33.2 | 37.5 | 2952 | 3796 | 1302 | 2222 | |||||||||
4×95 | 1.1 | 2.1 | 2.3 | 38.0 | 42.6 | 3970 | 4962 | 1693 | 2757 | |||||||||
4×120 | 1.2 | 2.3 | 2.4 | 40.9 | 46.4 | 4894 | 5913 | 2077 | 3363 | |||||||||
4×150 | 1.4 | 2.4 | 2.6 | 46.0 | 51.3 | 5980 | 7170 | 2852 | 3878 | |||||||||
4×185 | 1.6 | 2.6 | 2.7 | 52.5 | 57.8 | 7442 | 8802 | 3173 | 4618 | |||||||||
4×240 | 1.7 | 2.8 | 3.0 | 59.4 | 64.6 | 9764 | 11289 | 4032 | 5782 | |||||||||
4×300 | 1.8 | 3.0 | 3.1 | 66.2 | 71.6 | 12122 | 13856 | 4924 | 6735 | |||||||||
4×400 | 2.0 | 3.3 | 3.4 | 73.8 | 80.3 | 15624 | 18407 | 6272 | 9313 | |||||||||
4×500 | 2.2 | 3.5 | 3.7 | 89.3 | 96 | 19877 | 23264 | 7667 | 11062 | |||||||||
4×630 | 2.4 | 3.8 | 4.0 | 99.6 | 106.3 | 25124 | 28895 | 9514 | 13293 | |||||||||
Products Description
Order Process
Company Profile
HUASHUO Cable has more than 18 years of experience in wire and cable production, our factory covers an area of 8360 square meters and has a professional cable manufacturing team. We produce control cables, insulated cables, power cables, special cables and other products, with a wide variety of products, complete specifications, high quality and low prices. Products are widely used in electric power, energy, transportation, engineering, communication and other fields. In recent years, the company has won unanimous praise from customers for its excellent product quality and excellent service.
Process Flow
Certifications
Product packaging
FAQ
Q1: What are the main products of the company? Are you a manufacturer or a trader?
The company's main products are control cables,insulated cables, power cables, wiring cables, etc. We are a manufacturer with more than 20 years of experience.
Q2: What is your minimum order quantity?
Generally 100m. The cable is heavy, you'd better order a suitable quantity to avoid high shipping costs. Sea shipping is the
bestoption.
Q3: Can I get samples?
We are honored to provide you with samples, samples are provided free of charge, but need to pay for express shipping. If you have a courier account, you can send a courier to collect samples.
Q4: If we place an order, when will it be delivered?
It depends on the order quantity. Under normal circumstances, we can ship small orders within 3-5 working days, if the quantity is large, we will confirm again when you officially place the order.
Q5 Can I get a discount?
It depends on your quantity, we can discount and cover shipping. Please contact us.
Q6When can I get the price?
We usually quote within 6 hours after receiving your inquiry. If you are in a hurry to get a price, please call us or let us know
in your email so we can prioritize your inquiry.
Q7:Do you accept OEM/ODM?
We support OEM/ODM service: please don't hesitate to tell us your thoughts.
Please feel free to leave your request, we will reply you within 12 hours.
Generally 100m. The cable is heavy, you'd better order a suitable quantity to avoid high shipping costs. Sea shipping is the
bestoption.
Q3: Can I get samples?
We are honored to provide you with samples, samples are provided free of charge, but need to pay for express shipping. If you have a courier account, you can send a courier to collect samples.
Q4: If we place an order, when will it be delivered?
It depends on the order quantity. Under normal circumstances, we can ship small orders within 3-5 working days, if the quantity is large, we will confirm again when you officially place the order.
Q5 Can I get a discount?
It depends on your quantity, we can discount and cover shipping. Please contact us.
Q6When can I get the price?
We usually quote within 6 hours after receiving your inquiry. If you are in a hurry to get a price, please call us or let us know
in your email so we can prioritize your inquiry.
Q7:Do you accept OEM/ODM?
We support OEM/ODM service: please don't hesitate to tell us your thoughts.
Please feel free to leave your request, we will reply you within 12 hours.
