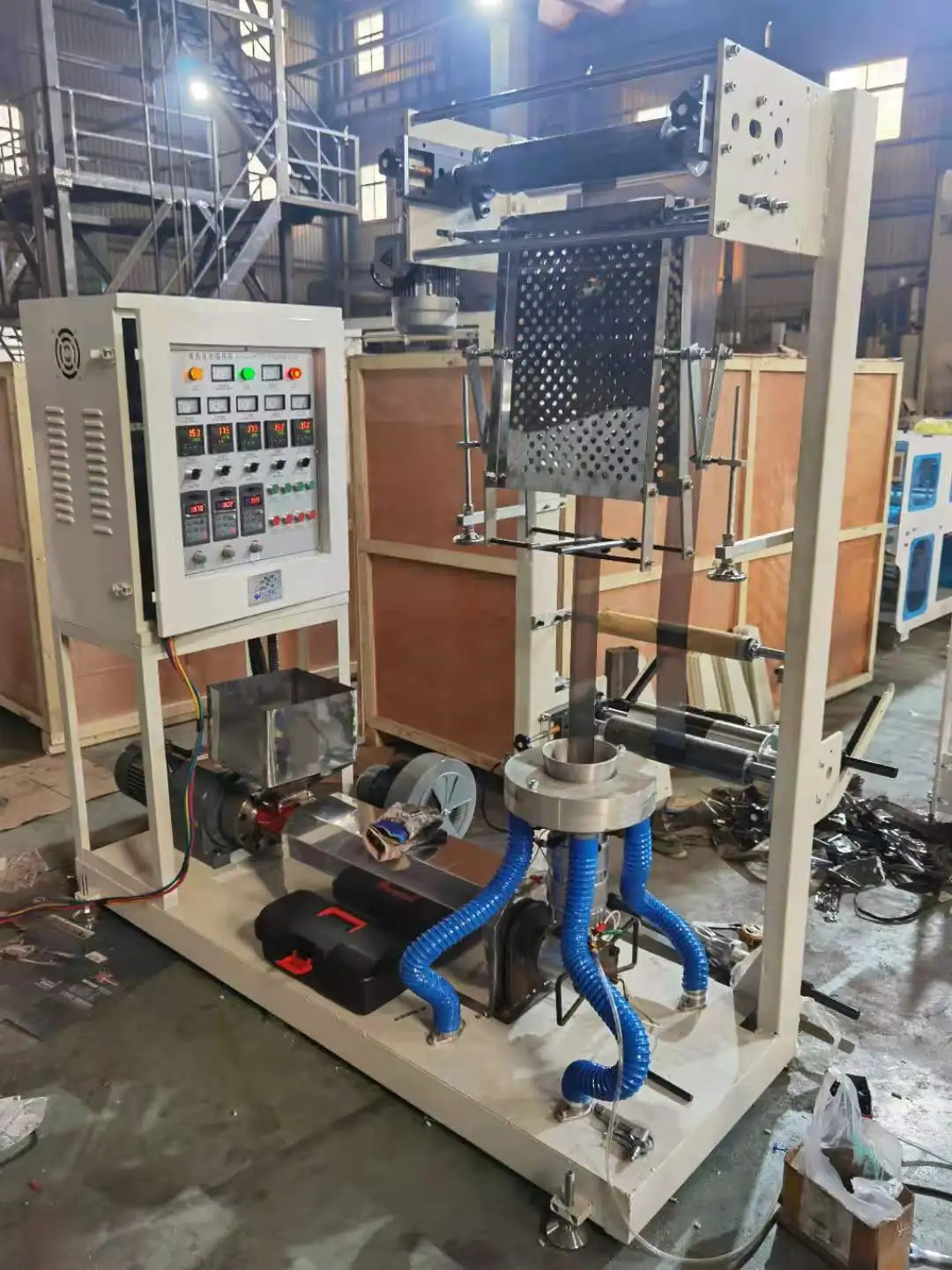

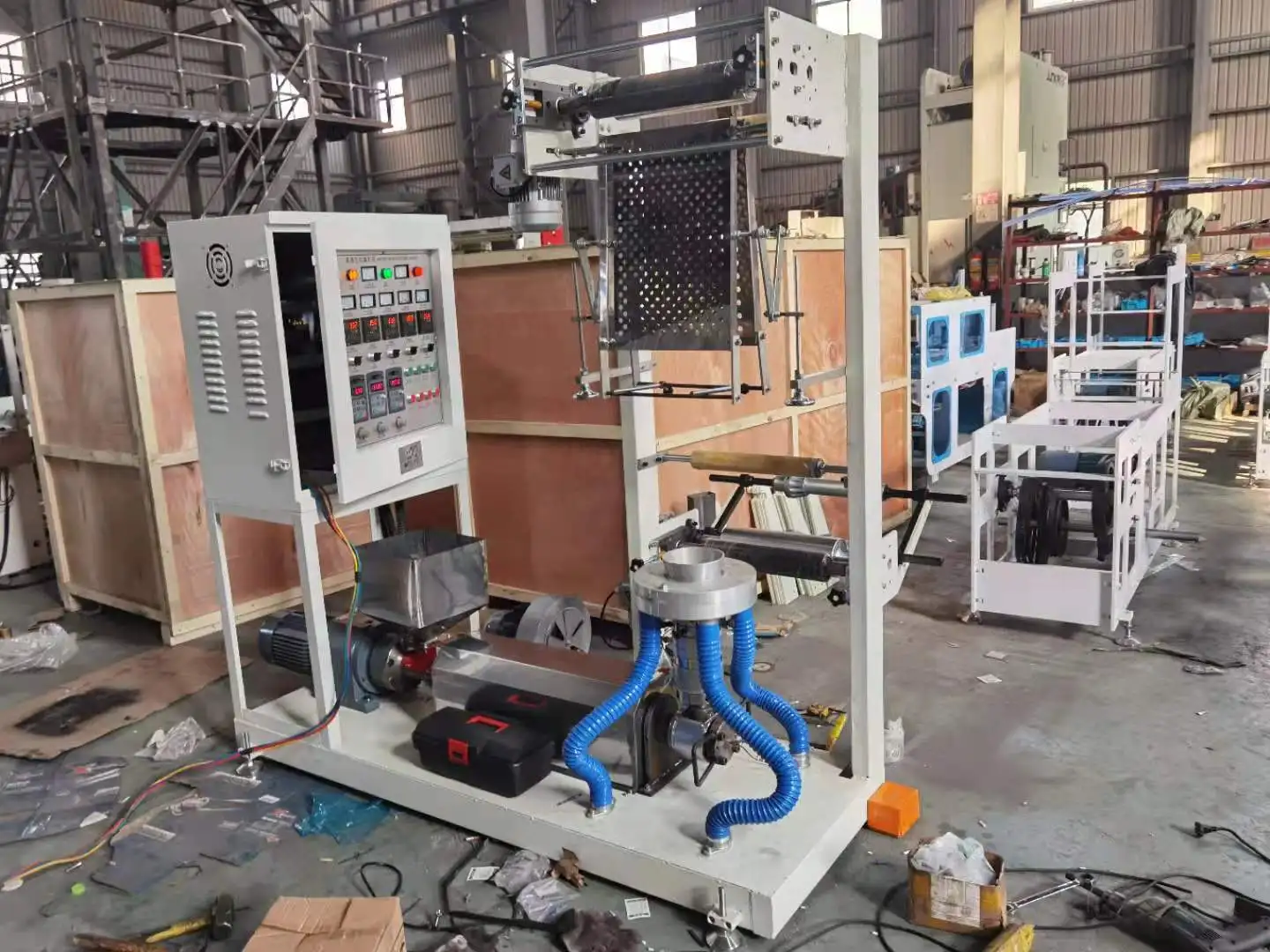

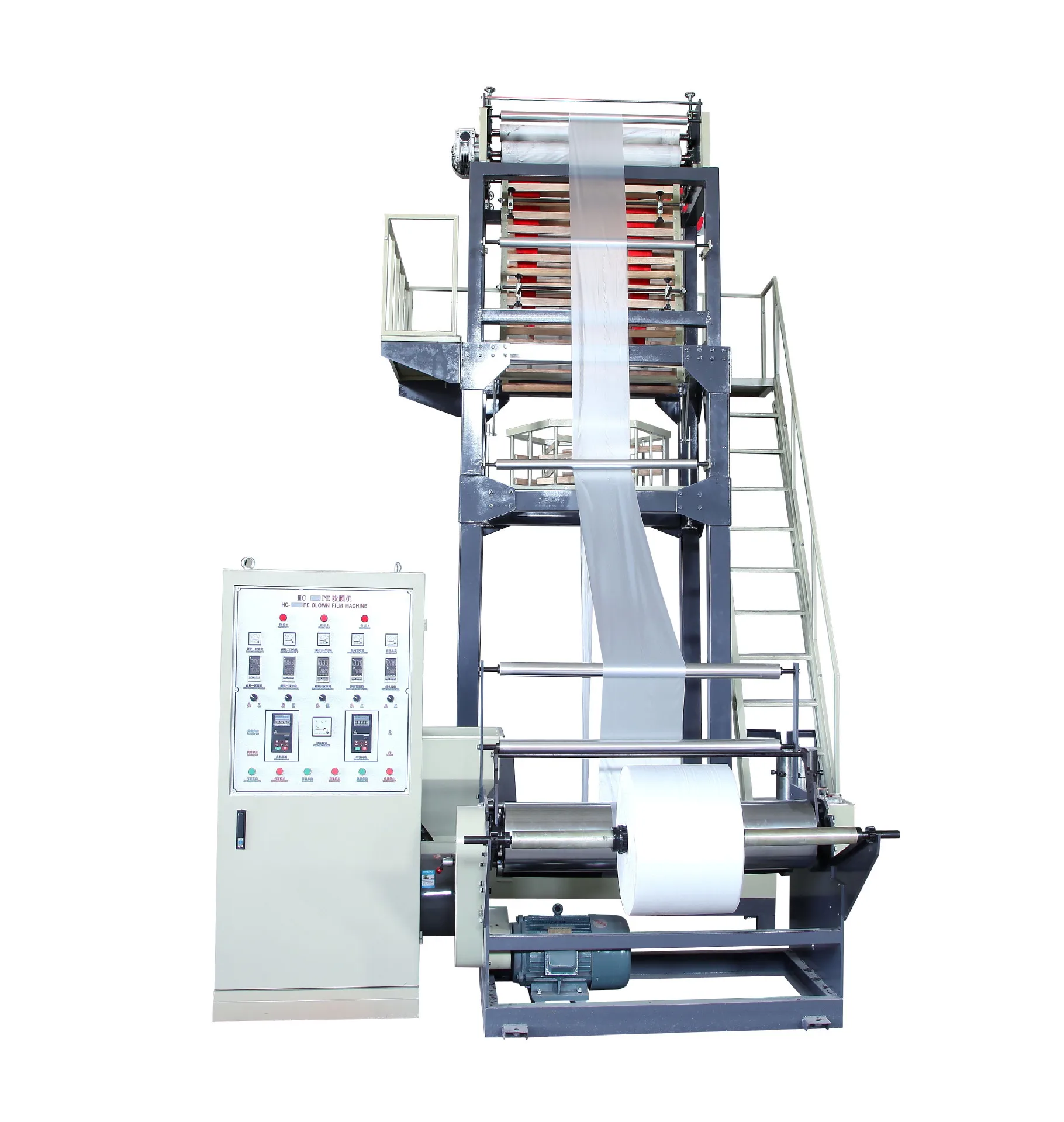

Mini Lab HDPE Film Extruder/ Extrusion Machine
- Category: >>>
- Supplier: Zhengzhou JYD Machine Co. Ltd.
Share on (1600630636492):
Product Overview
Description
Features

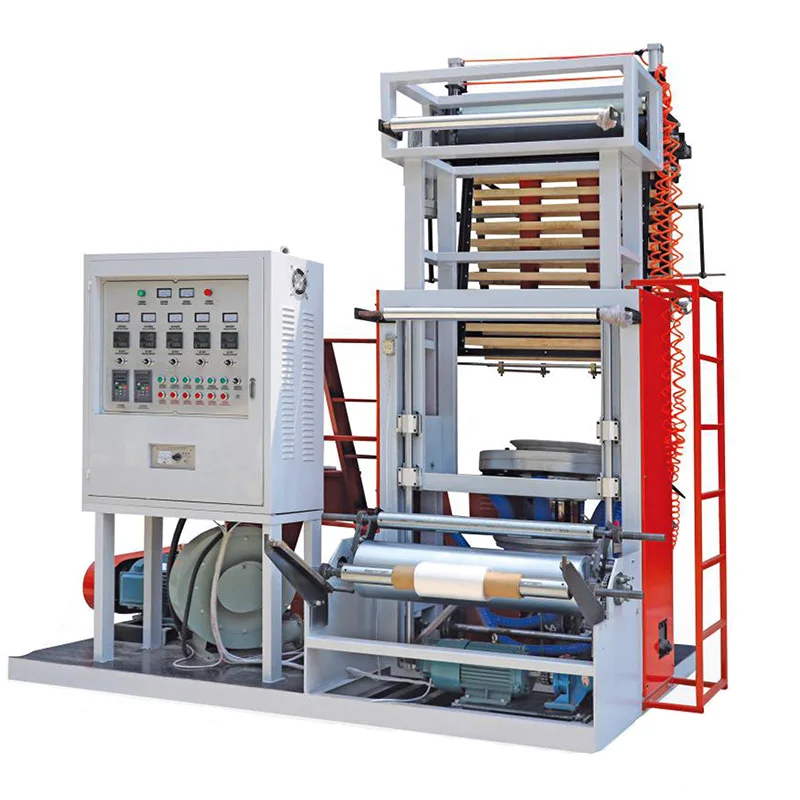

Mini film blowing machine
lts extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.Hence it is sound in hardness durable in corrosion resistance. The specally-designed screw is of sound quality in plasticizing.which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene(LDPE), highdensity polytene(HDPE )and linear low density polytene(LLDPE).it is widely applied to producing the packing bags for foodstuftclothing, rubbish bag and vest ones.
Product Paramenters
Model | HT-G-50 | HT-G-55 |
Screw diameter | 50mm | 55mm |
Reduced diameter of film | 100-600mm | 200-800mm |
Thickness of one side of film | 0.01-0.08mm | 0.01-0.08mm |
Maximum extrusion volume | 35kg/h | 50kg/h |
Screw aspect ratio | 30:1 | 30:1 |
Motor power | 7.5-11kw | 11-15kw |
Traction motor power | 1.1kw | 1.1kw |
Heating power | 11 kw | 13kw |
Automation | Automatic | Automatic |
Voltage | 380V 50Hz 3phase | 380V 50Hz 3phase |
Main dimensions: length * width * height | 2580*1900*3200mm | 3100*2150*3200mm |
Total weight | 1500kg | 2000kg |

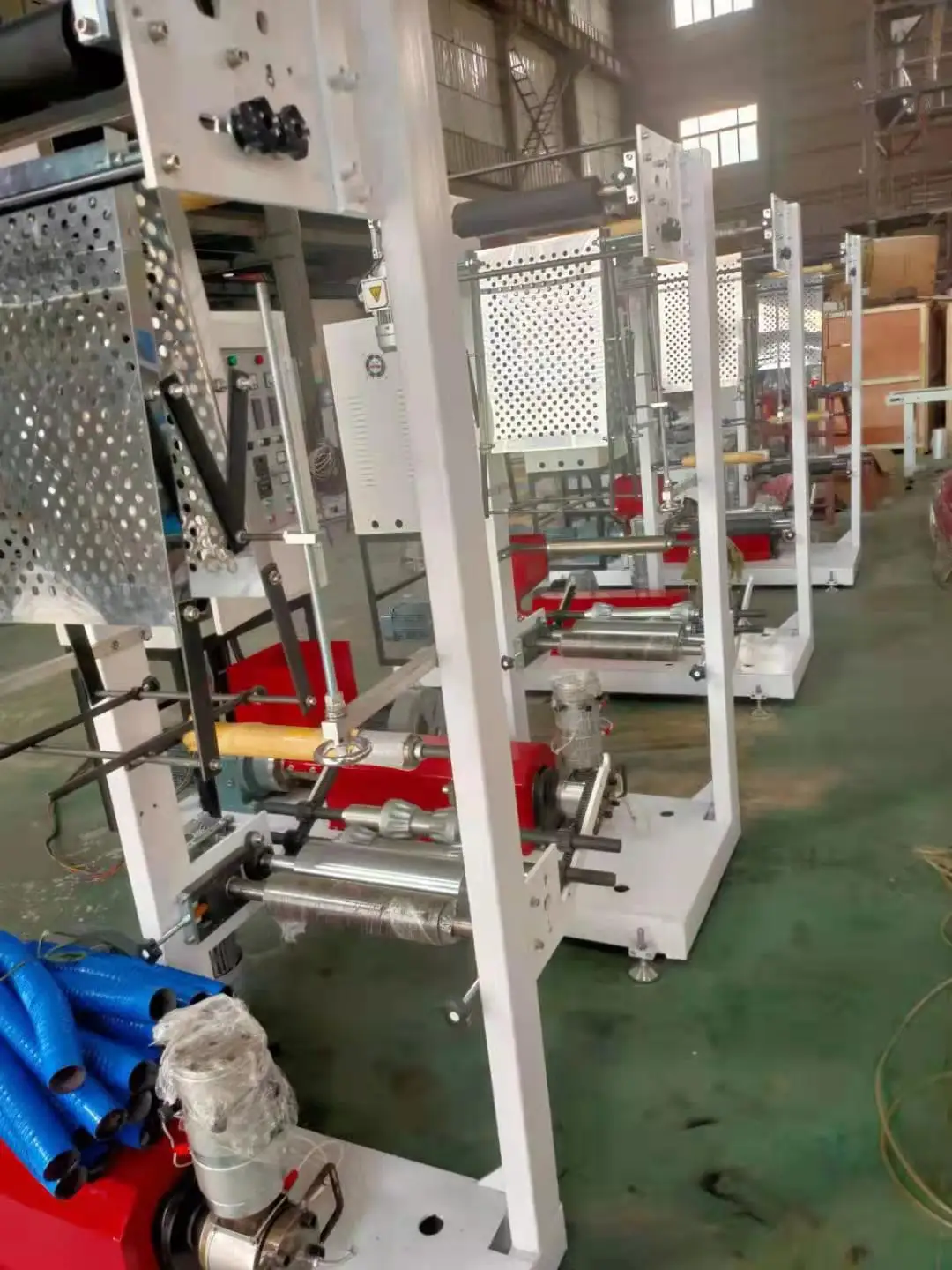

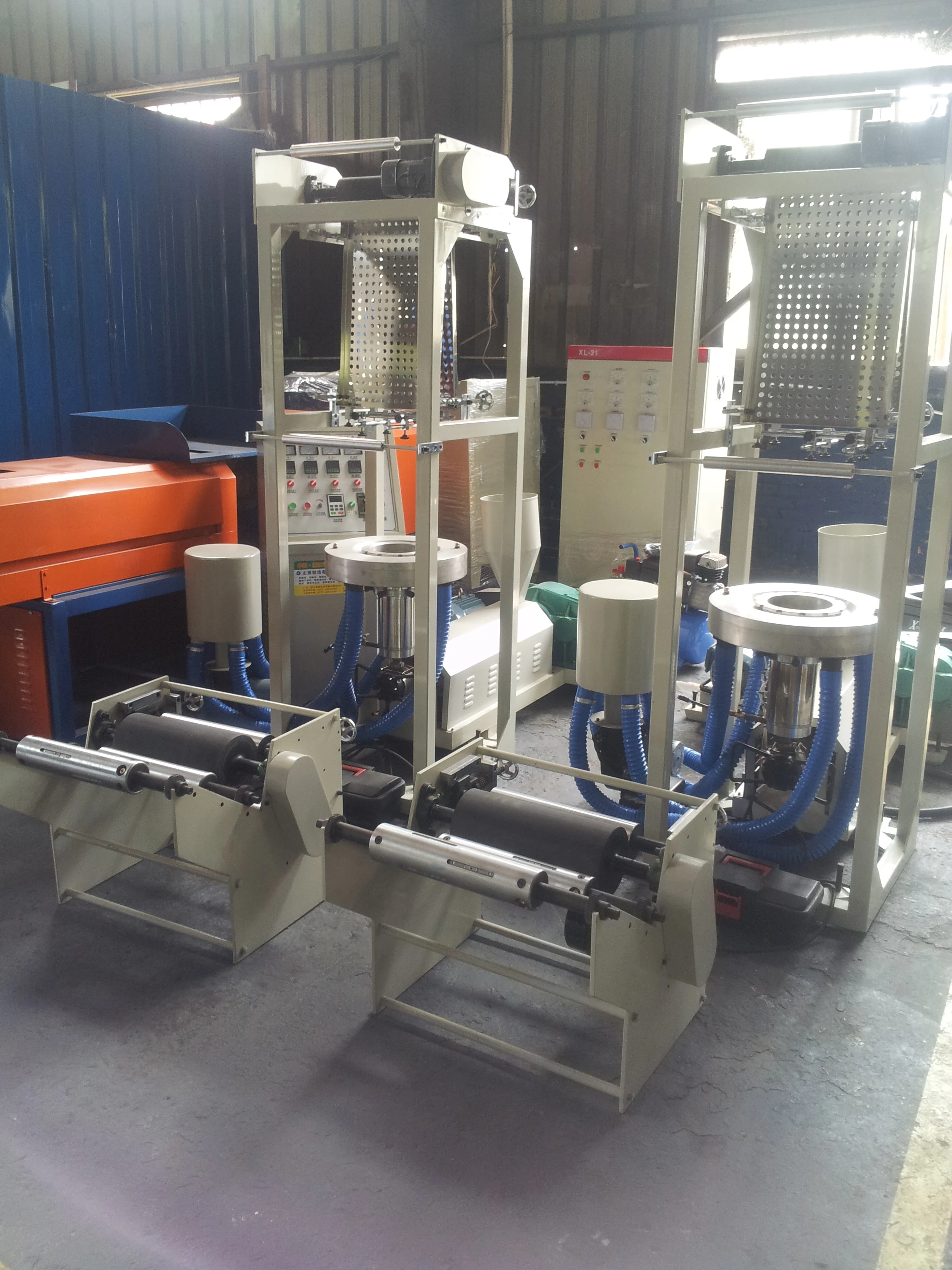

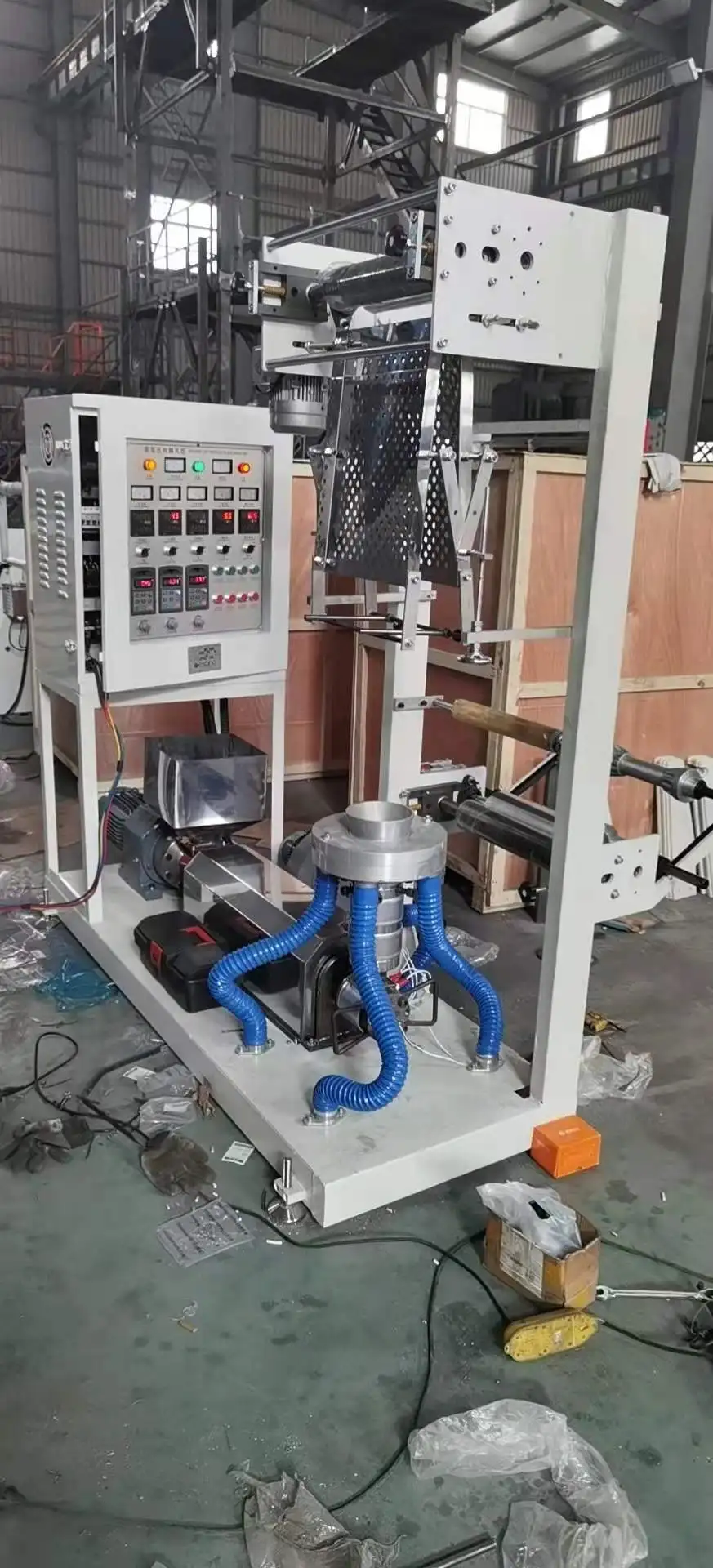

Details Images
Company Profile
Zhengzhou JYD Machine Co., Ltd. is a group company which specializes in the production of paper making machinery and pulping equipment, various paper processing equipment, packaging Machinery, filling machinery, technical research and development, sales various of mechanical equipment, professional installation and after-sales team, to provide you with high-quality technical support and perfect after-sales service.
Our factory located in Zhengzhou city , Henan province, which covers an area of 60000m2, through about 30 years development, now is has 178 staff, which including 23 engineers and technical persons.
Our factory located in Zhengzhou city , Henan province, which covers an area of 60000m2, through about 30 years development, now is has 178 staff, which including 23 engineers and technical persons.
Customer Visit
Packing & Delivery
After-sales Service
1.24 hours/day and 7 days/week for after-sales service, online guide etc.
2.Online guide to installation and commission, on-site service available if need.send rich practiced experience engineers to you to install and test the machine and train your worker for free.
3.All of our equipment contain 1 year warranty.
4.After one year,we can guide and help you to maintain the machines.
5.Every 2 years,we can help to overhaul the complete machines for free.
6.Send you spare part in lower price with fast delivery.
2.Online guide to installation and commission, on-site service available if need.send rich practiced experience engineers to you to install and test the machine and train your worker for free.
3.All of our equipment contain 1 year warranty.
4.After one year,we can guide and help you to maintain the machines.
5.Every 2 years,we can help to overhaul the complete machines for free.
6.Send you spare part in lower price with fast delivery.
