Kaishan KSZJ 18/17A 220HP Screw Air Compressor For Water Well
- Category: >>>
- Supplier: Xinxiang Toenter Technology Development Co. Ltd.
Share on (1600630646305):
Product Overview
Description
Products Description

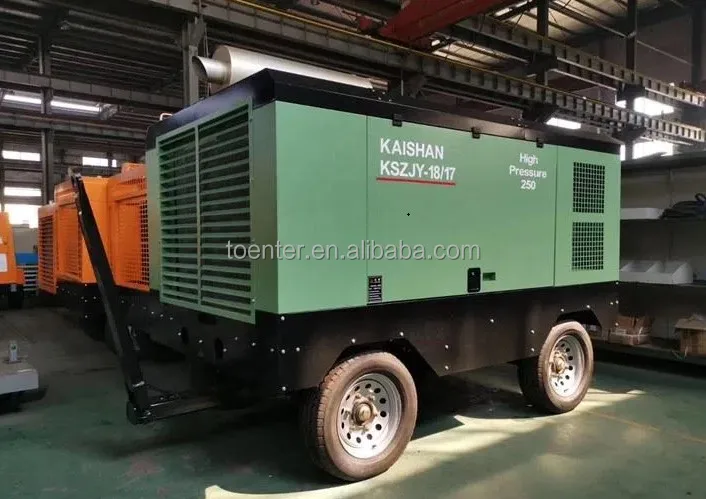

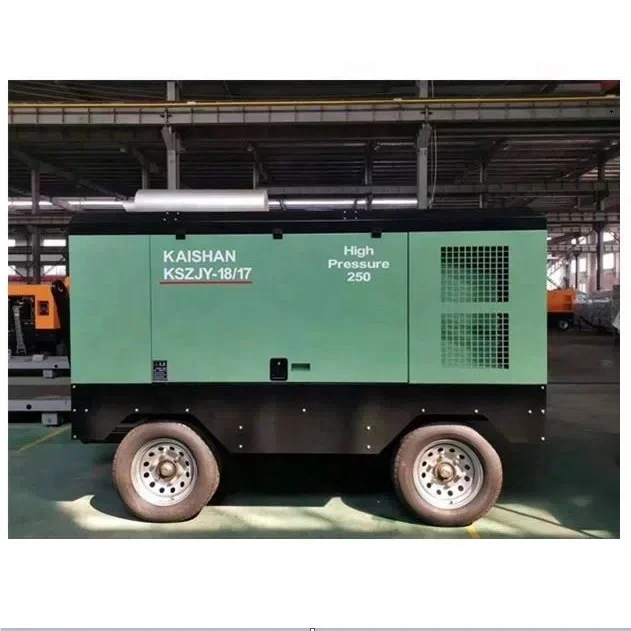

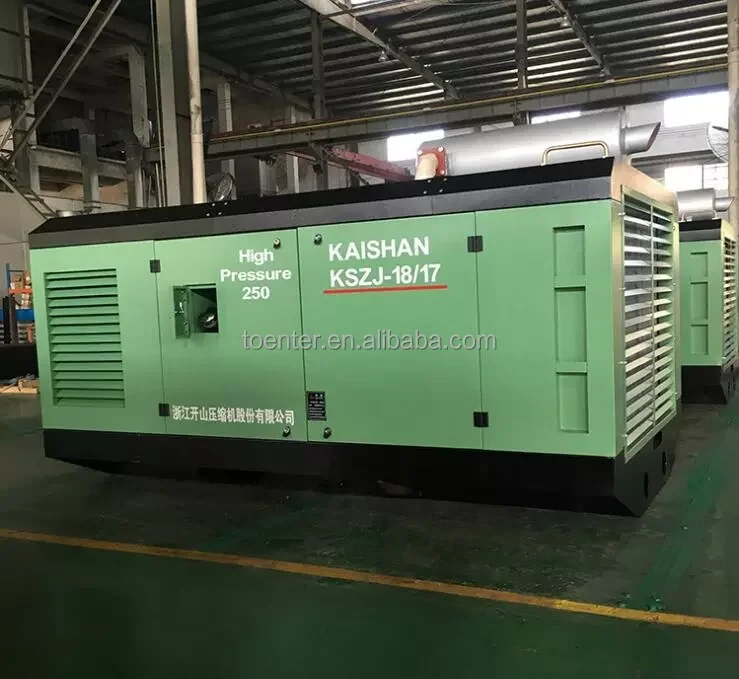

Kaishan Compressor KSZJ-18/17 Diesel Engine Screw Air Compressor
Kaishan compressor KSZJ-18/17 diesel engine screw air compressor is one 18m3/min ,17bar compressor
this air compressor is 260HP Yuchai diesel engine ,for 150-200m water well drilling or borehole drilling.
this air compressor is 260HP Yuchai diesel engine ,for 150-200m water well drilling or borehole drilling.
Advantages of air compressor for water well drilling rig:
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
Characteristic of air compressor for water well drilling rig:
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend: Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand: Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability: The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend: Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand: Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability: The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.

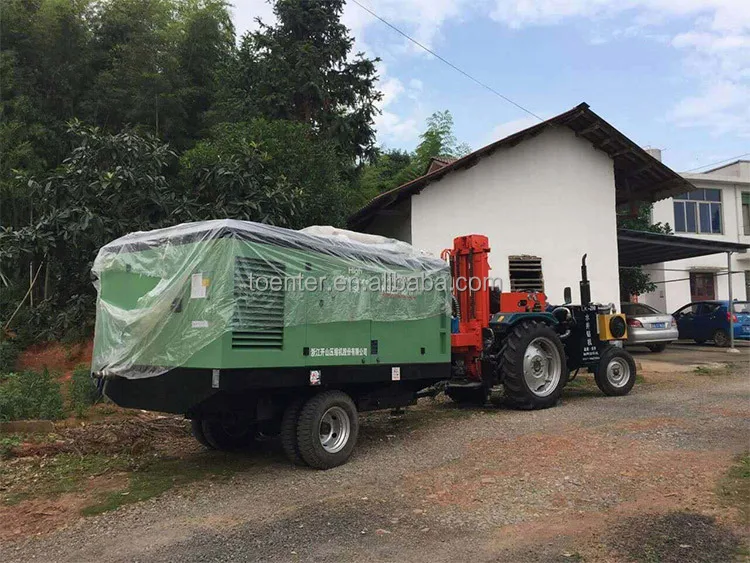

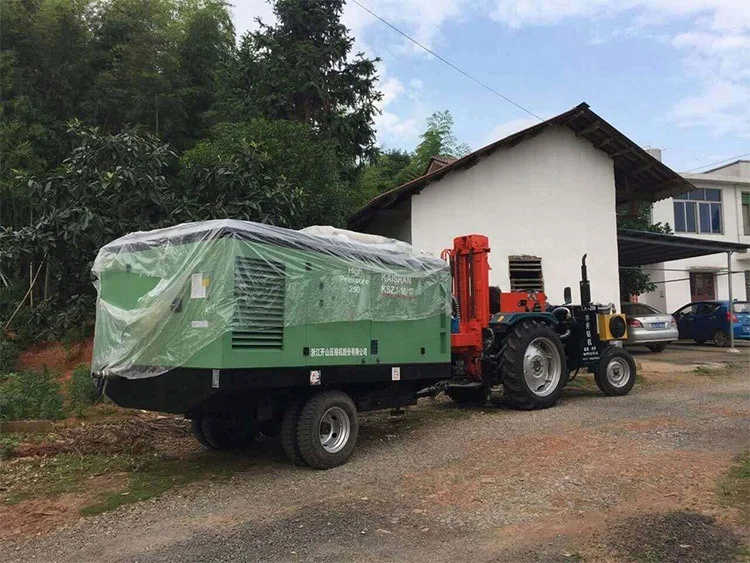

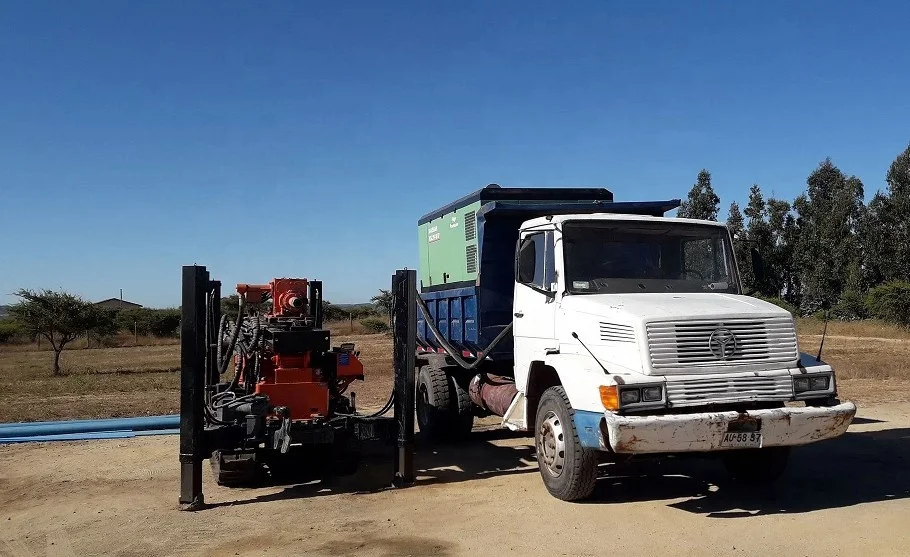

Application scope of air compressor for water well drilling rig:
This air compressor is especially designed for water conservancy.
This air compressor is especially designed for water conservancy.
Recommend air compressor
This is Emily from China.
Thanks for your attention to our products! We will supply the best goods and the best service to every client! If any questions,please free free to ask me anytime! My Contact info: WhatsApp(Tel) +15303821376
Thanks for your attention to our products! We will supply the best goods and the best service to every client! If any questions,please free free to ask me anytime! My Contact info: WhatsApp(Tel) +15303821376
Products paramenters
Model | KSZJ-18/17 | |
Whole machine | ||
Air delivery (m3/min) | 18 | |
Working pressure (Mpa) | 1.7 | |
Weight (kg) | 3200 | |
L*W*H(mm) | 3000X1800X2000 | |
Diesel engine | ||
Model | YC6A260L-20 | |
Type | Vertical,In line,Water cooled | |
Breath way | Turbocharged intercooled | |
Cylinder diameter*stoke*cylinder quantity | 129×155×6 | |
Displacement (L) | 12.2 | |
Rated rotary speed (r/min) | 1800 | |
Unload rotary speed (r/min) | 1300 | |
Power KW(HP) | 191(260) | |
Diesel engine oil capacity (L) | 35 | |
Fuel oil capacity (L) | 350 | |
Electrical system voltage (v) | 24 | |
Compressor | ||
Compressor head model | SKY11G235 | |
Compression stage | 2 | |
Compressor oil capacity (L) | 80 | |
Intake valve size*quantity | G2*1 G3/4*1 | |
kaishan compressor kszj-18/17 diesel engine screw air compressor, China, manufacturers, suppliers, factory, buy, price, cost, for sale, blasthole drilling rig, grouting drilling equipment, small borehole drilling machine, hydraulic crawler mounted drilling rig, borehole rig, Pile Driver

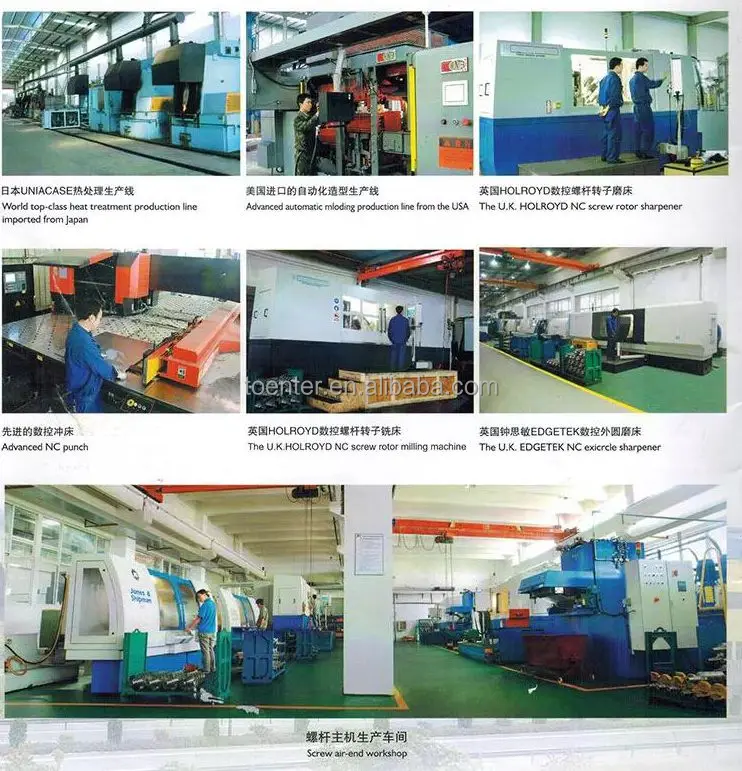

Company Profile
