Product Overview
Description
Product Overview

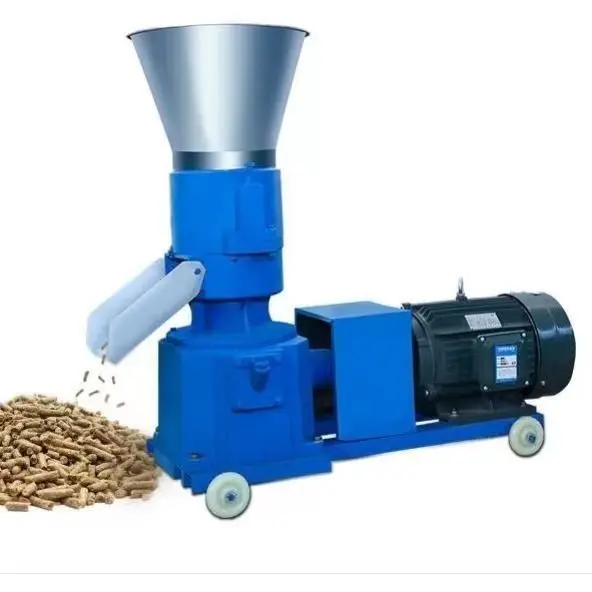

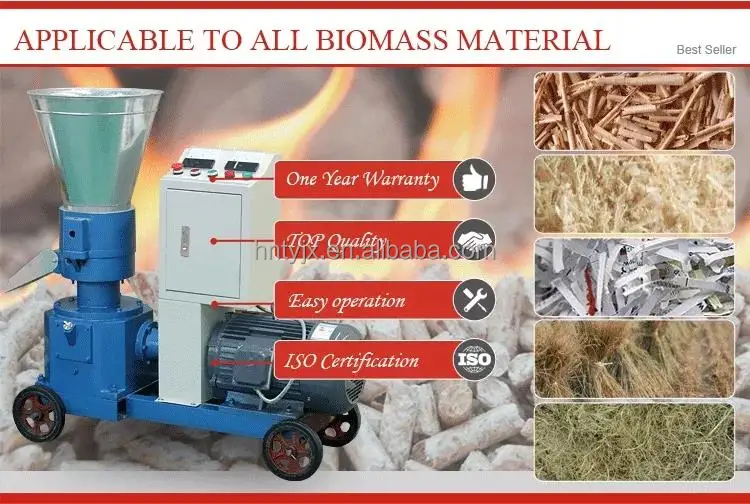

Biomass Wood Pellet Machine
Our biomass sawdust screen particle machine is a new type of particle machine developed specifically for team biomass raw materials. It can be used to process wood chips, straw, rice husks, bamboo chips, peanut shells, bagasse and other raw materials. Transmission gear adopts high quality alloy steel, surface special heat treatment process, after grinding fine processing, smooth transmission, low noise, large bearing capacity, low temperature rise, long life. The box body increases the strong reinforcement, the pressure tolerance is greater.In addition, we also have pellet machine unit, large production line of pellet machine, and all kinds of pellet machine accessories, welcome to consult!
Model | Power(kw) | Capacity(kg/h) | Weight(kg) | Dimension(mm) |
ZLSP-M150B | 5.5 | 50-100 | 100/105 | 800*450*700 |
ZLSP-M200B | 7.5 | 80-120 | 200/230 | 1050*480*930 |
ZLSP-M230B | 11 | 120-200 | 290/320 | 1180*540*1000 |
ZLSP-M260B | 15 | 160-250 | 320/360 | 1240*540*1000 |
ZLSP-M300B | 22 | 250-400 | 410/450 | 1300*560*1100 |
ZLSP-M400B | 30 | 350-450 | 660/700 | 1600*650*1300 |
ZLSP-R200B | 7.5 | 80-120 | 215/245 | 1050*480*900 |
ZLSP-R300B | 22 | 250-350 | 540/575 | 1350*560*1150 |
ZLSP-R400B | 30 | 350-450 | 890/940 | 1400*620*1400 |
ZLSP-R420B | 37 | 400-600 | 1220/1270 | 1630*620*1400 |
ZLSP-R550B | 55 | 500-800 | 2000 | 2300*750*1850 |
FEATURES AT A GLANCE

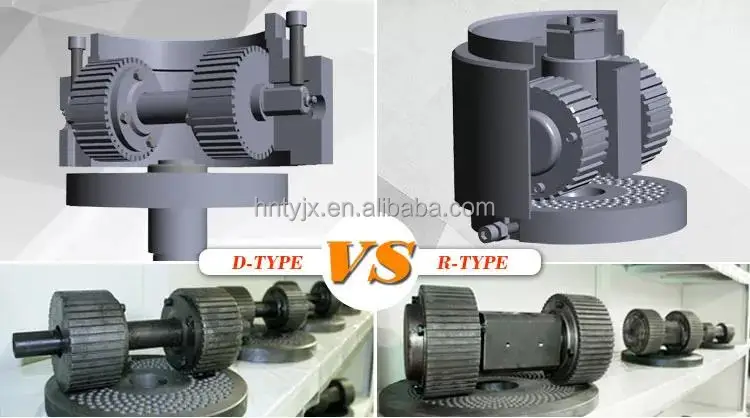

Different between D-type and R-type pellet machine
D-type pellet machine mainly refers to rotating die type, which the roller is fixed and the flat die is rotating with the main shaft. The raw materials are generally soft wood or agricultural biomass waste, such as pine, fir, cypress, larch, basswood, corn cobs & stalks, rice straw, cotton straw, rice husk, peanut shell, bamboo powder, hemp fiber, waste paper, sunflower husk, etc. The diameter of pellets are 4,6,8,10mm.
While R-type, the rotating toller pellet mill, is on the contrary, it means the roller is rotating with the main shaft and the flat die is fixed, it is the pro version of D-type. And it specially designed for hardwood as the raw materials, such as oak, birch, cypress, elm tree, basswood, cherry, larch, maple, poplar, etc. the capacity ranges from 80-800kg/h, which makes it suitable for industrial use.
While R-type, the rotating toller pellet mill, is on the contrary, it means the roller is rotating with the main shaft and the flat die is fixed, it is the pro version of D-type. And it specially designed for hardwood as the raw materials, such as oak, birch, cypress, elm tree, basswood, cherry, larch, maple, poplar, etc. the capacity ranges from 80-800kg/h, which makes it suitable for industrial use.

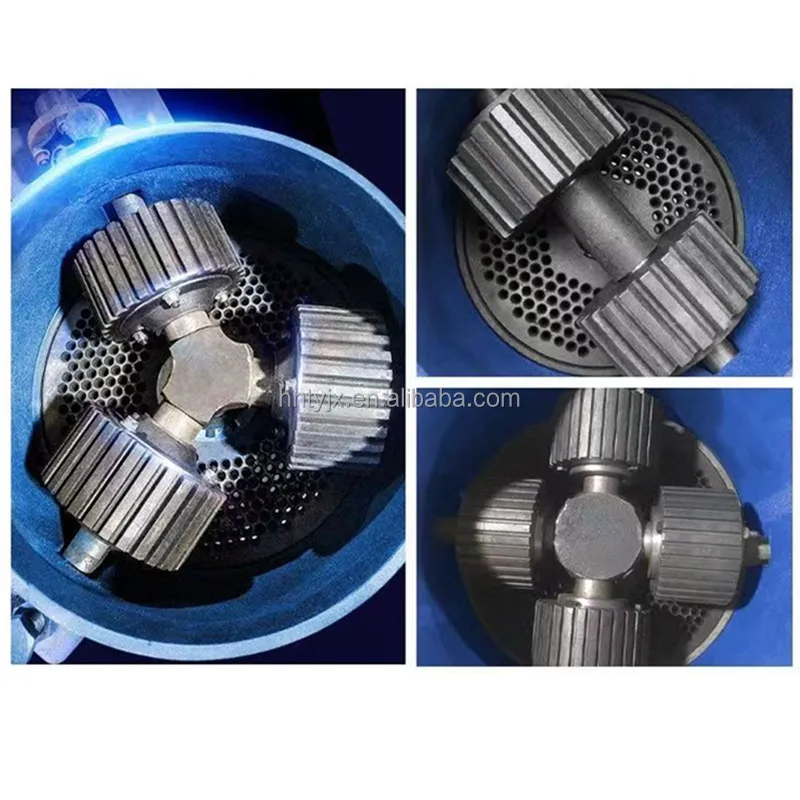

Main parts of wood pellet machine

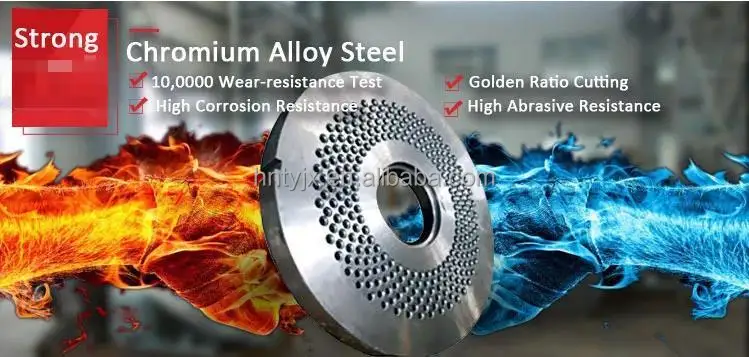

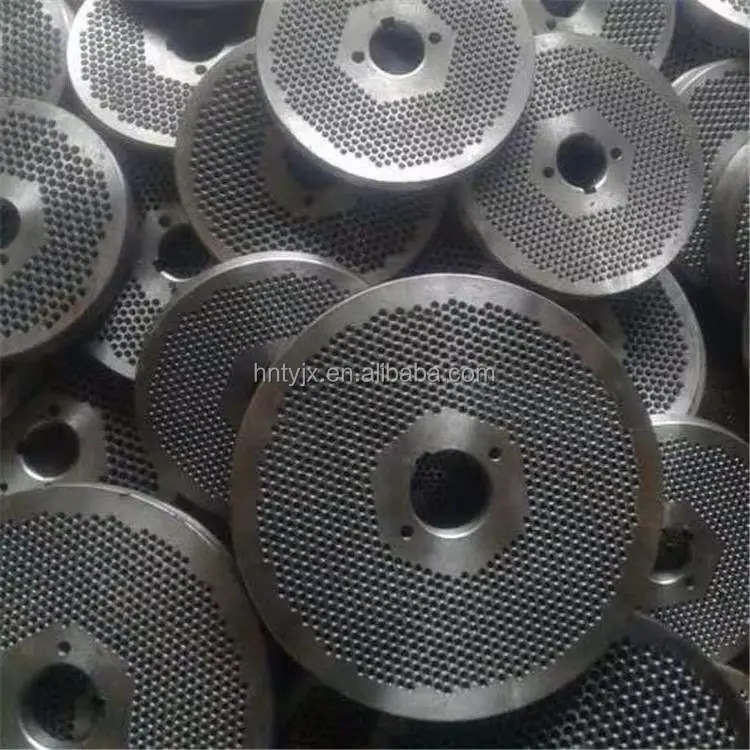

1.TianYuan Machinery pellet presses adopt superior alloy steel in their dies. With both sides usable, they bear longer service life.
2.TianYuan Machinery carries out comprehensive test for every pellet mill, ensuring the best compression ratio for more than 30 kinds of raw materials.
3.The flat die manufactured by TianYuan Machinery is able to work for as long as 800 hours.
4.When the spare parts wear out, you’d better purchase original accessories. We can provide you with high quality accessories at any time.
2.TianYuan Machinery carries out comprehensive test for every pellet mill, ensuring the best compression ratio for more than 30 kinds of raw materials.
3.The flat die manufactured by TianYuan Machinery is able to work for as long as 800 hours.
4.When the spare parts wear out, you’d better purchase original accessories. We can provide you with high quality accessories at any time.

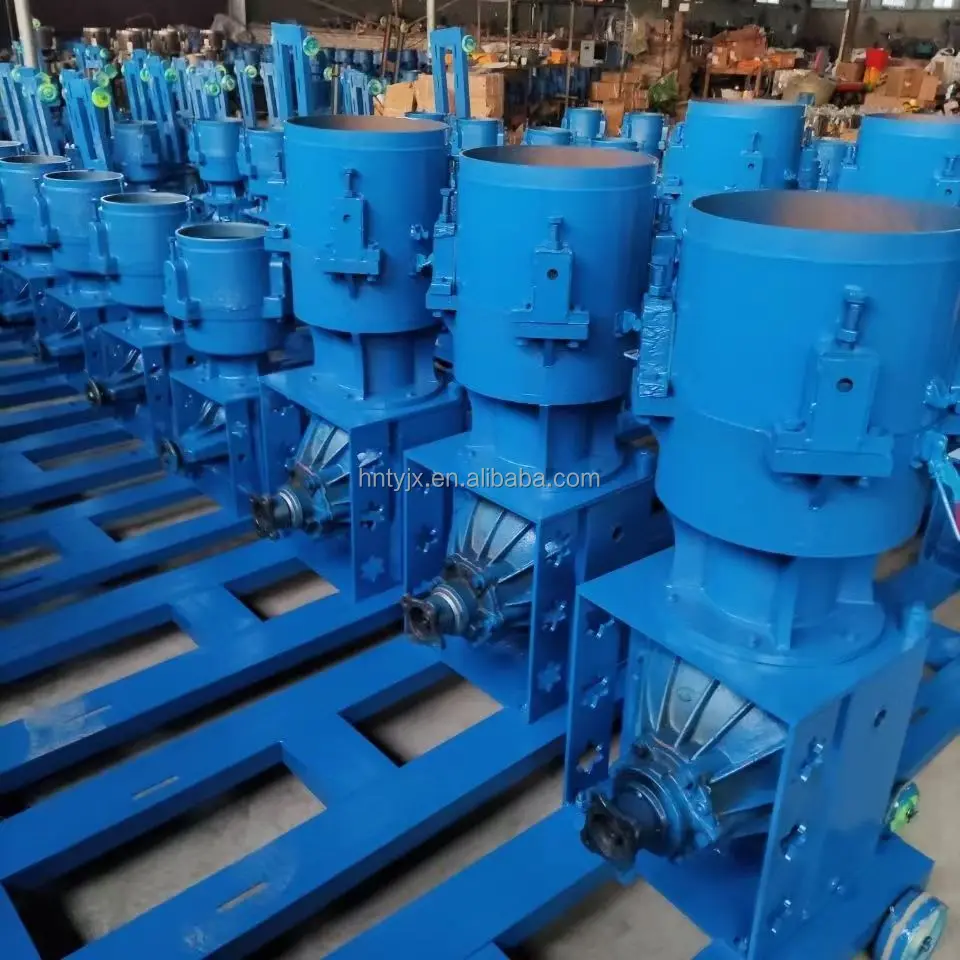

Pellet mill manufacturer wood pellet machine

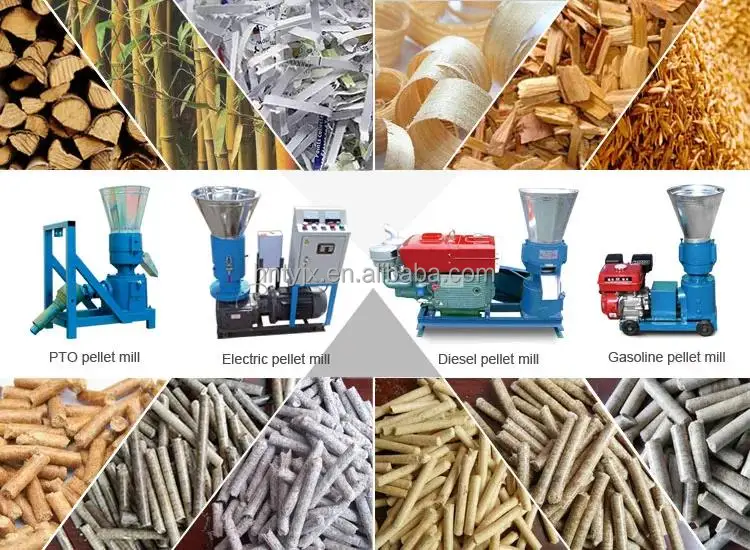

Materials and pellets of pellet machine
High quality and low price certification pelle machine
