Product Overview

Description

Product Description

Outline
♦ Mini-Stage is applied for high precision or mid and heavy loading of various production machinery, testing device, precise positioning and quantitative movement.
♦ There are many types of mini-stages with single axis (X-axis); dual axes (XY-axis); Z-axis; θ axis; α axis...can be collocated as needed.

Characteristics
♦ Can be customized according to the requirements of precise fine tuning; positioning; quantitative movement and able to proceed mass feed of fine tuning.
♦ Coordinated customer's precise machinery of instrument and fixed in suitable position.

♦ Feeding mode diversification such as coarse moving handle / micrometer head; feed screw, rack and pinion with scale and able to manage movement rate.
♦ The sets of mini stages, XY-axis, XYZ-axis, XZ-axis, and multi-axis modules are able to effectively reduce assembling process because of adjusting their vertical angle before shipping.

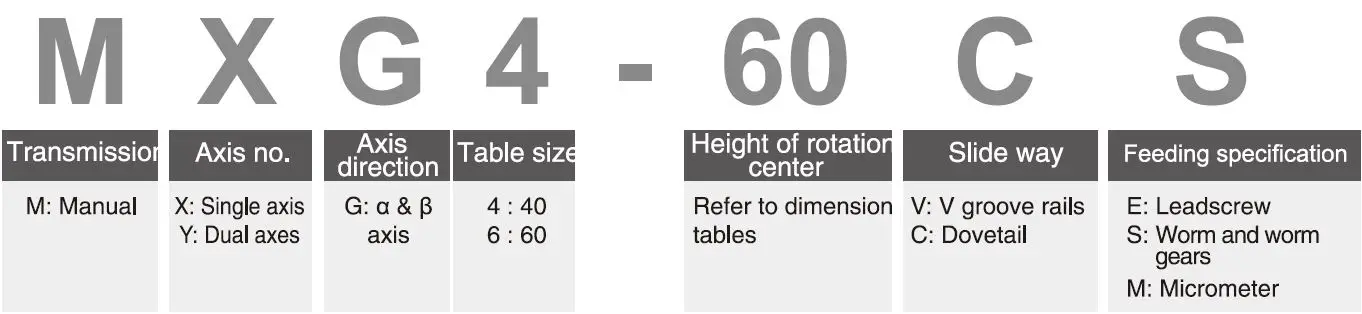

Standard Selection
♦ GMT presents clearly with each kind of mini stages in accordance with different types of moving axis, minimum reading and loading capacity.
♦ Please coordinate with adjusting methods and refer below information to select the most suitable stages.
♦ Please refer to the feeding method provided to select the most suitable stages.

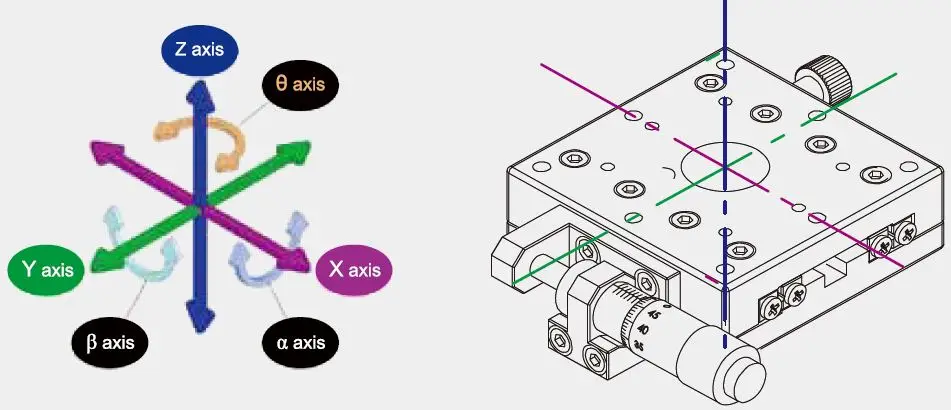

Axes Definition

Regarding definitions of moving and rotating axis, GMT defines as the diagram below.

X-axis, Y-axis are in parallel direction; Z-axis in vertical direction; Rotating around X, Y, Z-axes are called α-axis, β-axis, θ-axis individually.

Dovetail type stage

Characteristic:

Dovetail plane-pinion and rack
Main material: Brass or aluminum alloy
GMT supplies proper models suitable to be equipped to various modules such as small, coarge or fine turn, larger size for
installation etc.

Screw-driven plane
Main material: Brass
Prepared by easy-carry standard and slide type fit for inner set mode. Driven adjustment mode is screw shaft mode. Apply to lower
frequency, fine turning environment.

Application:
It is applied to optical instruments and equipments, sampler, detecting device, semi-comductor manufacturing equipment, test
machine, microscope, transiting machine, maching center, medical instrument, printer and others.

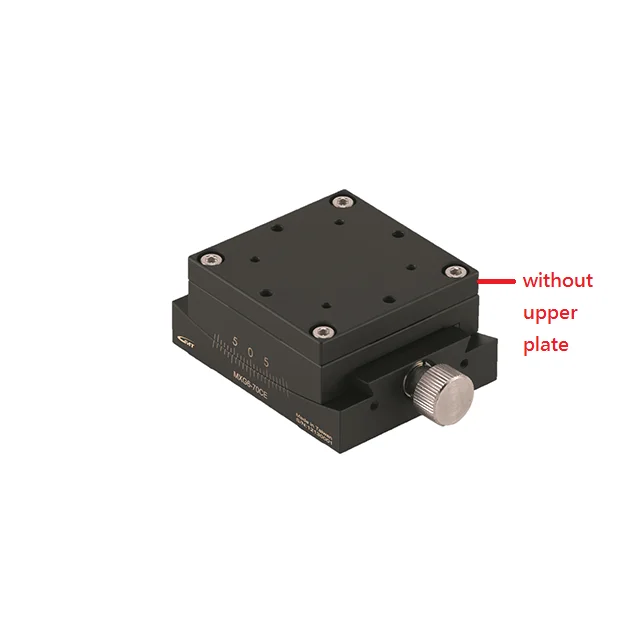

Goniometer stage

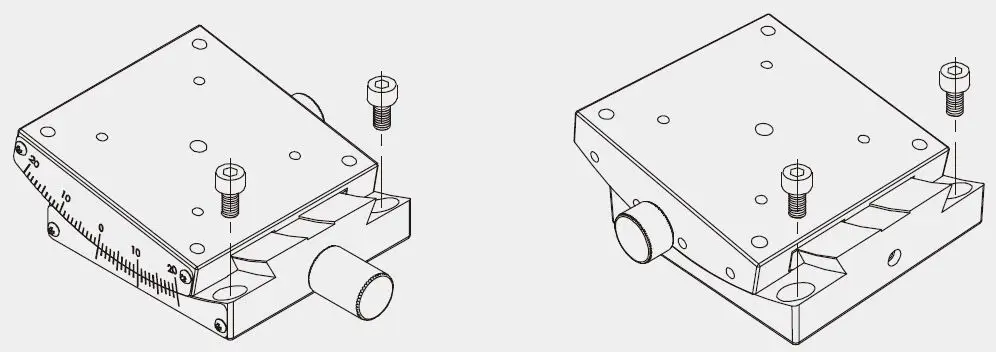

Rotate knob clockwise to move plate to the other side. (Please operate after loosing safety knob), to adjust locked screw into half-secured status. Next, rotate knob counterclockwise to move plate to the other side, and secure the screw on base plate and work piece with tight confirmation.

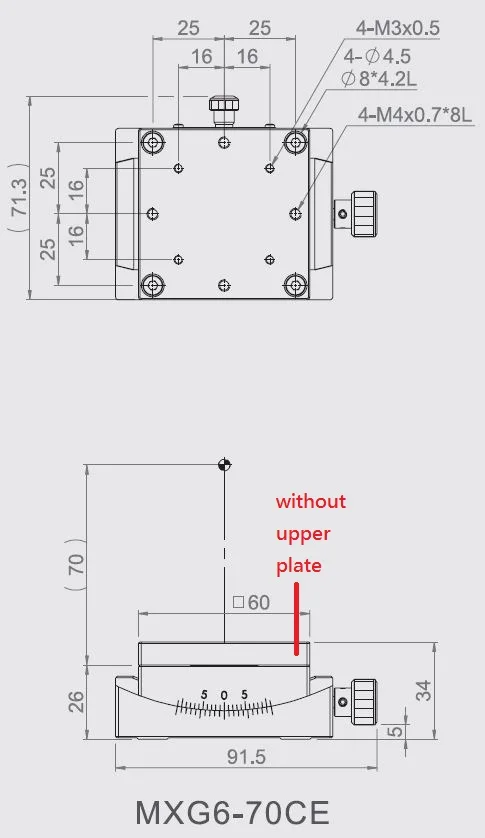

Specification

Model No.	MXG6-70CE
Table Size (mm)	60 X 60
Axis	α - Axis
Height of Rotation Center H (mm)	70
Travel Stroke	± 8°
Micrometer Minimum Reading	1° / Veriner
Stroke Per Revolution (mm)	≒ 19'59"
Allowable Loading (Kgf)	5
Weight (Kg)	0.7
Material	Brass Alloy
Surface Finish	Black Fluororesin Finished

No product service of refunds, returns or exchanges.
