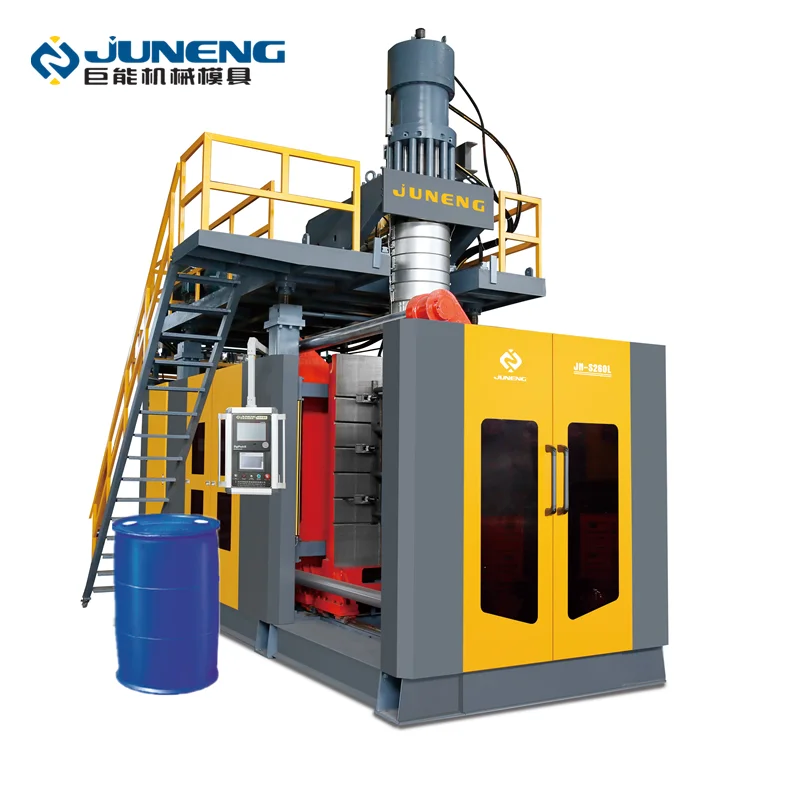

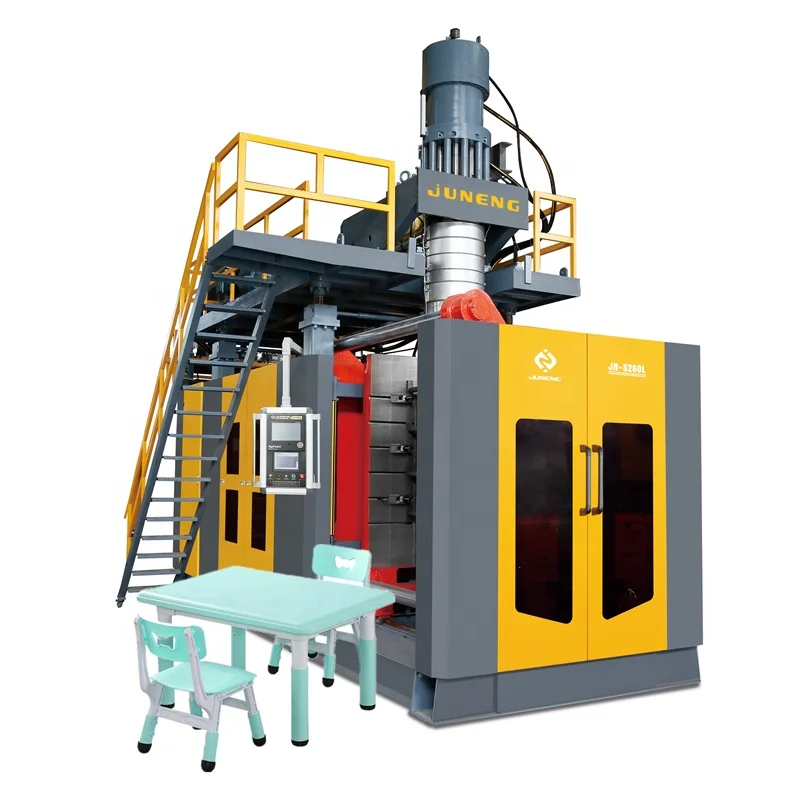

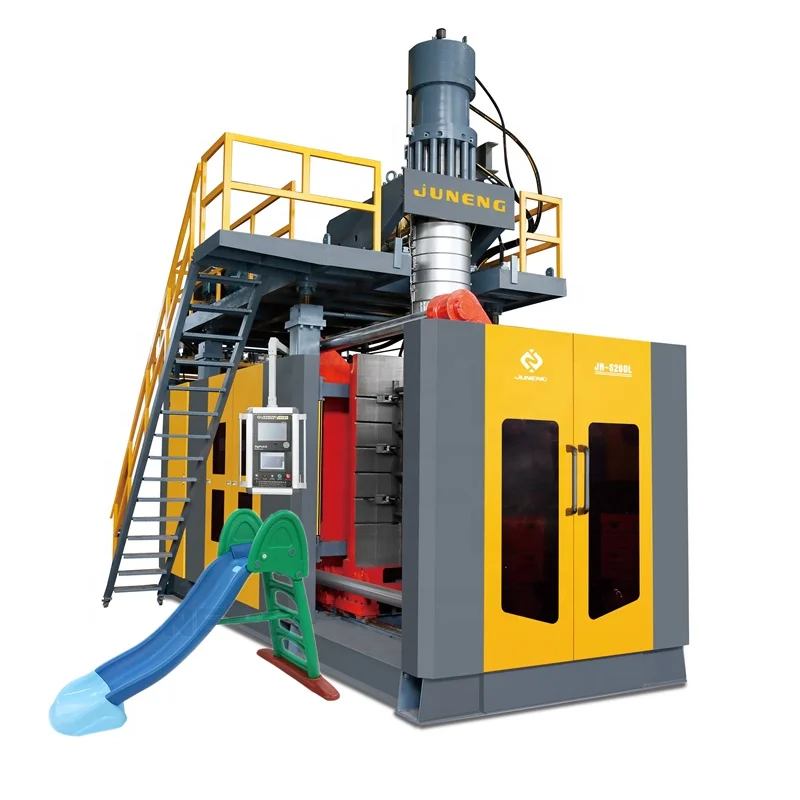

260 Liter Extrusion Blow Molding machine accumulator type pallet blow molding machine plastic toy making
- Category: >>>
- Supplier: Taizhou Huangyan Juneng Machine & Mould Co. Ltd.
Share on (1600632520455):
Product Overview
Description
250 Liter China Professional Extrusion Blow Molding
| Max. Product Volume | L | JN-S260L |
| Dry cycle | PC/H | 300 |
| Screw diameter | MM | 120 |
| screw L/D ratio | L/D | 28-32 |
| screw motor power | KW | 90-132 |
| screw heating capacity | KW | 22 |
| No. of heating zone | Zone | 6 |
| output of HDPE | KG/H | 320-380 |
| oil pump driver power | KW | 45 |
| clamping force | KN | 900 |
| mold stroke | MM | 720-1800 |
| size of mold(W*H) | MM | 1300-1600 |
| Moving distance | MM | 600 |
| Max. Die diameter(W*H) | MM | 15 |
| Die heat capacity | KW | 22 |
| Blowing pressure | MPA | 0.8 |
| Air volume | M3/Min | 3 |
| Cooling water pressure | MPA | 0.3 |
| water consumption | L/Min | 250 |
| weight of machine | Ton | 35 |
| size of machine | M | 7.8*2.9*5.4 |
