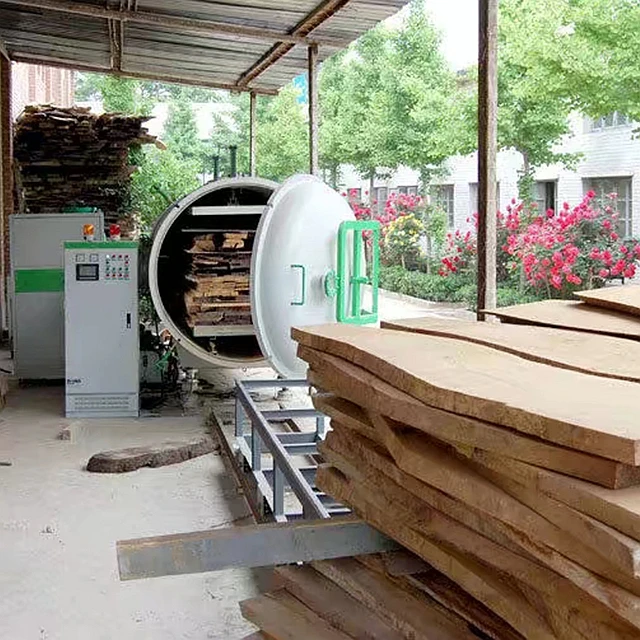

SAGA High Vacuum Dryer Oven Wood Drying Machine Wooden Dry Large Pieces in a Kiln HFVD120 SA
- Category: Other Woodworking Machinery >>>
- Supplier: Shijiazhuang Saga Machinery Co. Ltd.
Share on (1600633013173):
Product Overview
Description
Product Description
Specification

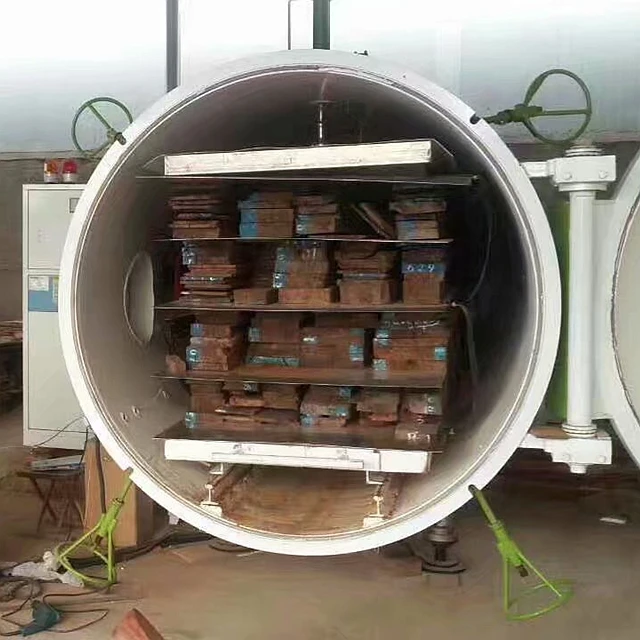

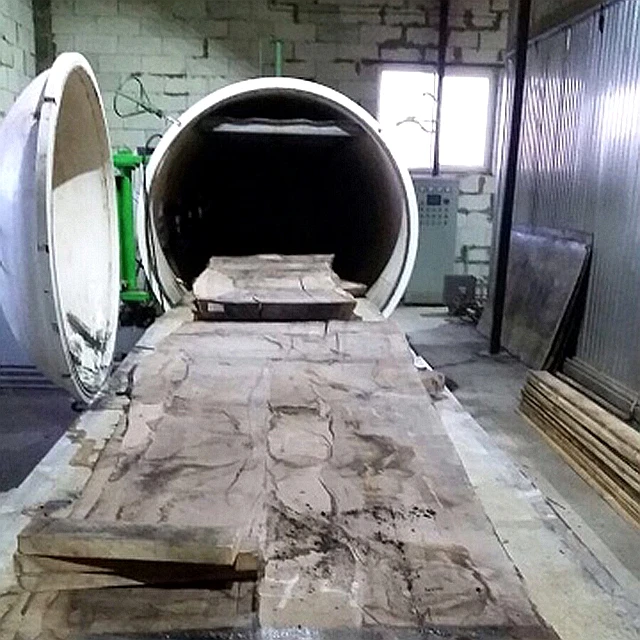

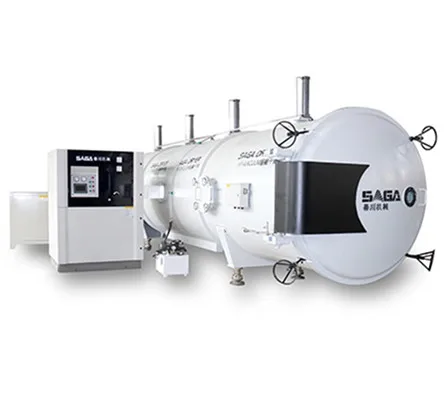

SAGA High Vacuum Dryer Oven Wood Drying Machine Wooden Dry Large Pieces in a Kiln
*Fast drying cycle
*Automatic feeder
*PLC automated systems with touch screen panel
*Uniform heating
*No sparking or bending problem
*Veneer, panels, softwood and hardwood planks, heavy timber with large dimension: suiatble for all kinds of wood
*Patented weighing system
*Stainless steel cooling system

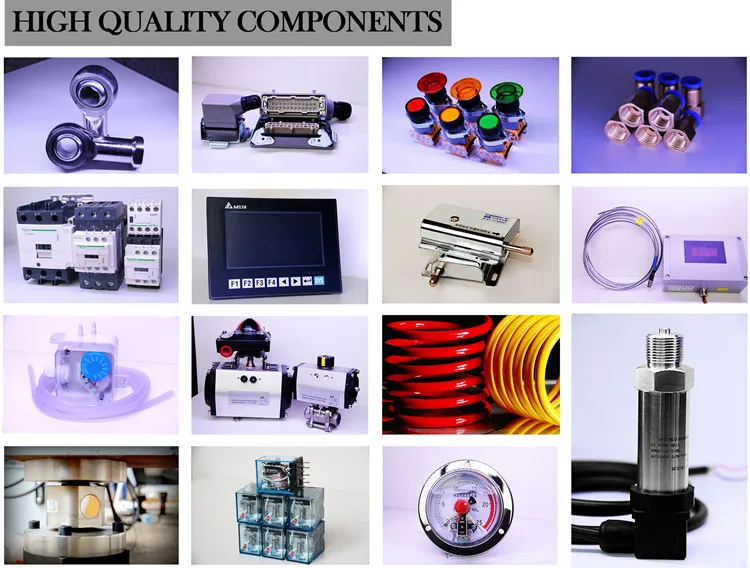

*Schneider, Omron, Siemens etc European spare parts:
*After-sell service provided
*Automatic feeder
*PLC automated systems with touch screen panel
*Uniform heating
*No sparking or bending problem
*Veneer, panels, softwood and hardwood planks, heavy timber with large dimension: suiatble for all kinds of wood
*Patented weighing system
*Stainless steel cooling system
*Schneider, Omron, Siemens etc European spare parts:
*After-sell service provided
SAGA High Vacuum Dryer Oven Wood Drying Machine Wooden Dry Large Pieces in a Kiln | ||
Parameter of High Frequency Generator | ||
Voltage | 380V 50Hz 3 Phase or Customized | |
Input Power | 70KW | |
Output Power | 50KVA | |
Frequency | 6.78 Mhz | |
Overall Size | 1050*1000*1950mm | |
Principle | High frequency dielectric heating | |
Parameter of Vacuum Tank | PLC | |
Model | HFVD120-SA | |
Inner Diameter | 1900mm | |
Stacking Size | 1300*1300*8000mm | |
Stacking Capacity | 13 Cubic Meters | |
Protect System | Overload protection/ Wind cooling pressure detection/ Filament 2 stage starts/ Lose phase protection | |
Tuning Mode | Variable vacuum capacitor | |
Cooling Mode | Forced wind cooling | |
Electric Components | Schneider/ Siemens/ Omron | |
Hydraulic System | Taiwan brand | |
Drying Temperature | 45-70℃ | |
Temperature System | Fiber optic temperature detecting sensor | |
Weighing Sysetm | Special customized weighing sensor (PATENT) | |
Dewater System | Full automatic | |
Cooling System | Stainless steel condensation+ vacuum pump | |
Feeding Cart | Automatic | |
Vacuum Tank Thickness | 12mm | |
Hydraulic Pressure | 6 ton | |
Vacuum Pump | 11KW | |
Control System | PLC control | |
MODEL | STACKING SIZE | STACKING CAPACITY | HF POWER |
HFVD30-SA | 1000*1000*3000mm (3.28*3.28* 9.84 feet) | 3 cubic meters (106 CFT) | 30KVA |
HFVD45-SA | 1000*1000*4500mm (3.28*3.28*14.76 feet) | 4.5 cubic meters (159 CFT) | 30KVA |
HFVD100-SA | 1300*1300*6000mm (4.27*4.27*19.69 feet) | 10 cubic meters (353 CFT) | 50KVA |
HFVD120-SA | 1300*1300*8000mm (4.27*4.27*26.25 feet) | 13 cubic meters (459 CFT) | 50KVA |

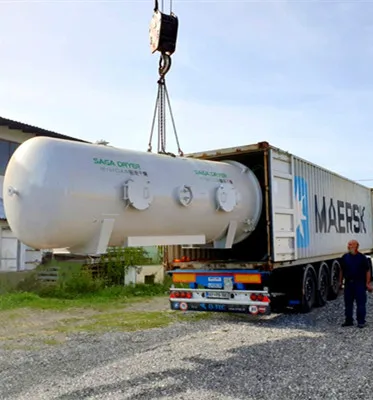

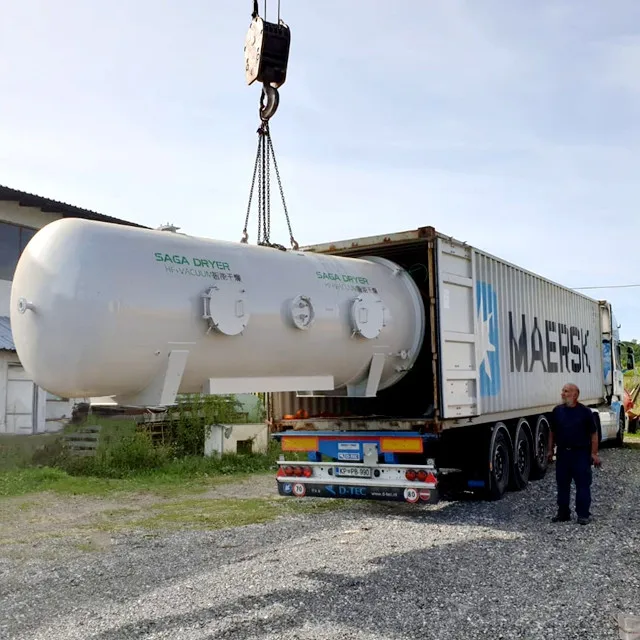

Packing & Delivery

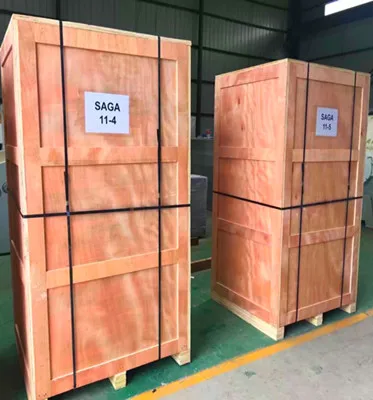

Seaworthy packing, foam, plastic and wood case

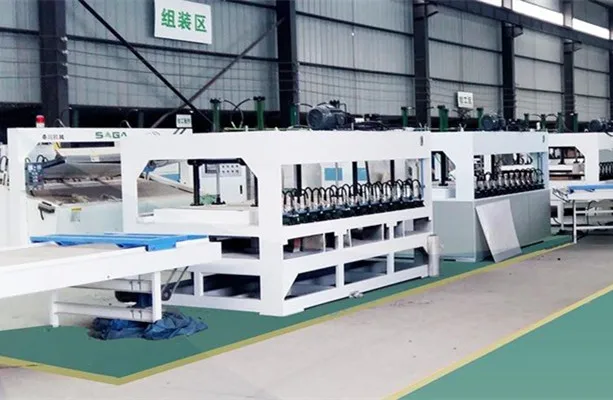

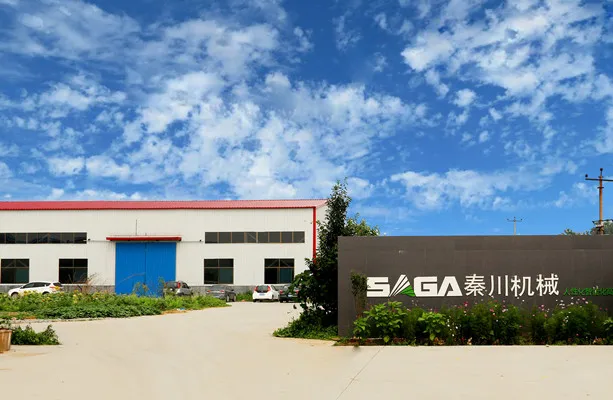

Company Profile
Shijiazhuang Saga Machinery Co., Ltd. is specialized in developing, designing and producing high frequency dielectric heating machinery. We are the main high frequency machinery manufacturer in China. There is a professional know-how engineering group and a service group. Various needs from our customers can be met. We have a strict quality control system to ensure the quality of every product.
Saga aims to provide you with humanistic high frequency technology and service to help you improve the quality of your products and increase your production efficiency to the maximum.
The spare parts we use for the products are mostly European standard or brand or at least national top brand plus various protection systems both for human and machine. You can use it and feel at ease. The user-centered cautious designs ensure you that we can use it more freely.
Our productions cover with high frequency dielectric heating generator, high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluer, high frequency gluing press, high frequency wooden frame assembly machine, etc.
Saga aims to provide you with humanistic high frequency technology and service to help you improve the quality of your products and increase your production efficiency to the maximum.
The spare parts we use for the products are mostly European standard or brand or at least national top brand plus various protection systems both for human and machine. You can use it and feel at ease. The user-centered cautious designs ensure you that we can use it more freely.
Our productions cover with high frequency dielectric heating generator, high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluer, high frequency gluing press, high frequency wooden frame assembly machine, etc.
FAQ
1. Who are we?
Saga Machinery Co., Ltd is professional manufacturer of high frequency woodworking machinery in China, European standard spare parts are used to keep the machine stable and uniform.Our factory established in 2010, our senior engineer has been in this field for more than 20 years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
high frequency generator,high frequency vacuum wood dryer,high frequency edge gluing machine and high frequency plywood curved press, etc.
4. Why should you buy from us not from other suppliers?
We are first one which can make full-automatic control system for drying wood, our customers are from USA,
Canada,Chile,Brazil,Bosnia,Romania,Serbia,Turkey,India, Indonesia, Vietnam,Bhutan, Burma,Nepal,Pakistan, Bangladesh, etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
Saga Machinery Co., Ltd is professional manufacturer of high frequency woodworking machinery in China, European standard spare parts are used to keep the machine stable and uniform.Our factory established in 2010, our senior engineer has been in this field for more than 20 years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
high frequency generator,high frequency vacuum wood dryer,high frequency edge gluing machine and high frequency plywood curved press, etc.
4. Why should you buy from us not from other suppliers?
We are first one which can make full-automatic control system for drying wood, our customers are from USA,
Canada,Chile,Brazil,Bosnia,Romania,Serbia,Turkey,India, Indonesia, Vietnam,Bhutan, Burma,Nepal,Pakistan, Bangladesh, etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
