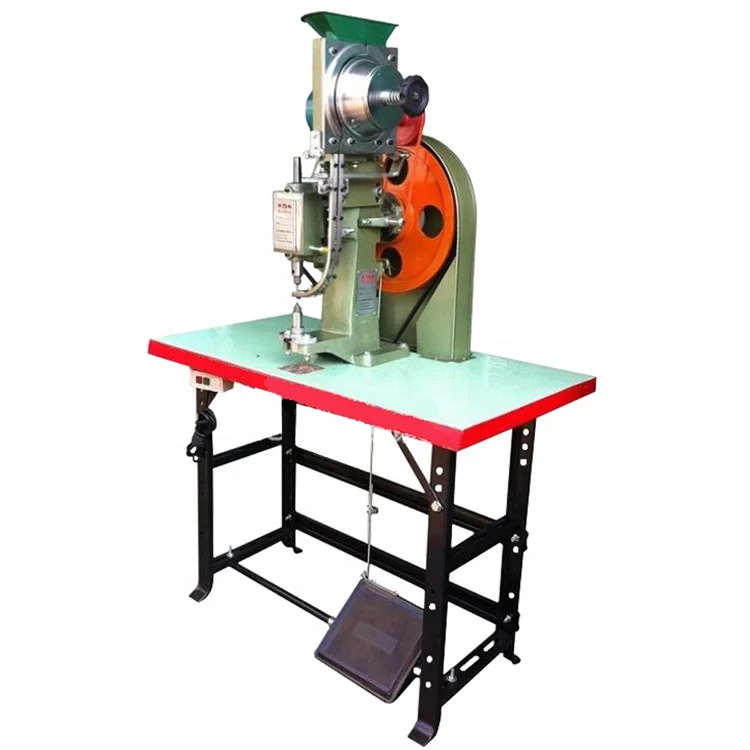

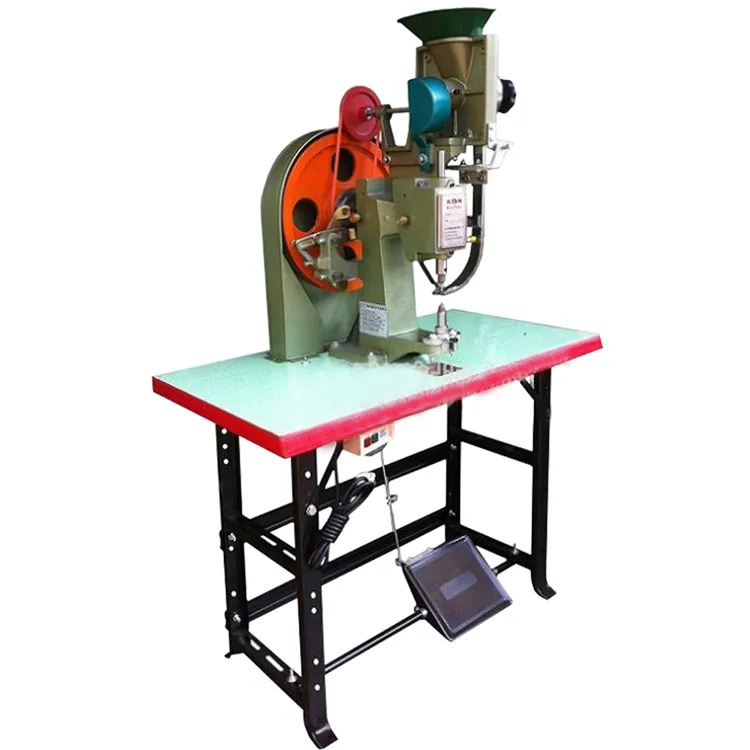

Машина для пробивки проушин, машина для изготовления проушин
- Category: Buttonhole Machines >>>
- Supplier: Henan Cheepie Machinery Equipment Co. Ltd.
Share on (1600633314828):
Product Overview
Description
Product Description
Specification
Model | CPHC-5SB |
Throat depth | 120mm |
Riveting height | 800mm |
Eyelet diameter | ￠3.0-32mm |
Eyelet length | 5.0-25mm |
Voltage | 220v |
Horsepower | 1/3HP |
Weight | 120kg |

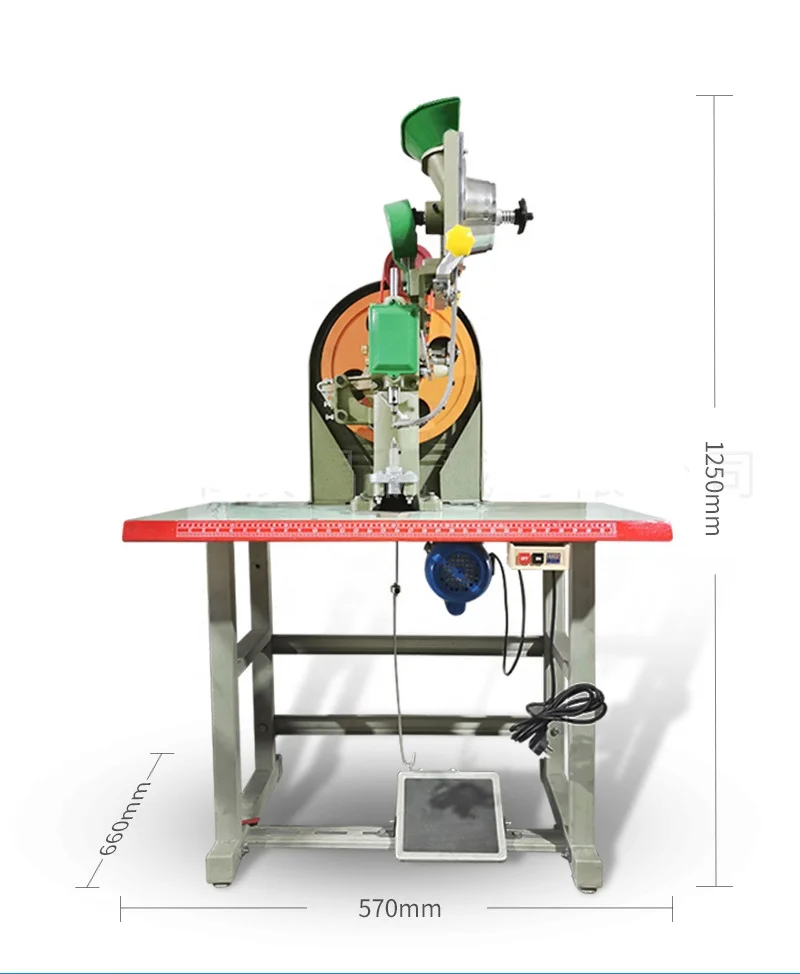

Dimension | 1000*600*1500mm |
Suitable for eyelet riveting of hang tag, card, carton, belt, hardware, etc. Automatic feeding of surface buckle and manual feeding of bottom buckle.
Note: The machine needs to be customized according to the nails (buckles). The blanking accessories are fixed and cannot be adjusted. One machine can only make nails (buckles) of one model and one specification, and cannot be used universally. The surface diameter (A) and length (C) of rivets and corns do not affect blanking within the scope of use of the model. If nails (buckles) are replaced, the whole set of blanking accessories, including molds, shall be replaced. Please consult customer service personnel for details.We Recommend
