ADSS outdoor overhead single jacket 100 m span 24 core adss fiber optic cable
Product Description

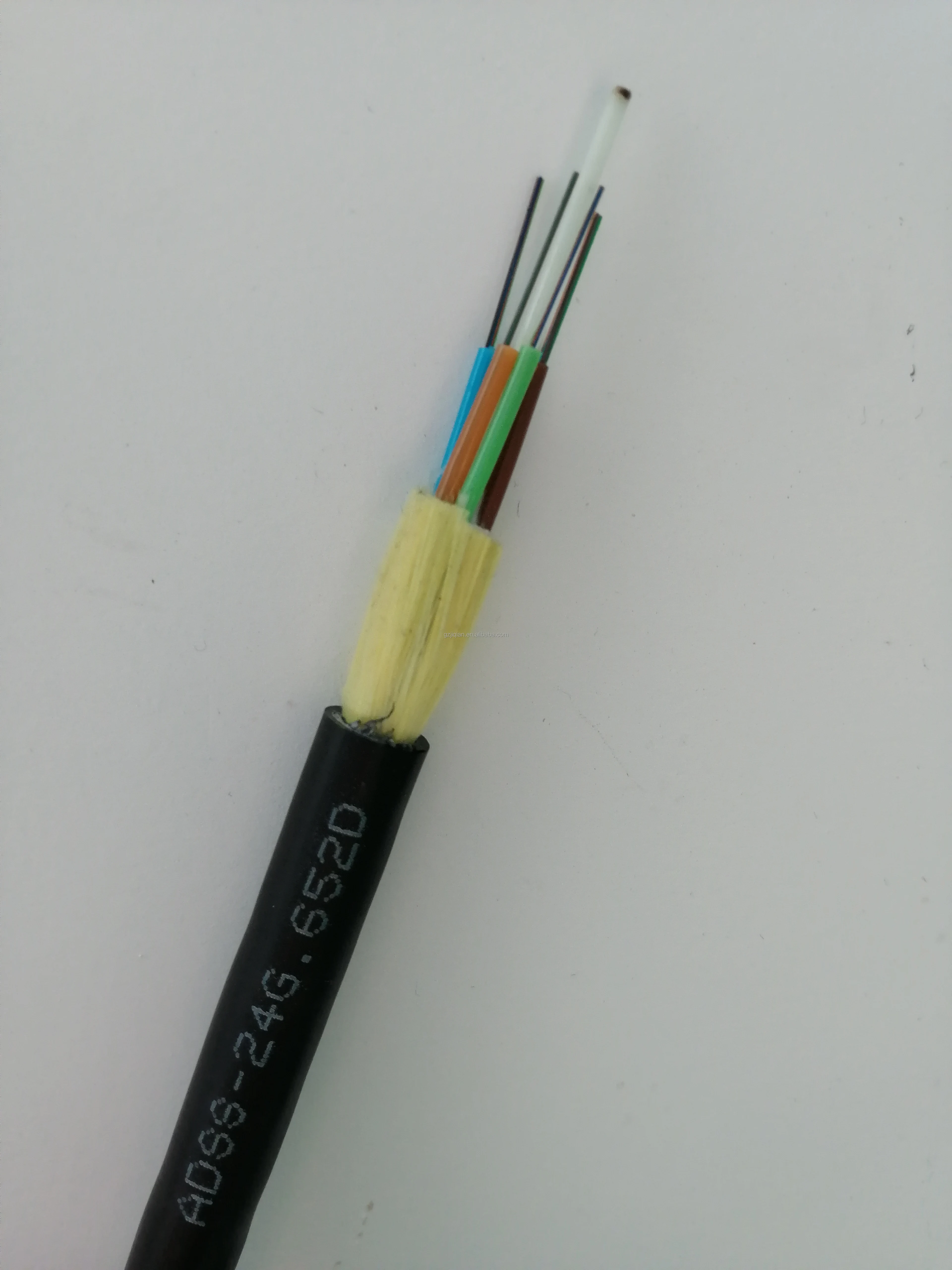

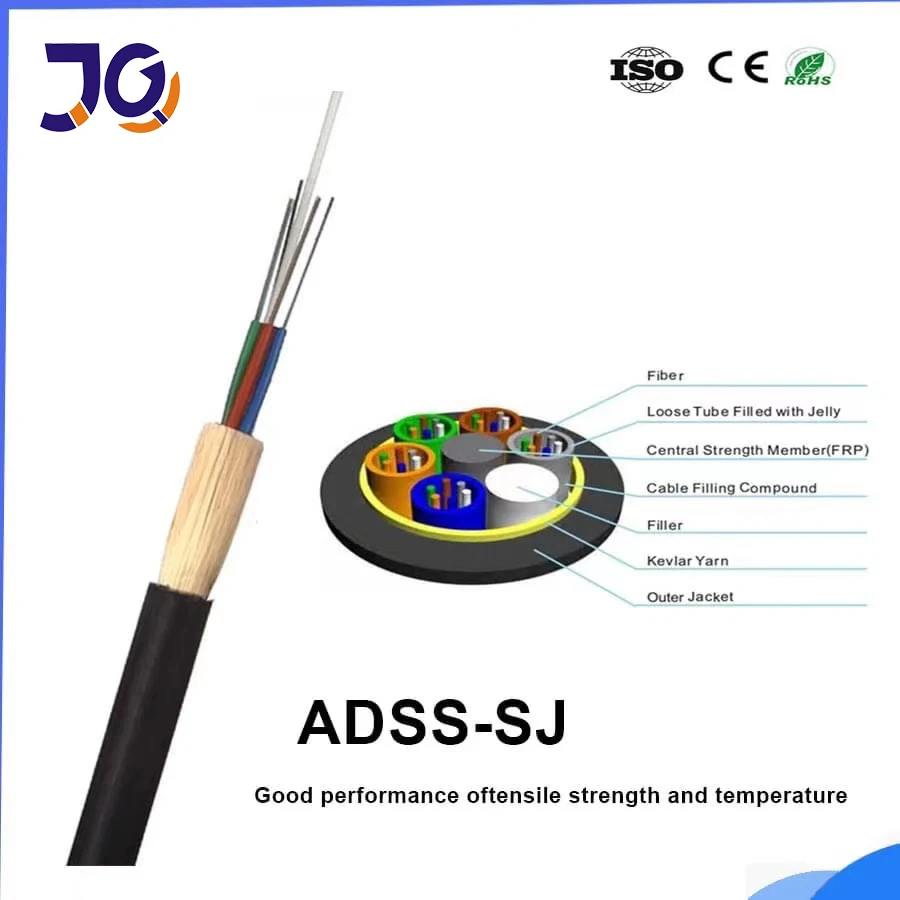

1.ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics.
2.The tubes are filled with a water-resistant filling compound.3.The tubes (and fillers) are stranded around a FRP (Fiber
Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4.After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable
is completed with PE outer sheath.
2.The tubes are filled with a water-resistant filling compound.3.The tubes (and fillers) are stranded around a FRP (Fiber
Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4.After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable
is completed with PE outer sheath.
5.The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
6.For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is
applied.
7.The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
6.For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is
applied.
7.The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

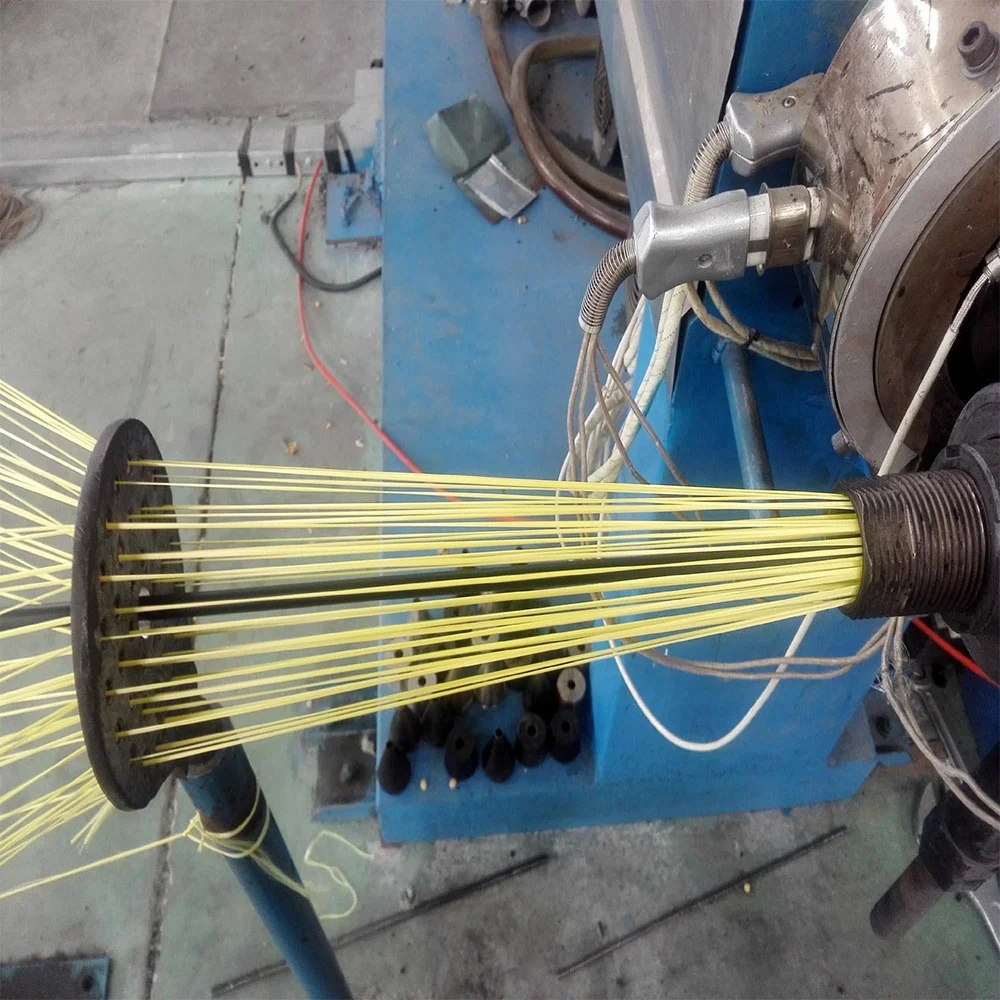

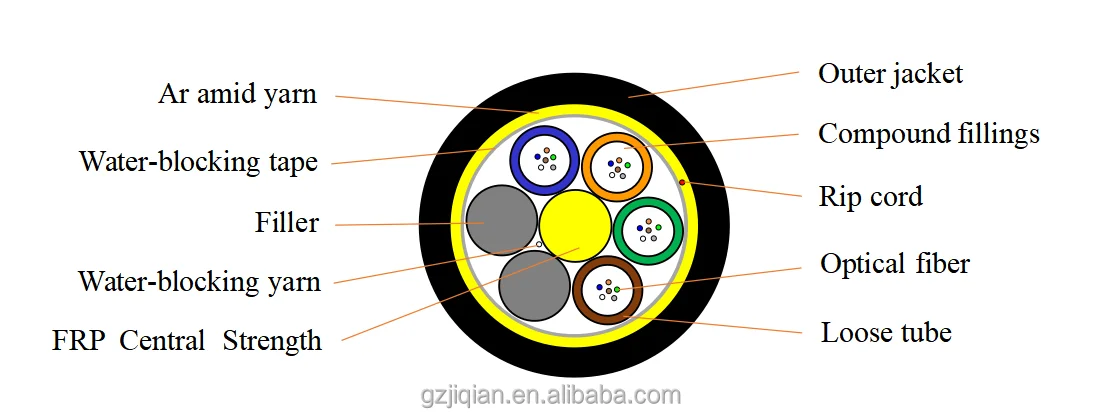

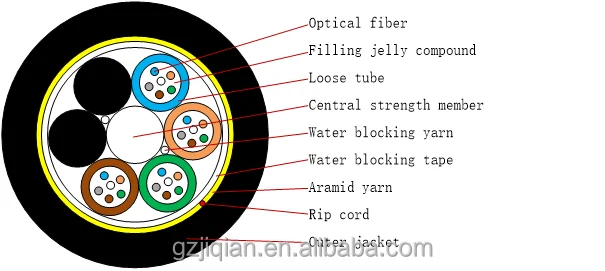

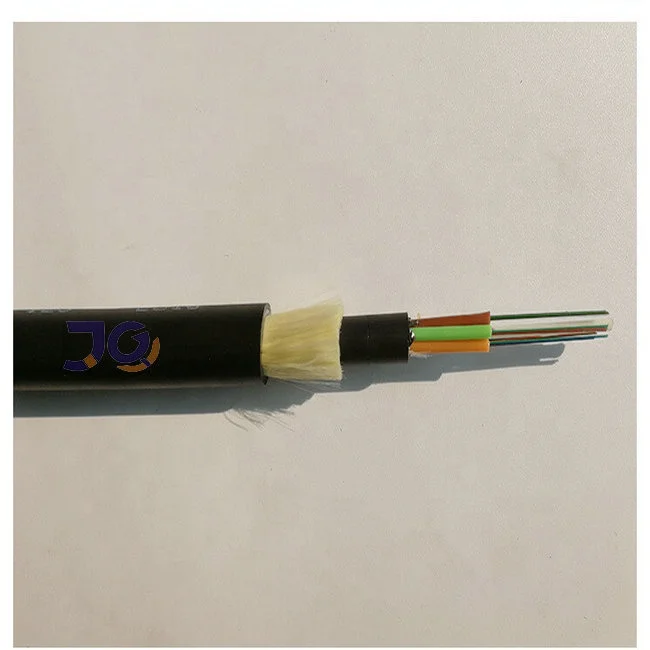

Cable Structure:
FEATURE
* Light weight and small diameter
reducing the load caused by ice and wind and the load on towers and backprops.
* Large span lengths.
* Good performance of tensile strength and temperature.
* The design life span is 30 years.
* Package : 2~4km/ wooden drum.
Fiber Parameter
Item | Unit | Specification | ||||||
Fiber Type | G652D | |||||||
Mode field diameter | 1310nm | μm | 9.2±0.4 | |||||
1550nm | μm | 10.4±0.8 | ||||||
Cladding diameter | μm | 125.0±1 | ||||||
Cladding non-circularity | ％ | ≤1.0 | ||||||
Core/cladding concentricity error | μm | ≤0.5 | ||||||
Coating diameter | μm | 245±7 | ||||||
Coating/cladding concentricity error | μm | ≤12 | ||||||
Cable cut-off wavelength | μm | ≤1260 | ||||||
Attenuation Coefficient | 1310nm | dB/KM | ≤0.36 | |||||
1550nm | dB/KM | ≤0.22 | ||||||
Proof stress level | kpsi | ≥100 | ||||||
Note: Other parameters meet standard ITU-T G.652 | ||||||||
Technical Parameters
Item | Unit | Specification | ||||||
Fiber Type | G652D | |||||||
Mode field diameter | 1310nm | μm | 9.2±0.4 | |||||
1550nm | μm | 10.4±0.8 | ||||||
Cladding diameter | μm | 125.0±1 | ||||||
Cladding non-circularity | ％ | ≤1.0 | ||||||
Core/cladding concentricity error | μm | ≤0.5 | ||||||
Coating diameter | μm | 245±7 | ||||||
Coating/cladding concentricity error | μm | ≤12 | ||||||
Cable cut-off wavelength | μm | ≤1260 | ||||||
Attenuation Coefficient | 1310nm | dB/KM | ≤0.36 | |||||
1550nm | dB/KM | ≤0.22 | ||||||
Proof stress level | kpsi | ≥100 | ||||||
Note: Other parameters meet standard ITU-T G.652 | ||||||||
Cable structure | Name | ADSS-24B1-PE-100 |
FRP Center to strengthen core FRP | 2.0mm | |
Loose tube (filling gel) | 2.0±0.1mm | |
Thickness PE sheath | 1.8±0.2mm | |
Cable diameter | 10.0±0.3mm | |
Cable weight | 85±10%kg/km | |
Loose tube(pcs) | 4 | |
Each tube contains fibers | 6 cores | |
Loose tube color | Blue、Orange、Green、Brown | |
Optical fiber color | Blue、Orange、Green、Brown、Gray、Natural、 | |
Span | 100M | |
RTS | 4.5kN | |
MAT | 2kN | |
EDS | 1.8kN | |
Life time | Max 25Years |
