Paving slabs surface cleaning through type paver block shot blasting machine manufacturer
- Category: >>>
- Supplier: Qingdao Qinggong Machinery Co. Ltd.
Share on (1600633673522):
Product Overview
Description

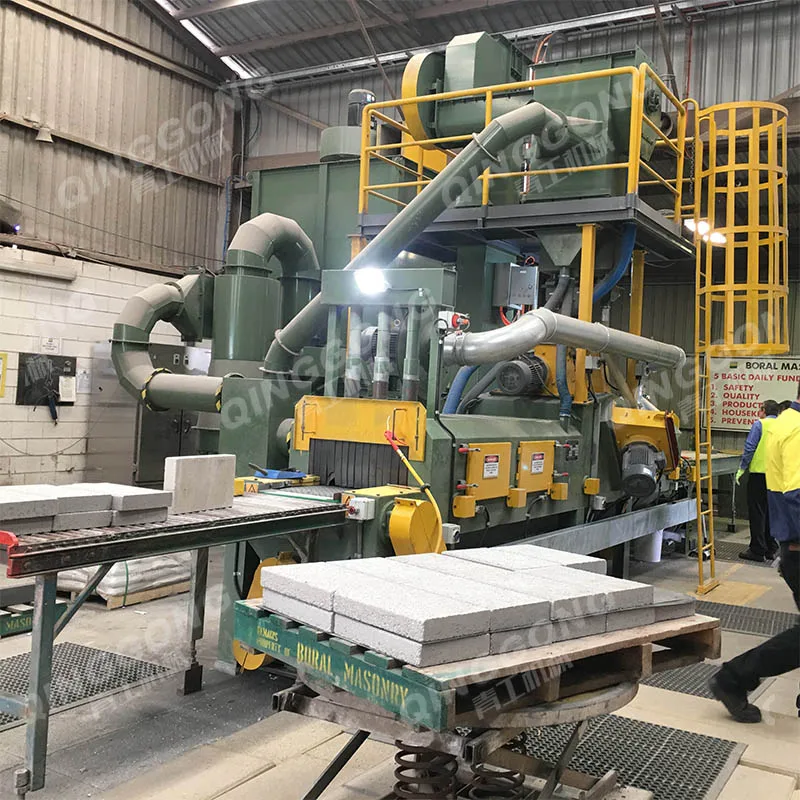

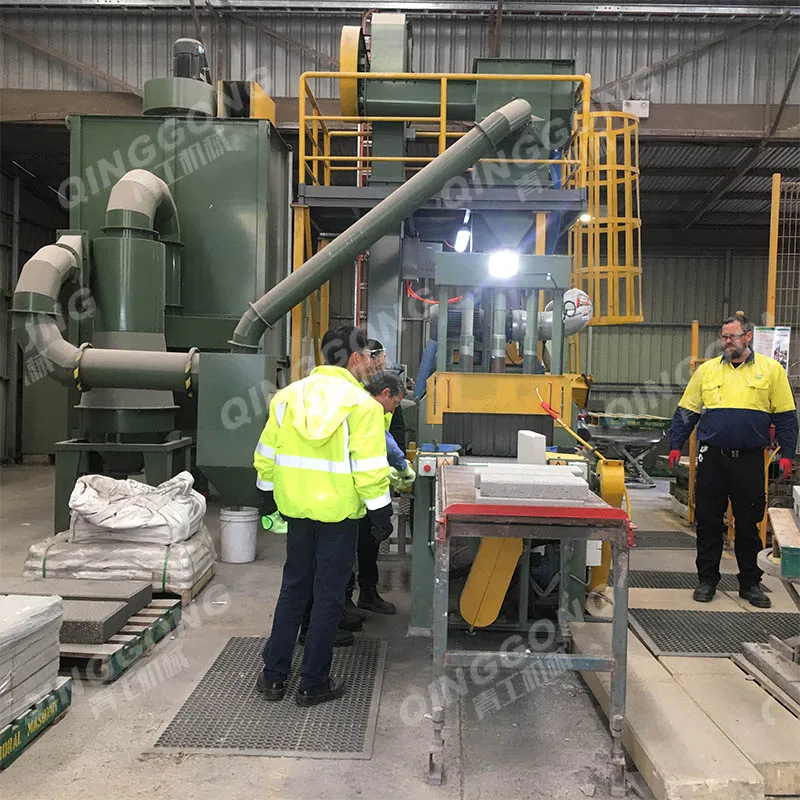

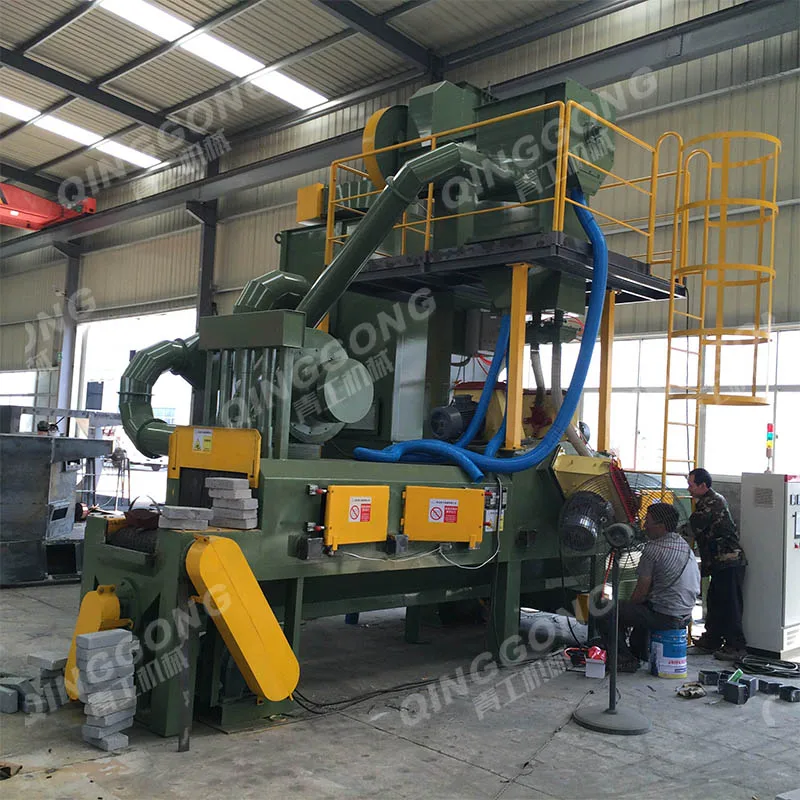

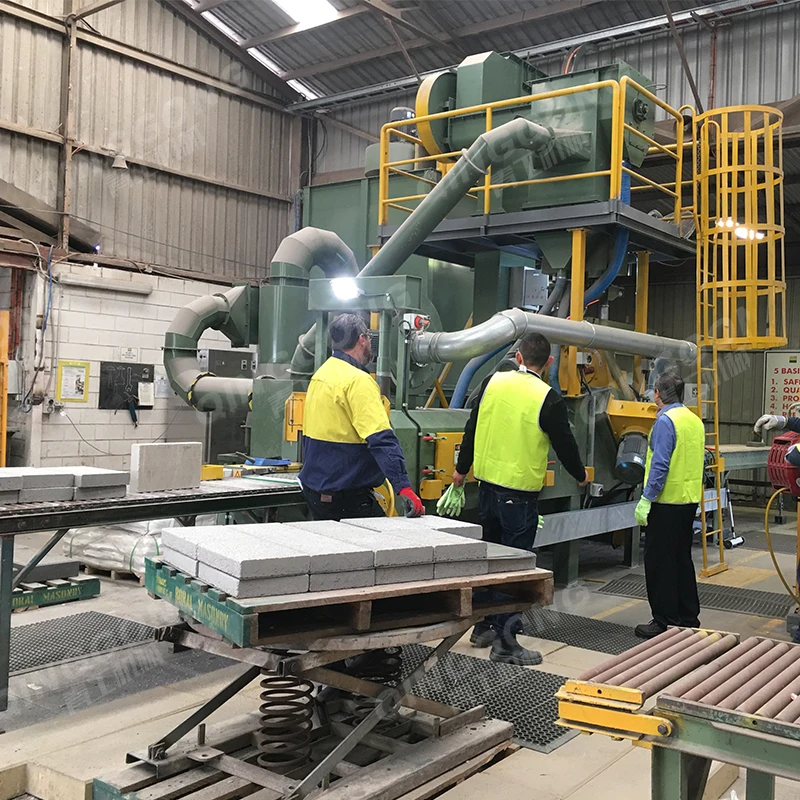

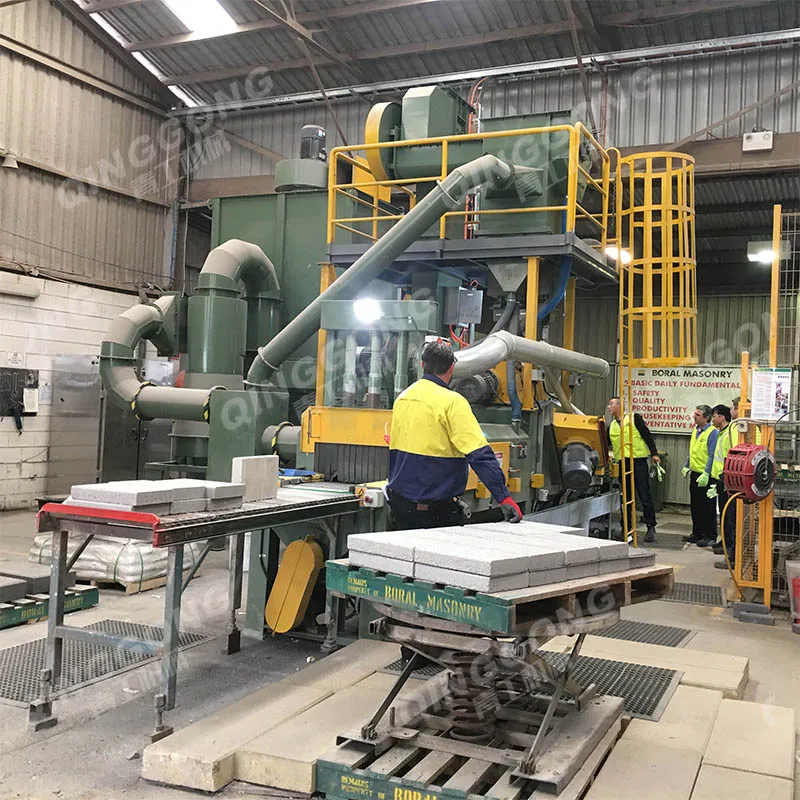

Stone concrete surface cleaning paver block shot blasting machine
Product Description
☆Workpiece:
Marbles, granites, concrete products, man-made and natural stone
☆Transportation system
1.Rubber belt conveyor: suitable for small size (length) workpiece
2.Roller conveyor: suitable for big size(length) workpiece
☆Numbers of Blast surface
1-6 (according to customer's request)
☆Blast turbines
1-6, with frequency converter
7.5-15kw
☆Abrasive:
0.8-2.0mm
☆Dust collector
3 level: Cyclone system, settling chamber, bag-type dust collector
☆Intelligent feeding system
Service time max 20% longer, energy saved max 30%.
☆Rubber seal curtain
4 layer
☆Delivery time:
4-6 weeks
Marbles, granites, concrete products, man-made and natural stone
☆Transportation system
1.Rubber belt conveyor: suitable for small size (length) workpiece
2.Roller conveyor: suitable for big size(length) workpiece
☆Numbers of Blast surface
1-6 (according to customer's request)
☆Blast turbines
1-6, with frequency converter
7.5-15kw
☆Abrasive:
0.8-2.0mm
☆Dust collector
3 level: Cyclone system, settling chamber, bag-type dust collector
☆Intelligent feeding system
Service time max 20% longer, energy saved max 30%.
☆Rubber seal curtain
4 layer
☆Delivery time:
4-6 weeks
Specification
QGS Series Roller Conveyor Type for Pavers Length ≥60cm:
Machine Model | QGS600 | QGS800 | QGS1000 | QGS1200 | QGS1500 |
Max. working width of machine(mm) | 600 | 800 | 1000 | 1200 | 1500 |
Max. working height of machine(mm) | 400 | 400 | 400 | 400 | 400 |
Working speed(frequency adjustable) m/min | 0.5~6 | 0.5~6 | 0.5~6 | 0.5~6 | 0.5~6 |
number of wheels×power(kw) | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 |
Vertical wheel optional | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 |
Foundation pit required | No | No | No | No | No |
QGP Series Rubber belt Type for Pavers Length ≤60cm:
Machine Model | QGP600 | QGP800 | QGP1000 | QGP1200 | QGP1500 |
Max. working width of machine(mm) | 600 | 800 | 1000 | 1200 | 1500 |
Max. working height of machine(mm) | 400 | 400 | 400 | 400 | 400 |
Working speed(frequency adjustable) m/min | 0.5~6 | 0.5~6 | 0.5~6 | 0.5~6 | 0.5~6 |
number of wheels×power(kw) | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 | 2×7.5/11/15 |
Vertical wheel optional | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 | 1×7.5/11/15 |
Foundation pit required | No | No | No | No | No |
Company Profie
With 45 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of wheel blast/air blast machines.
Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of 30,000 ㎡.
Untill 2019, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for customers from more than 50 different countries and some major factories in China, like LongGong, SANY, TISCO, etc.
TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
FAQ
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
