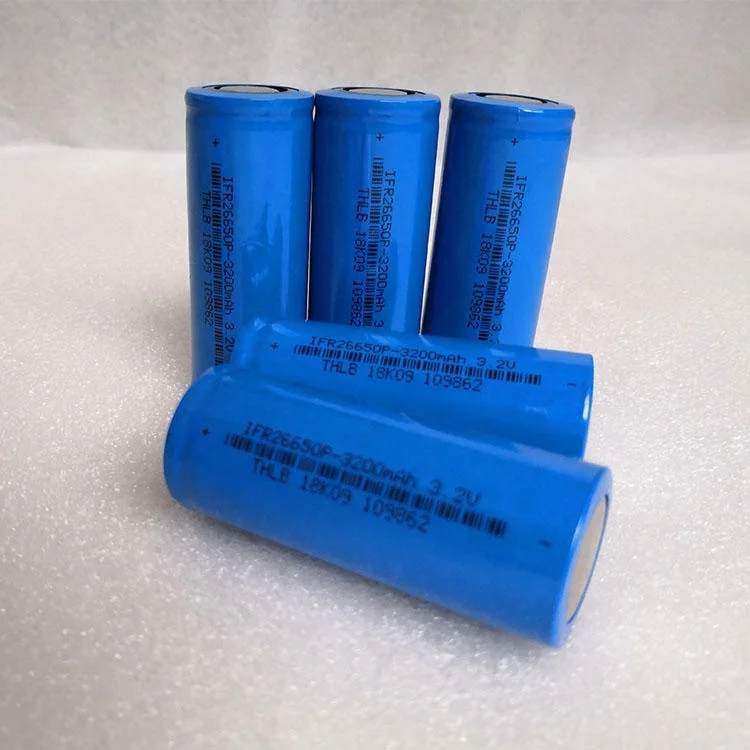

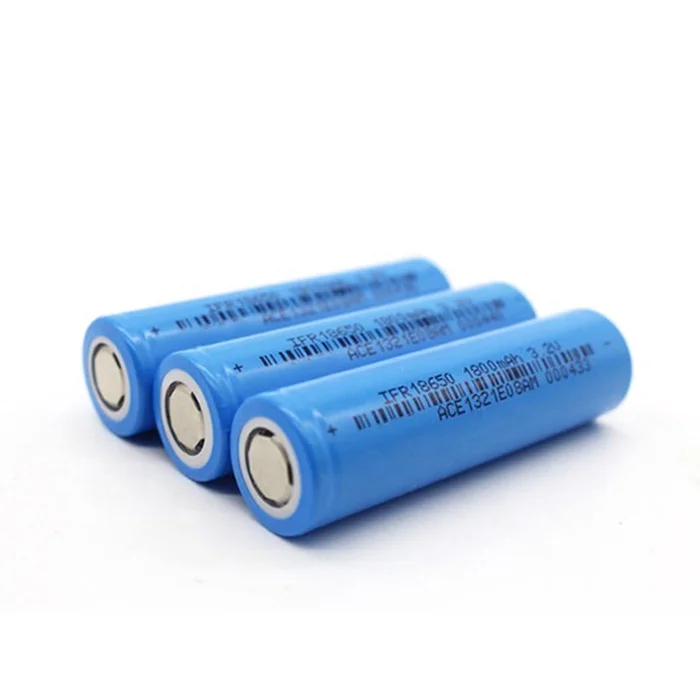

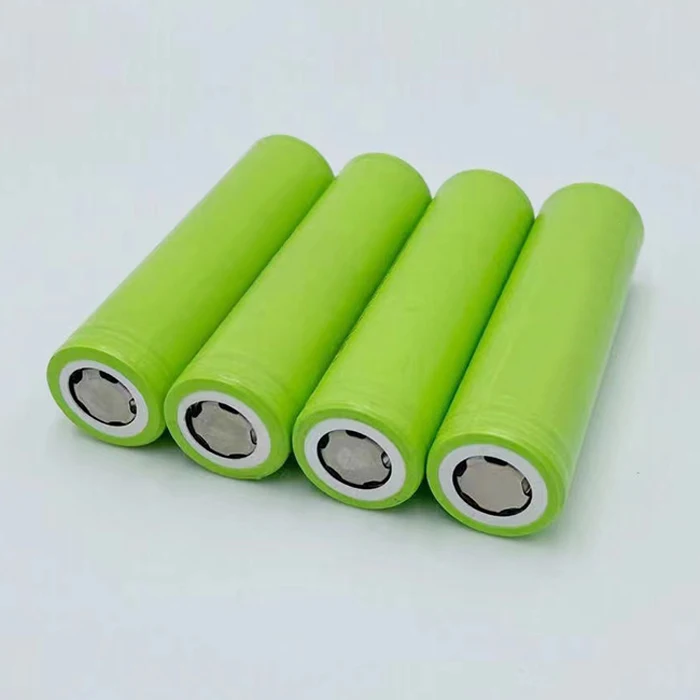

lion 3.7v 18650 3800mah rechargeable lithium ion 18650 battery
- Category: >>>
- Supplier: Shandong Huigor International Trading Co. Ltd.
Share on (1600633717867):
Product Overview
Description
1. Specification
Item | Specification | ||
Capacity | Nominal capacity | 1600mAh | |
Min. capacity | 1550mAh | ||
Alternating internal resistance | Max. | 20mΩ | |
Nominal voltage | 3.2V | ||
Standard charge condition | Current | 0.5C(800mA) | |
Voltage | 3.65V | ||
Cut-off current | 32mA (0.02C) | ||
Max. charging current | 1C | ||
Standard discharge condition | Current | 0.5C(800mA) | |
Cut-off voltage | 2.5V | ||
Max. continuous discharging current | 3C | ||
Max. pulse discharging current | 8A(5s) | ||
Working temperature | Charge | 0~55℃ | |
Discharge | -20~75℃ | ||
Storage Temperature | 1 month | -20~60℃ | |
3 months | -20~40℃ | ||
12 months | -20~20℃ | ||
Weight | <=43g | ||
Dimension | Height | 65.2mm | |
Diameter | 18.3mm | ||
Appearance | No rupture, no scratch, no deformation, no stain, no electrolyte leakage etc. | ||

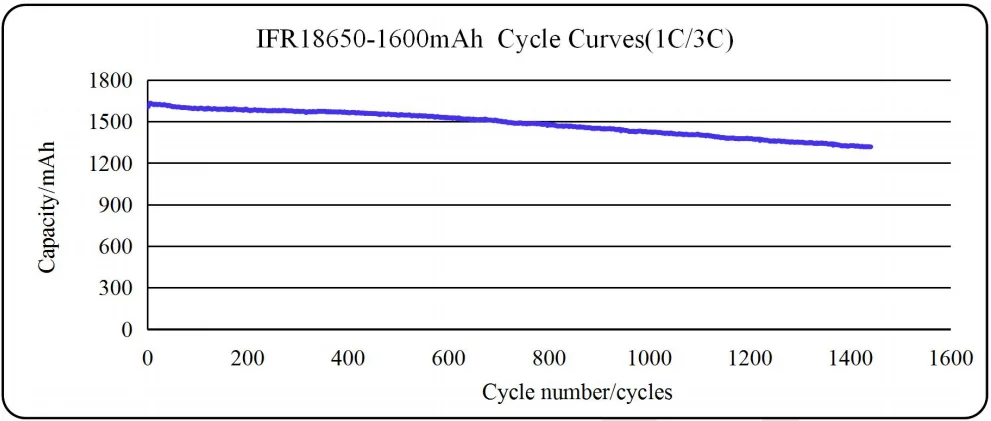

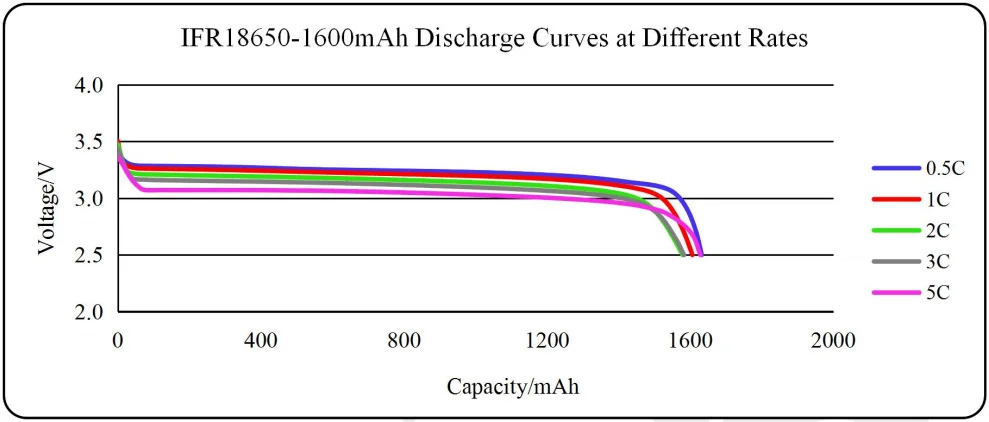

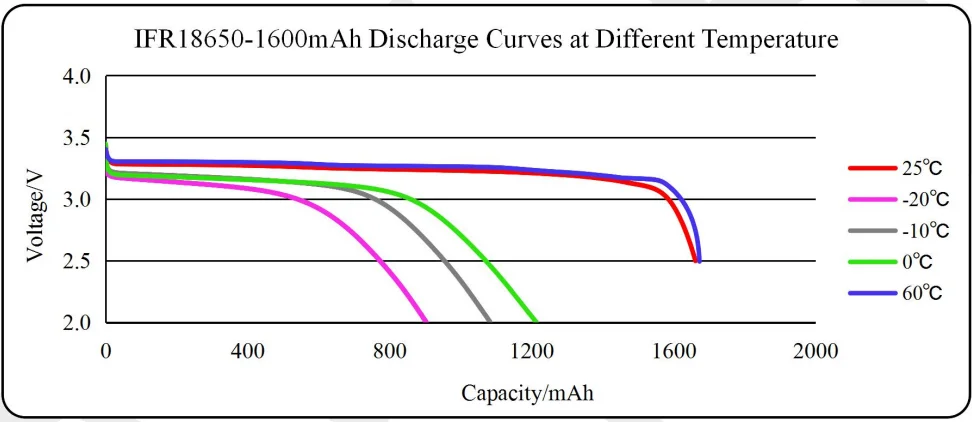

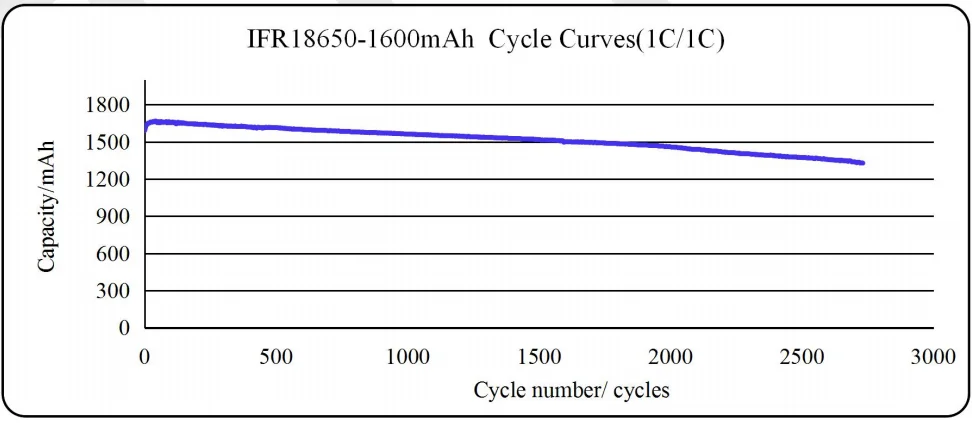

2. Performance Curve

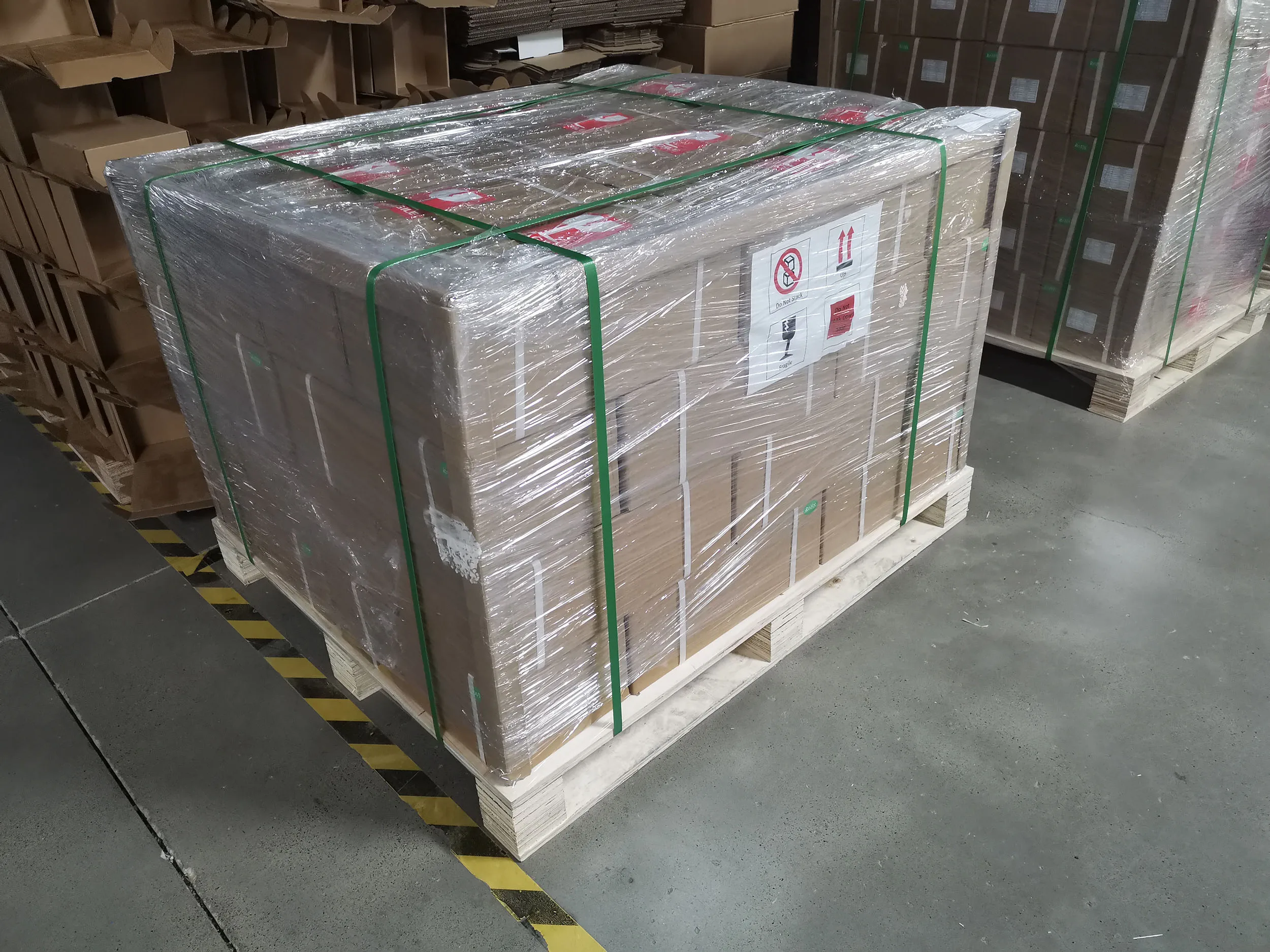

3. Packaging

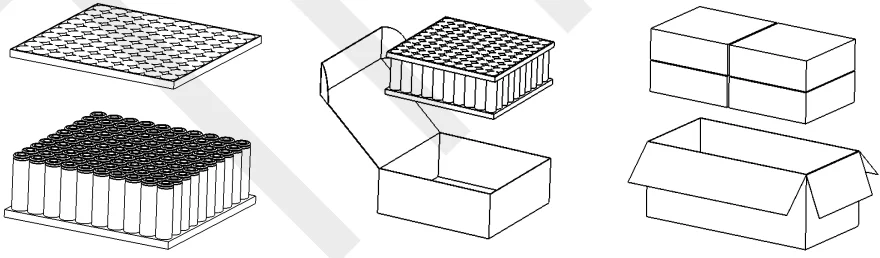

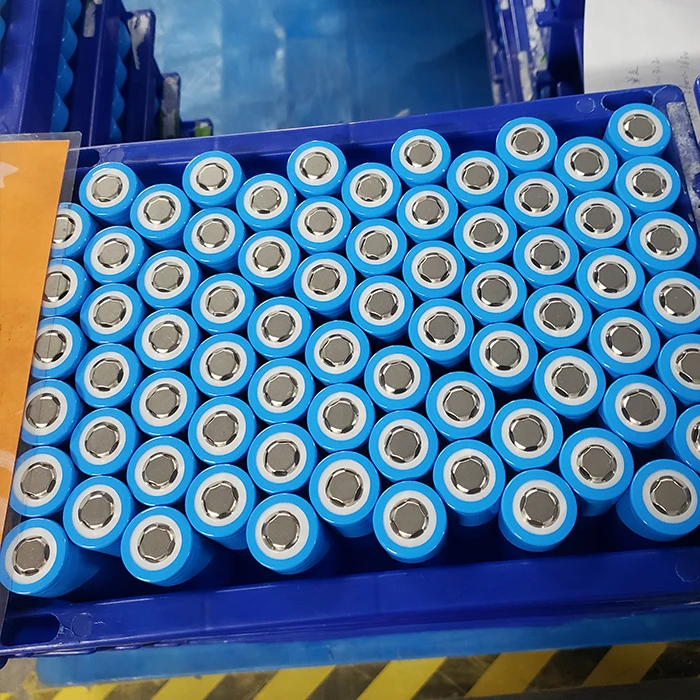

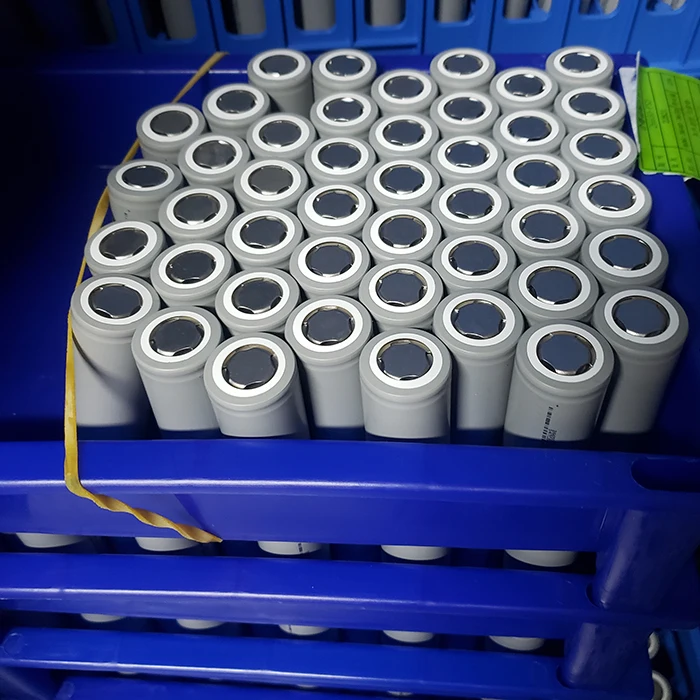

Cells packing: 100 cells per box, 4 boxes per box, 400 cells in total, outer box size: 455*232*172mm
The cells packing case shall be marked with the product name, model, nominal voltage, quantity, gross etc.
4. Certificate

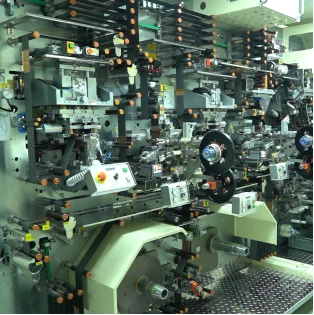

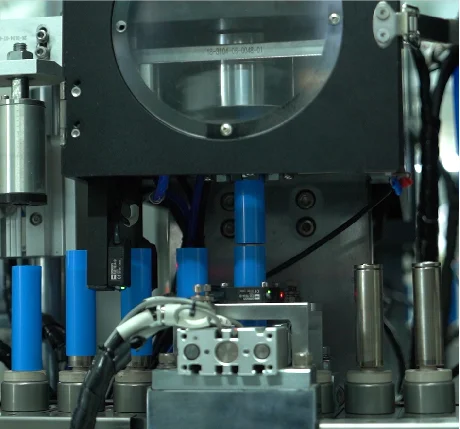

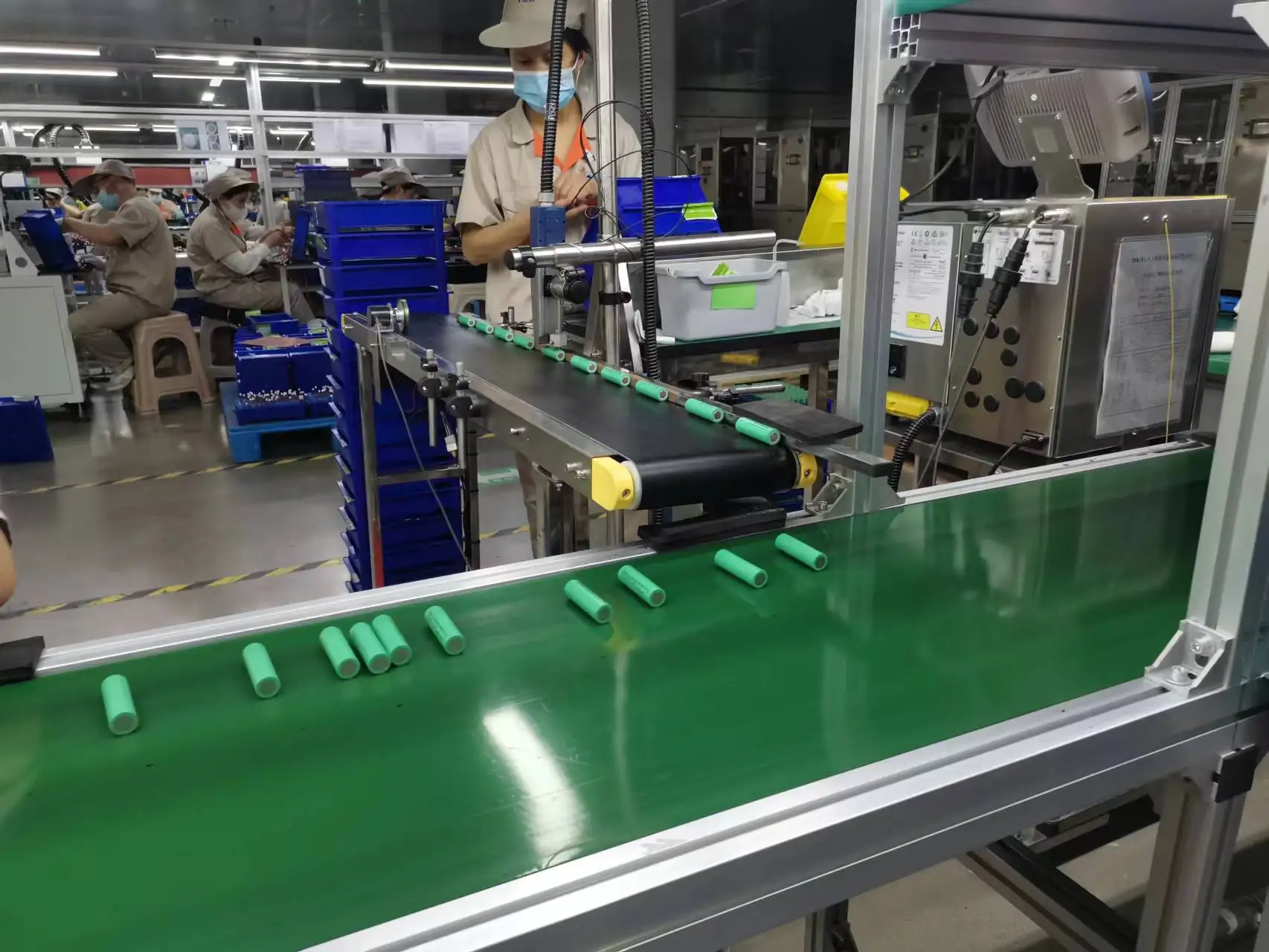

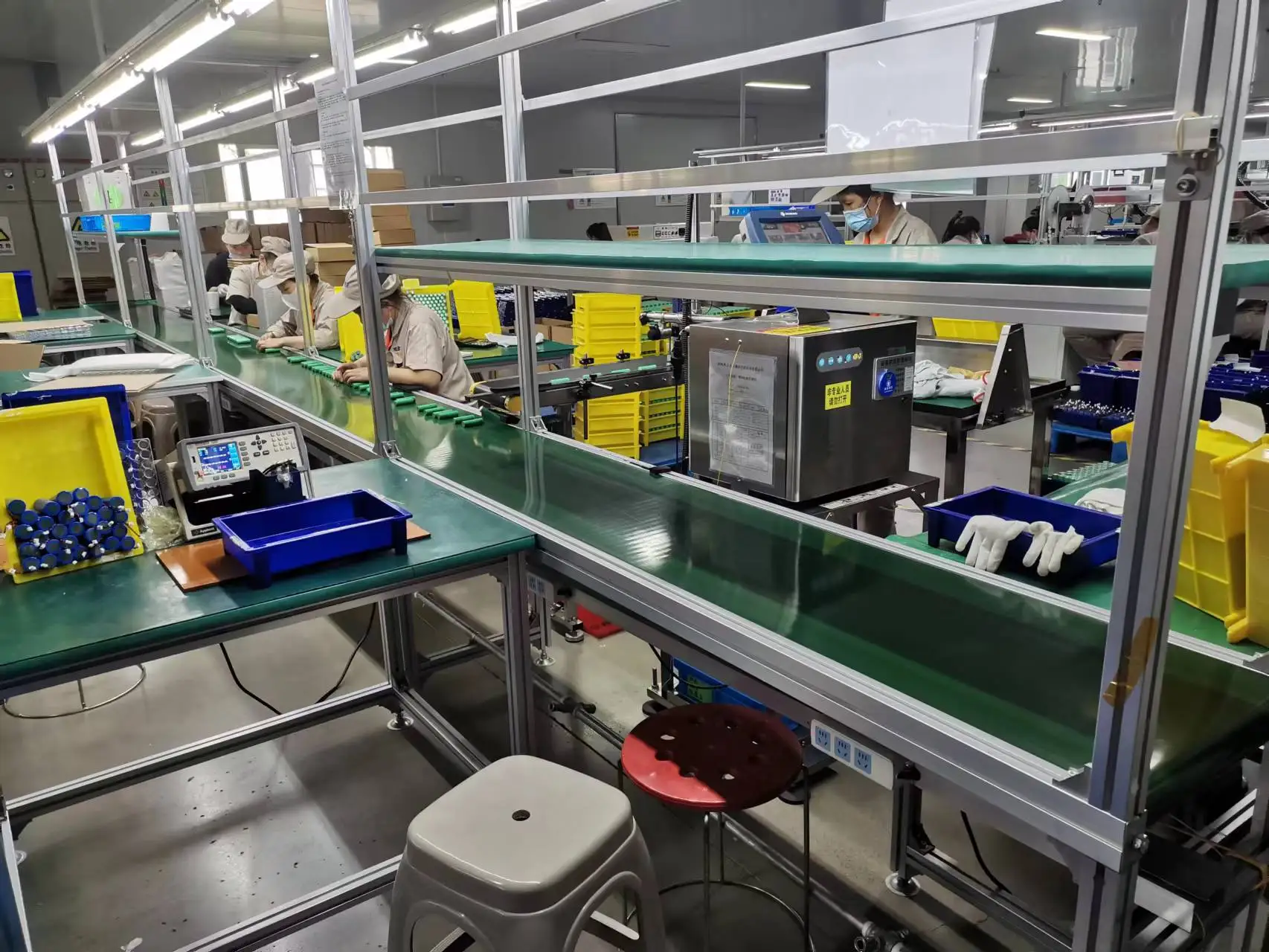

Cell Workshop

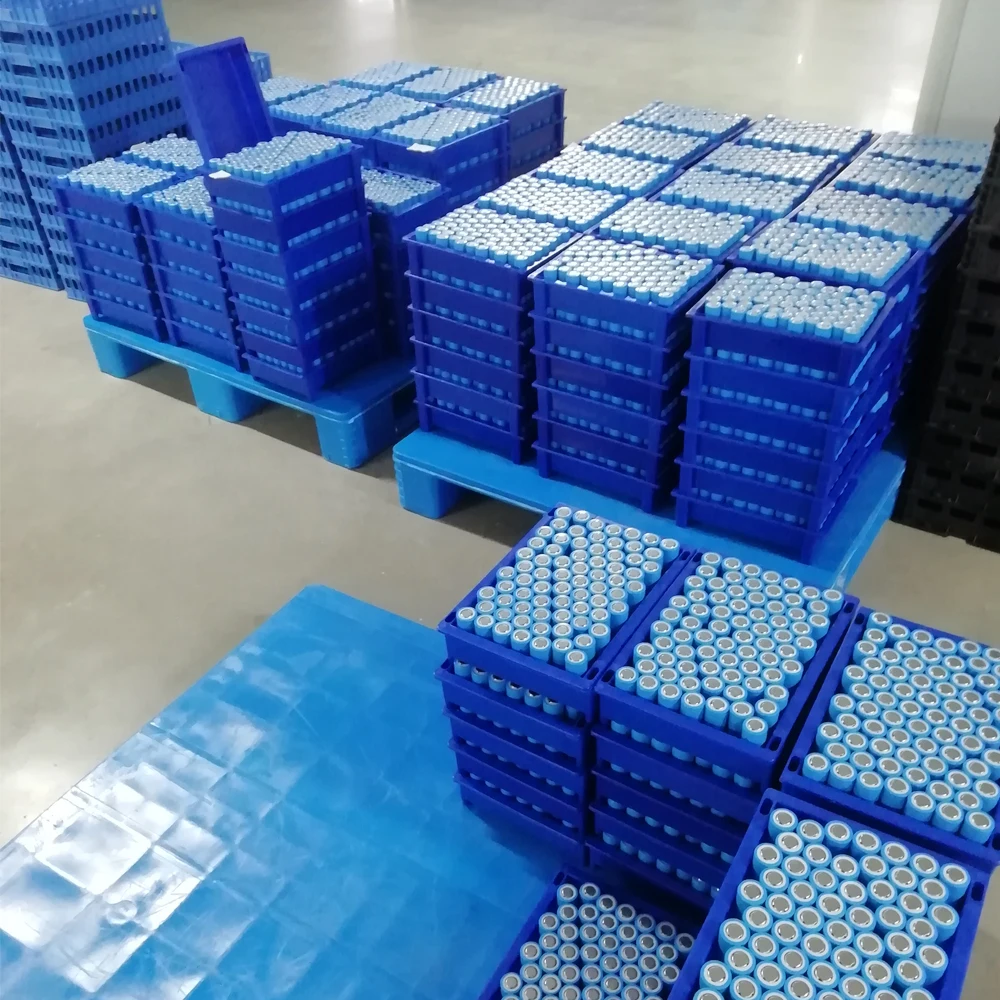

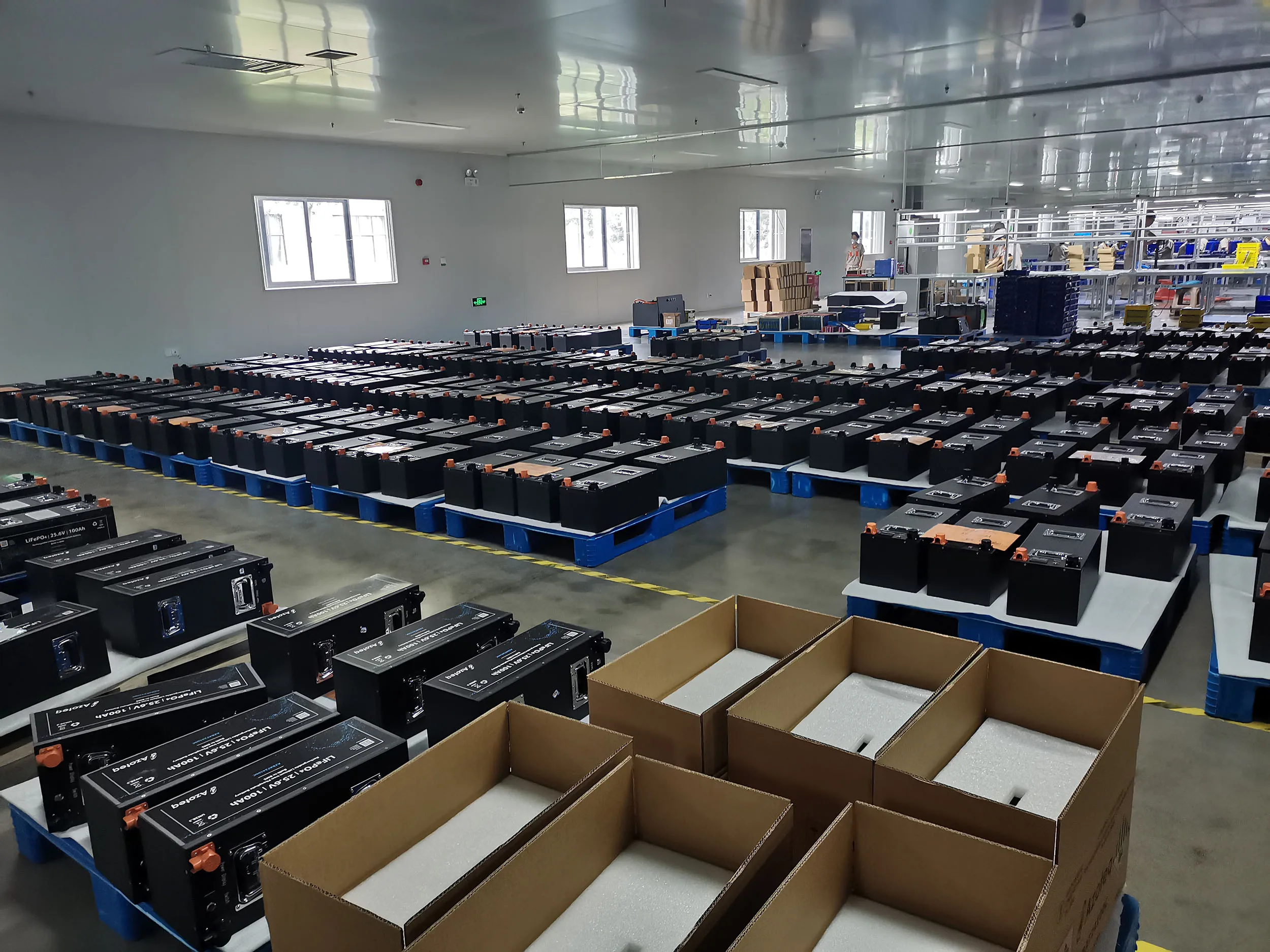

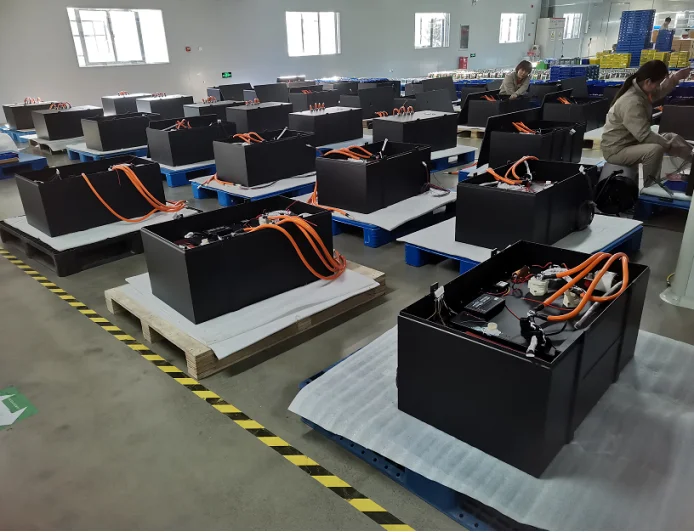

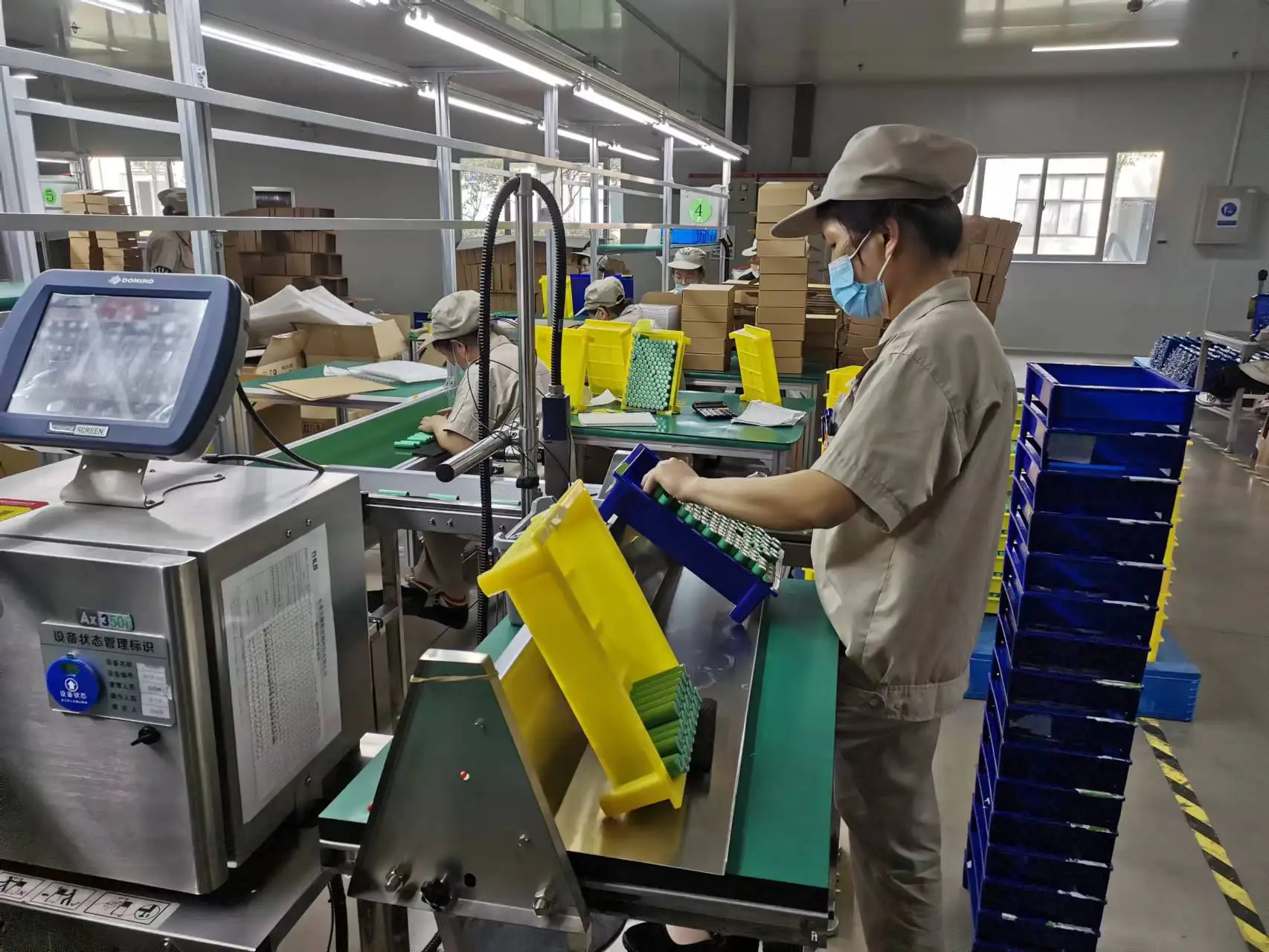

Pack Workshop
