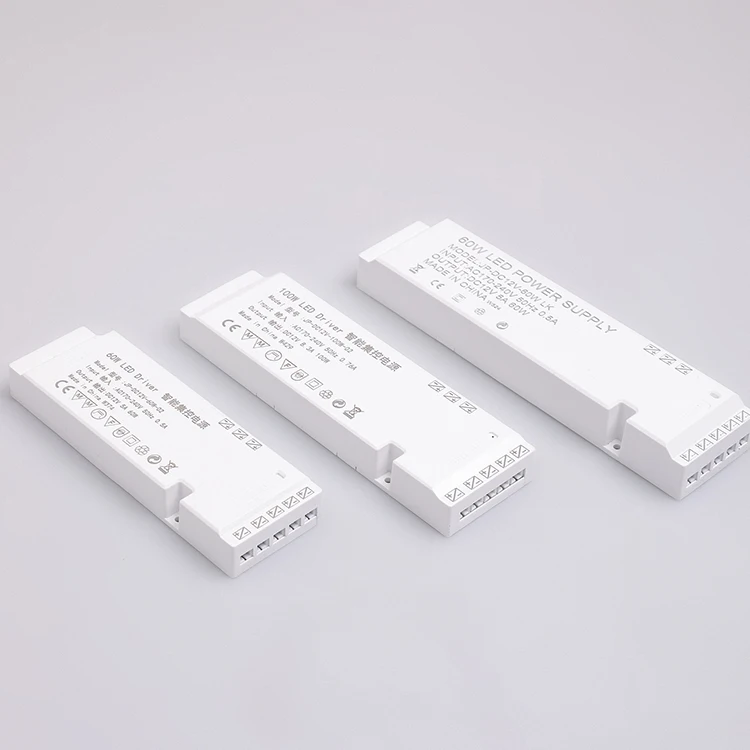

Dc12V ultra thin Led driver 36W 60W 100W Home Lighting Wine Cabinet Wardrobe Light Driver Power Supply
- Category: >>>
- Supplier: Guangzhou Jinpei Electric Appliance Co. Ltd.
Share on (1600634280956):
Product Overview
Description
All specifications are more than tables, please contact us for the latest quotation!
* We have 18W-100W power supply for cabinet lights

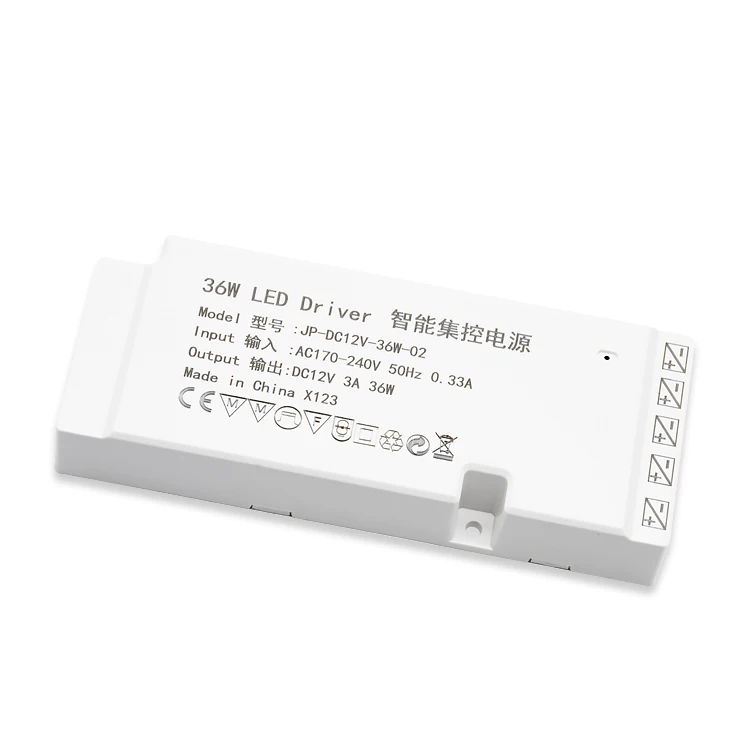

Power Supply Specifications for 12V-36W Cabinet Lamp | ||||||
Input voltage range | AC170V-240V | Rated output voltage | DC12V | |||
Input current | ≤550mA | Rated output current | 0-3000mA | |||
Input power | 40W | Rated load | 36W | |||
Power factor | ≥0.5 | Maximum output power | 36W | |||
Operating temperature range | -20-60℃ | Full load output voltage | 11.8-12.2V | |||
Working humidity range | ≤65% | Constant pressure accuracy | 5% | |||
Weight | 172g | Output ripple voltage | ±1%V | |||
Product size | 130*55*22MM | Work efficiency | ≥85% | |||
Input connection | AC terminal cable | Temperature | 50 ℃ or less | |||
Output connection | 5 sets of terminal cables | Isolation withstand voltage | AC 50Hz 2000V | |||
Protection mode: open circuit protection, short circuit protection, overload protection, over current protection, high temperature protection. | ||||||
Power supply for cabinet lamp
High quality PC shell and high quality circuit board design, line board line clear, high-end atmosphere, exquisite workmanship.With open circuit protection, short circuit protection, overload protection.

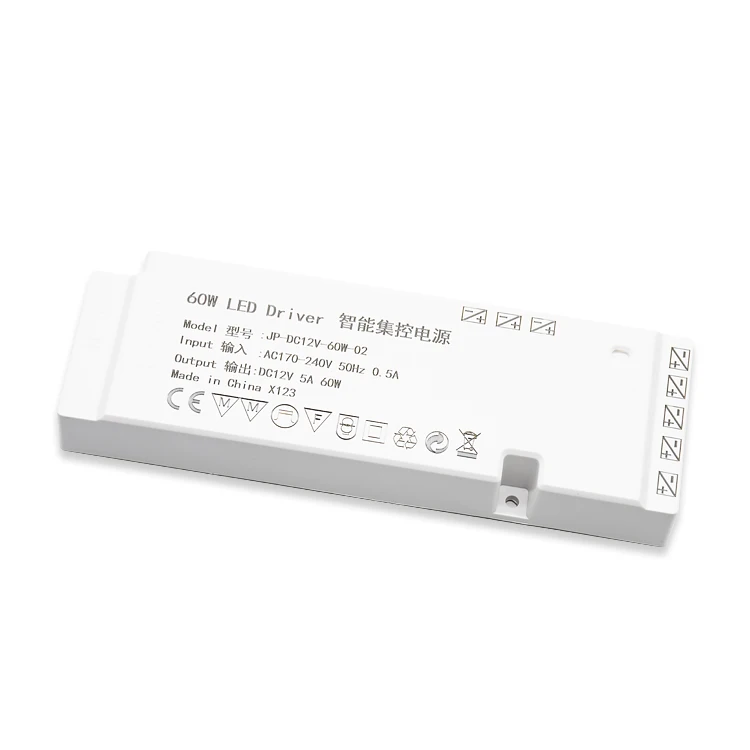

Power Supply Specifications for 12V-60W Cabinet Lamp | ||||||
Input voltage range | AC170V-240V | Rated output voltage | DC12V | |||
Input current | ≤1050mA | Rated output current | 0-5000mA | |||
Input power | 70W | Rated load | 60W | |||
Power factor | ≥0.5 | Maximum output power | 60W | |||
Operating temperature range | -20-60℃ | Full load output voltage | 11.8-12.2V | |||
Working humidity range | ≤65% | Constant pressure accuracy | 5% | |||
Weight | 201g | Output ripple voltage | ±1%V | |||
Product size | 160*55*22MM | Work efficiency | ≥85% | |||
Input connection | AC terminal cable | Temperature | 50 ℃ or less | |||
Output connection | 5 sets of terminal cables | Isolation withstand voltage | AC 50Hz 2000V | |||
Protection mode: open circuit protection, short circuit protection, overload protection, over current protection, high temperature protection. | ||||||
Power supply for cabinet lamp
Ultra-thin design, high efficiency, low noise, light weight, more stable constant pressure, long life.
Using high temperature resistant flame retardant plastic material environmental protection flame retardant insulating rubber shell, with good heat resistance.
Using high temperature resistant flame retardant plastic material environmental protection flame retardant insulating rubber shell, with good heat resistance.
Suitable for cabinet lighting, display cabinet lighting, wine cabinet lighting and other indoor lighting.
Power Supply Specifications for 12V-100W Cabinet Lamp | ||||||
Input voltage range | AC170V-240V | Rated output voltage | DC12V | |||
Input current | ≤1000mA | Rated output current | 0-7000mA | |||
Input power | 100W | Rated load | 84W | |||
Power factor | ≥0.5 | Maximum output power | 84W | |||
Operating temperature range | -20-60℃ | Full load output voltage | 11.8-12.2V | |||
Working humidity range | ≤65% | Constant pressure accuracy | 5% | |||
Weight | 201g | Output ripple voltage | ±1%V | |||
Product size | 185*55*22MM | Work efficiency | ≥85% | |||
Input connection | AC terminal cable | Temperature | 50 ℃ or less | |||
Output connection | 5 sets of terminal cables | Isolation withstand voltage | AC 50Hz 2000V | |||
Protection mode: open circuit protection, short circuit protection, overload protection, over current protection, high temperature protection. | ||||||
—

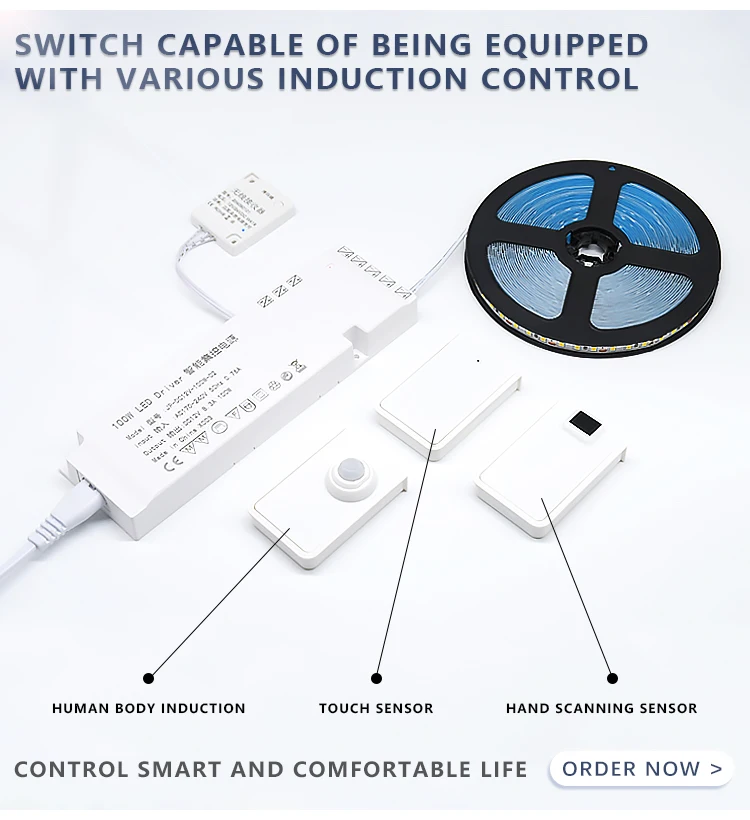

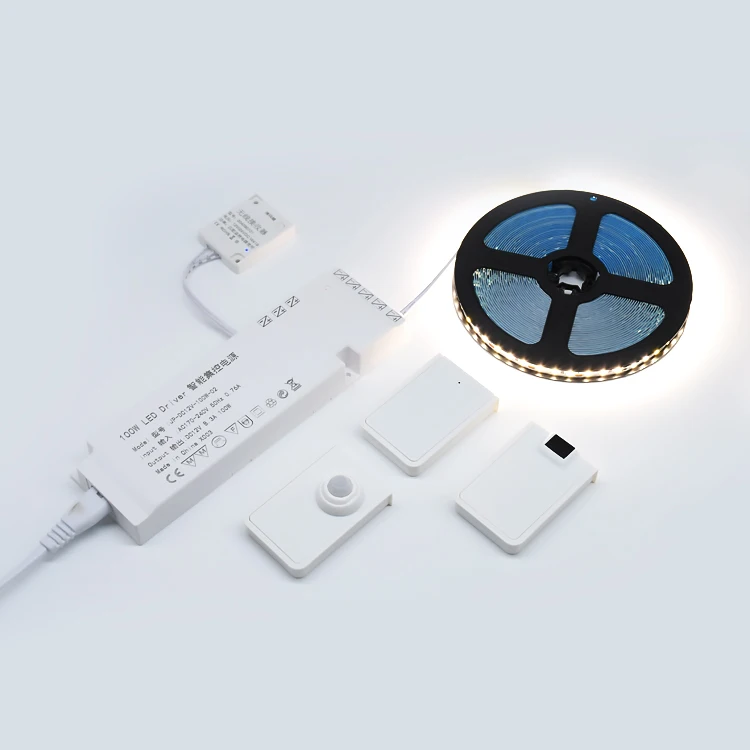

It can be used with our cabinet lamp, lamp belt, sensor and intelligent voice control box. Widely used, essential for home decoration.

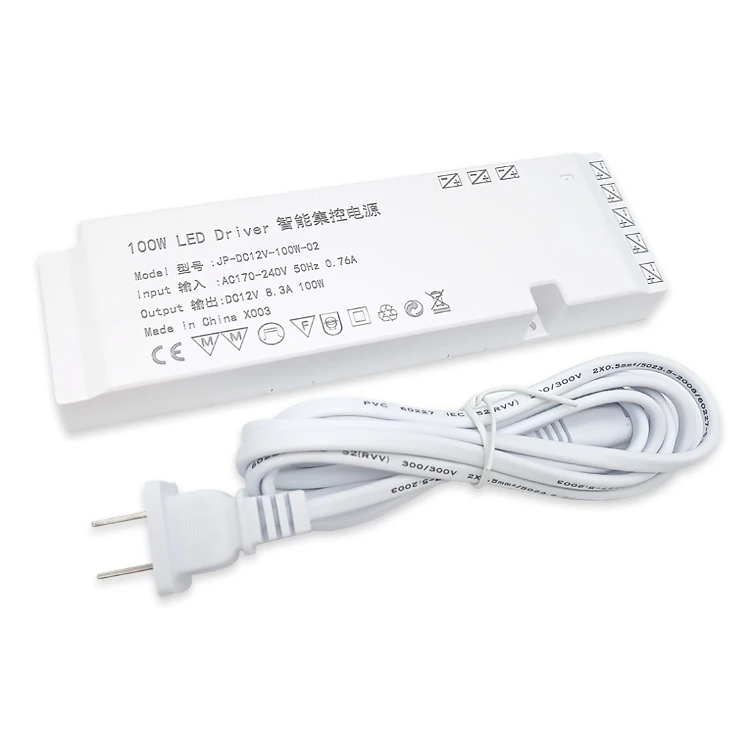

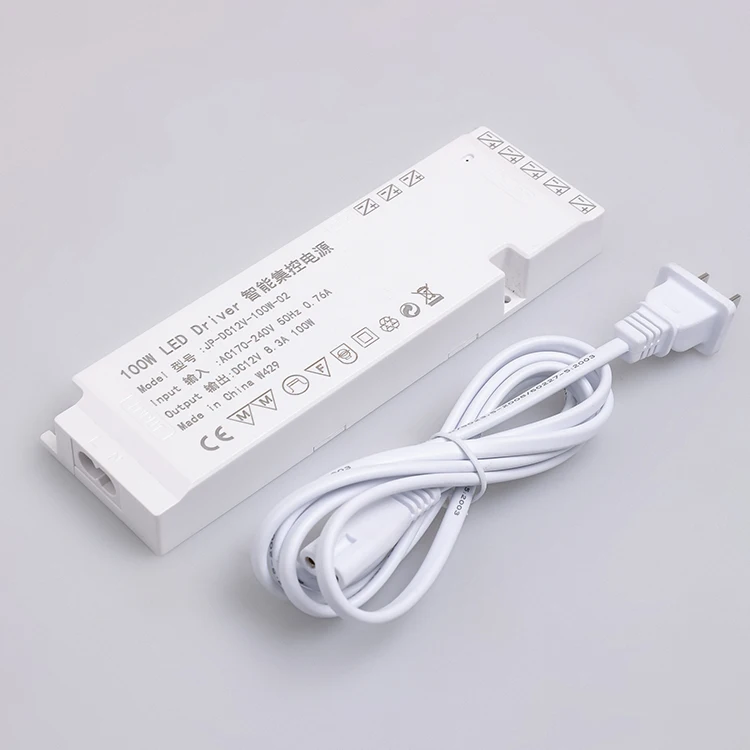

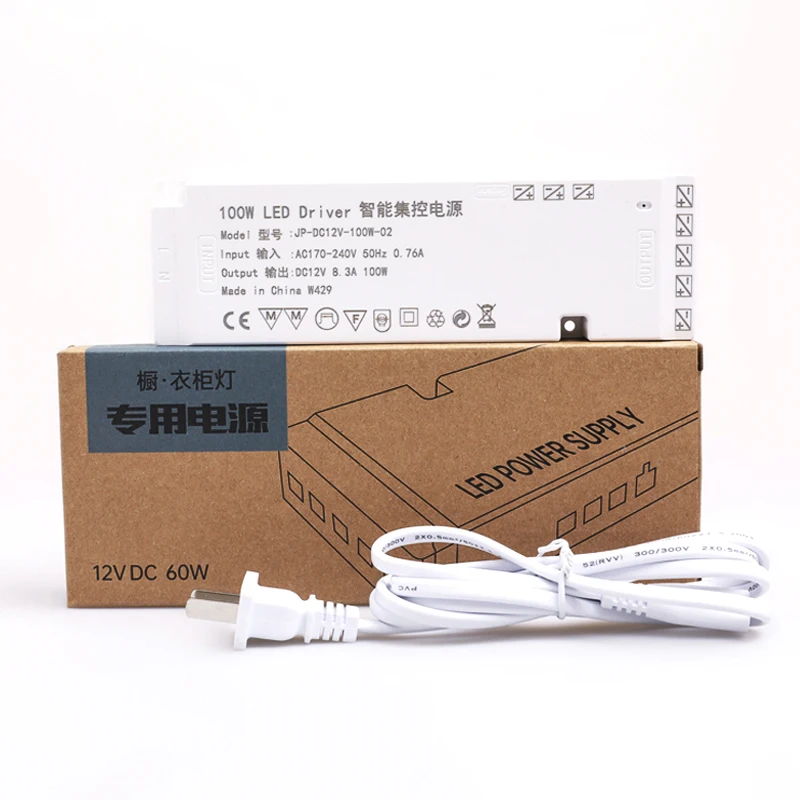

Each power supply is packed independently with plug cable.lt is equipped with 1.5m long 8-word plug cable.

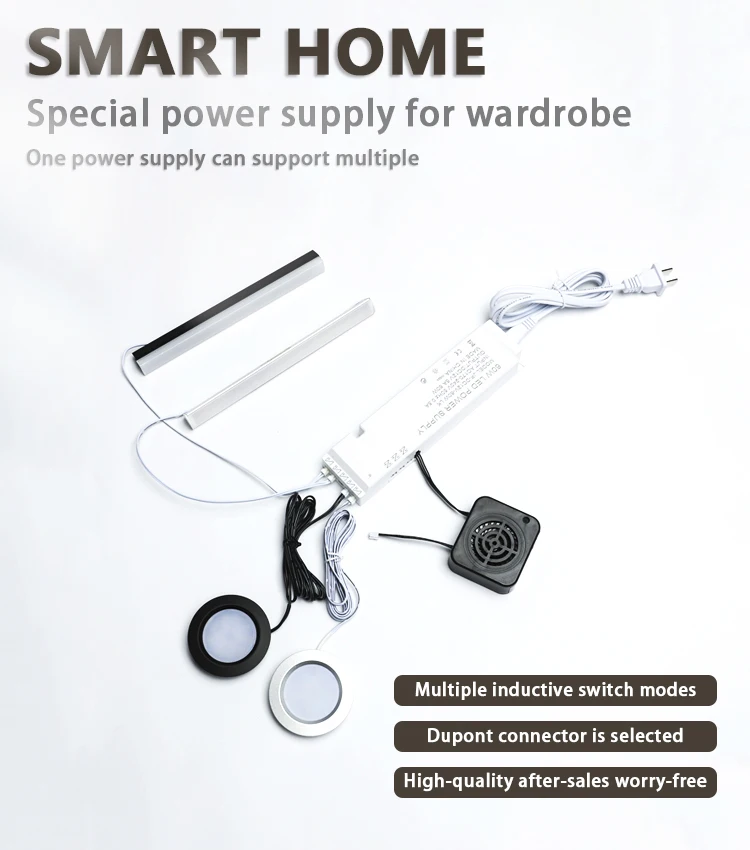

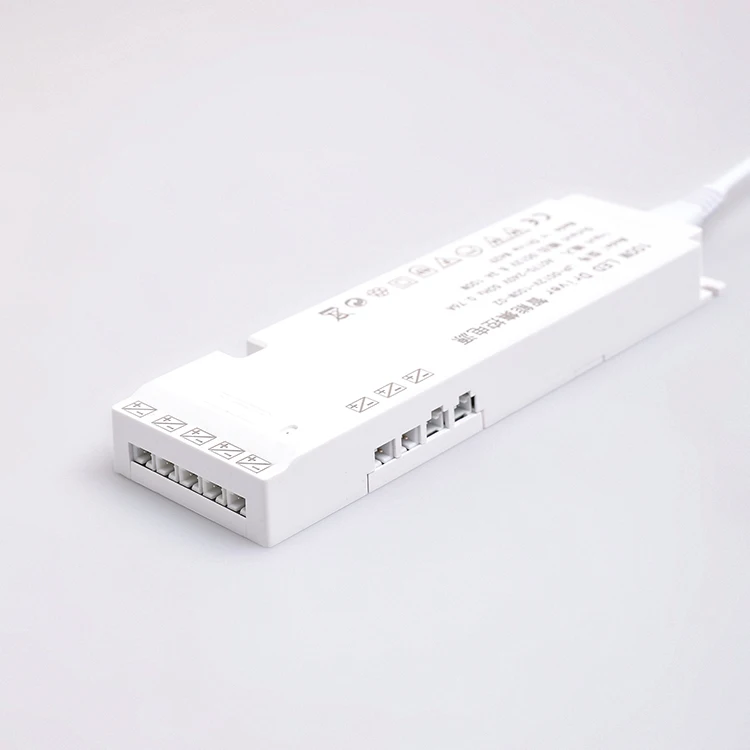

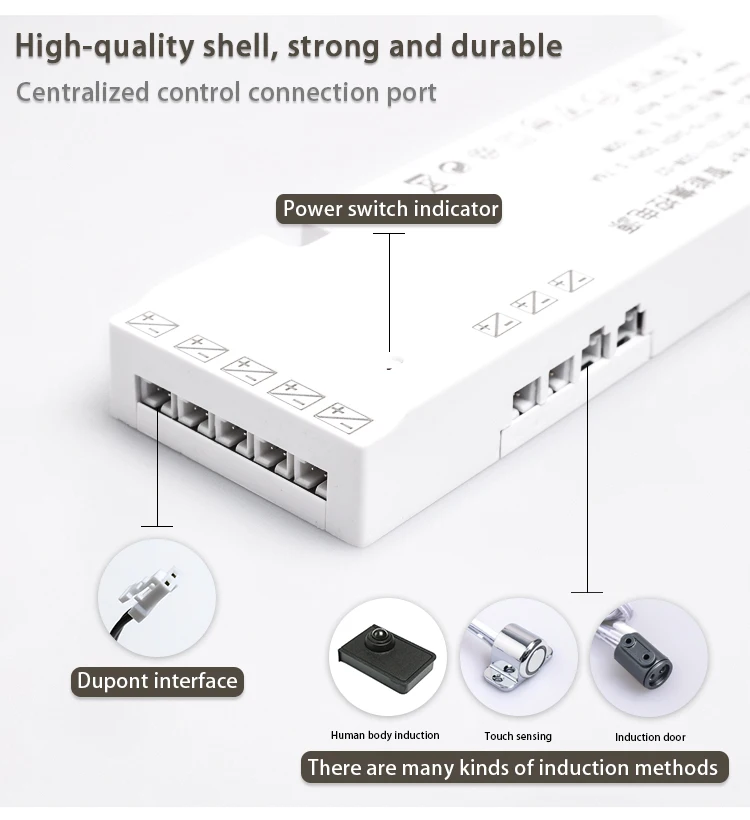

Multi-output cabinet light power supply, 5-8 cabinet light or light strip can be used at one time, can be connected to the controller and sensor, in order to control more lamps.
——
