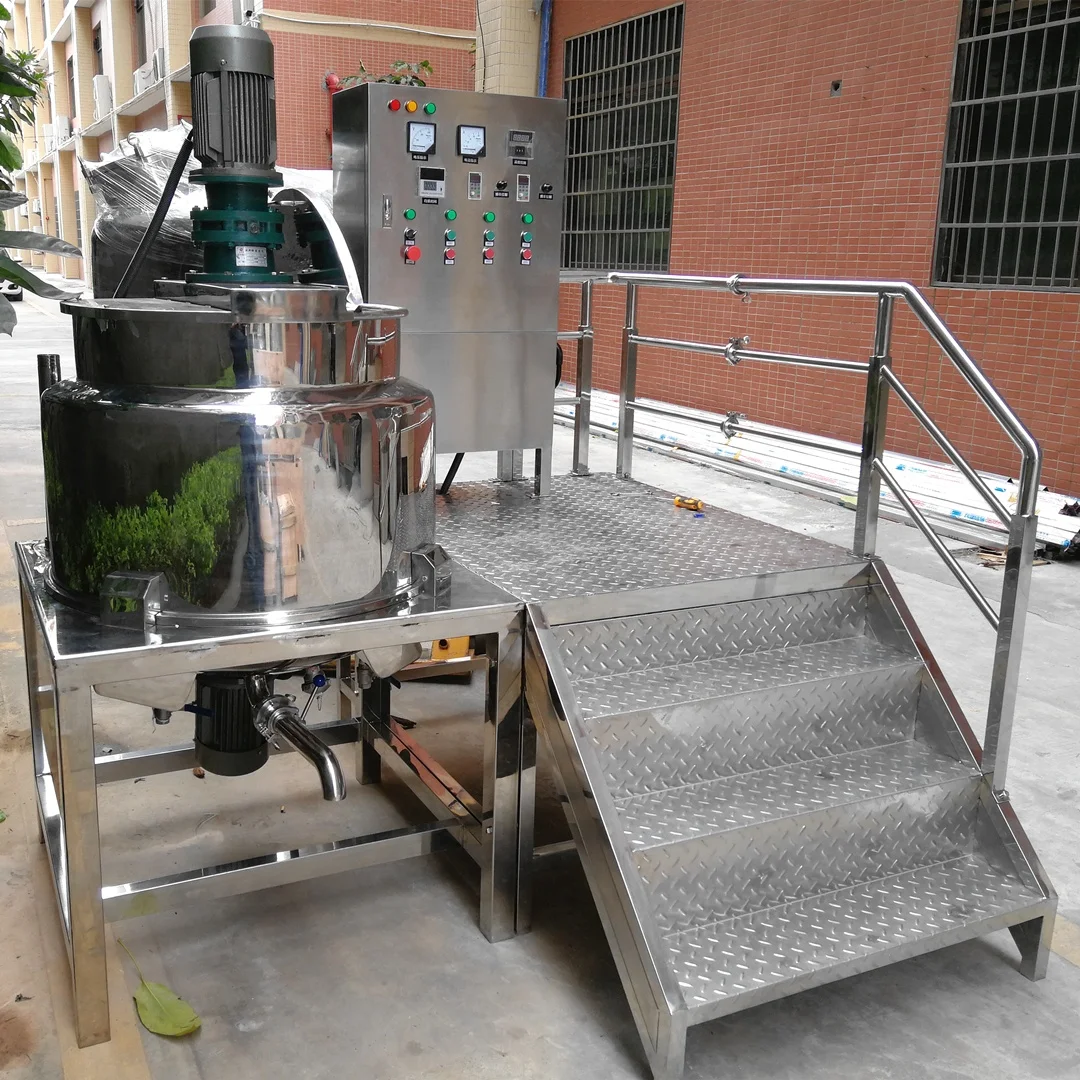

Chemical Industrial Mixing Equipment Lotion Mixer Machines Cosmetic Manufacturing Machinery Small Liquid Soap Making Machine
- Category: >>>
- Supplier: Guangzhou Ailusi Machinery Co. Ltd.
Share on (1600634355587):
Product Overview
Description
Product Overview
AILUSI MACHINERY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard

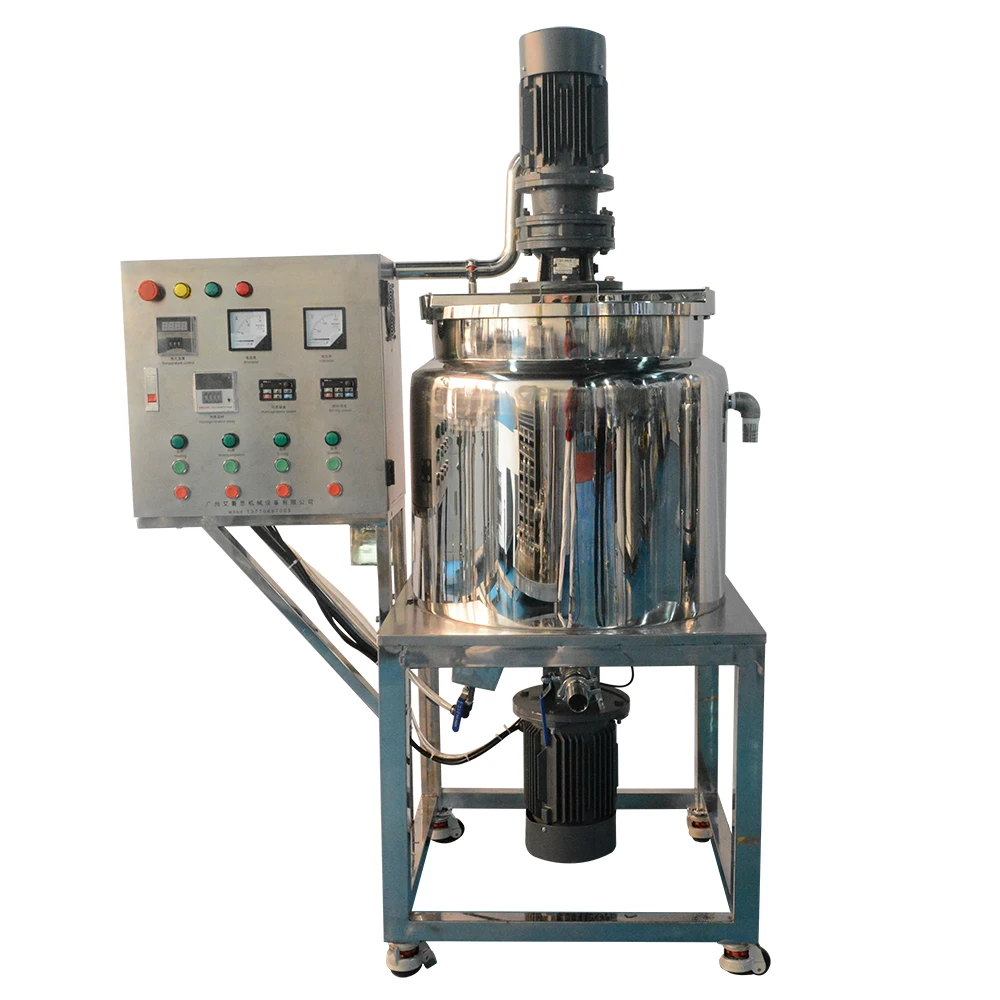

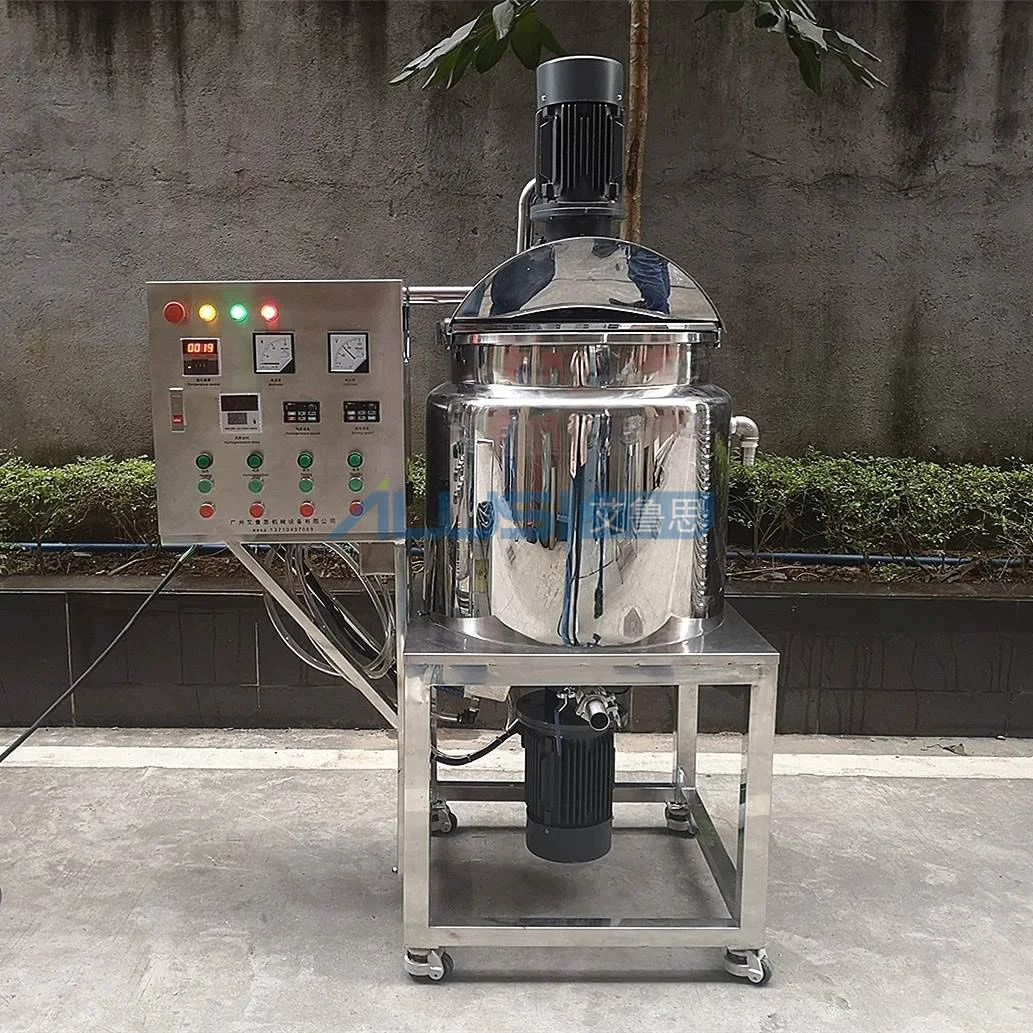

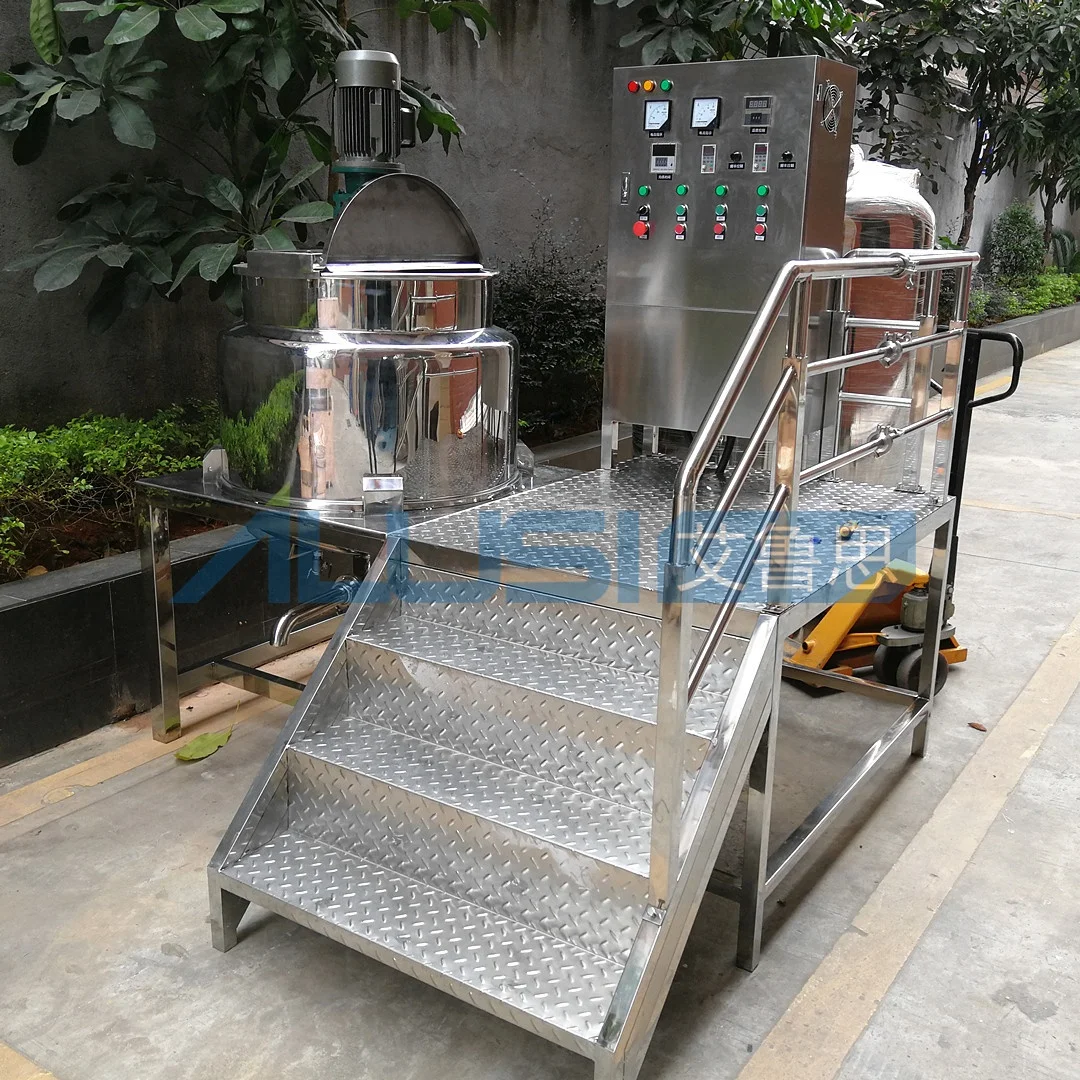

Liquid detergent homogenizing mixer machine
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard
Liquid detergent homogenizing mixer machine
Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
FEATURES AT A GLANCE
1. The Omnidirectional wall scraping and mixing adopts a frequency converter to adjust the speed. At low temperatures and high viscosity, it can reduce the formation of bubbles.
2. Jacket heating and cooling function (steam/electric heating)
3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements.
4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials.
5. Schneider switch control button, Delta inverter, Omron temperature control
PRODUCT SPECIFICATIONS
Model | AHM-100 | Working capacity | 100L |
Heating method | Steam/electric | Mixer | Frame wall scraper mixing |
Mixing motor power | 1.5KW | Mixing frequency | 1.5KW |
Mixing Speed | 0-65rpm | Homogenizer frequency | 2.2KW |
Bottom Homogenizer power | 2.2KW | Homogenizer type | Internal and external circulation(option) |
Control method | Button control | Frequency converter | Delta/Panasonic/Mitsubishi |
Electrical components | Schneider/Delixi | Tank materials | Inner layer 3mm/SUS316 Middle layer 3mm/SUS304 Outer layer 2mm/SUS304 |
Capacity | Mixing power(KW) | Heating(KW) | Homogenizer(KW) | Size(mm) |
50L | 1.1 | 6/Steam | 2.2 | 1200*500*1600 |
100L | 1.5 | 9/Steam | 3 | 1300*600*1700 |
200L | 2.2 | 12/Steam | 4 | 1500*800*1800 |
300L | 2.2 | 12/Steam | 4 | 2150*1450*1900 |
500L | 3 | 18/Steam | 5.5 | 2300*1600*2500 |
1000L | 5.5 | 27/Steam | 7.5 | 2700*1900*2700 |
1500L | 7.5 | 36/Steam | 11 | 2850*2400*2850 |
2000L | 7.5 | 36/Steam | 15 | 2900*2800*3200 |
3000L | 11 | 48/Steam | 22 | 3000*3300*3700 |
5000L | 15 | 72/Steam | 30 | 3400*3800*4100 |
PRODUCT CONFIGURATION

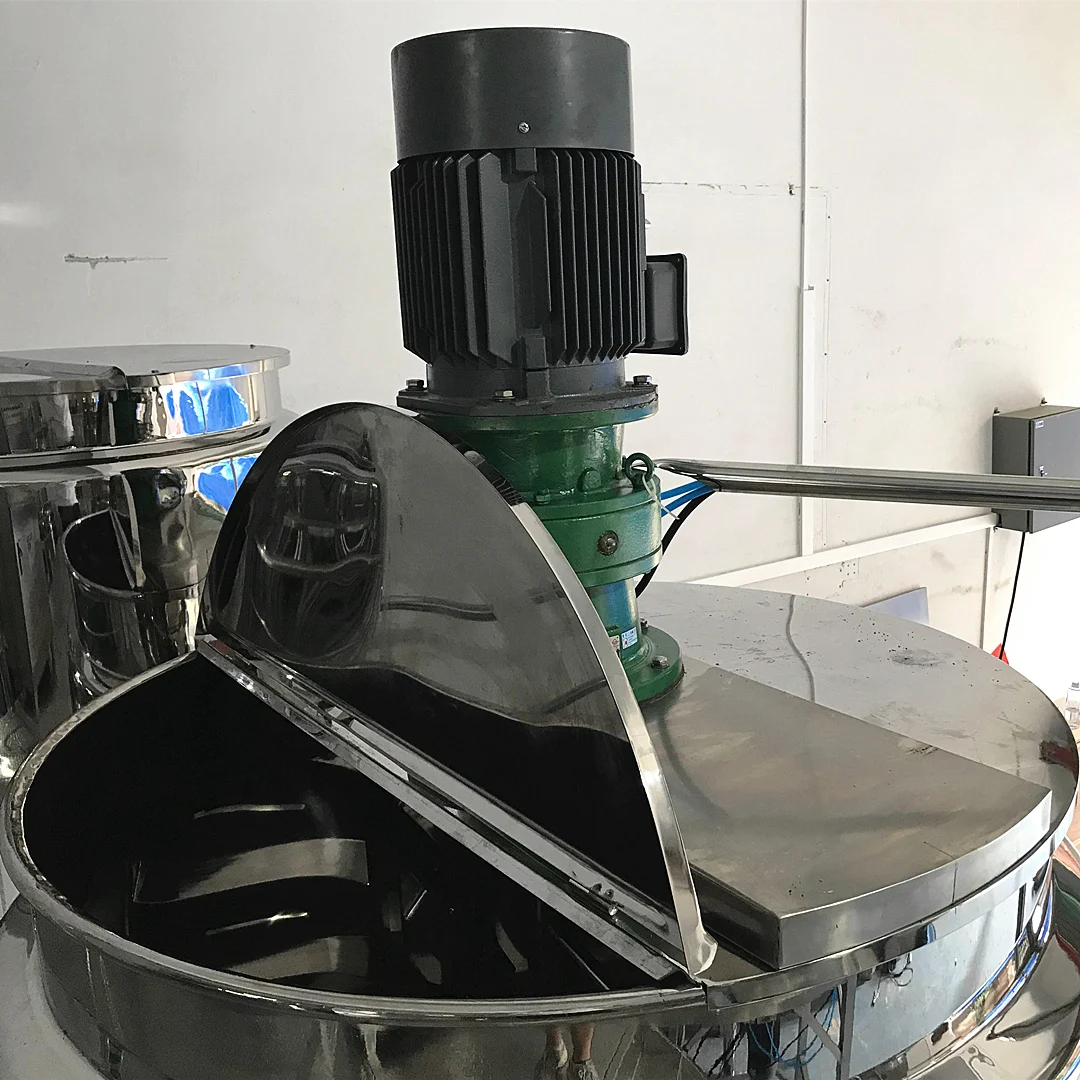

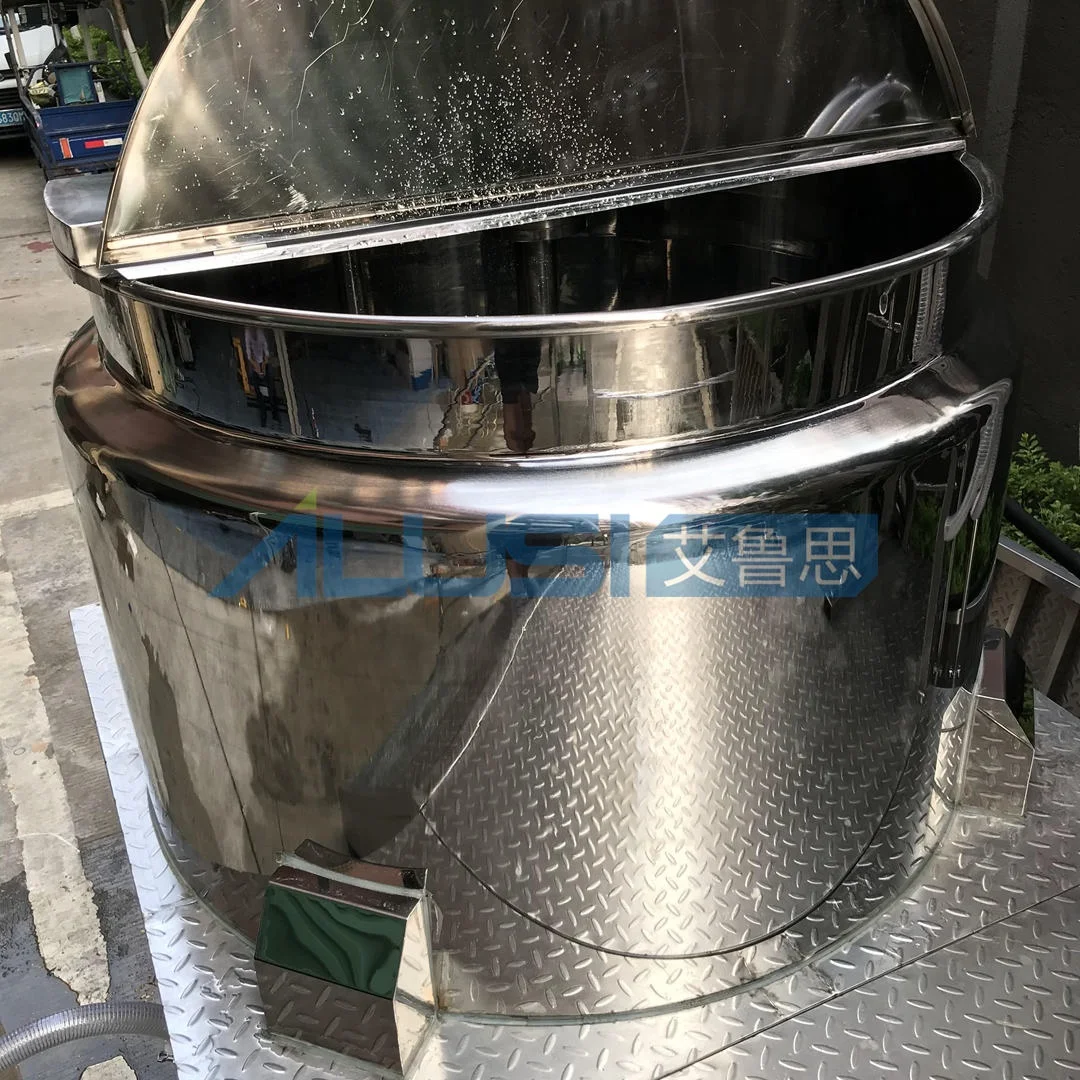

Lid
-- SUS304, half open hinged lid, GMP hygiene standards
Tank
-- SUS316L&304
-- Inside and exposed parts polishing＜0.4μm;
The inner - middle layer for heating and cooling; The Middle - outer layer for Rock wool insulation;
The inner - middle layer for heating and cooling; The Middle - outer layer for Rock wool insulation;
-- Steam heating or electrical heating

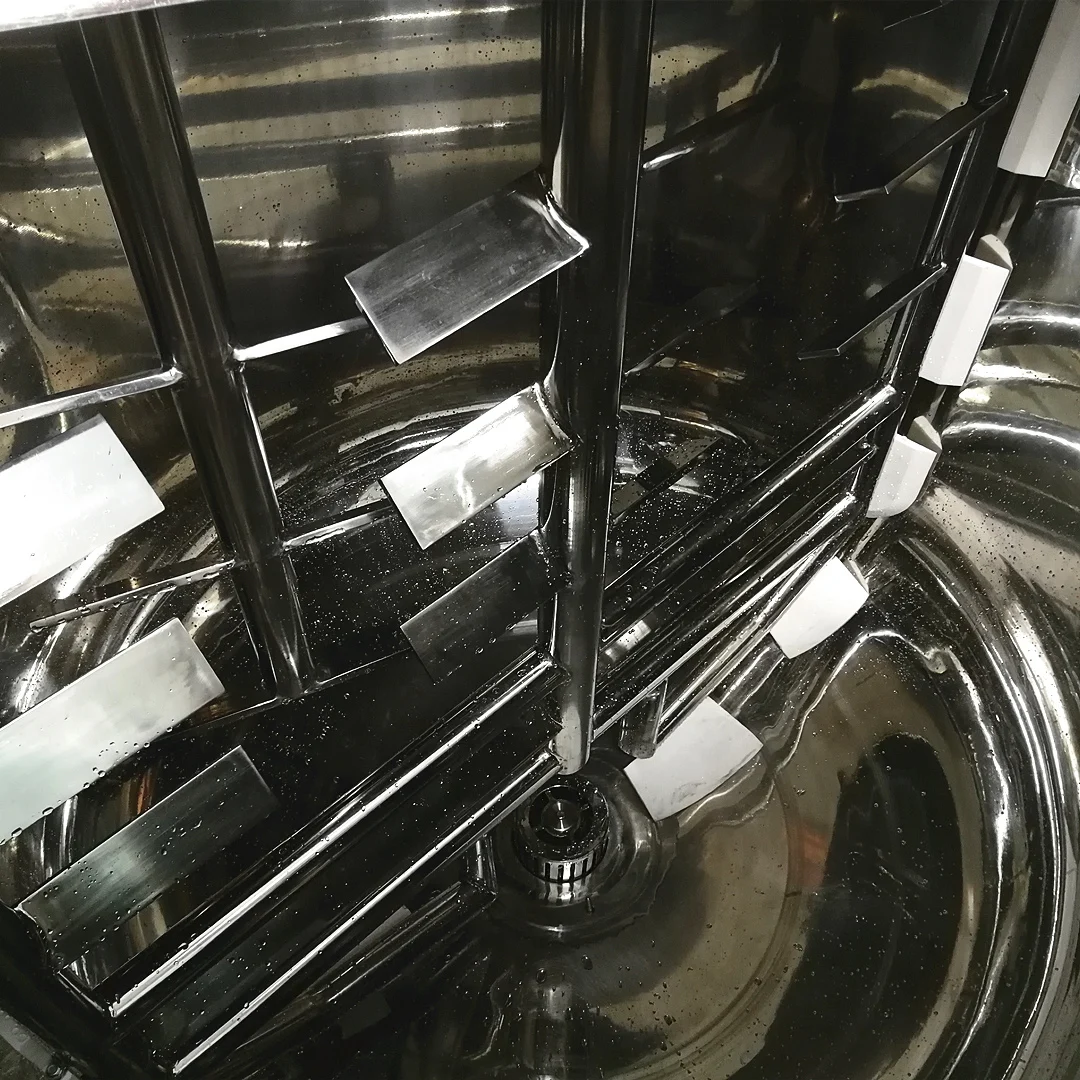

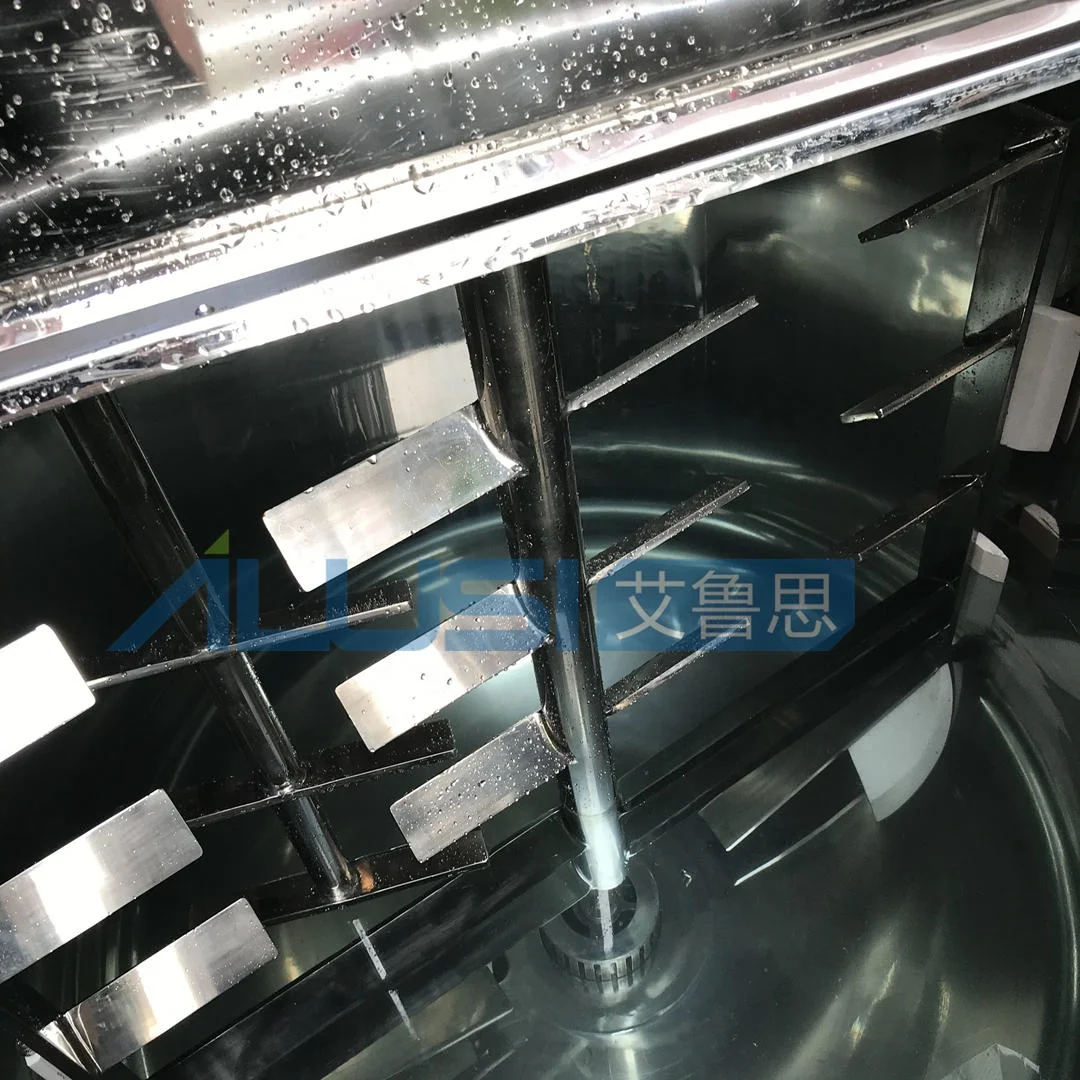

Mixer
-- Frame type wall scraper mixing, with one fixed propeller
-- Speed: 0-65rpm, frequency inverter
-- PTFE material, remove product from the wall

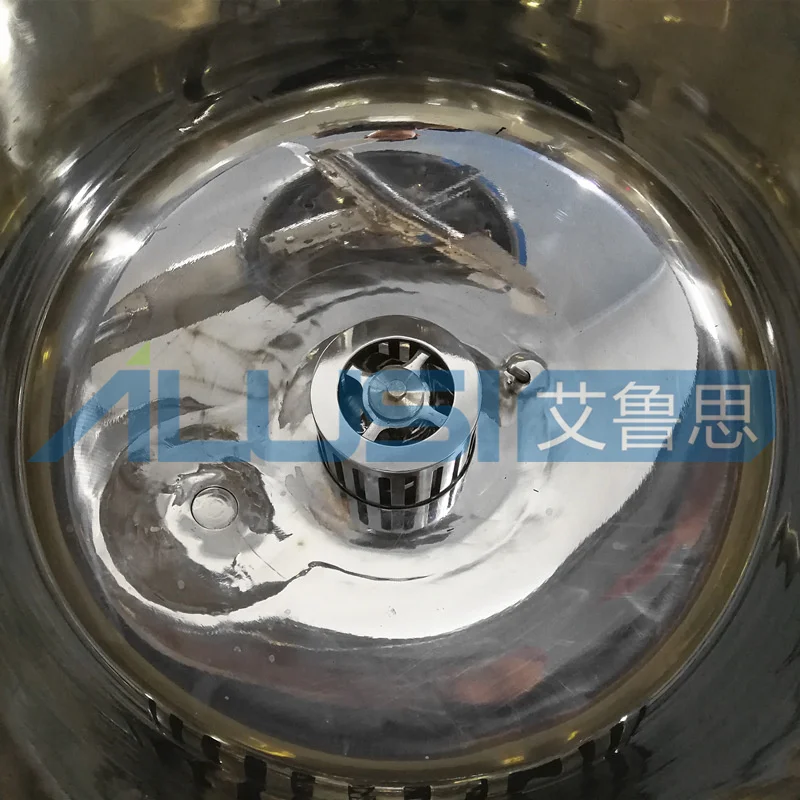

Button homogenizer
-- 0-3600rpm , frequency inverter
-- SUS316L, rotor and stator high shearing homogenizer

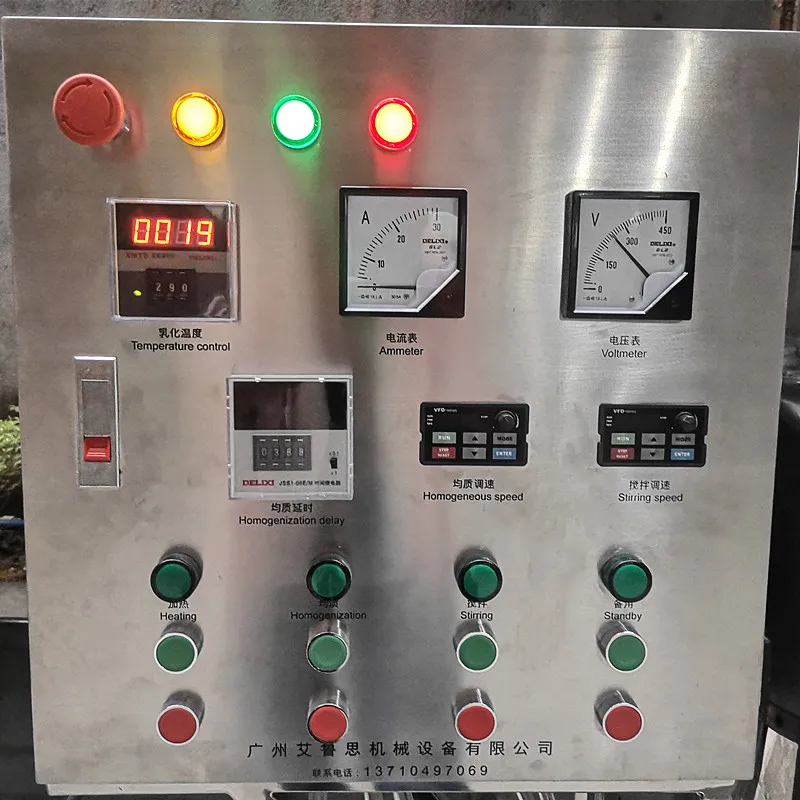

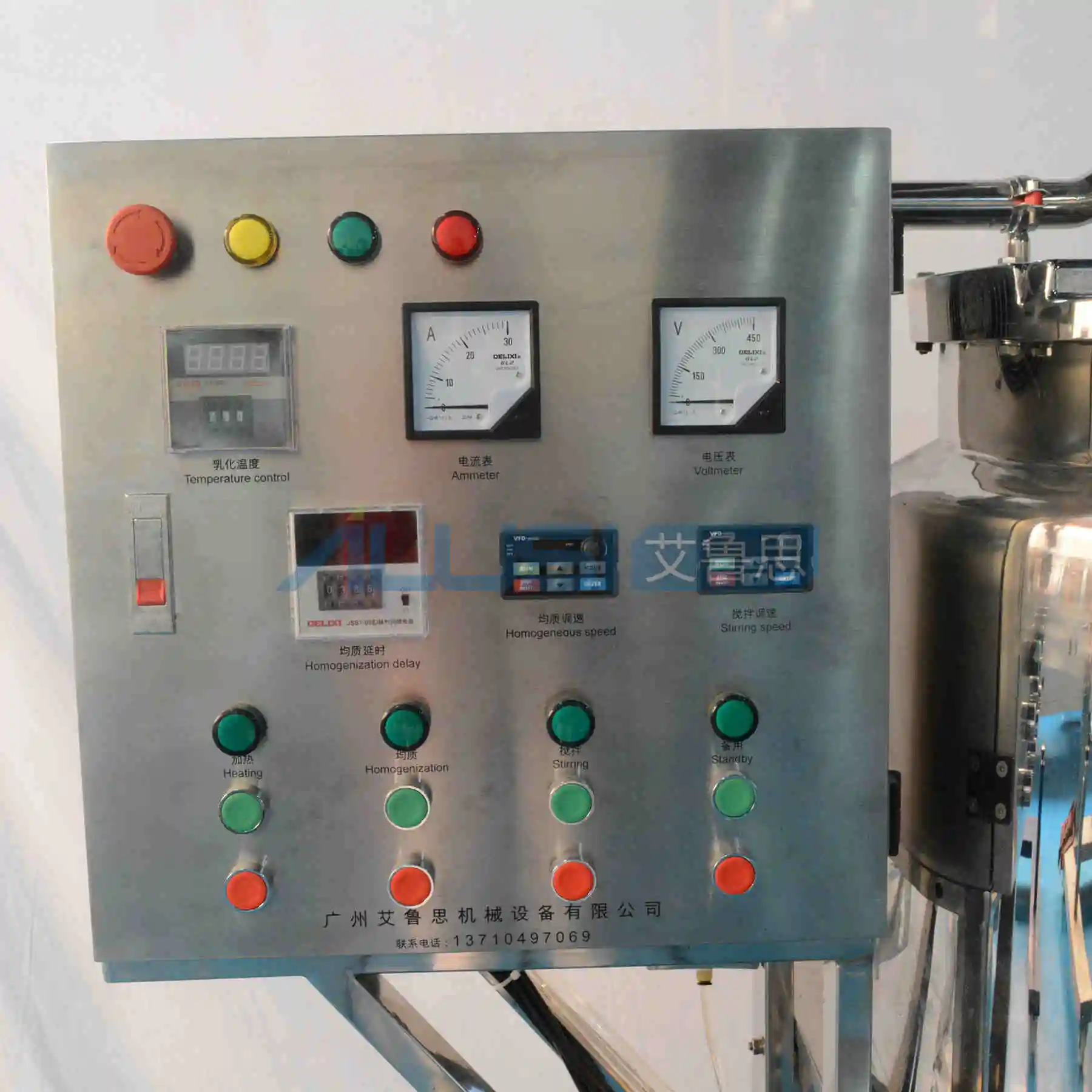

Console
Governor,Delta
Temperature table, WINKPARK
Breaker, Delixi
Relay, Delixi
Button, Schneider
Ammeter, Delixi
AC contactor, Delixi
Time delayer

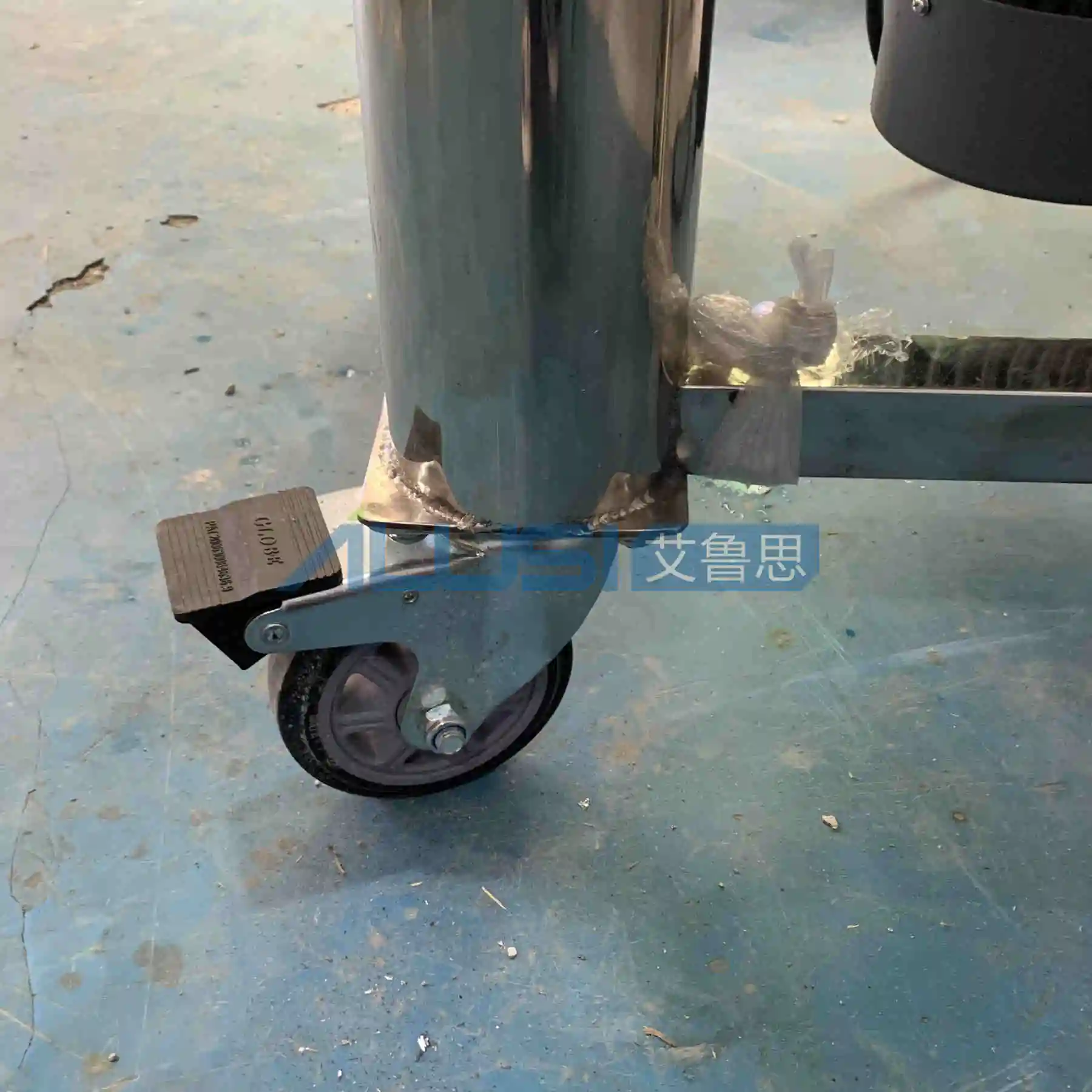

Wheels
-- SUS04, two wheels with breaker
Stator and rotor
rotor
Materials SUS304&316L(TISCO)
Siemens BEIDE Motor
Reducer
Delta Frequency inverter
Burgmann Mechanical seal
NSK Bearing
Omron temperature controller
Indicator light, Schneider
Button , Schneider
Current Transformer,Delixi
Time Relay
Breaker
AC contactor
Certifications
Material Sources
Packing & Delivery
Packaging | ||
Size | 1600(L) * 1400 (W) *2200 (H) | |
Weight | 650KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Successful Project
Project in Thailand
Project in India
Project in Russia

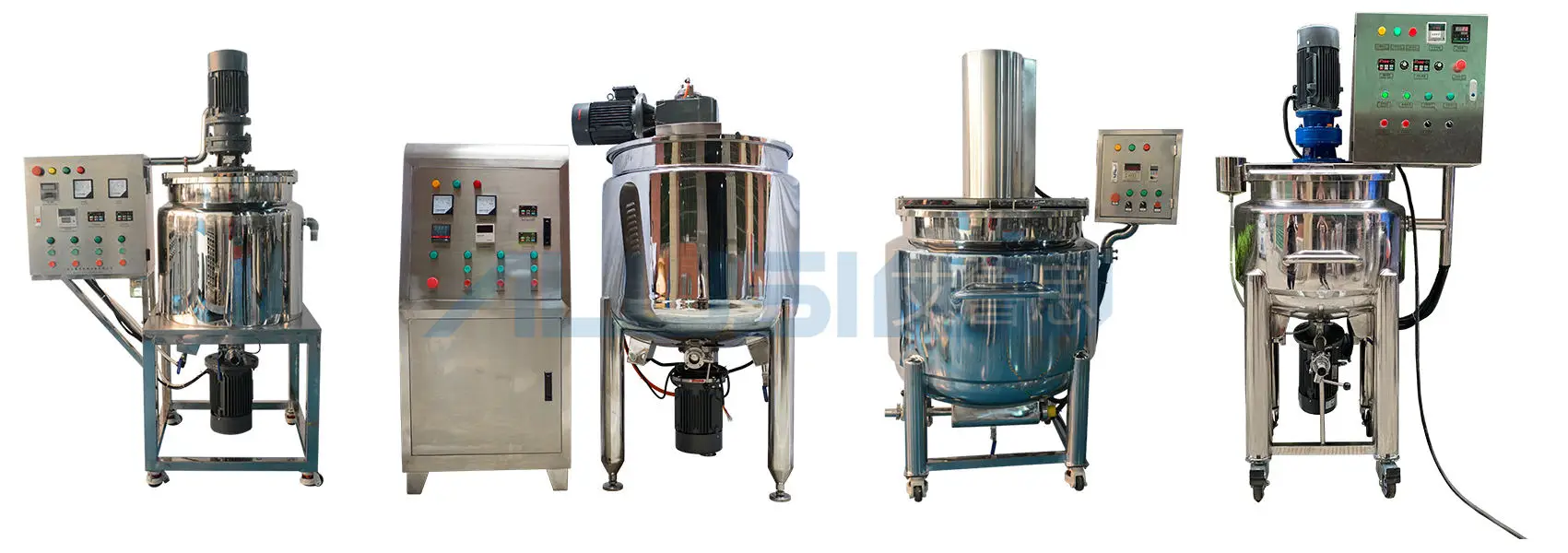

SIMILAR PRODUCTS
