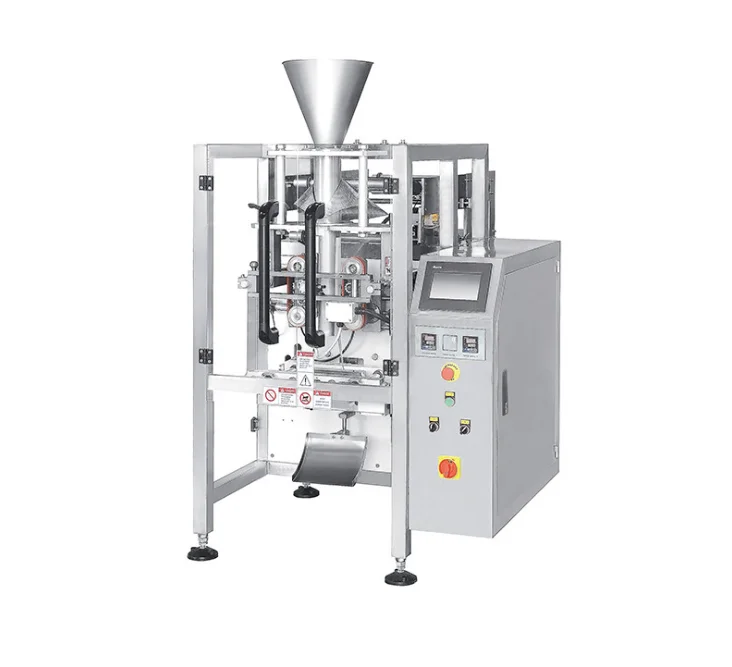

Automatic 100g 200g 500g 1kg bag rice weighing packing and beans sugar granule packaging machine
- Category: >>>
- Supplier: Guangzhou Xinlongtai Machinery Co. Ltd
Share on (1600634429232):
Product Overview
Description
Specification
Model No. | XLT-420M |
Machine Material | 304SUS |
Voltage | 110V/220V,50HZ/60HZ |
Power | 3KW |
Packing Speed | 30-80bags/min |
weighing range | 150-1500ml |
Bag Width | 100-200mm |
Bag Length | 100-280mm |
Film Material | OPP/CPP OPP/CE PET/PE NILO/PE PE |
Film Tickness | 0.04-0.12mm |
Dimension | 3000X1650X3650MM |
Machine Weight | 950KG |
Optional Device | Date Coder/Air Exhaust Device/ Nitrogen Device/Inflatable Device/Punching Device/Tear Notch Device/Gusset bag device/Linking Bag Device |

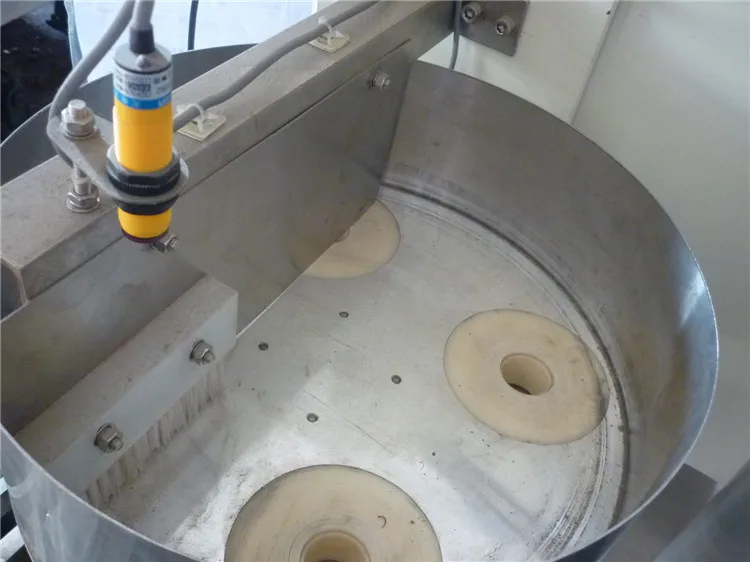

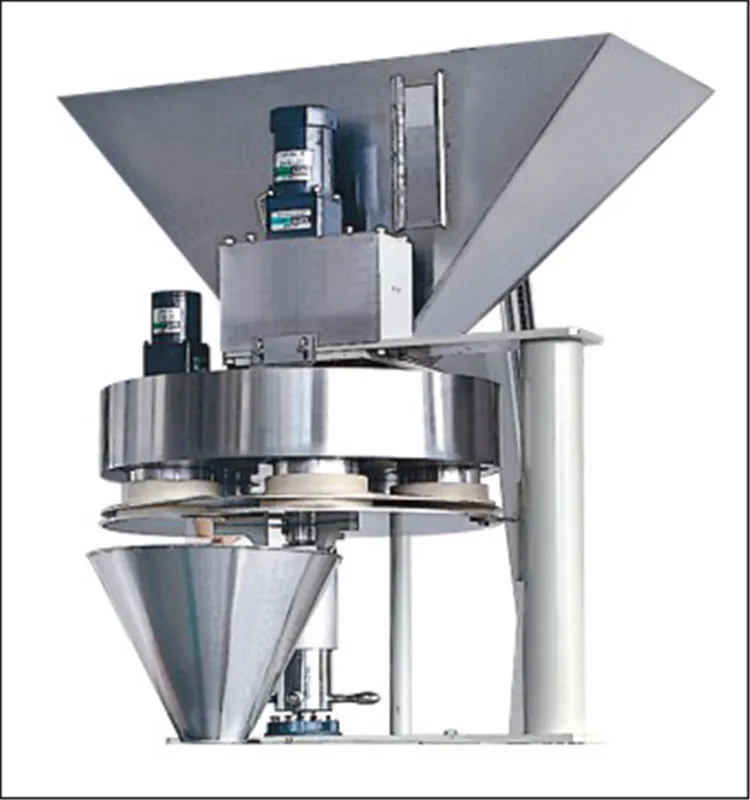

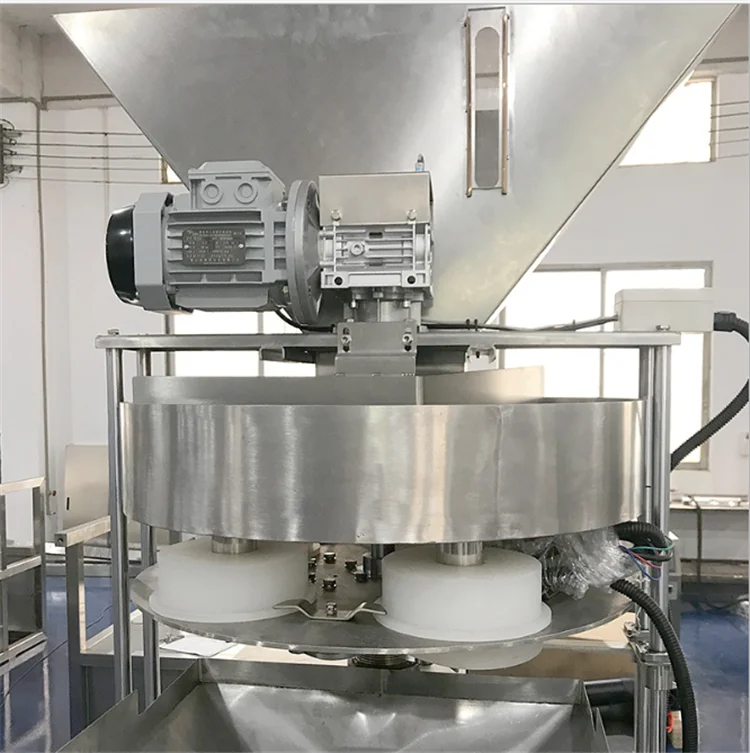

1.The volumetric cup filler packaging machine can automatically complete the transportation, measuring, filling, bag making, date printing, heat sealing, cutting and other products of fasteners.
2.The size and number of bags can be customized by the customer.
3.The packaging machine uses a stepper motor drive system.
4.To ensure the same length of each bag, a highly sensitive photoelectric sensor system is provided.
5.Temperature Independent Control System The packaging unit is controlled by a PLC programmable control system and a servo rive system.
6.It adopts a humanized multi-language color touch interface. The setting of the package value and modification are all done through the touch screen. A total of memory of multiple recipes can be stored.
7.The packaging unit can be made in different styles such as pillows, holes and angles, and link pockets.
2.The size and number of bags can be customized by the customer.
3.The packaging machine uses a stepper motor drive system.
4.To ensure the same length of each bag, a highly sensitive photoelectric sensor system is provided.
5.Temperature Independent Control System The packaging unit is controlled by a PLC programmable control system and a servo rive system.
6.It adopts a humanized multi-language color touch interface. The setting of the package value and modification are all done through the touch screen. A total of memory of multiple recipes can be stored.
7.The packaging unit can be made in different styles such as pillows, holes and angles, and link pockets.
This XLT-420M will suit for rice or white sugar or beans from 5g-1kg
Weighing error will be within 5g for rice or sugar 1kg; 5-10g for beans 1kg
XLT-520M is for 2kg
XLT-720M for 3kg
Product Description

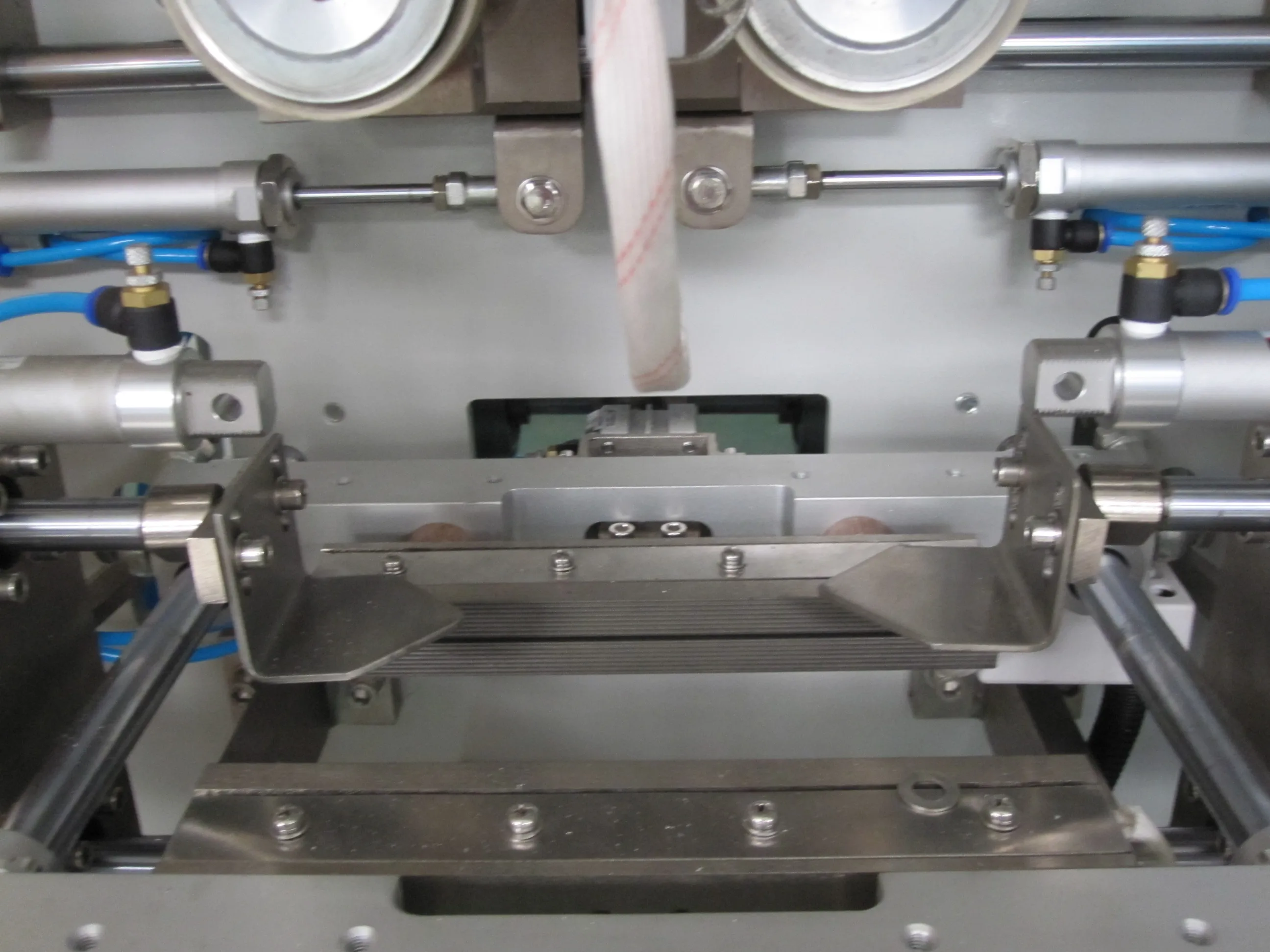

Gusset bag making unit
This unit is easy to assemble and take off when no need to use it. You can adjust the gusset insert deep too.

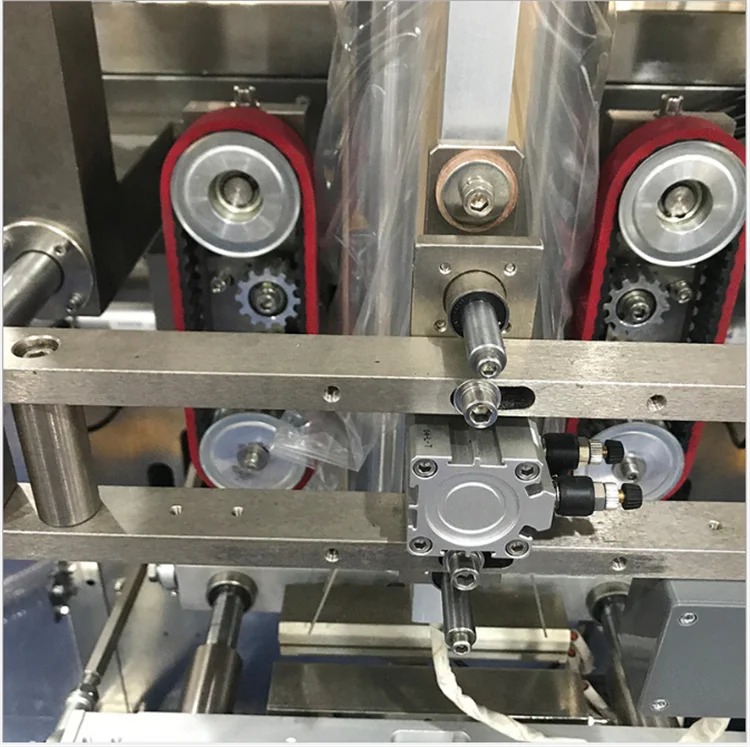

Double belt pulling the flim
This to help and make sure the film at both side will be pulling at stable and level, so that the sealing is more nice.
The back seal we can make:
You can choose the type of back seal you like when place order.
What we can do for the bags:
We can do date printing, gas filling, link bag, easy tear bag, hole punching and gusset bag too.

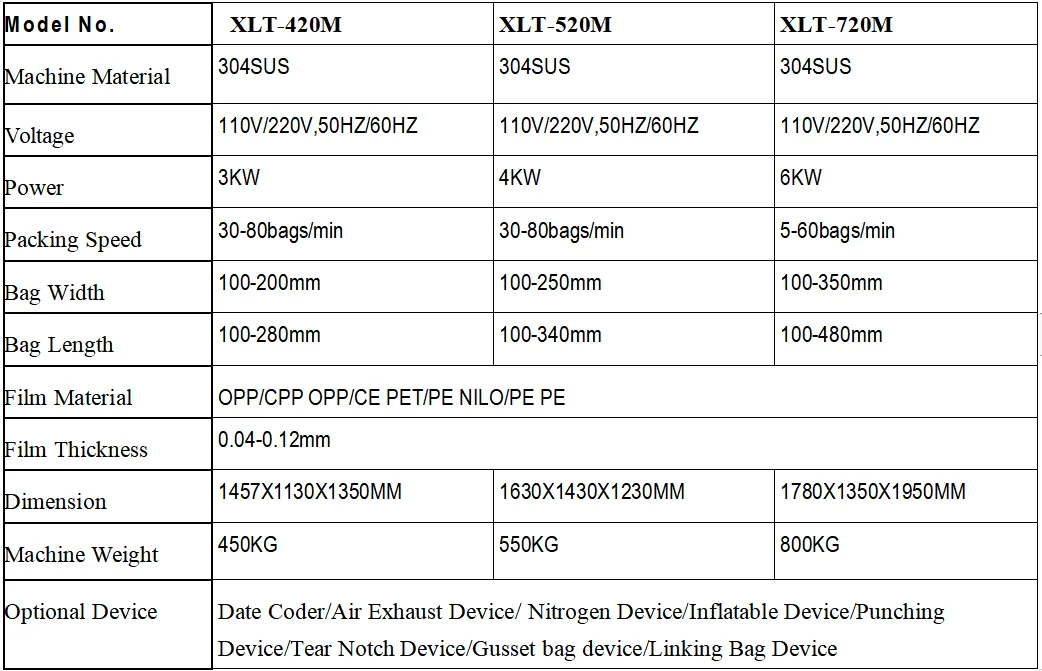

Other models vertical packing machine you can choose
You can choose the packing machine according to your bag size.
Of course the bigger packing machine will need higher price, and will need higher z bucket elevator too.
And the volumetric cup size will be different too.
XLT-520 vertical packing machine
Max film width 520mm
Weighing range: 15-2000ml
Bag making range: (L) 80-350mm (W)80-250mm
Packing speed: 10-50bags/min
XLT-720 vertical packing machine
Max film width 720mm
Weighing range: 150-4000ml
Bag making range: (L)100-450mm (W)80-350mm
Packing speed: 10-40bags/min

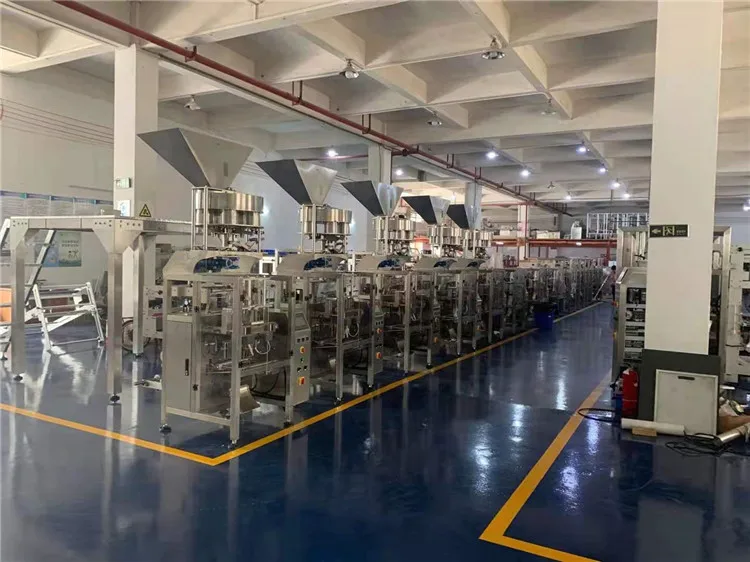

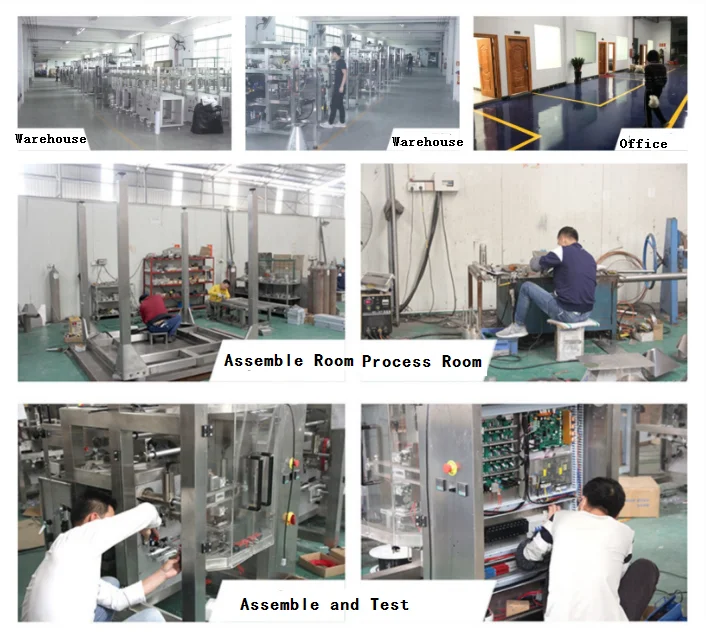

Our assembling room and show room:
All the machines we will do test before packing to assure the quality of them.
Company Profile
GuangZhou XinLongTai Machinery Co., Ltd is located in Pearl River Triangle. It is the most energetic and developing economic area in China.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
FAQ
1. What’s the payment terms:
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warranty:
All the machines we warranty them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warranty:
All the machines we warranty them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
6. Why choose us:
1) We have our own designer and can make the size drawing according to your need.
2) Our technical people already in this products over 8 years. We can answer and solve your problem in short time and experience way.
3) Our sales people already done export over 18 years.
4) We have after sales people who can go to abroad to help you solve problem if need.
1) We have our own designer and can make the size drawing according to your need.
2) Our technical people already in this products over 8 years. We can answer and solve your problem in short time and experience way.
3) Our sales people already done export over 18 years.
4) We have after sales people who can go to abroad to help you solve problem if need.
