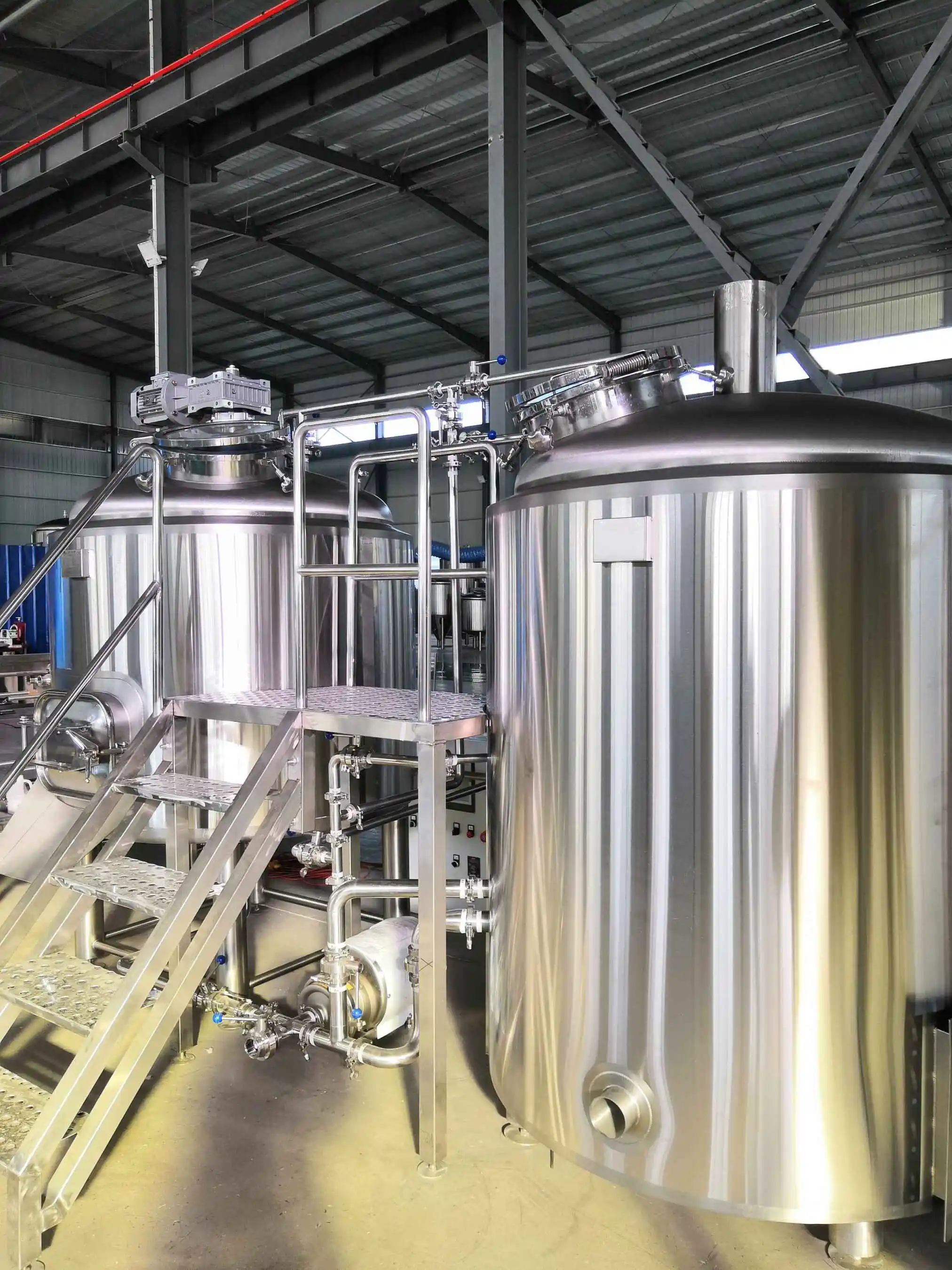

a whole set of 7bbl brewery equipment by steam
- Category: >>>
- Supplier: Shandong Tonsen Equipment Co. Ltd.
Share on (1600634470534):
Product Overview
Description
7bbl brewhouse a whole set of 7bbl brewery equipment by steam
Product Description
Beer distribution tanks are also called serving tanks, tax determination tanks or clear beer tanks (=CBTs), bright beer tanks (=BBTs) or maturation/storage or conditioning tanks. These tanks are used for the storage of the beer prior to being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be located in a walk-in cooler. For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.
Main Parts of Brewing System
The output of Brewing equipment | ||||||||||||||
Output/Brew | 10HL | 12HL | 15HL | 20HL | 25HL | 30HL | 35HL | |||||||
Brews/Week | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | |||||||
Output/Week | 60~120HL | 72~144HL | 90~180HL | 120~240HL | 150~300HL | 180~360HL | 210~420HL | |||||||
Electric Supply | 3phase/380(220,415,440)V/50(60)Hz, Single Phase/220(110,240v)/50(60)Hz | |||||||||||||
Heating Steam | Direct Fire/Electric Source | |||||||||||||
Area Request | >70M2 | >80M2 | >100M2 | >120M2 | >140M2 | >150M2 | >180M2 | |||||||
Brew master | 1 | 1 | 1 | 2 | 2 | 3 | 3 | |||||||

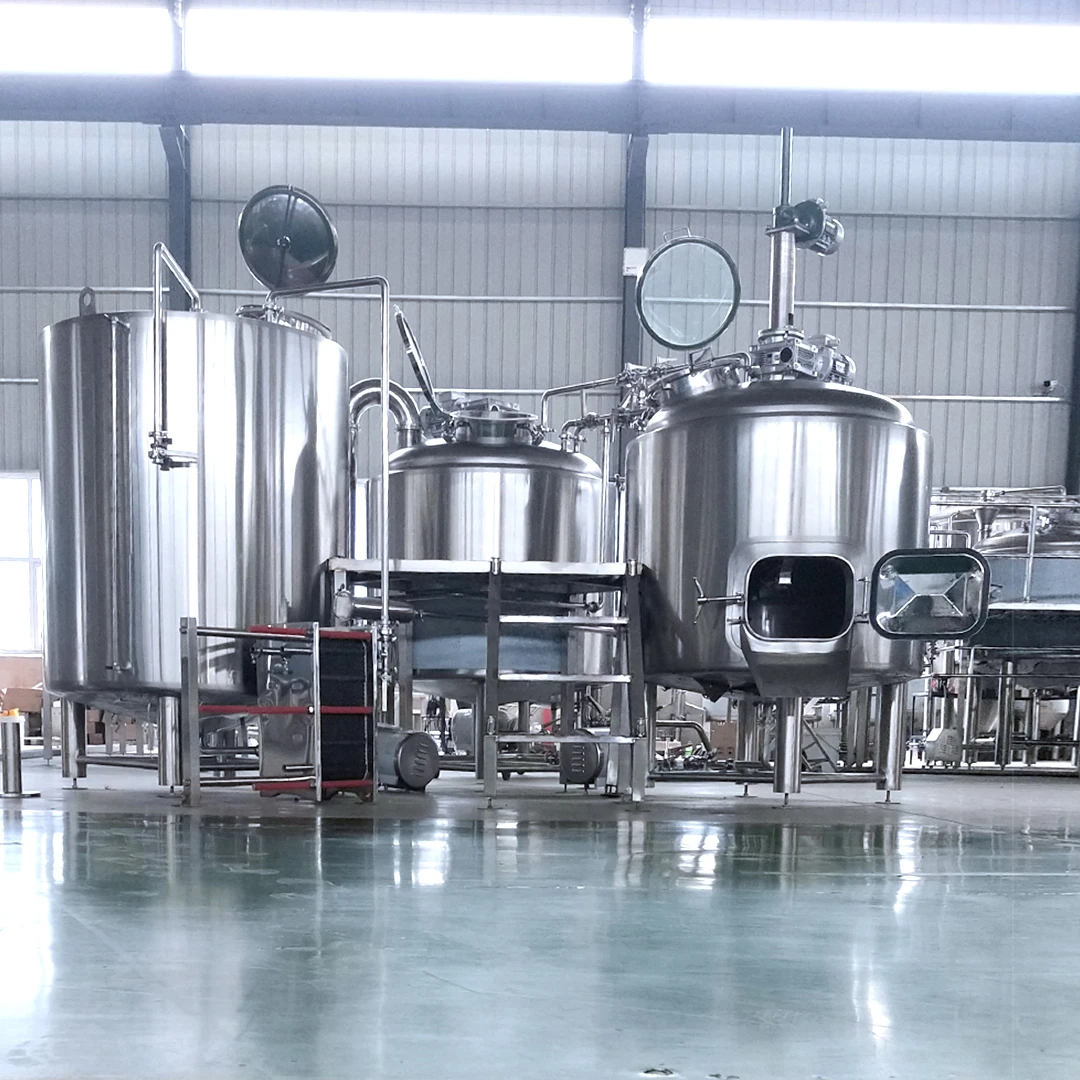

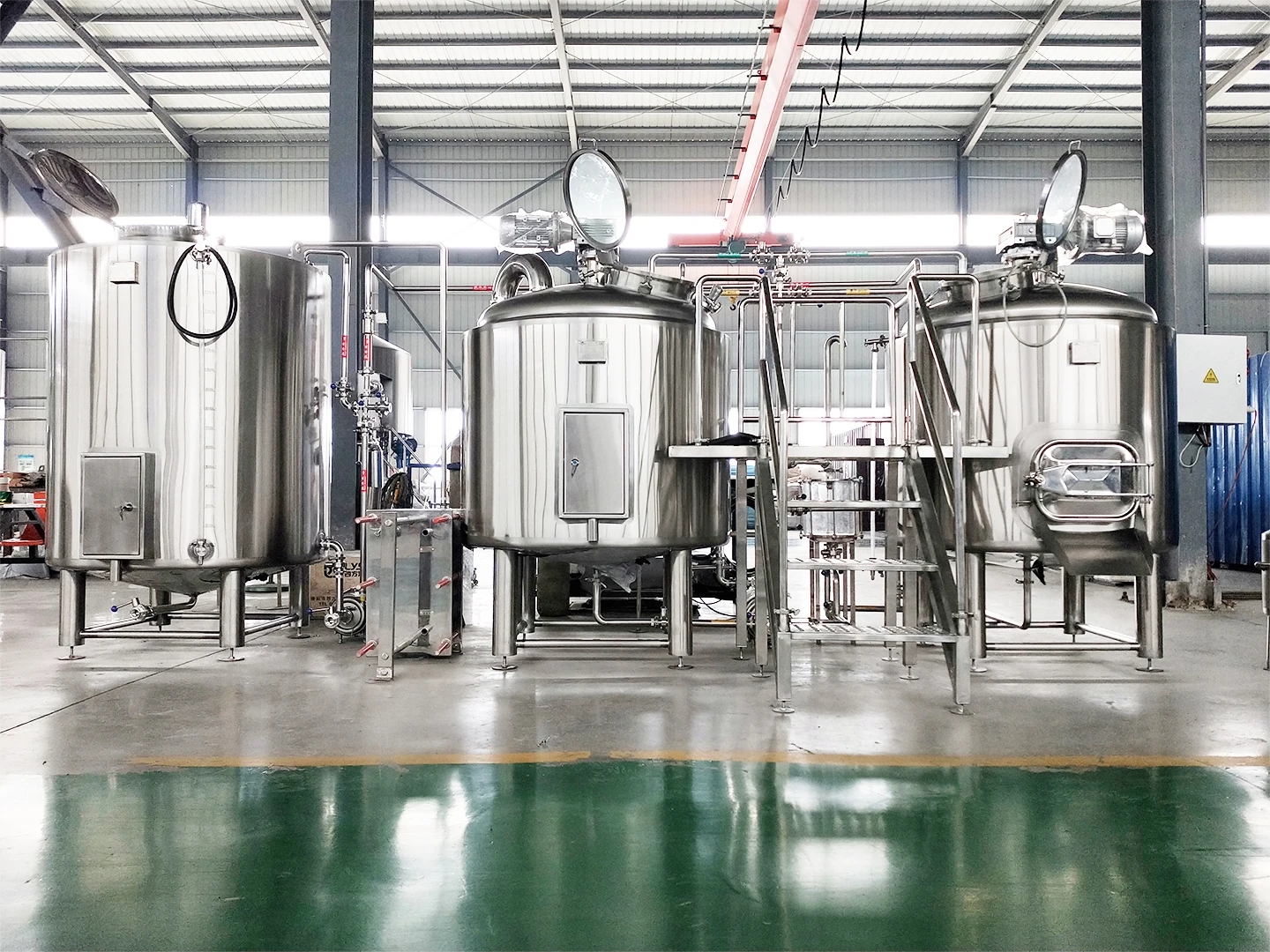

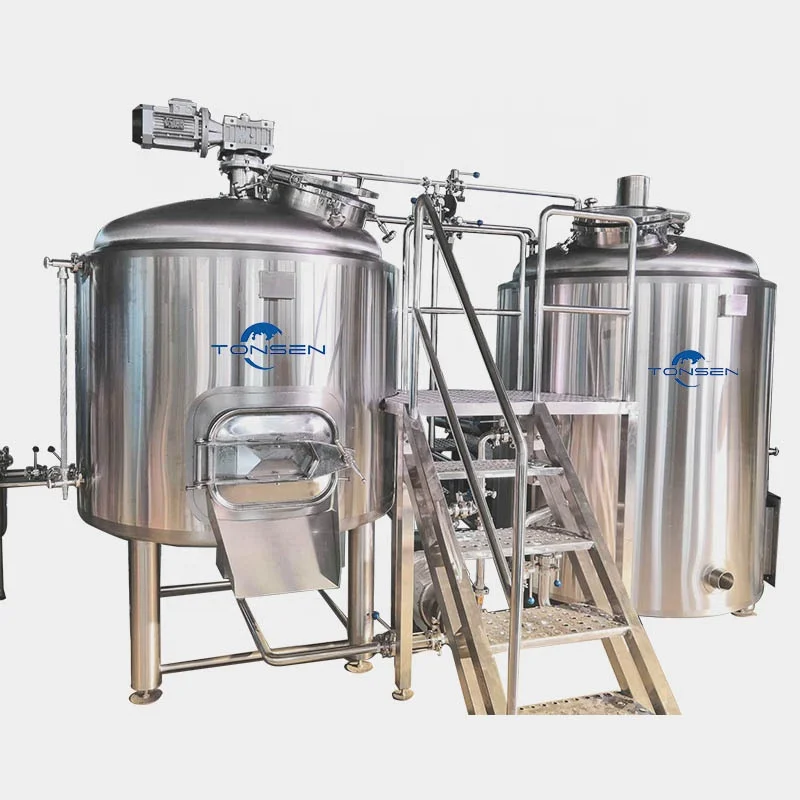

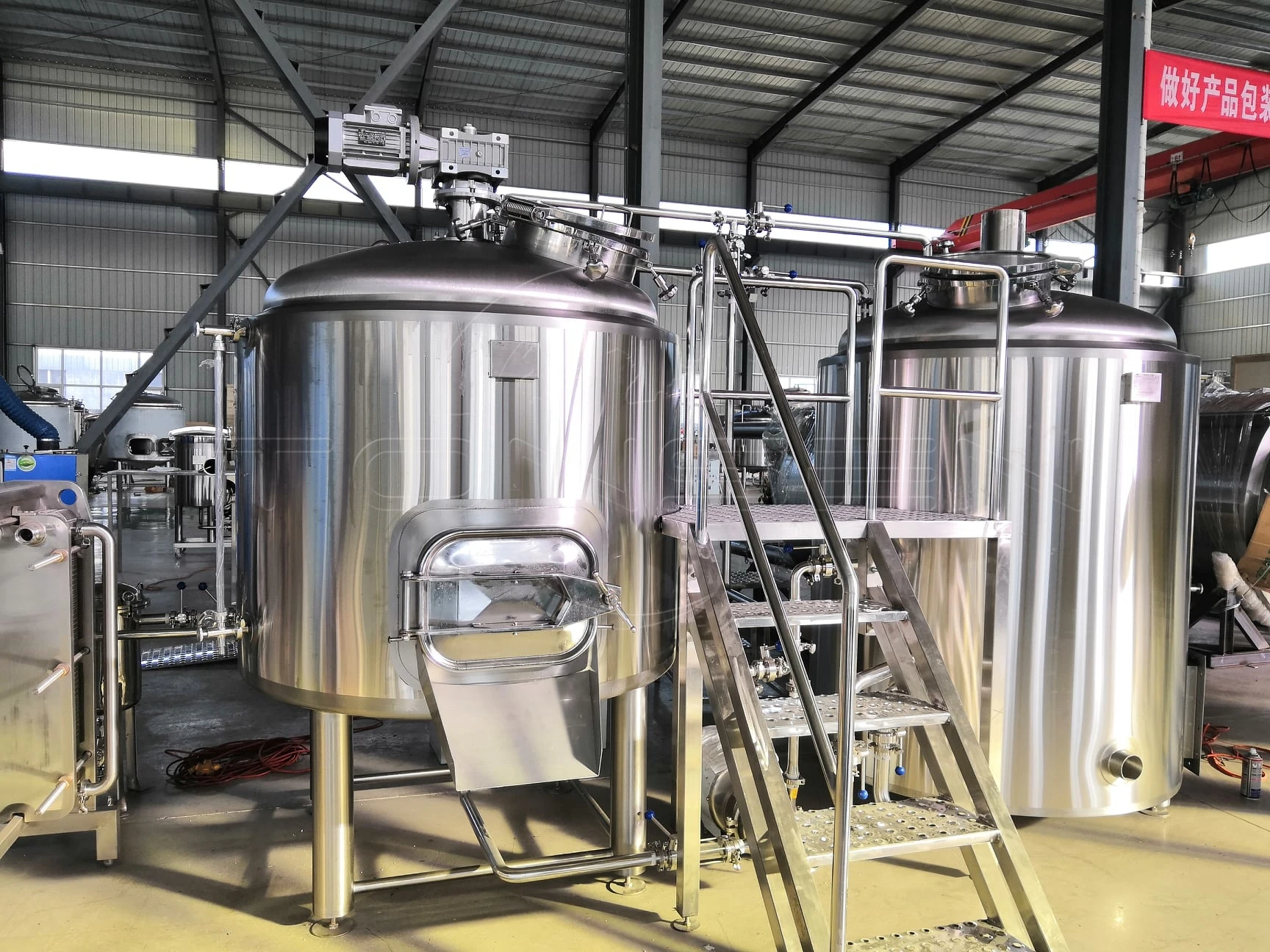

The brew house system could be included two-vessels brew house, three-vessels brew house and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank. The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency.
System | ltem | Specification | Parameter |
Milling System | Malt mill | Double Roller,Noise<60db | 500kg/h |
Brewhouse System | Kettle/Whirlpool tun | Heating jacket Material:SUS 304/316 or Red copper 1 Thermometer/tank | 20BBL |
Mash/Lauter tun | 20BBL | ||
Wort pump | 5T/H | ||
Work platform | Matching | ||
Hot water tank | 60BBL | ||
Hot water pump | 5T/H | ||
Plate heat exchanger | Plate type | 15㎡ | |

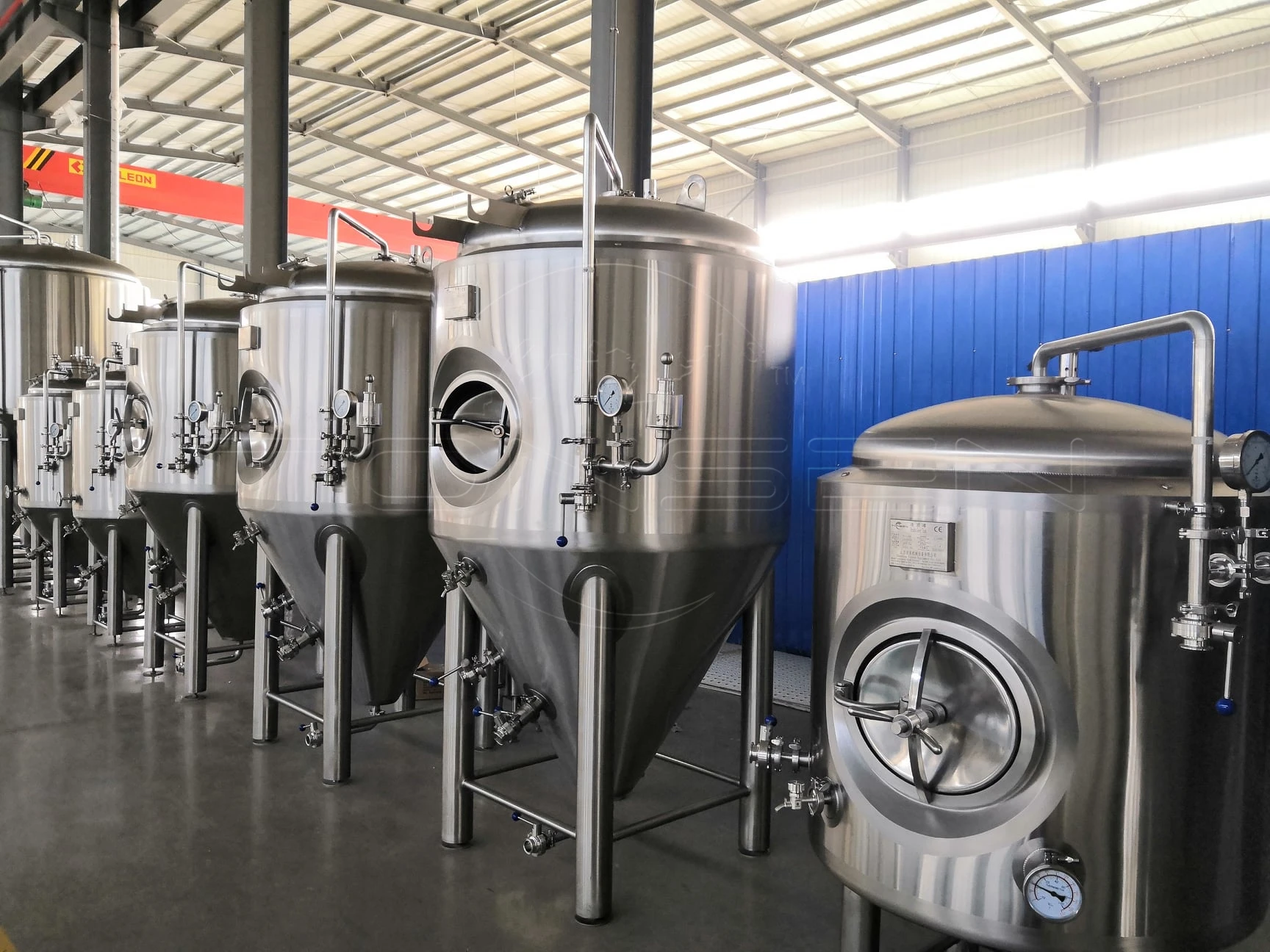

Fermenting System | Fermenaton tank | Top manway /Side manway Glycol cooling jacket | 20BBL or 40BBL |
Bright beer tank | 10BBL, 20BBL, 40BBL | ||
Yeast adding tank | SUS304 Stainless Steel | 20L | |
Cooling System | Refrigerator machine | With control system | |
Cold water tank | Fluorine filling | 60BBL | |
Cold water pump | 5TH | ||
ClP System | Sterilizing tank /Alkali liquor Tank | SUS304 full welded | 200L |
CIP trolley | As reaured | ||
Washing pump | 3T/H | ||
Control System | Control cabinet | Semi-automatic(option: Siemens Automatic with touch screen) | Temperature and Pressure control |
Accessory | Valve,pipes,spare parts | Assorted |
Details Images
Application
Our Turnkey beer equipment Can brew all kinds of beer, such as barley beer, wheat beer, bight beer, black beer, etc. So it is widely used all over the world, especially offered to Europe countries with the CE certified.
1.Winery and Brewery
For many winery and brewery, they will choose the Big capacity beer brewing equipment for higher productivity. Like our Turnkey beer equipment with capacity 1000L, 2000L, 4000L even 6000L.
2. Brew Pilot or winemaker for experimental or teaching demonstration.
The training institutions will need to buy the small beer equipment to do their brewing experiment or for teaching demonstration use.
3. Public houses like Bar, Winehouse, Tavern or some High-end restaurant, Upscale hotel, etc.
Most of people choose the normal capacity(300L, 500L, 1000L) to develop their business. They do the business like Bars, Tavern or High-end restaurant, Upscale hotel. With the beer brewing equipment in their shop, can got much profit.
4. Others: some people also get brewing equipment for own beer hobby. So they will choose the Home-brew beer equipment. 100L, 200L, 300L can be good choice for you.
For many winery and brewery, they will choose the Big capacity beer brewing equipment for higher productivity. Like our Turnkey beer equipment with capacity 1000L, 2000L, 4000L even 6000L.
2. Brew Pilot or winemaker for experimental or teaching demonstration.
The training institutions will need to buy the small beer equipment to do their brewing experiment or for teaching demonstration use.
3. Public houses like Bar, Winehouse, Tavern or some High-end restaurant, Upscale hotel, etc.
Most of people choose the normal capacity(300L, 500L, 1000L) to develop their business. They do the business like Bars, Tavern or High-end restaurant, Upscale hotel. With the beer brewing equipment in their shop, can got much profit.
4. Others: some people also get brewing equipment for own beer hobby. So they will choose the Home-brew beer equipment. 100L, 200L, 300L can be good choice for you.
Packaging & Delivery
Packaging Details:
1) All tanks will be packed with soft protection material and mounted on steel frame
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.
1) All tanks will be packed with soft protection material and mounted on steel frame
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.
Delivery Detail: Shipped in 30-45 working days after payment (However, the technical files: layout, drawings, flowchart, etc.confirmation time should not be included in the time).
Service & Feedback
Pre-Sales Service
1. Inquiry and consulting the support
2. View our Factory and get free training
Guarantee and After-sale service:
1. The main product for 3 years warranty and auxiliary parts for 12 months.
2. Technical support by phone, email or WhatsApp/Skype/Wechat around the clock.
3. Engineer available to service machinery overseas to install and training how to use the machine.
Company Information

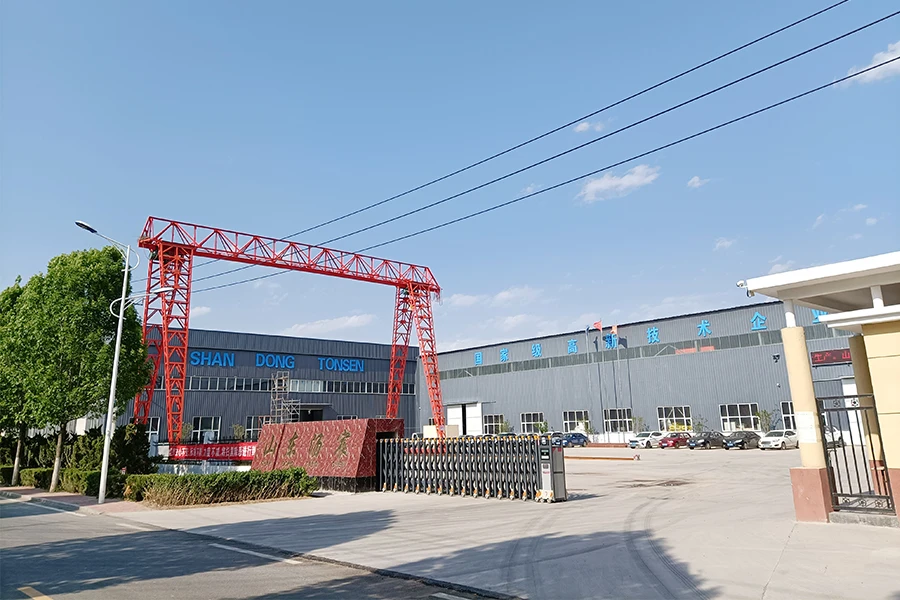

Jinan Tonsen Equipment Co., Ltd. is an international comprehensive enterprise specializing in R&D, production, technical support and services for beer equipment and wine equipment, We' re located in Jinan City, Shandong province, China and our factory area covers 5000 m. Our company has 80 front-line production employees,10 production management staffs,5 top professional and technical personnels, most have more than 10 years experience in the industry.
The products include large, medium and small brewery equipment, hotel/bars brewing beer equipment, laboratory-teaching equipment, various types of wine equipment and provide beer equipment accessories, auxiliary equipments. control equipment, supply the main and auxililary materials of beer brewing, brewing technique training and other services. According to customers' different requirements , our engineers can design, produce and install special specifications of equipment and other products. We not only supply the products to satisfy customers request, but also scheme design, consult and lifetime guarantee service. Our after-service department has 23 staffs who take charge to guide installation and supply brew technical training for our clients.
