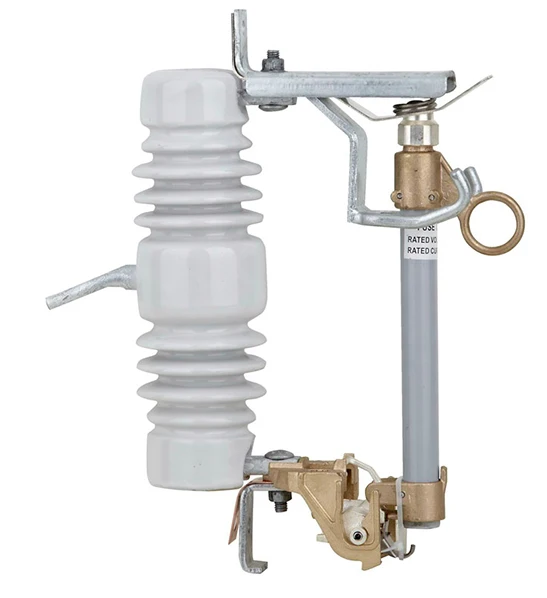

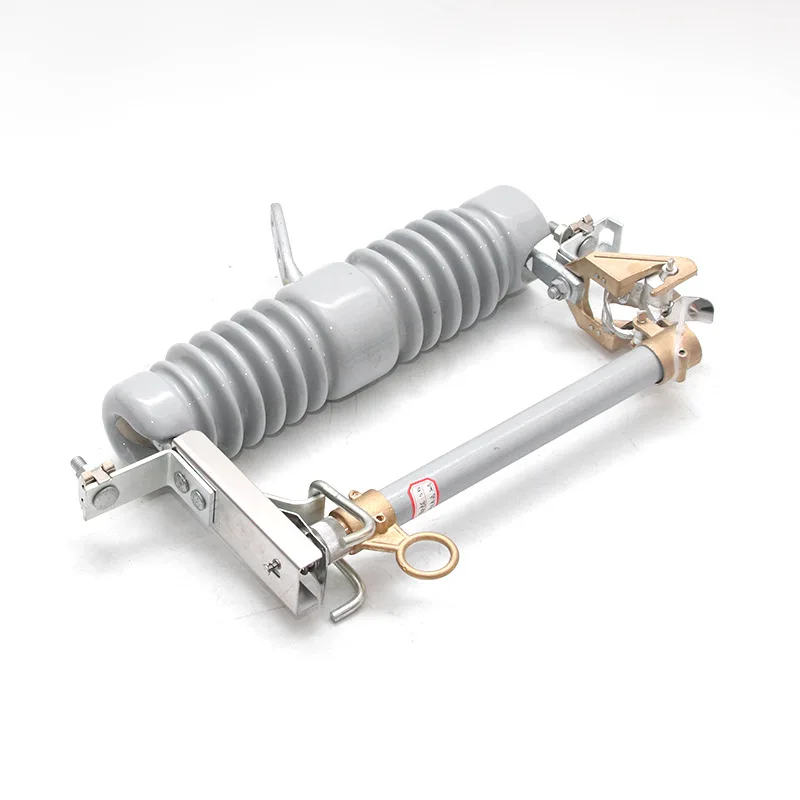

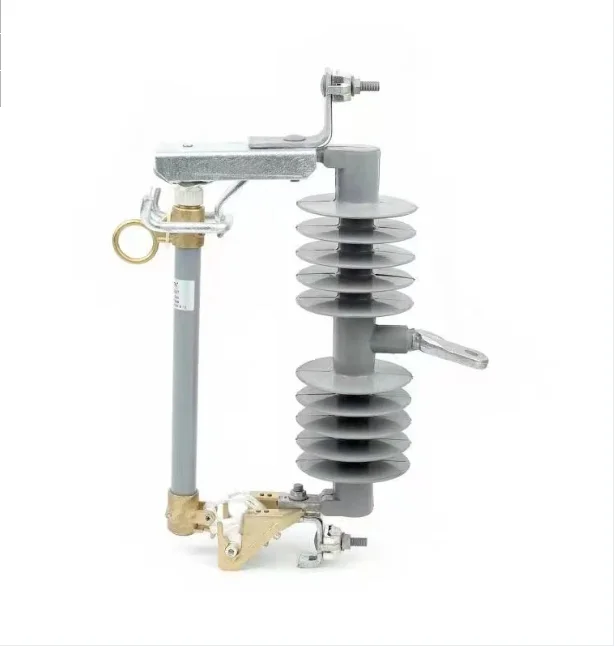

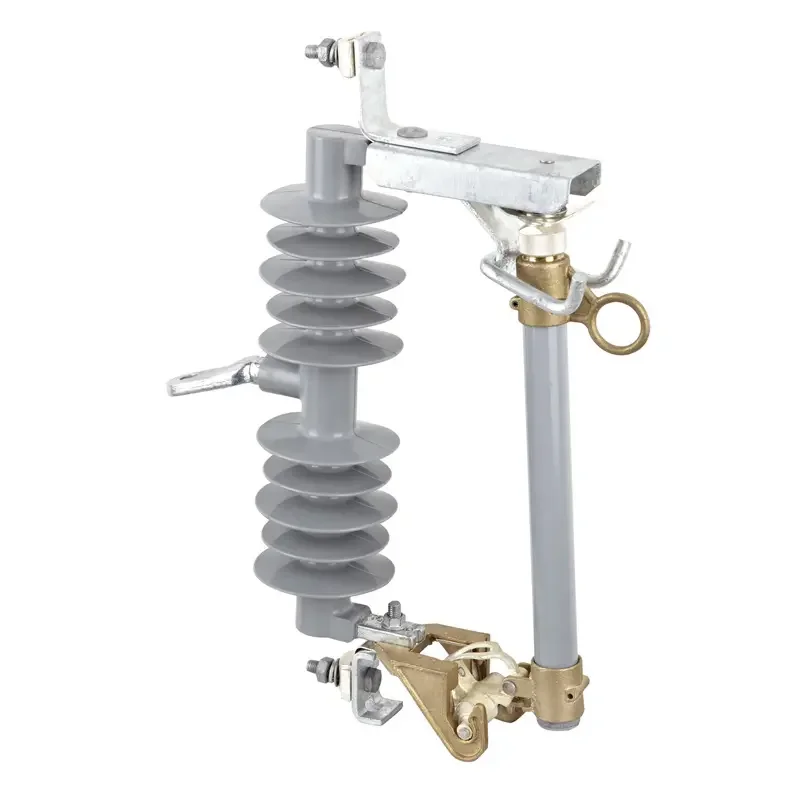

Inline Holder In Line High Voltage 200A Cartridge Polymer Dropout Cutout 15Kv Fuse
- Category: >>>
- Supplier: Wenzhou Shuguang Fuse Co. Ltd.
Share on (1600634526328):
Product Overview
Description
Model | Rated Voltage(KV) | Max rated voltage(KV) | Rated Current(A) | Rated breaking current (KA) | Power frequency lmin dry withstand voltage (KV) | Power frequency lmin wet withstand voltage (KV) | Lightning impulse withstand voltage (KV) | Creepage distance (mm) | Referenc weight (KG) |
RW12-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 300 | 6.2 |
RW12-10/200 | 10 | 11.5 | 200 | 8 | 42 | 30 | 75 | 300 | 6.4 |
HRW12-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 380 | 3.7 |
HRW12-10/200 | 10 | 11.5 | 200 | 8 | 42 | 30 | 75 | 380 | 3.9 |
