Product Overview
Description

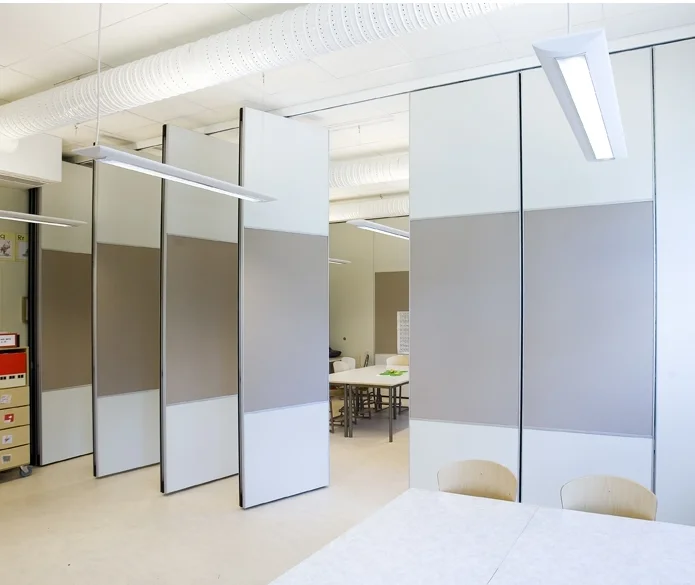

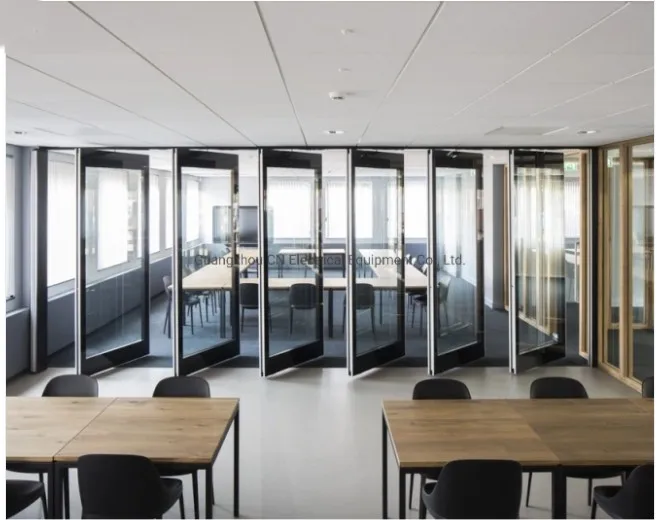

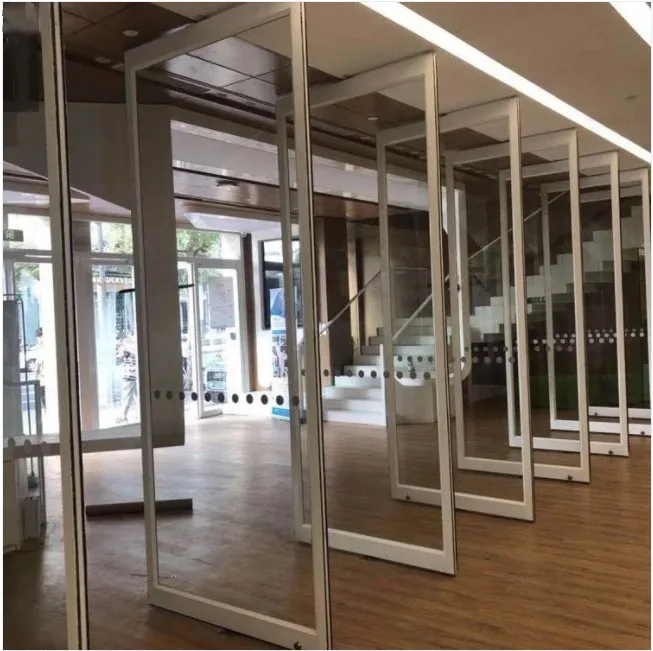

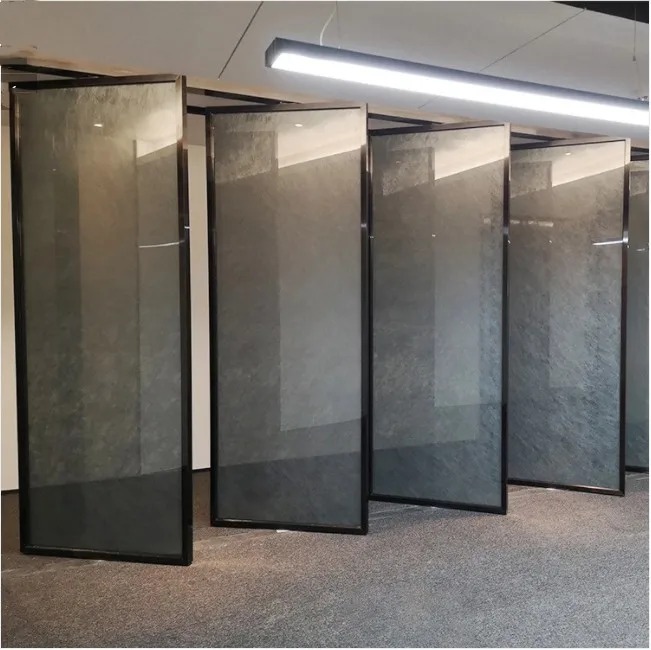

Pivoting Walls Electric Sliding Partition Walls Sliding Hanging Room Dividers

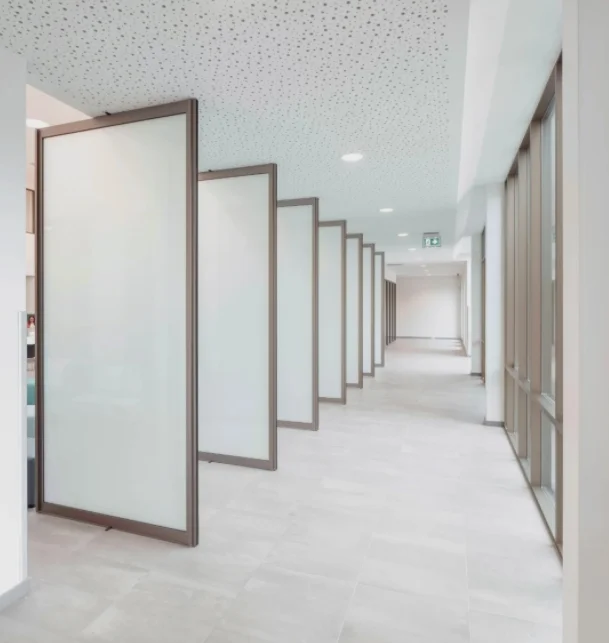

A pivot door is ideal to create a movable wall with, which enables you to separate spaces and combine spaces whenever you want. Closed, a rotating wall can be invisible. When opened, it can have a strong impact on the surrounding space.
Fully automatic partition operating system
Quick and easy spatial adaptation in prestige and commercial environments
The fully automatic partition offers outstanding convenience in flexible space utilisation. At the push of a button it enables offices and conference room to be adapted quickly and efficiently to daily changing requirements. With this system, multi-funtional space management is a truly simple affair.
Advanced technology
The partition elements can be moved to their individually preprogrammed position and their sealing strips extended or retracted under fully automatic control. The control interface takes the form of a user-friendly touch screen. Safety is ensured by an integrated monitoring system that stops the partition motions the moment contact is made with an obstacle.
Product Description

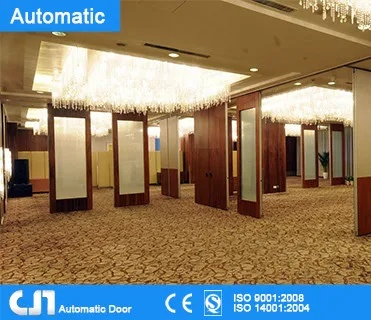

CN Fully Automatic Sliding Partitions
Designed to suit all applications the range is suitable for use in areas where flexibility is equally as important as performance, for instance:
» Office interiors and meeting rooms
» Conference and function suites
» Sports and leisure facilities
» Education establishments
» Exhibition centers
» Hotels and restaurants
» High clean factories
| Power voltage and frequency | AC150v-250V. 50-60HZ | ||
| Track load | 3500KG/m | ||
| Door Fan Running Speed | 100-250mm/s | ||
| Max Width | 2000mm | ||
| Min Width | 600mm | ||
| Sound Insulation Coefficient | RW< 45dB | ||
| Max Height | 12000mm | ||
| Manual force | < 200N | ||
| Motor power for each door | 100w | ||
Operating behavior
Operating modes
In all operating modes, the partition elements are moved to their preprogrammed positions under fully automatic control. The system operating behaviour can be adjusted by parameter reconfiguration.
Acceleration:
As soon as an element receives the command to go, it checks to ensure that the way ahead is free and then accelerates to the programmed speed.
Fast speed:
If the way ahead is unimpeded over a good distance, the element is accelerated to the highest speed of travel.
Creep speed:
The element switsches to creep mode to travel the final few centimeters to its preprogrammed position.
Deceleration:
As the element approaches its preprogrammed position, the speed is reduced to the required creep value.
Stop:
The element stops once it has reached its preprogrammed position. The top and bottom sealing strips are extended.
Staggered travel mode:
The element follows the proceding element at a defined distance as they move into their respective positions.
Waiting:
Elements receiving the command to go remain in the waiting mode until the way ahead is free.
Movable Walls manufacturer custom-made wall partitions to meet various needs
We service all types of operable walls, room dividers and acoustical divider partitions.
Because movable partition walls are customized products. Each place has different sizes, we make steel framed operable walls and moveable partitions of a variety of materials depending on the application for sound transmission, durability, aesthetics, cost and function.
We listen to your goals, understand your needs, provide one-on-one private custom services, make recommendations according to your actual situation, provide professional design and contractor to coordinate building codes, structural and electrical requirements.

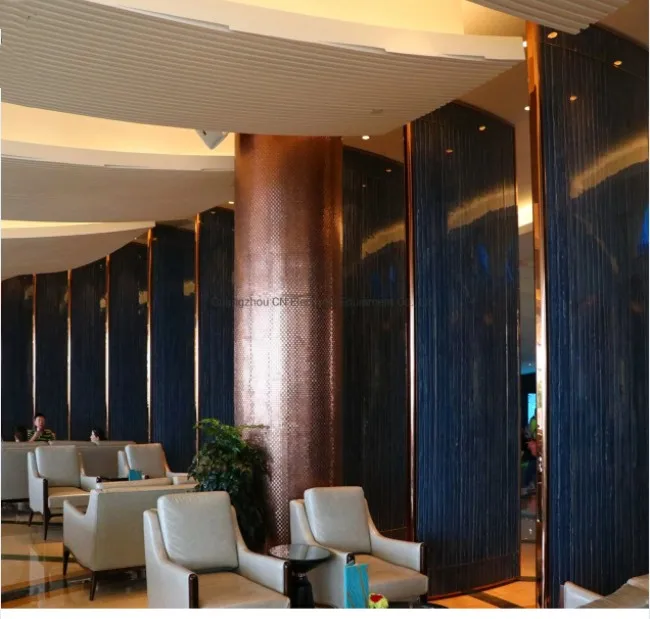

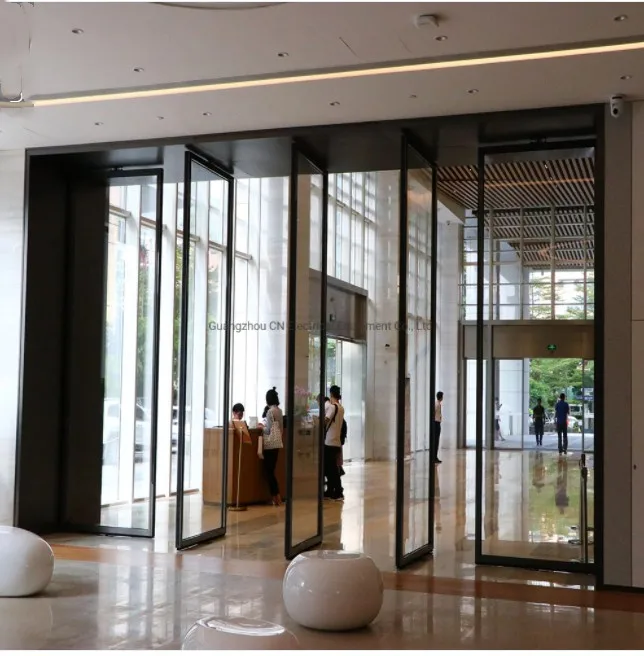

Our Projiects
Related Products
Surface Treatment Optional:
Powder Coated
(color can choose)
#304 1.2mm Stainless Steel
#304 1.2mm Titanium SS
(color can choose)

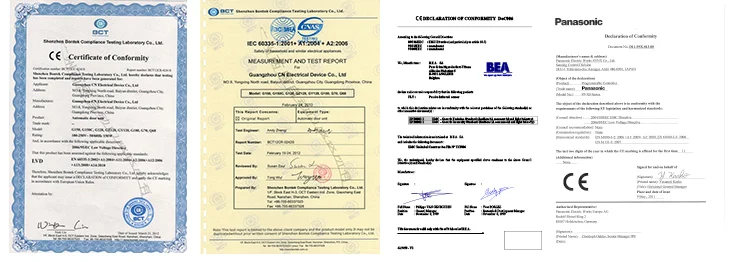

Certifications
Packaging & Shipping

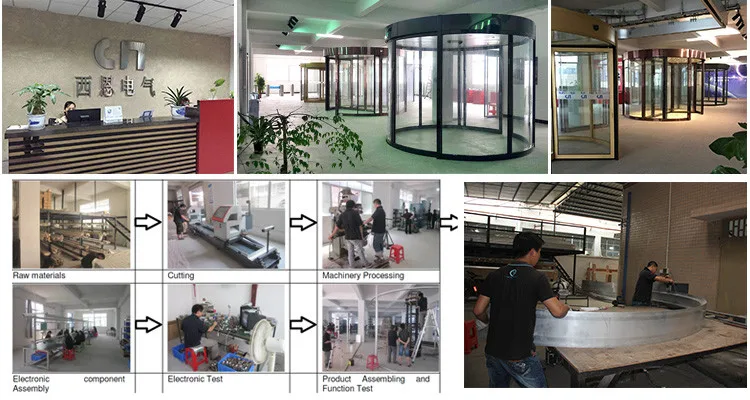

Company Information
As manufacturing factory headquartered in guangzhou, an important port city of China's foreign trade, Guangzhou CN Electrical Equipment Co., Ltd. is a high-tech enterprise which integrating R&D, Manufacturing and Trading, one of the leading and exclusive manufacturer of Automatic Partitions and Automatic Doors and the only company in China which has a dedicated manufacturing plant of electrically operated vertical lift folding partition Walls in China.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
FAQ
Q1: Where is your factory ?
A: Our factory located in Guangzhou,ADD:NO.1 Xiheng street, Yongxing North road, Baiyun district, Guangzhou, China. Welcome to visit our factory.
Q2: What do you produce ?
A: We have 12 years professional experience to prdoduce Automatic Door Operator / Automatic Sliding Door / Manual and Automatic Revolving Door / Automatic Curved Door / Automatic Movable Partition Walls
Q3: How's your products quality ?
A: All of our products pass 1 million time test, it operate steady and have long use time.
Q3: What is your delivery time ?
A: Automatic Door Operator 3-7 days Revolving Door and Automatic Curved Door 25-30 days
Automatic Movable Partition Walls 35-45 days
Q4: Do you have CE Certificate ?
A: Yes, we have
Q5: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
6. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
