Three layers PP sheet plastic extruder machine triple screw
- Category: >>>
- Supplier: Shantou Jingang Precision Machinery Technology Co. Ltd.
Share on (1600634632554):
Product Overview
Description
Product Overview

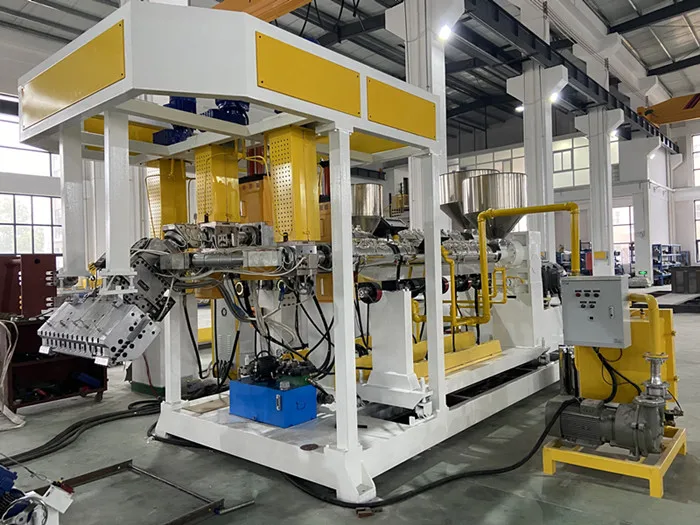

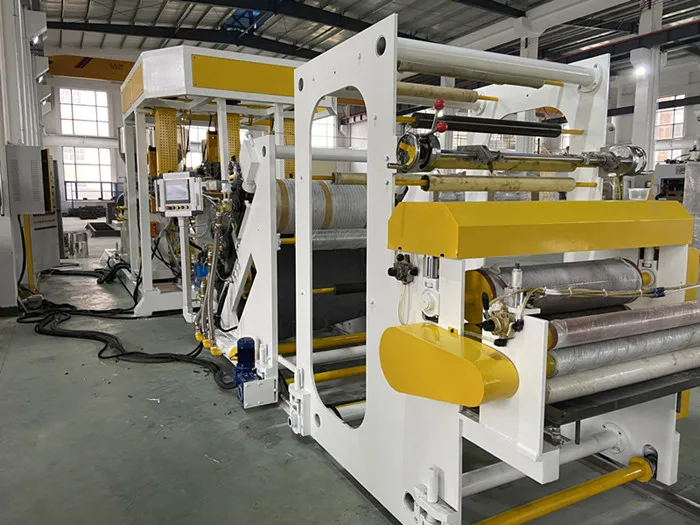

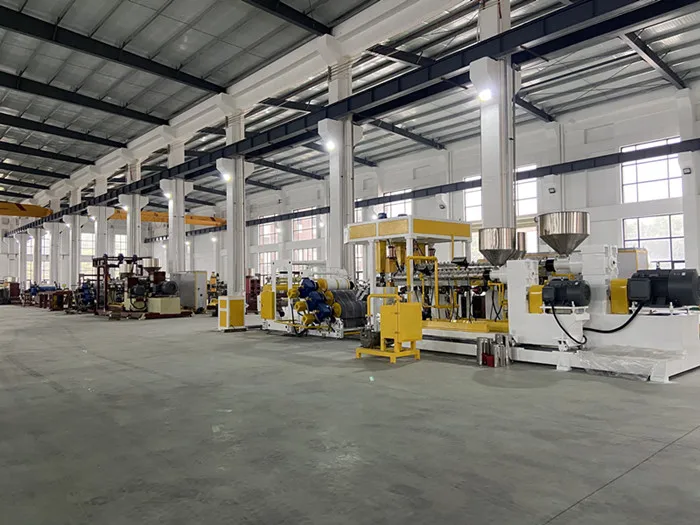

Three layers PP sheet plastic extruder machine
The machine is mainly used to produce two layers or three layers plastic sheet of PP,PS and PE.Then the sheet can be taken to produce such as disposable cups,blows,take away containers and so on.Such this machines are high quantity output and high speed.This type of extruder can do three to five layers sheet,it can use the filling material,and let the production cost lower!It also can produce two type color for the product!
FEATURES AT A GLANCE
THREE ROLLER DO MULTI LAYERS
ENERGY SAVING -CERAMIC HEATER
MELT PUMP-PRECISION EXTRUSION
VERTICAL COOLING STAND
HYDRAULIC WINDING STATION
VACUUM PUMP

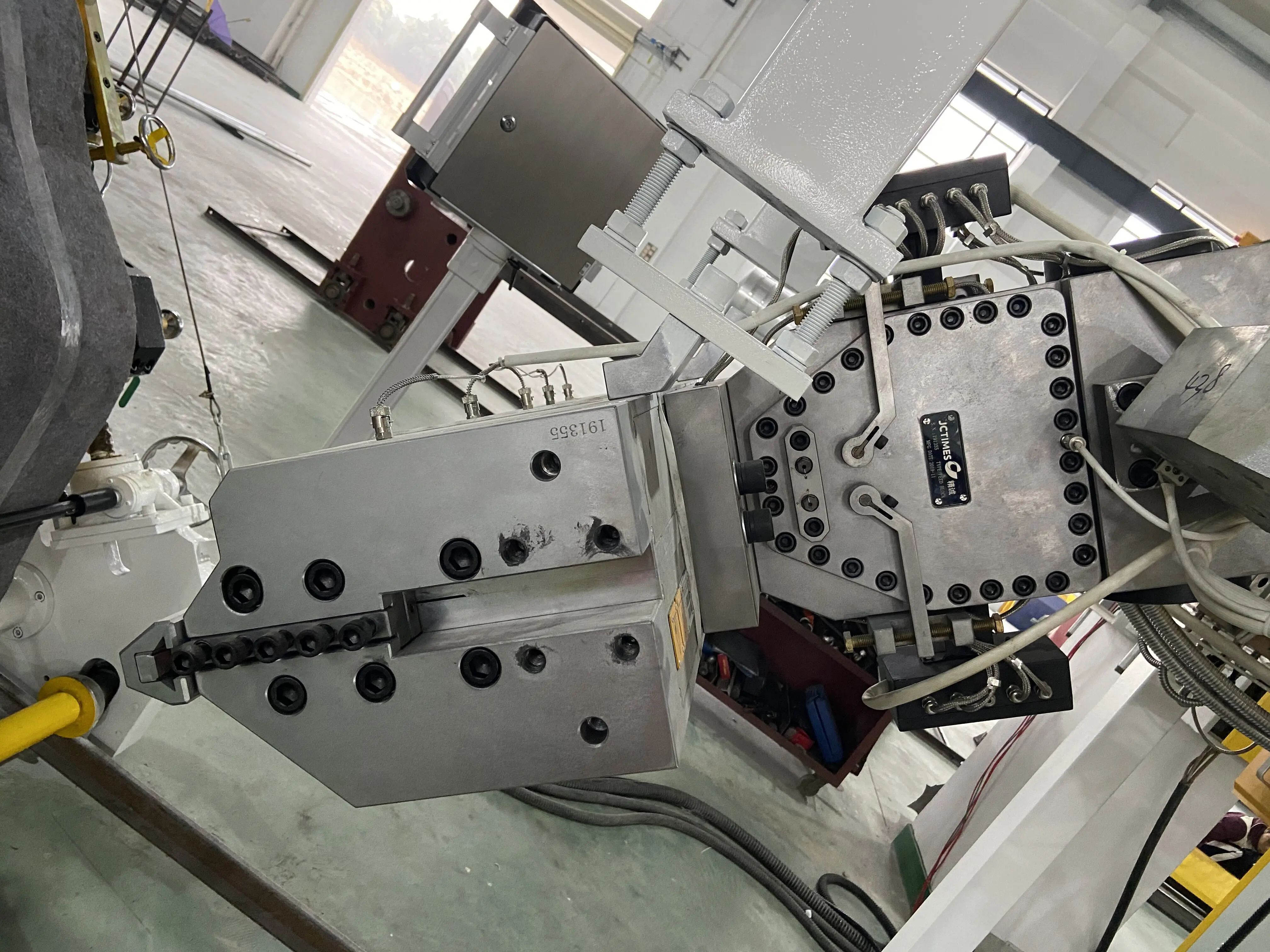

JC T-DIE
ENERGY SAVING -CERAMIC HEATER
MELT PUMP-PRECISION EXTRUSION
VERTICAL COOLING STAND
HYDRAULIC WINDING STATION
VACUUM PUMP
JC T-DIE
With three melt pump

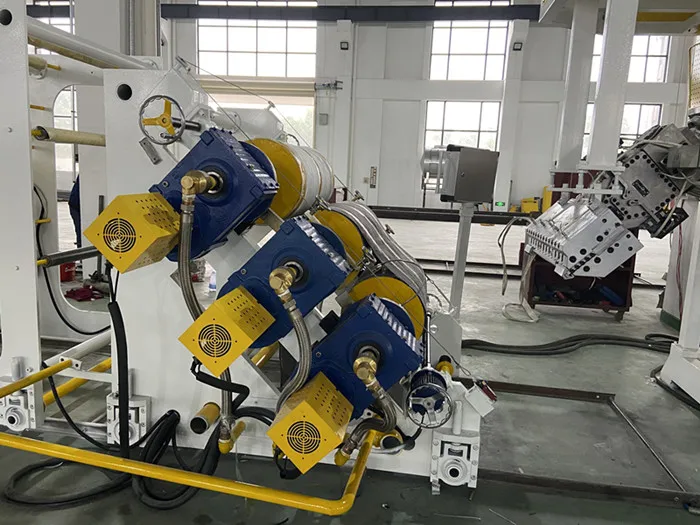

Oblique calender
Vacuum
PRODUCT SPECIFICATIONS
Model | HXDPC-850(105/80/65) | HXDPC-1000(120/90/65) |
Diameter of Screw | 105*36 80*33 65*33 | 120*36 90*34 65*33 |
Main Motor Power | 55KW 30KW 22 KW | 90KW 30KW 22KW |
Max Capacity | 300KG/H | 450KG/H |
Thickness of Sheet | 0.3-2MM | 0.3-2MM |
Width of Sheet | 750MM | 850MM |
Arrangement of Roller | Diagonal | Diagonal |
Outlook Size | 17000*2500*2700 | 18000*2500*2700 |
Total Weight | 16000KG | 18000KG |
PRODUCT CONFIGURATION
Siemens touch screen
Independent Yaskawa servo motor
JC-TIMES T-DIE
SALES AND SERVICE NETWORK
Successful Project
Project in CANADA
Project in China
Project in USA
