GPS GSM FM AM DAB Combination Car Shark Fin Antenna with Fakra Connectors
- Category: Car Antenna >>>
- Supplier: Shenzhen,Ruida,Yongli,Technology,Co.,Ltd.
Share on:
Product Overview
Description

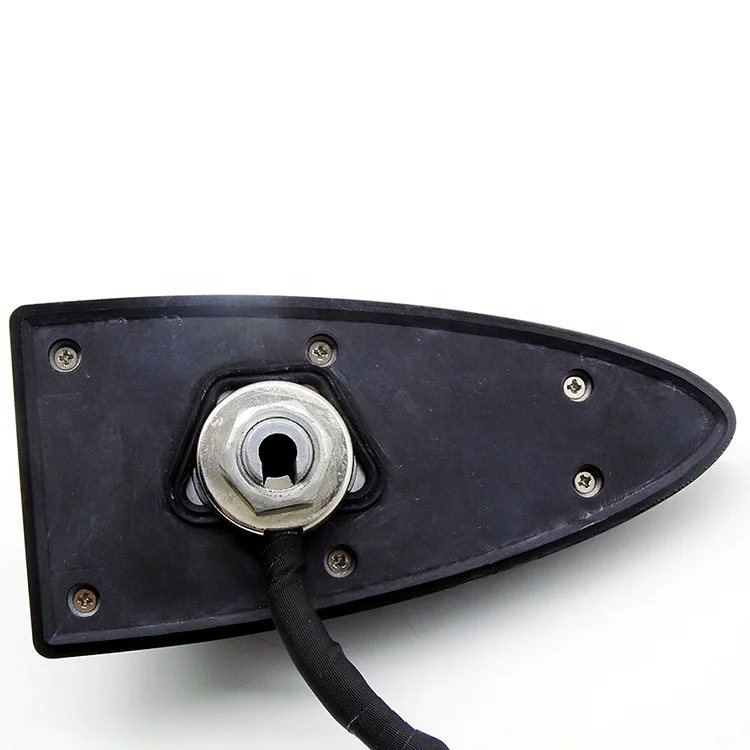

GPS GSM FM AM DAB Combination Car Shark Fin Antenna
Customization scope：Appearance style, appearance color, cable length, connection type
Customization scope：Appearance style, appearance color, cable length, connection type
Products Description
Product Parameters
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±3MHz | |||
Band Width | CF±5MHz | |||||
Polarization | RHCP | |||||
Gain | 2dBi | |||||
V.S.W.R | <1.5 | |||||
Impendance | 50Ω | |||||
Axial Ratio | 3dB(max) | |||||
LNA | Gain | 28±2dB | ||||
Noise Figure | <1.5dB | |||||
V.S.W.R | <2.0 | |||||
Supply Voltage | 2.2~5V DC | |||||
Current Consumption | 5~15mA | |||||
LTE Antenna | Frequency Range | 698~960/MHz/1710~2690MHz | ||||
V.S.W.R | <3.0 | |||||
Polarization | Linear | |||||
Gain | 3.5dBi | |||||
Impendance | 50Ω | |||||
WIFI Antenna | Frequency Range | 2400~2483.5MHz | ||||
Band Width | 83.5MHz | |||||
Polarization | Linear | |||||
Gain | 3.0dBi | |||||
V.S.W.R | <2.0 | |||||
Impendance | 50Ω | |||||
Mechanical | Cable | RG174 | ||||

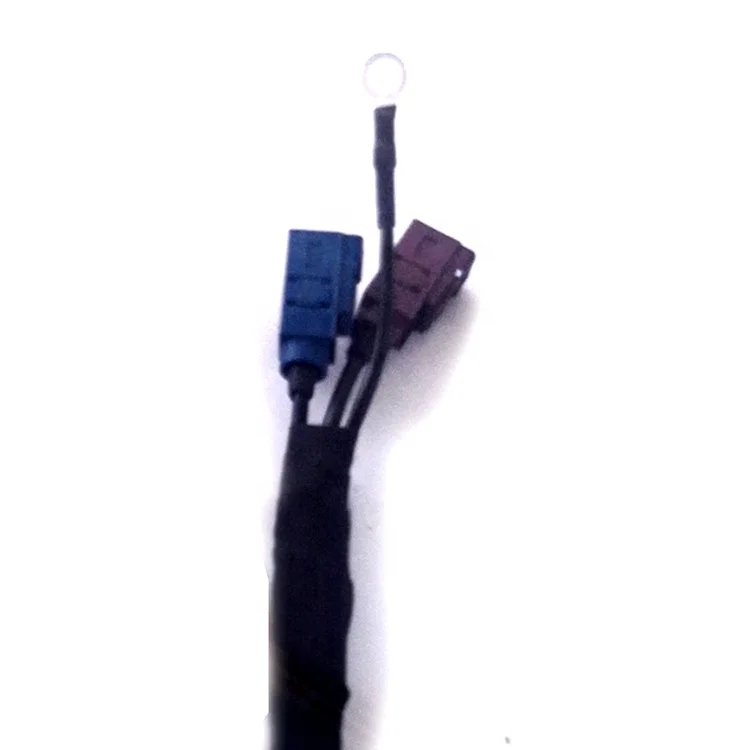

Connector | SMA/MCX/FAKRA or others | |||||
Material | ABS | |||||
Mounting Method | Screw | |||||
Environmental | Operating Temperature | -40℃~+85℃ | ||||
Relative Humidity | Up to 95% | |||||
Ingress Protection | IP65~IP66 | |||||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |||||
Environmentally Friendly | ROHS Compliant | |||||
Company Profile
Shenzhen Rui Da Yong Li Technology Company focus on the production of high quality antenna for 11 years, in 21 years won the national high-tech enterprise certificate, has a number of antenna patents. The company address is located in Shenzhen Longgang District, Bao Long Street, Tongle Community, South with the Avenue 5 plant B301, covers an area of 4,000 square meters. We have 4 production lines and professional R&D team to guarantee production efficiency and product quality. We support OEM&ODM service, customize according to customers' requirements, and meet all the requirements of customers.
Certifications
IATF 16949 and ISO 9001 certificates guarantee product quality

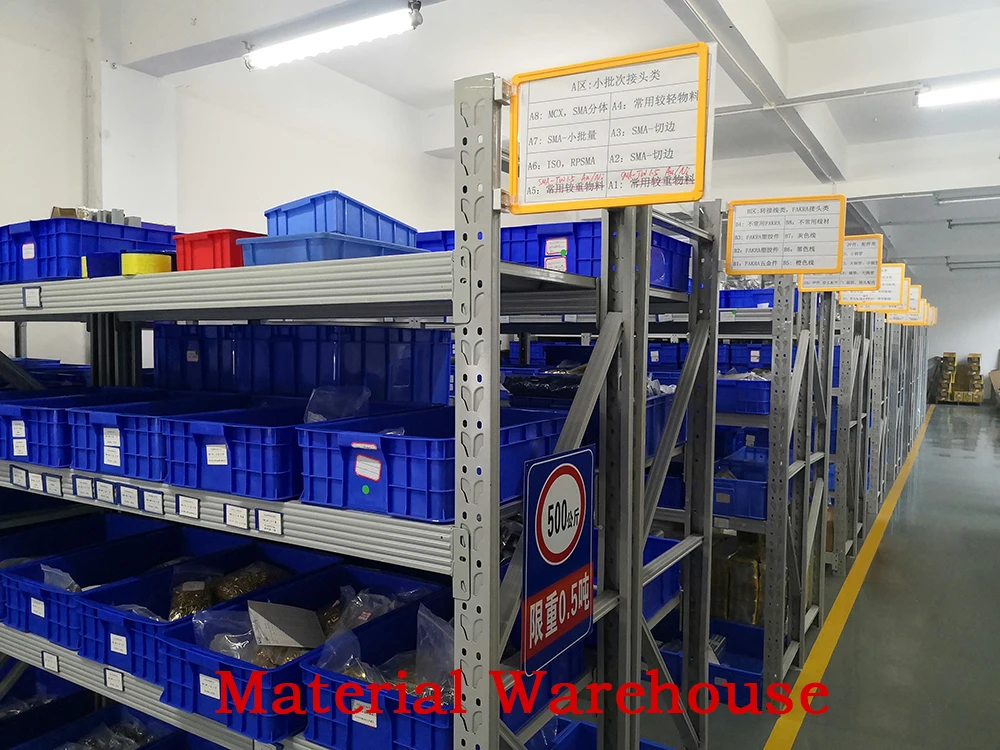

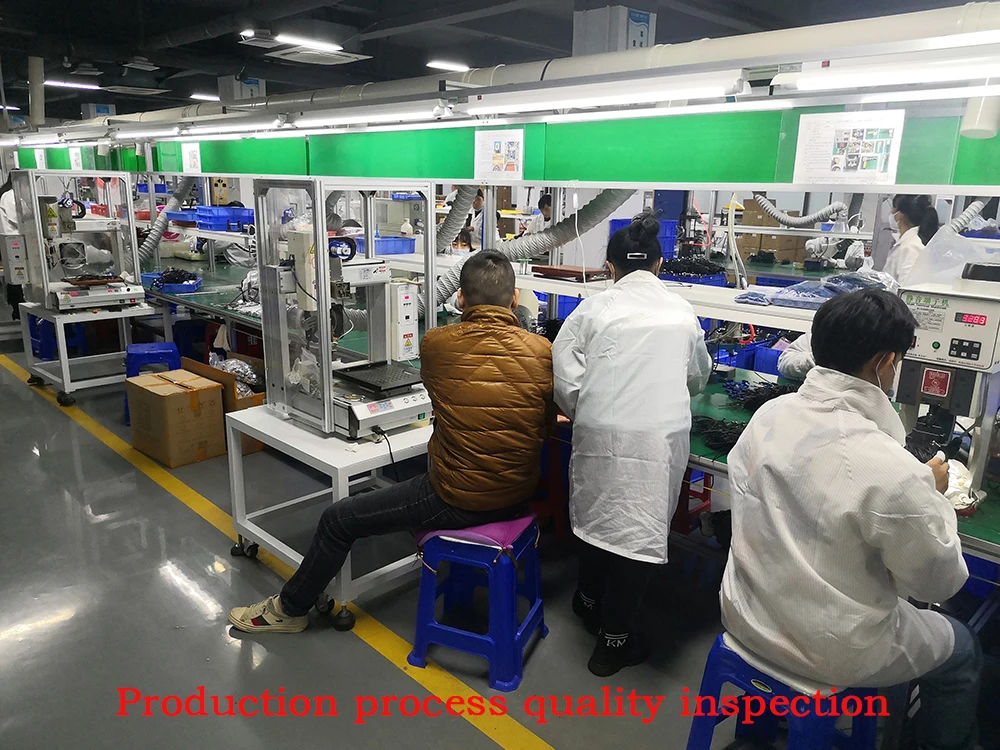

Our Factory
Payment & Shipping & Packaging & Warehouse
More Product
FAQ
Q1: Can I get one sample?
A: Yes, we can provide free samples if they are our finished products, you only need to pay for shipping. However, for custom samples, a sample fee will be charged.
Q2: Are you a manufacturer or a trading company?
A: We have been manufacturing antennas for 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days.
Q5: How long is your after-sales service?
A: We provide one year quality warranty.
