six FAJS THROTTLE BODY TZ6 40(42/45/48/50) 6 OBX THROTTLE BODY JENVEY THROTTLE BODY 40/42/45/48/50OBX with tps air horn linkage
- Category: >>>
- Supplier: Jilin FAJS Automobile Accessory Co. Ltd.
Share on (1600634829528):
Product Overview
Description
Product Overview
FAJS Throttle body TZ6-40/42/45/48/50-6
The most perfect modified throttle for racing cars, can be applied to almost any engine without engine compartment space
limitations, low height, compact structure, easy installation, can use different types of adapters, there are five models of
40/42/45/48/50mm to choose from,
limitations, low height, compact structure, easy installation, can use different types of adapters, there are five models of
40/42/45/48/50mm to choose from,
Each throttle can be fitted to one engine chamber and can be fitted to inline 6 and V6 engines,
The compact size of the throttle does not take up much space, leaving a lot of room for modification.
Please specify model number for order, otherwise order will be sent randomly
FEATURES AT A GLANCE
FAJS authentic
The most compact design
All stainless steel parts are used
A variety of rocker arm transmission
A variety of height injector holders, Injector holder with different height, up to 70MM length can be adapted to the injector
The material formula of PIERPURG carburetor from Germany is adopted to ensure that the shell is not deformed.
Low pressure casting ensures minimum residual stress
The most compact design
All stainless steel parts are used
A variety of rocker arm transmission
A variety of height injector holders, Injector holder with different height, up to 70MM length can be adapted to the injector
The material formula of PIERPURG carburetor from Germany is adopted to ensure that the shell is not deformed.
Low pressure casting ensures minimum residual stress
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | size | 40/42/45/48/50MM | Available in any size, | Please specify model number for order, otherwise order will be sent randomly |
2 | height | 65mm | ||
3 | Inner diameter of rubber ring | 51mm | ||
4 | The outer diameter of rubber ring | 55mm | ||

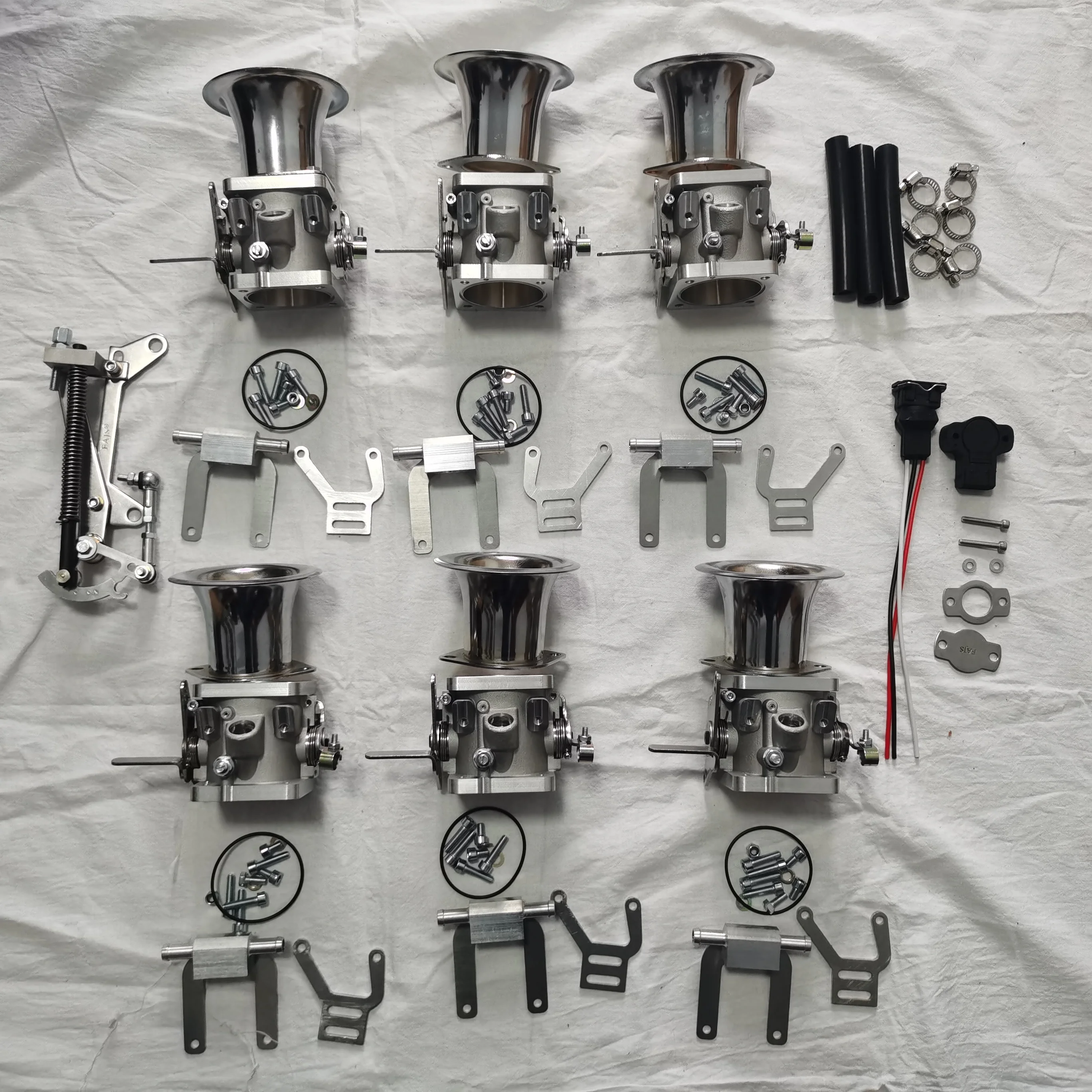

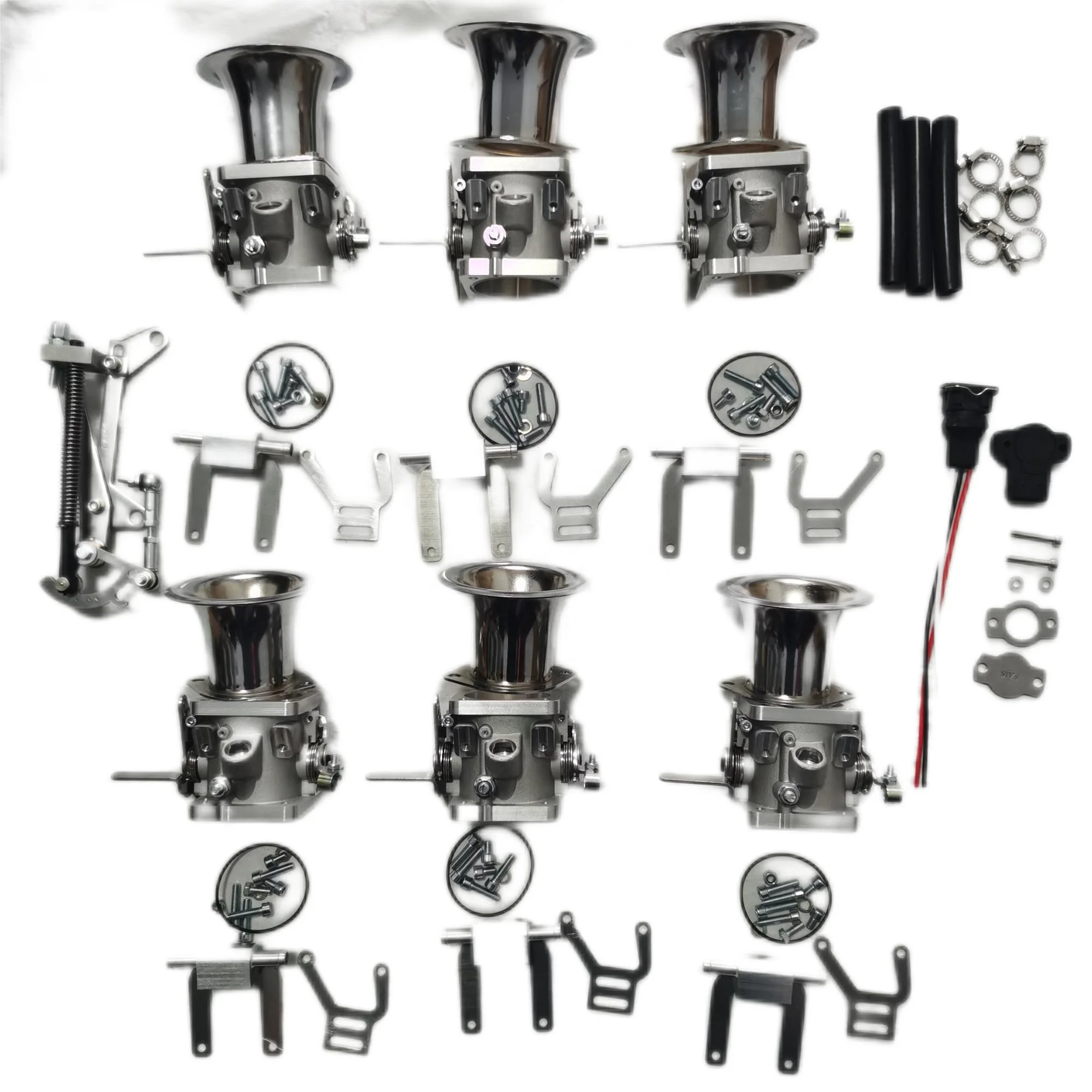

PRODUCT CONFIGURATION
No | Part name | QTY | highly | Hole diameter |
1 | 40-50OBX throttle body | 6 | 65mm | 40/42/45/48/50mm |
2 | air horn | 6 | 60mm | 40/45/48/50mm |
3 | TPS | 1 | ||
4 | Fuel injector mounting auxiliary bracket | 12 | 50mm and 70mm | |
5 | O ring | 6 | 51*55 | |
6 | TPS parts and pulg | 1 set | ||
7 | Linkage | 1 | ||
8 | screw kit | 6 | ||
9 | fuel rail | 6 | ||
10 | Install auxiliary brackets for throttle cable bracket | 6 | ||
11 | rubber tube | 1 | 50MM | |
12 | Pipe clamp | 12 | 12-18MM |
