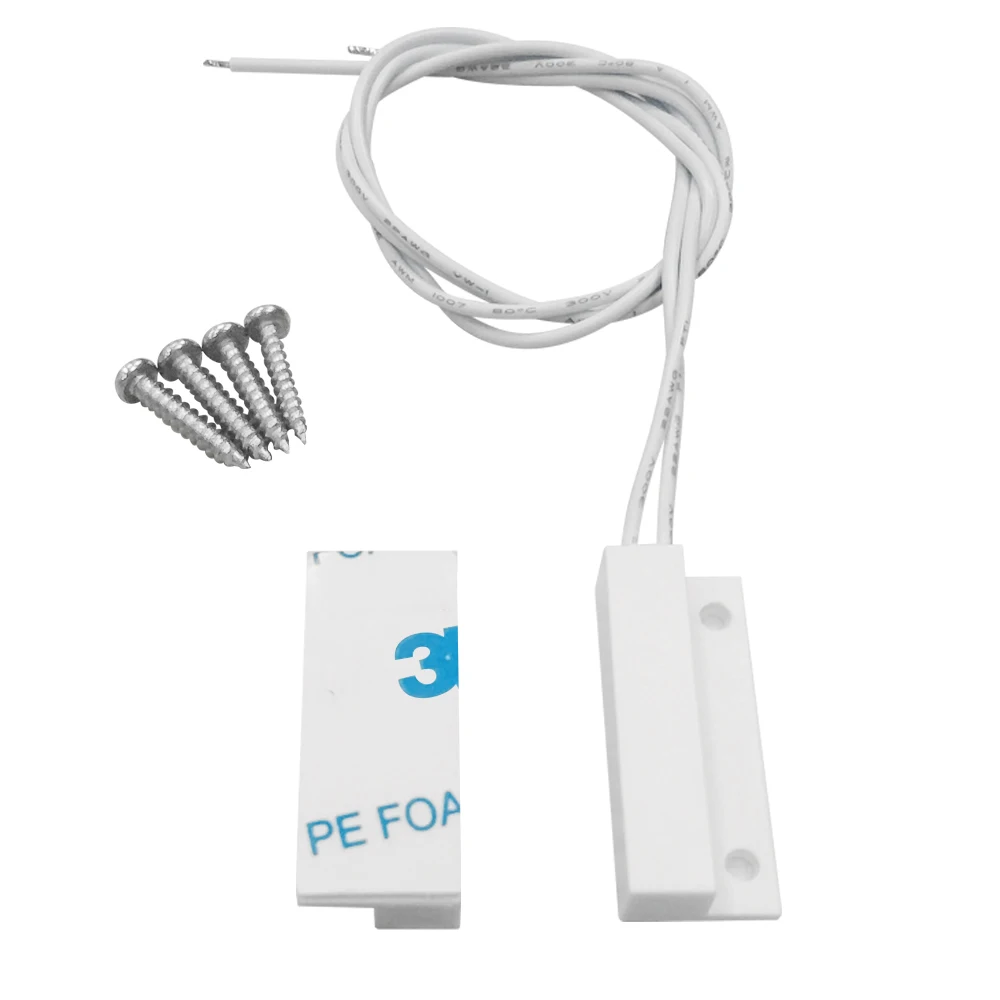

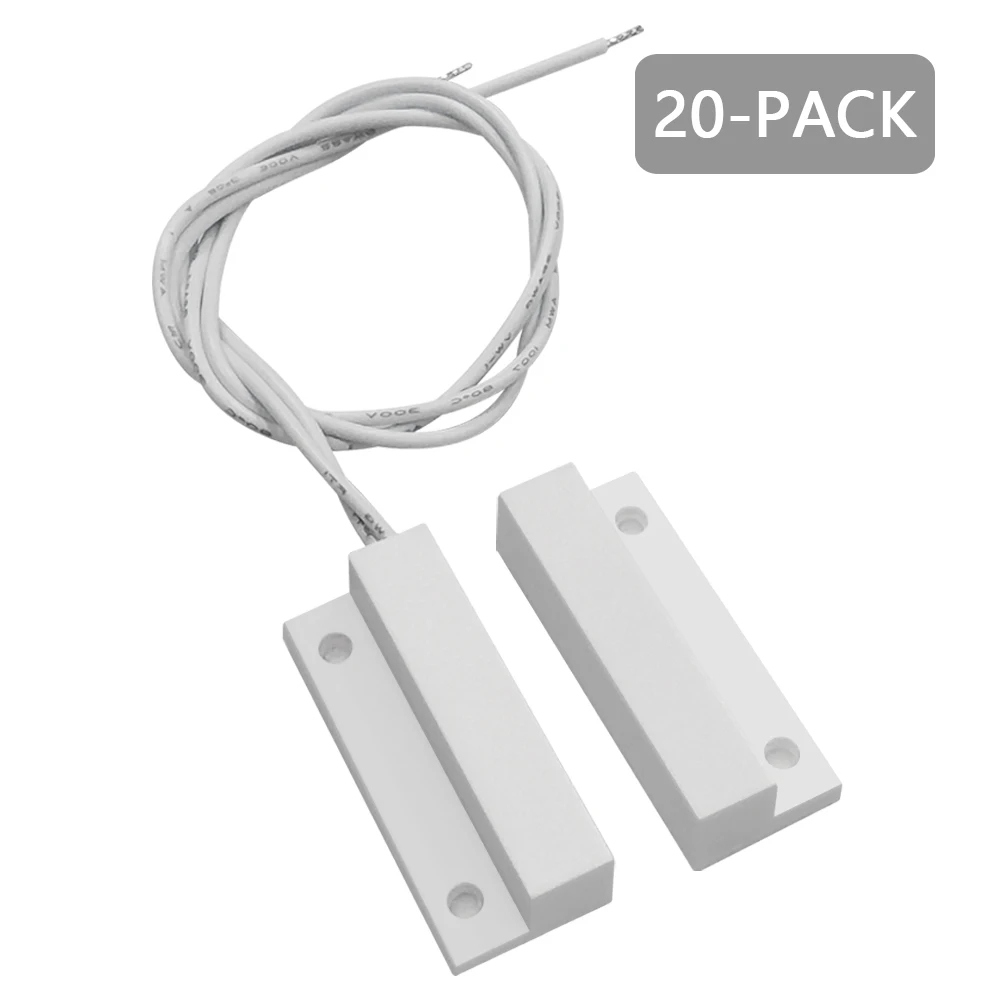

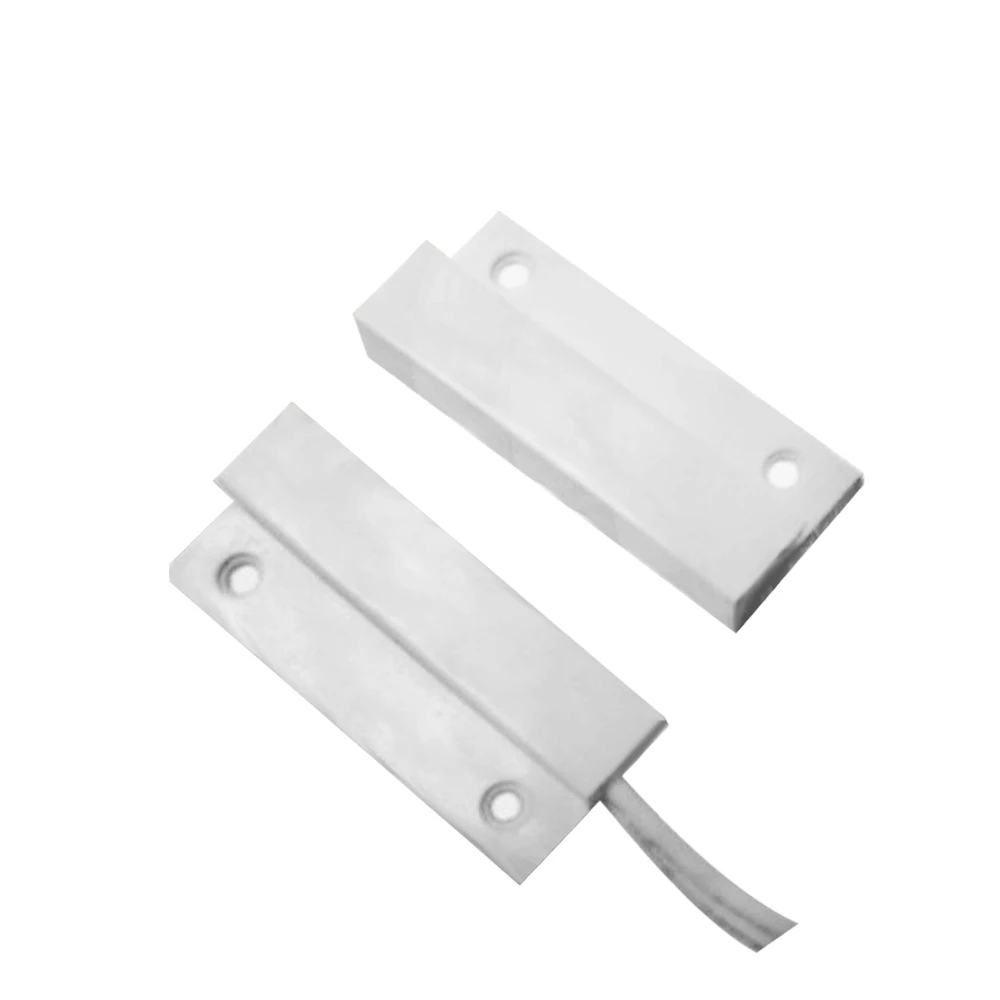

Surface mounted door magnetic contacts switch MCS-37
Magnetic contact is widely used for alarm system(panel) to detect state of door or window.
It consists of reed switch part and magnet part .
NC type we define:
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and switch OFF, then output signal to panel or trigger alarm.
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and switch OFF, then output signal to panel or trigger alarm.
Product name | magnetic contacts for metal door |
Model NO. | MCS-37 |
Installation | surface mounted with screw and double side tape |
Operation gap | 20mm |
Output type | NC |
Housing material | ABS plastic |

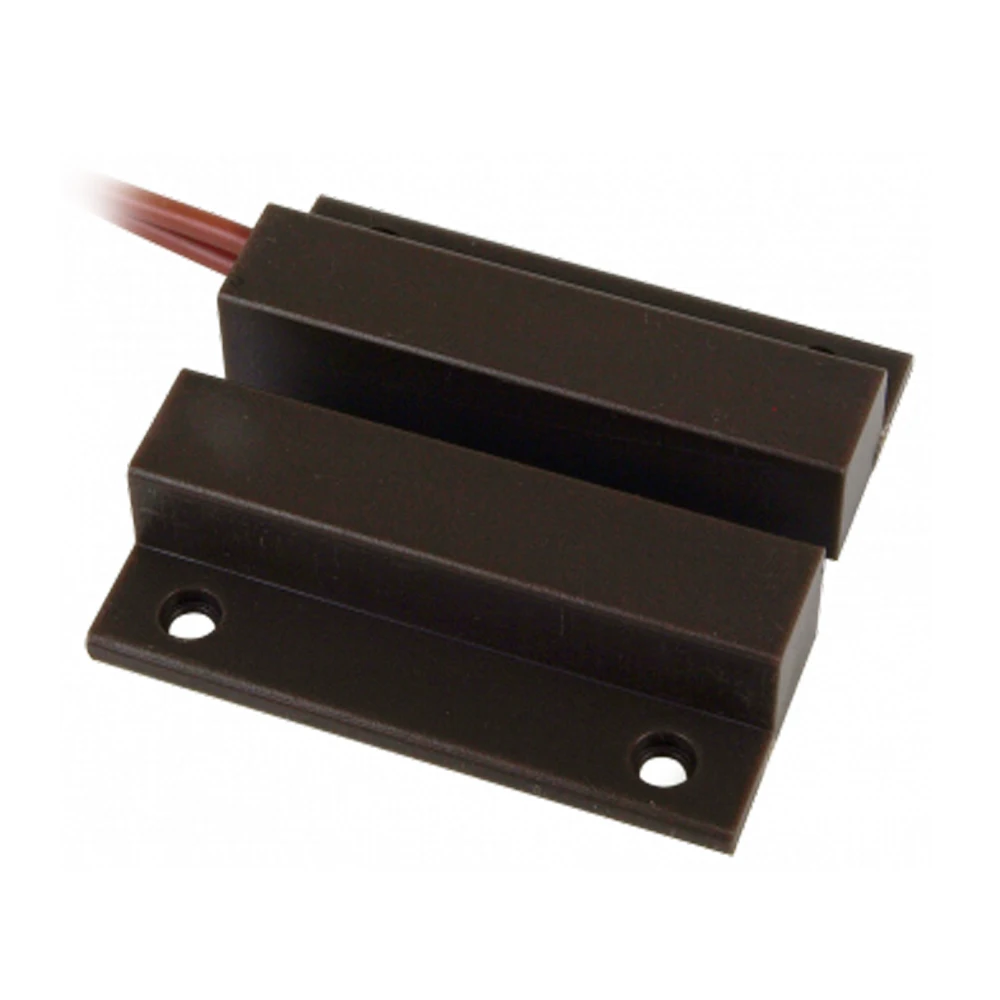

Housing color | white or brown color optional |
Wires length | 350 ± 20mm |
Switching voltage | 100VDC Max. |
Switch current | 0.5A Max. |
Contact rating | 10W Max. |
Switch working life | 100000000 times |
Working temperature | -20~80℃ |
Customized | wires type / wires length / housing color / resistors |
Certification | CE,ROHS, EN50131 grade 2 |
Others | only magnet or switch parts available |

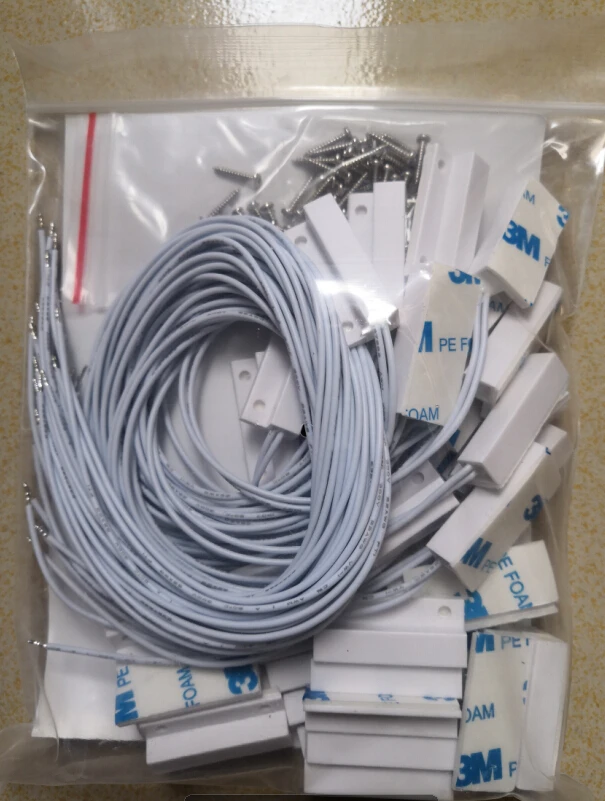

Product packaging
Package | 20pcs/bag |
Carton package | 1000pcs |
G.W. | 15.20kgs/ctn |
N.W. | 14.60kgs/ctn |
Carton size | 38*30*30CM |
Delivery | By sea/ air/ DHL/FEDEX/UPS/TNT express etc. |
Installation drawing
