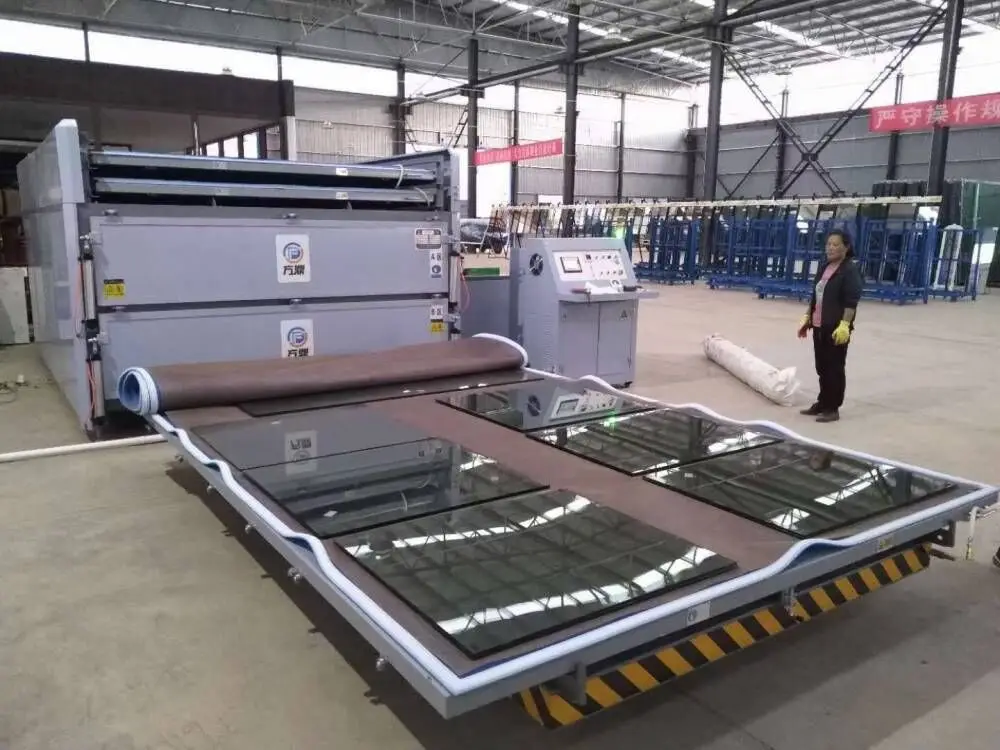

4 layers 2 heating chambers EVA glass laminating machine

Product Overview

Description

4 layers 2 heating chambers EVA  glass laminating machine





Performance Feature:



1) Our glass lamination line / laminaton furnace has passed CE test and got CE certificate. We are the only one company passed CE test of this kind of machine. Our furnaces meet international standard.

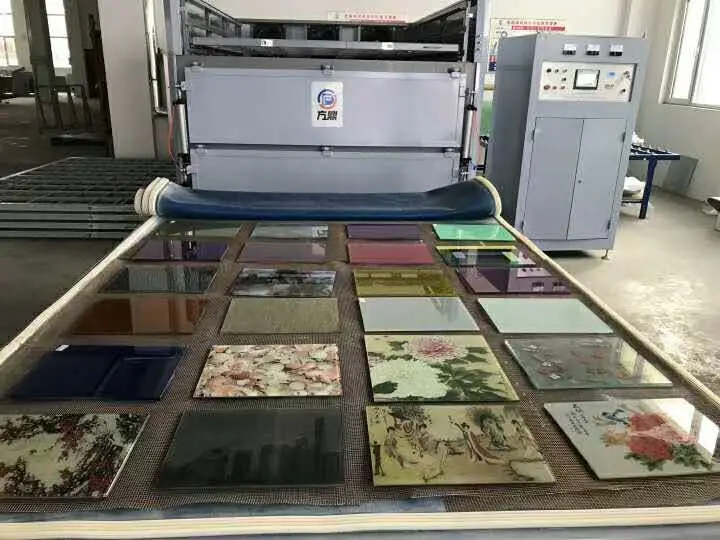

2) Our glass lamination line / laminaton furnace could be used to produce architectural laminated glass, tempered laminated glass, bending laminated glass, bullet-proof laminated glass, LED/ solar cell laminated glass, PDLC laminated glass, marble laminated glass, auto windshield, art laminated glass sandwiched with true flower, silk, cloth, pattern, photo, etc.'

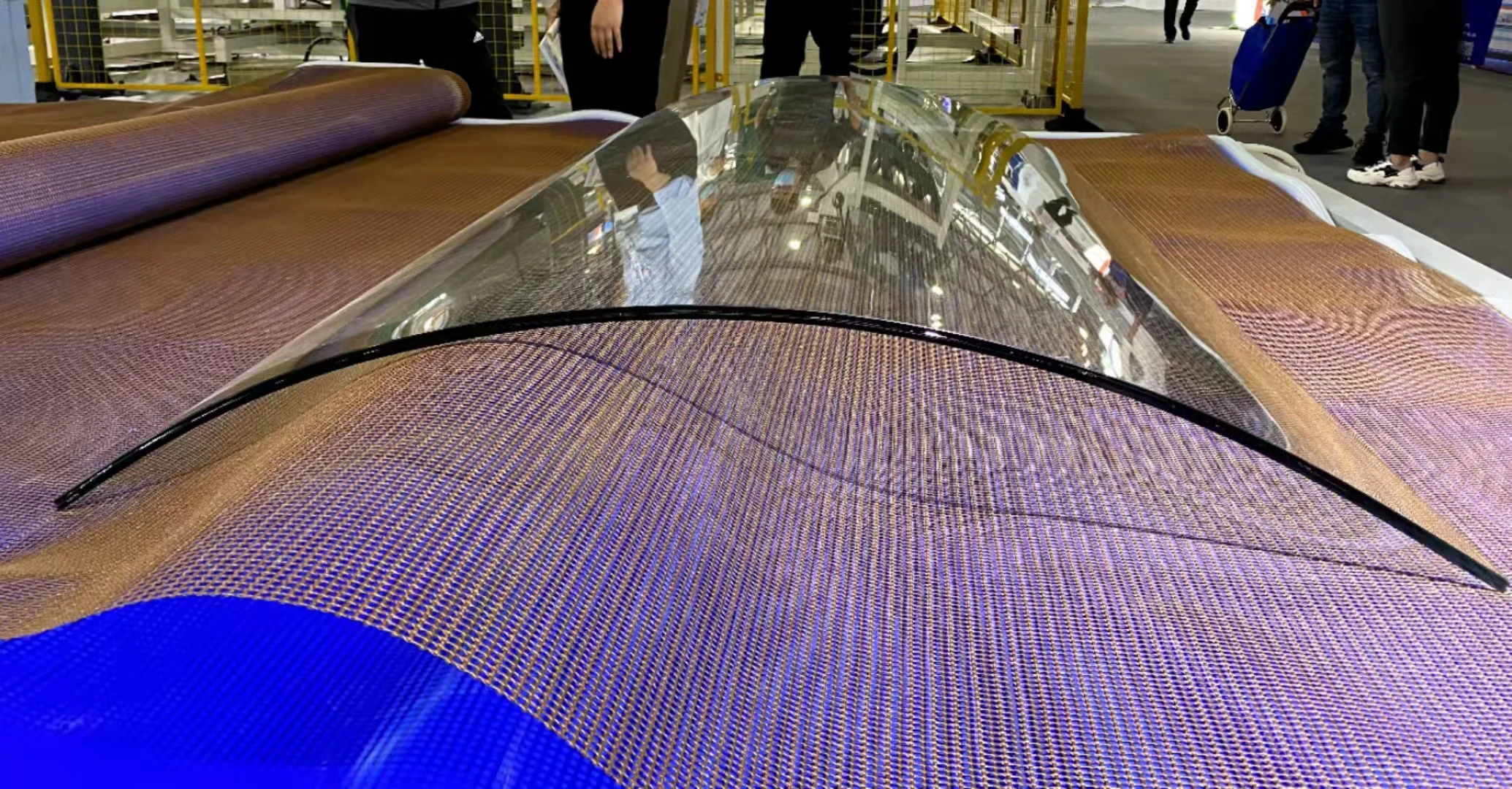

3)The glass lamination line / laminaton furnace keeps only one in domestic which could adopt TPU/New PVB/EVA film to produce all kinds of laminated glass. Especially in producing bending laminated glass, tempered laminated glass and art laminated glass, our machine has a unique advantage. It can be processed in one step. The laminated glass produced by our furnace could be used for glass wall, interior partition, furniture glass, windshield for cars, ships, airplanes, etc.
What’s more, TPU is the best interlayer film for laminated glass. It can stand 360 pounds/square inch. It is very hot all over the world.

4)We can promise you 99% production yield. While other similar products can't reach this high rate. It is very important for productive furnace. Low production yield will waste you more material and time. While our furnace will save much time and cost for you.You could compare with the machines from other company, then have a choice.







5)High efficiency. Our glass lamination line / laminaton furnace could complete 1 furnace 1-2 hours, and the max processing area is 26-99m²/furnace. The max. output of one day could reach 600m².

6)Energy saving. Our glass lamination line / laminaton furnace only consume 24KW-58KW/hour electric energy. It will save much energy cost for you.

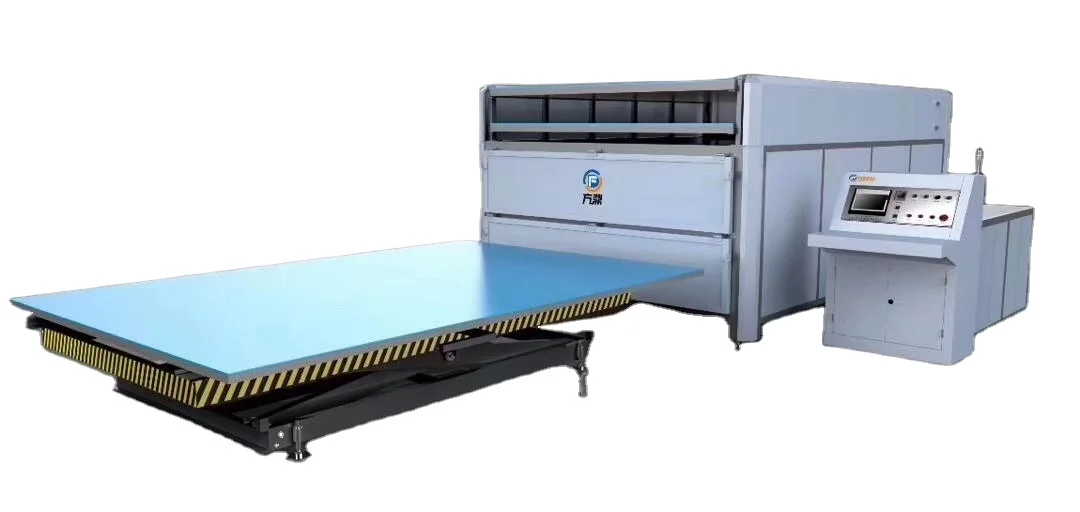

7)Labor saving. Fangding glass lamination line / laminaton furnace adopts full-automatic lifting platform and automatic door will save you much labor. It only need 2-3 workers to operate this machine.

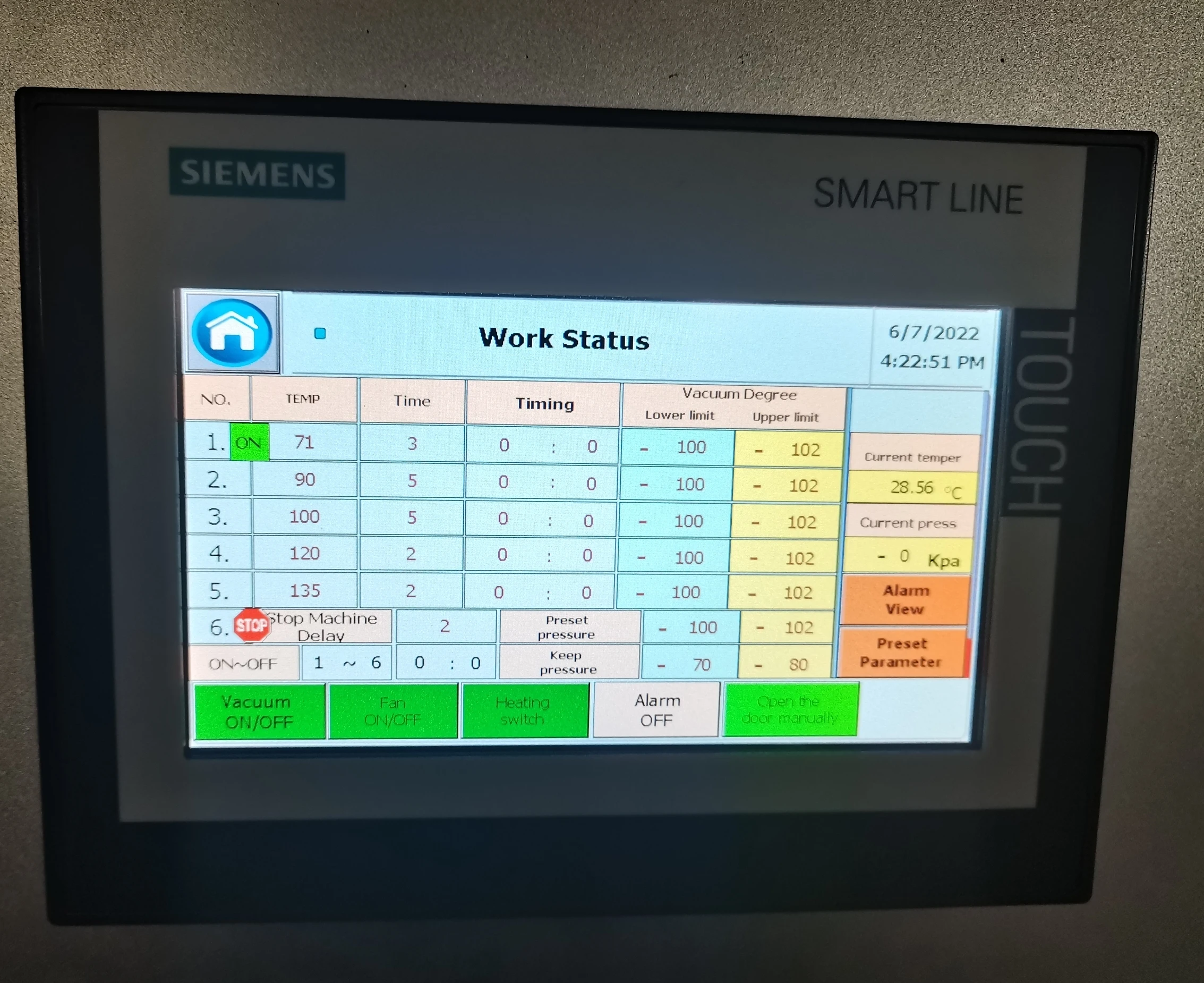

8)Easy to operate. The glass lamination line / laminaton furnace adopts PLC, all the program could be completed automatically. Heating time and temperature could be adjusted according to glass thickness.The work situation could be watched through the touch screen.

9)Space saving. It only takes you 4m*8m space, no need big workshop.

10)High quality spare parts. All the spare parts are purchased from famous supplier . Such as
electric appliances adopts DELIXI, vacuum pump adopts SIMENS and so on. Our silicone bags are imported from USA, and it can be used for at least 4 years. While domestic silicone bag features bad seal, fast aging, low vacuum only could be used for half a year.





Spare parts	Brand	Spare parts	Brand
Electrical appliance	DELIXI	Heating parts	As same as tempering furnace
Fan	Turbo blower	Lifting platform	Photoelectric
Warm-keeping layer	6-10cm thick	Electric transformer	DELIXI
Motor	SIMENS	Vacuum pump	SIMENS
circuit breaker	DELIXI	Electric Capacity Switch	DELIXI
PLC	DELIXI	AC connector	DELIXI
bearing	Japan	Vacuum mouth	Stainless/copper
Silicone bag	8mm thick	Galvanized angel steel	High temperature proof and tear resistance


11)The glass lamination line / laminaton furnace adopts latest technology. We add Special spare parts into PLC. It can ensure constant voltage and constant current which can save much energy and extend the service life of our machine.
12)We offer you free home installment and key technology for processing laminated glass, and we promise you the best after service for ever. If you have any question, just contact us. We will solve the problem you meet at first time.



Technical parameters:



Electric Power	(3-phase AC   220-380V)/58KW
Processing Glass Size	Max: 2440*3660mm / Min:   100*100mm
	Arch Height: 400mm (Max)
	Glass Thickness: 36mm   (Max)
Efficiency	50-120 Minutes
	108m²
Exterior Dimension	2950*3600*2150mm
Working Temperature	90-140°C
Net Weight	4300kgs
