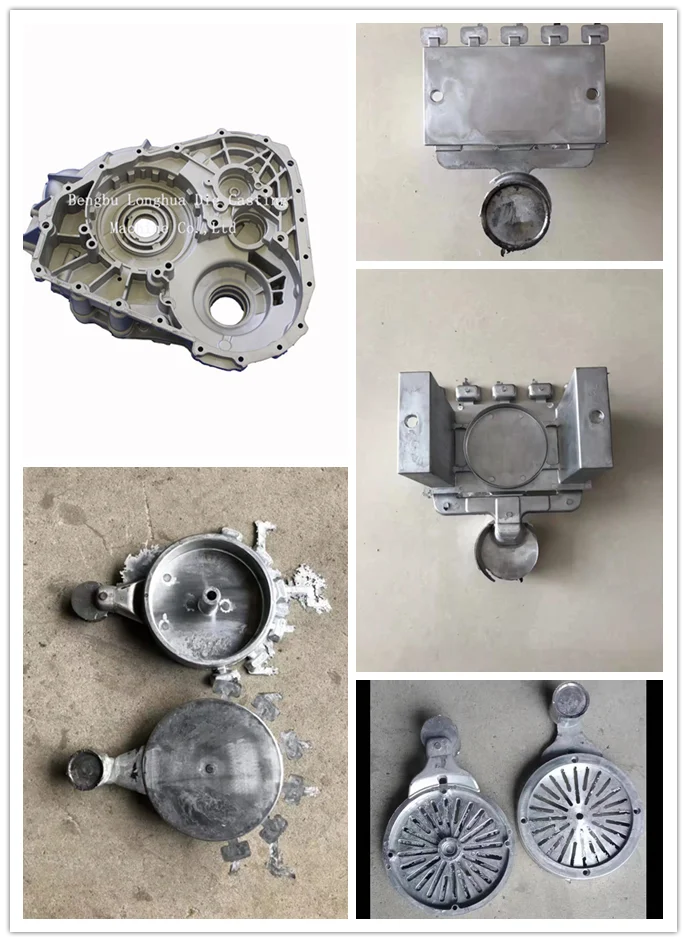

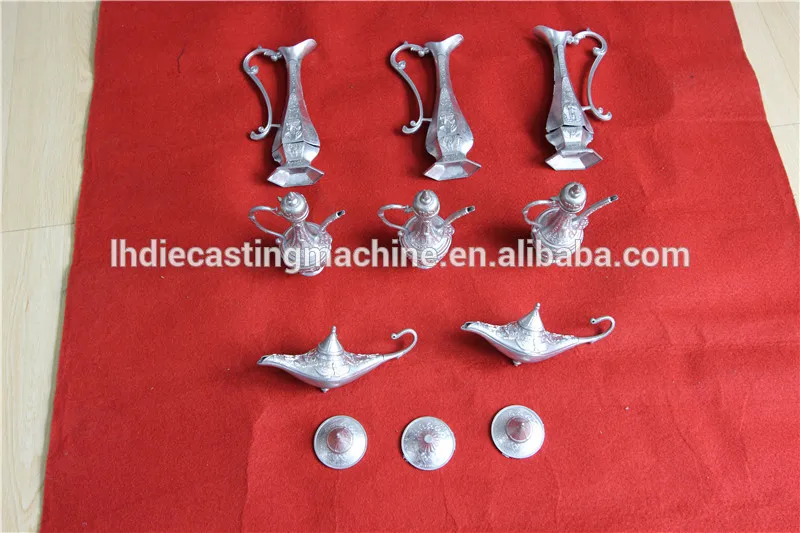

Aluminum Brass cold CHAMBER Die Casting Machine Suitable For auto spare parts/ led light housing/ radiators/ pot/door handle

Share on (1600635309343):


Price:$14,500.00

Quantity:


Product Overview

Description





Product Description

NEW Product Description

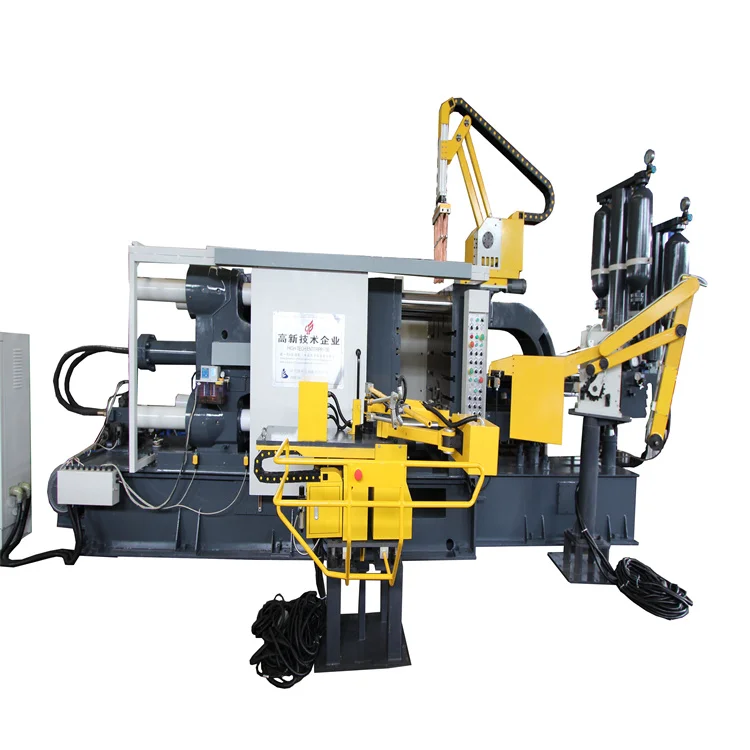

500-1






FAQ


1300T_131600T_011600T_08500T_03500T_04photobank









Size Information

Size Information






LH series of standard parameter table (500T)































































































































Items


Unit


Specification


Hydraulic Working Pressure


MPa


14


Clamping Force


KN


5000


Space Between Tie Bars


mm


750*750


Tie Bar Diameter


mm


170


Die Opening Stroke


mm


650


Injecction Force(intensify)


KN


670


Plunger launch distance


mm


295


Injection position


mm


0 -- 250


Plunger Diameter


mm


70----100


Injection Stroke


mm


715


Casting pressure (intensify)


MPa


153/117/92


Casting Fiange Protrusion


mm


15


Casting Fiange Diameter


mm


165


(40Mpa) Max Casting Area Under40Mpa


CM2


1750


lnjection Weight(Al)


Kg


11


Die Height(Min--Max)


mm


350~900


Ejector Force


KN


315


Ejector Steoke


mm


260


Motor Capacity


Kw


30


Machine Dimensions (L*W*H)


m


8.4*2.2*3.1


Referential Machine Weight For Uplifting


T


30


Oil Tank Capacity


L


1250











1.For customers who purchase Anhui Anchine products, we have trained professional engineers to enable them to independently operate, use and maintain Anhui Anchine products;


2. To answer technical questions in a timely manner, the company can send people to the user site for assistance and guidance in time;


3. Provide technical guidance when users need new equipment or expansion (reconstruction) construction;


4. After the company's products are upgraded, priority should be given to the replacement of the previous users as required.please contact Ailsa ( WECHAT / WHATSAPP +8613955418458 ) to solve the problem of how to produce aluminum and copper alloy products better (such as auto parts, Street lamp shell, radiators, door handles, brakes, etc.).

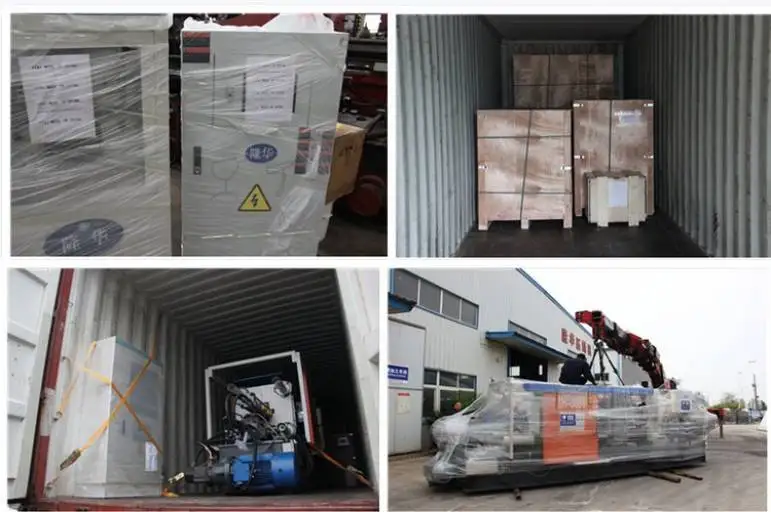

771-512








After Sales Service

After Sales Service



























Certifications

Certifications
















Details Images

Details Images
