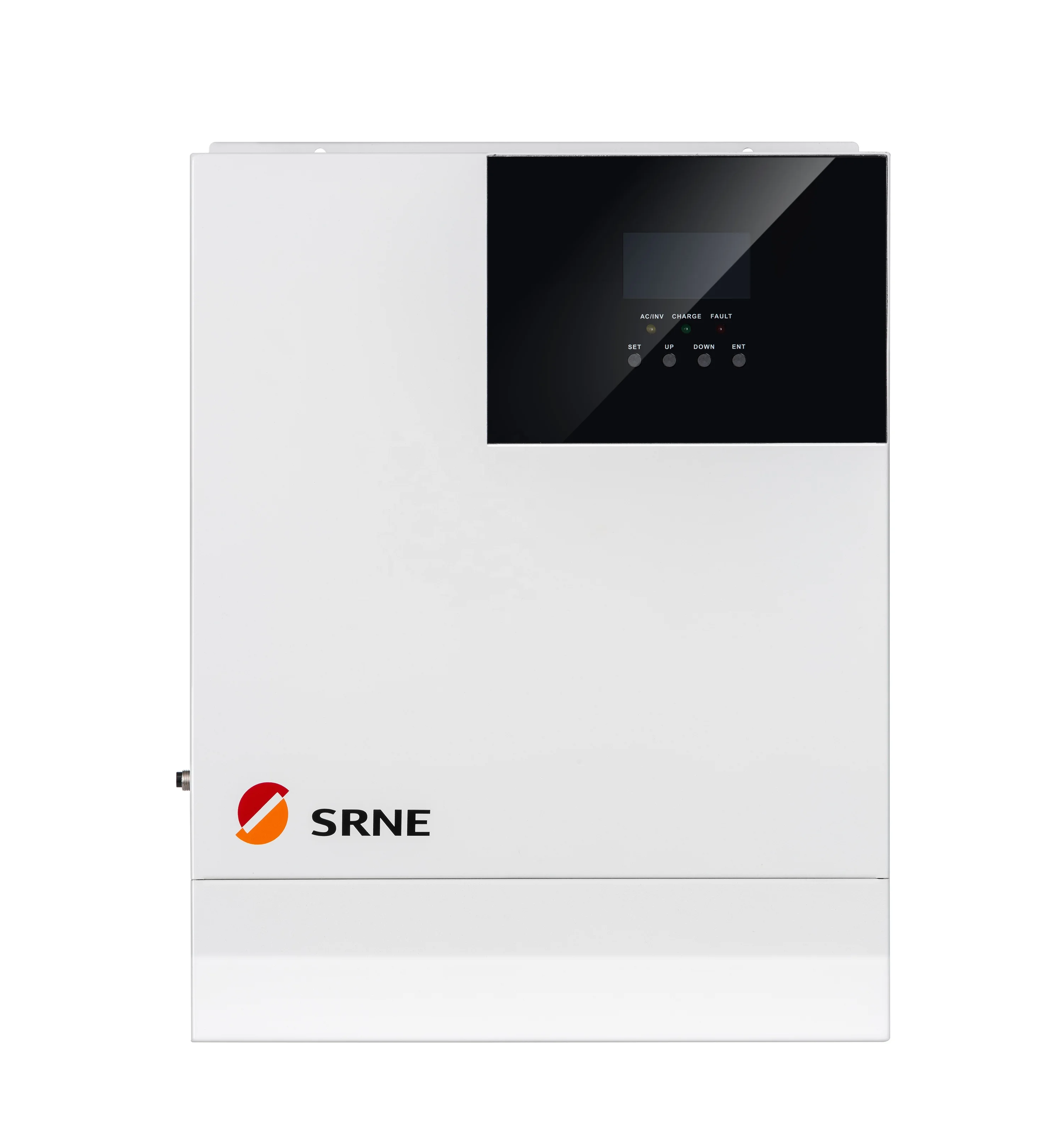

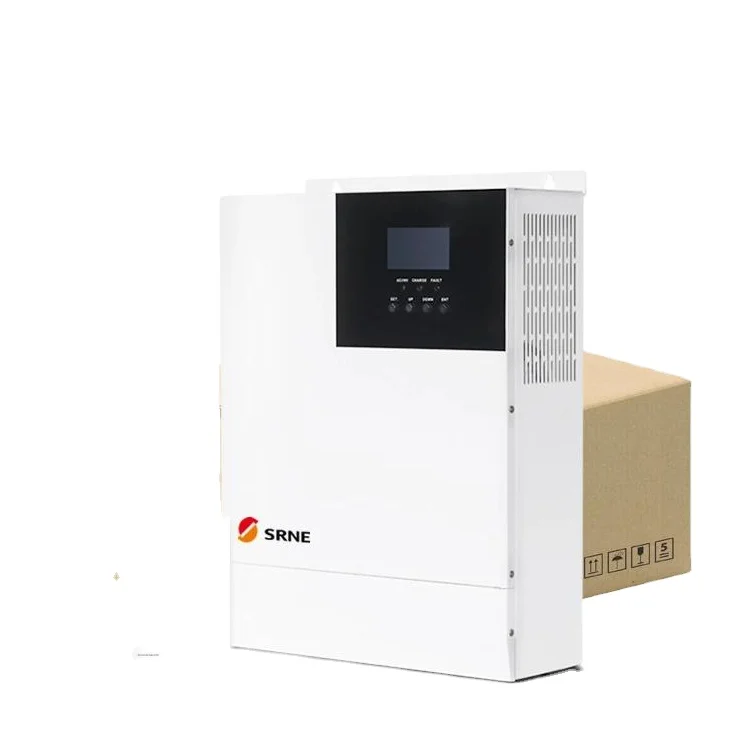

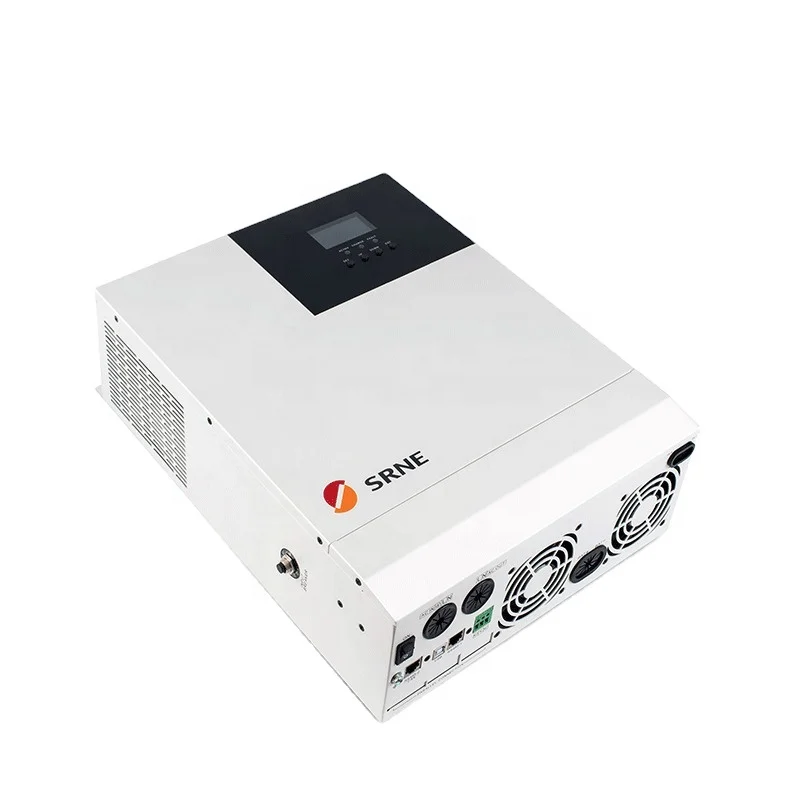

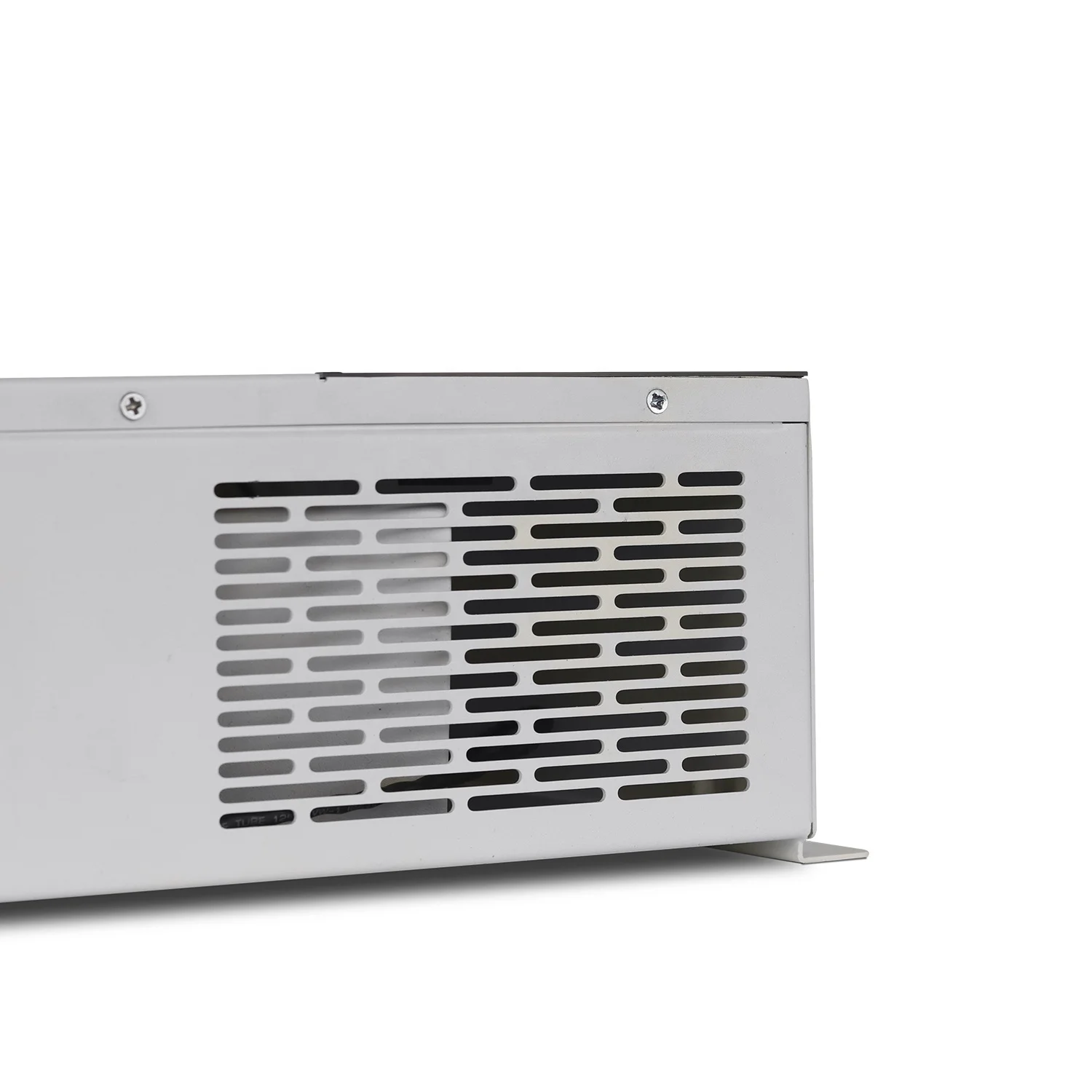

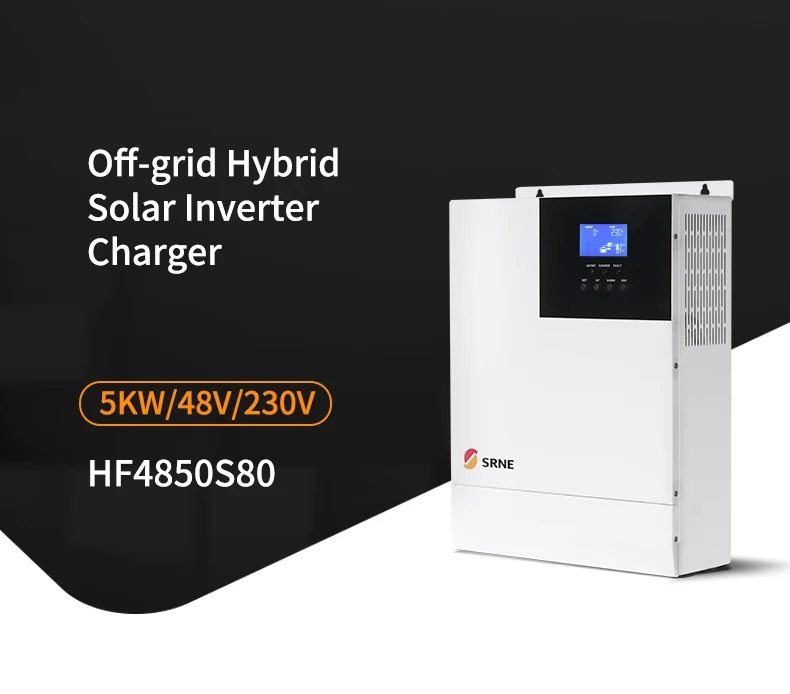

SRNE Pure Sine wave 48v 5kw Parallel function solar off grid hybrid inverter with 500V Pv Input volt

Share on (1600635897818):


Price:$490.00 - $510.00

Quantity:


Product Overview

Description



Product Description

Product Description



Parameter























































































Place of Origin


China


Output Voltage


230v

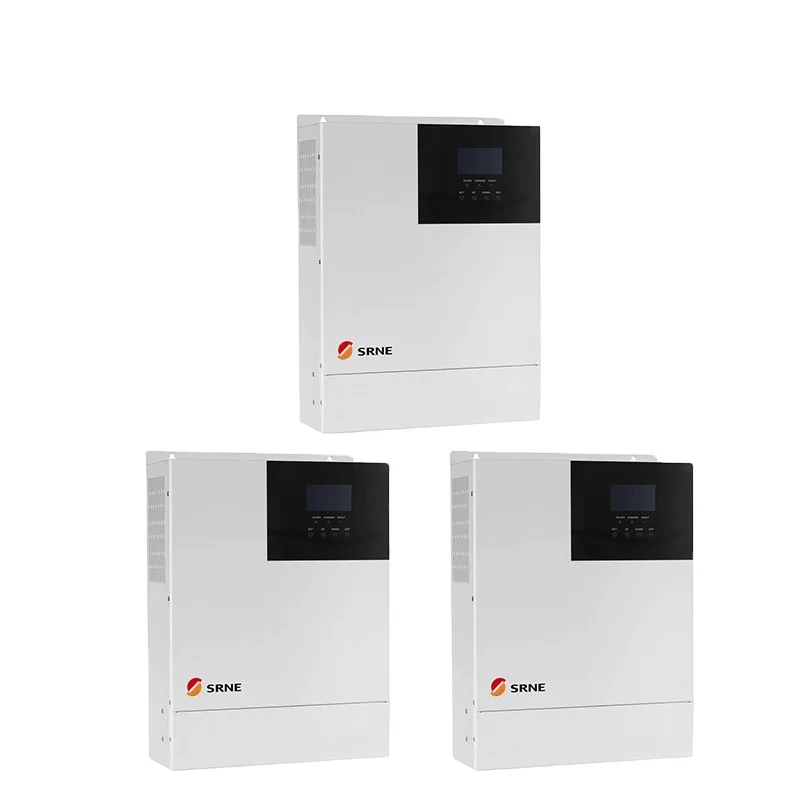

Parallel function


support


Max parallel QTY


Max 6pcs (total 30kw for Pv Panels)


Phase


Single phase(standalone)


Output Frequency


50Hz/ 60Hz


Size


430mm*338mm*126mm


Inverter Efficiency


>95%


Warranty


14 months


Brand Name


SRNE


Output voltage waveform


Pure sine wave


Certificate


CE(IEC/EN62109-1,-2),ROHS2.0


Rated power


5000w


Color


White


AC charge current


60A


PV charge current


80A


Wifi function


support


Maximum PV open circuit voltage


500v


Battery type


Lead acid or lithium battery


Weight


11kg

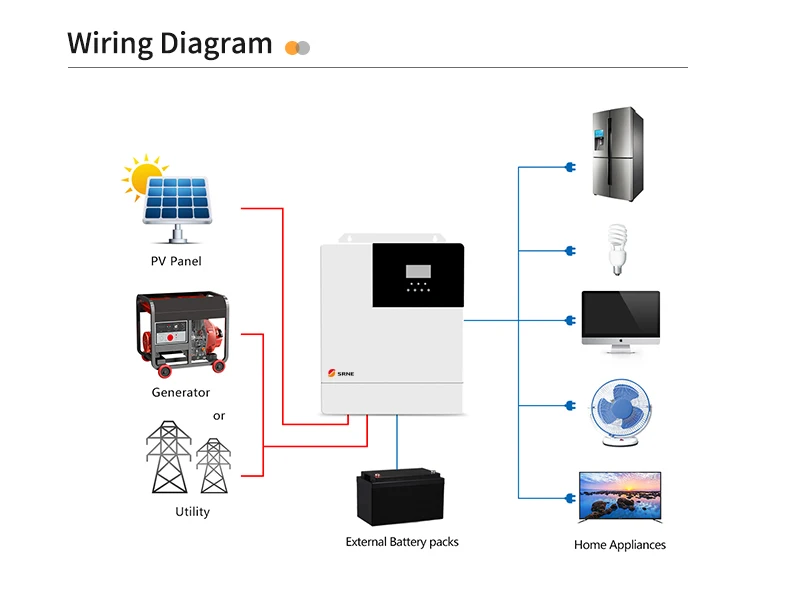

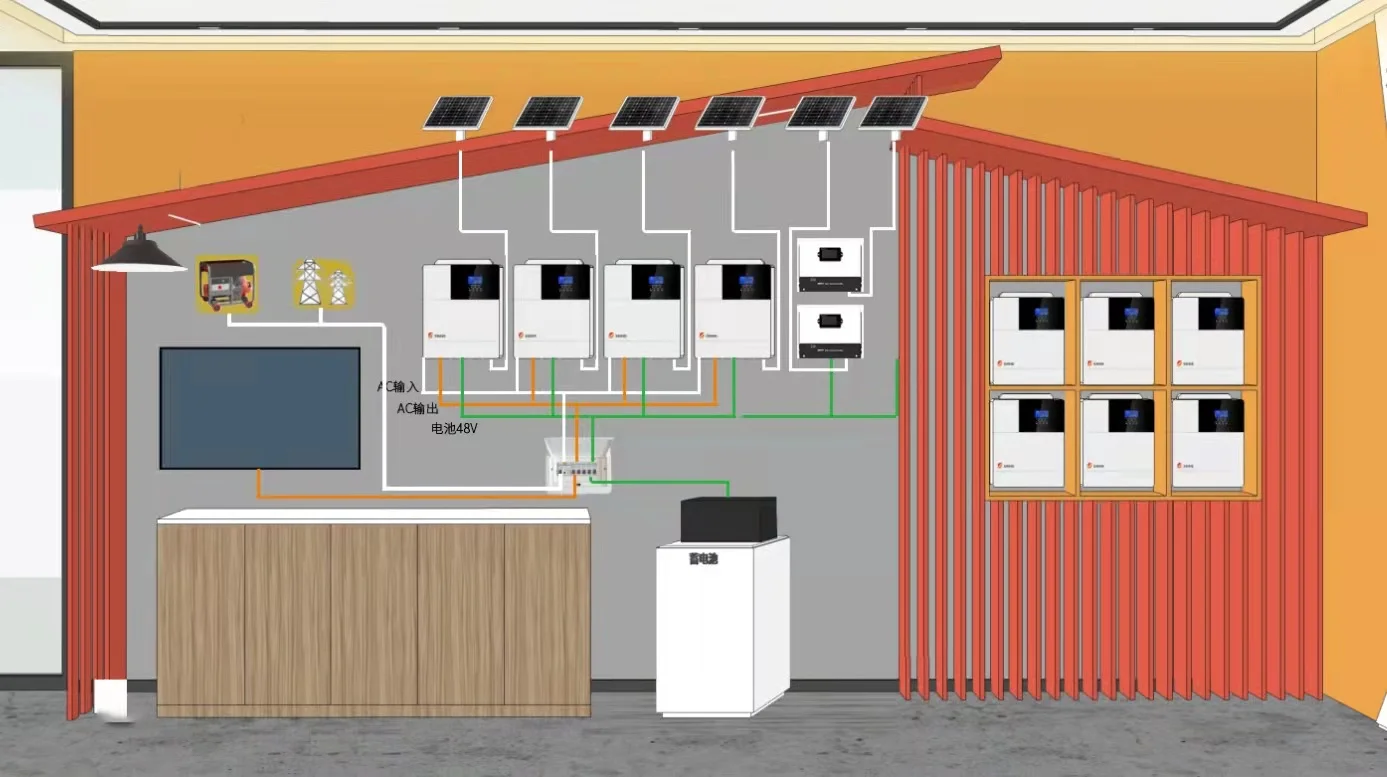

Application

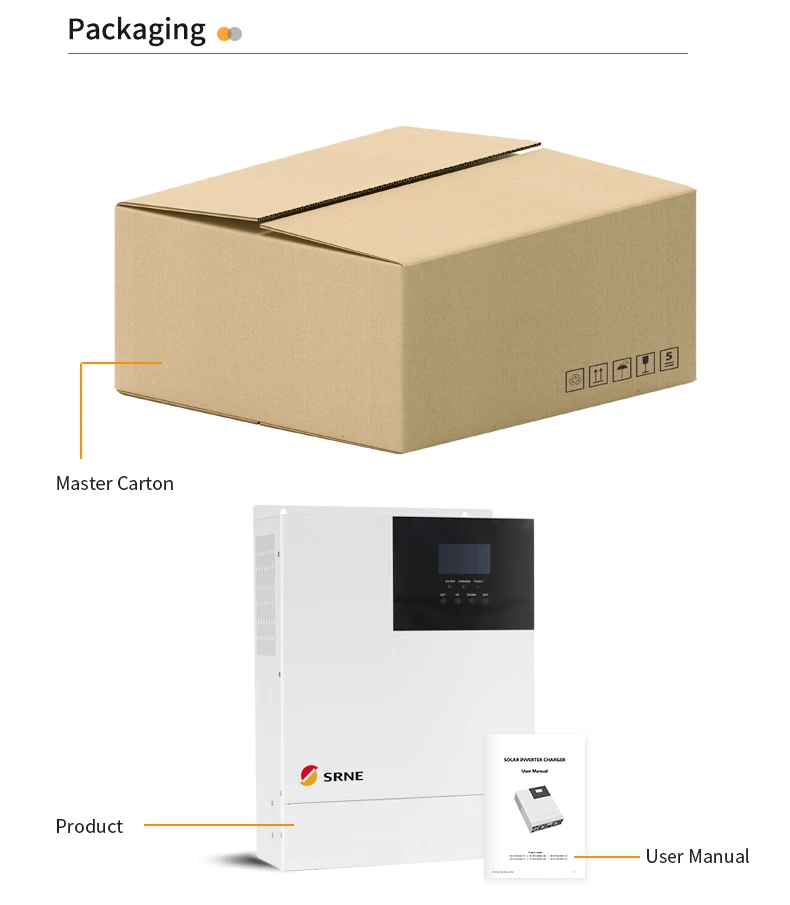

Packing&Delivery




H9d2bbcbe060743dba945ae9394f2a5cdw.jpg_





SRNE Profile


He1a1601d36614970a961c2cf30f1b84d9.jpg_


H114164f2ad4d469c951ec06e164262cfm.jpg_


Exhibition


H3974761207964e67bae2c8a042a61d4bZ.jpg_


Certificates


Hf03ad0fbf1904fc0b8b0c2fe0bd1edc5a.jpg_


FQA


Q1.What kind of certificates you have for your inverters?


A1:CE(IEC/EN62109-1,-2),ROHS2.0





Q2.Are u a manufacturer or trading company?


A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge controller ,solar inverter charger





Q3.Can I buy one sample for testing?


A3:Sure,we have a 10 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.





Q4.How is the delivery?


A4:Sample:1-2 working days


   Order:within 7 working days depending on the order quantities


   OEM order:15-20 working days after confirming the sample





Q5.How is your customers service?


A5:All solar product will be tested strictly one by one before leaving factory.And the defective rate is below 0.1% we do try our best to provide a good customer service.





Q6.Minimum Order Quantity?


A6:Be equal or greater than 1 piece
