3 rollers heavy duty plate sheet metal cnc rolling bending machine for metal sheet
cnc rolling bending machine
Performance Of W11S Hydraulic Rolling Machine
1-1 This machine is a special equipment to roll the plate into curve,cylinder,conical in the principle of three point circle. The action as below:
1-2 Top roller move by vertical. Power: hydraulic oil tank. Role: put the pressure on the plate to make the plate bending deformation.
1-3 Top roller move by horizontal. Power: electromotor. Role: adjust the horizontal distance between the top and bottom roller to make the top and bottom roller position in asymmetrical to pre-pend the sheet edge and decline the length of the flat zone
Product Description

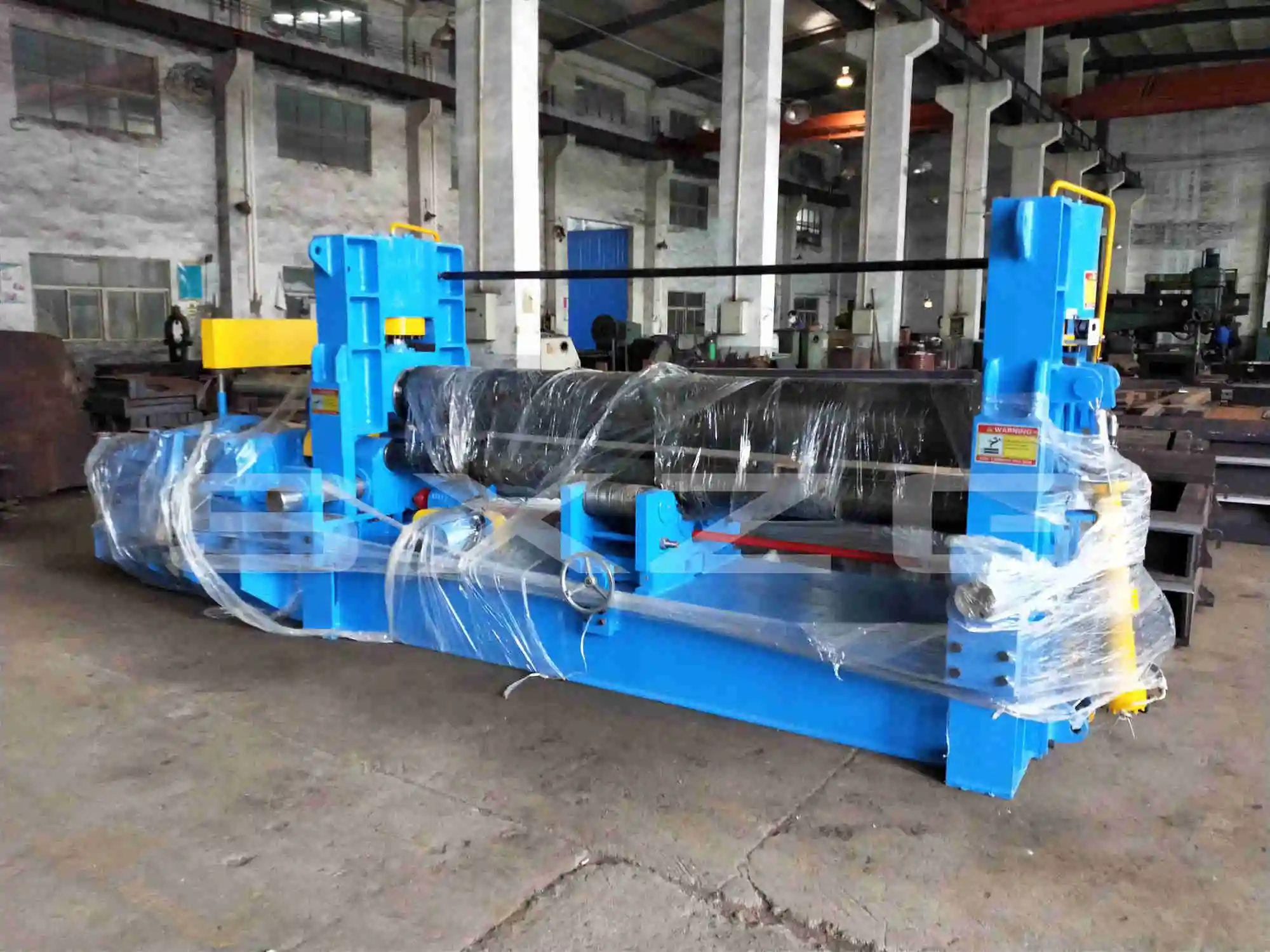

W11S Rolling Machine
This machine is a special equipment to roll the plate into curve,cylinder,conical in the principle of three point circle. The action as below: Top roller move by vertical. Power: hydraulic oil tank. Role: put the pressure on the plate to make the plate bending deformation. Top roller move by horizontal. Power: electromotor. Role: adjust the horizontal distance between the top and bottom roller to make the top and bottom roller position in asymmetrical to pre-pend the sheet edge and decline the length of the flat zone Bottom roller rotate. Power: electromotor. Role: supply the torque for bending plate. Opening device drop down and reset. Power: hydraulic oil tank. Role: take out the finished workpiece.Detailed Images

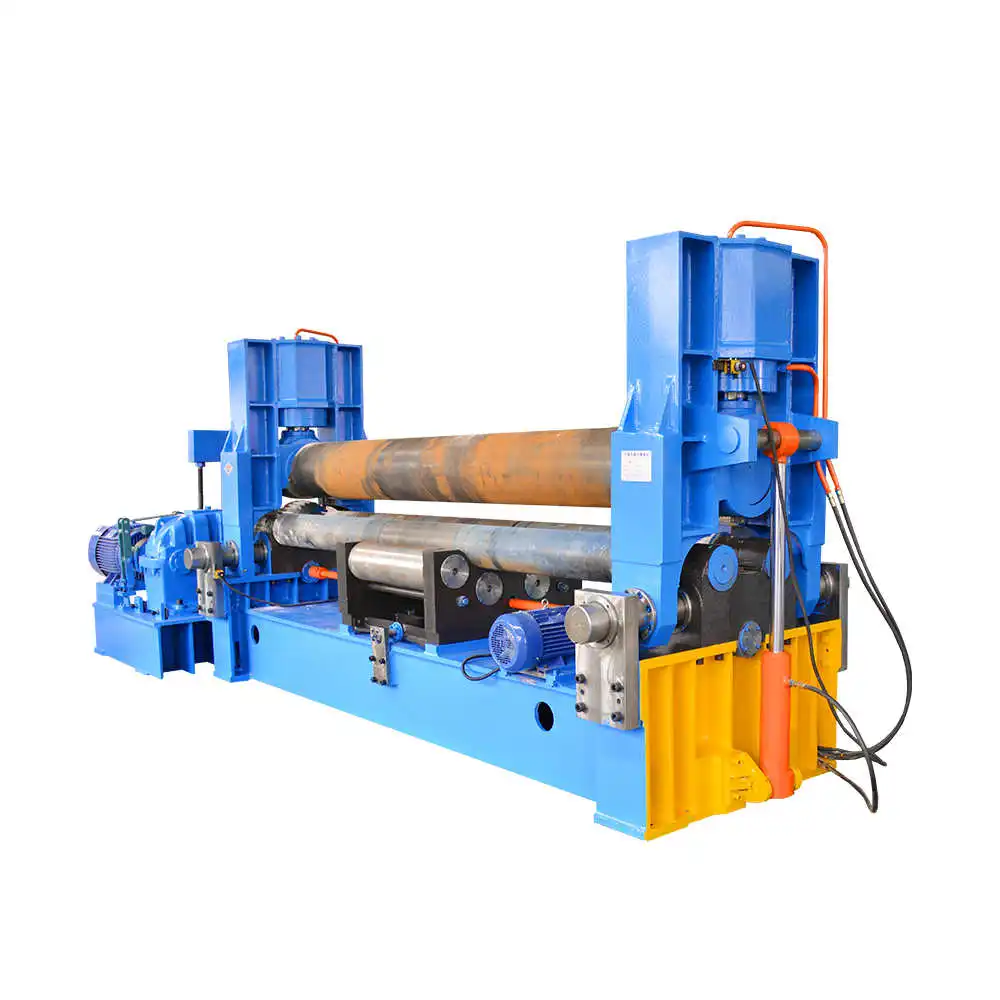

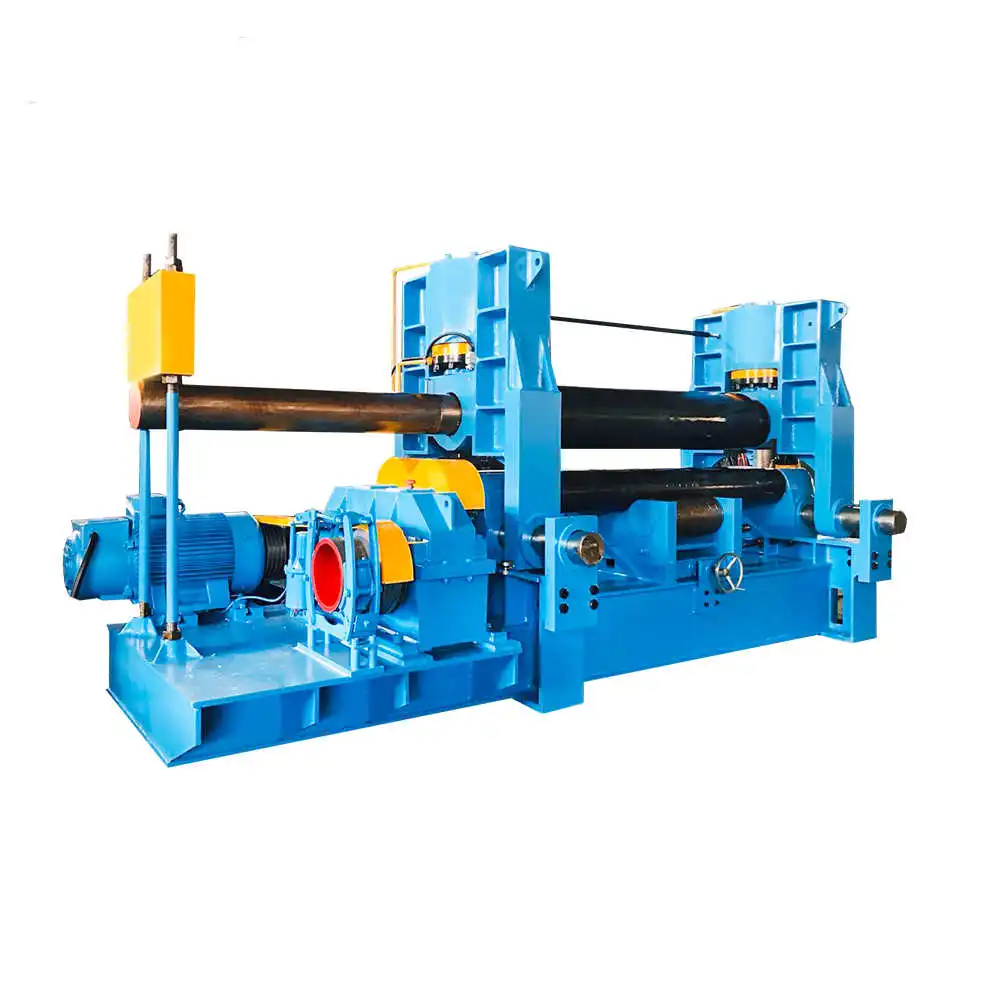

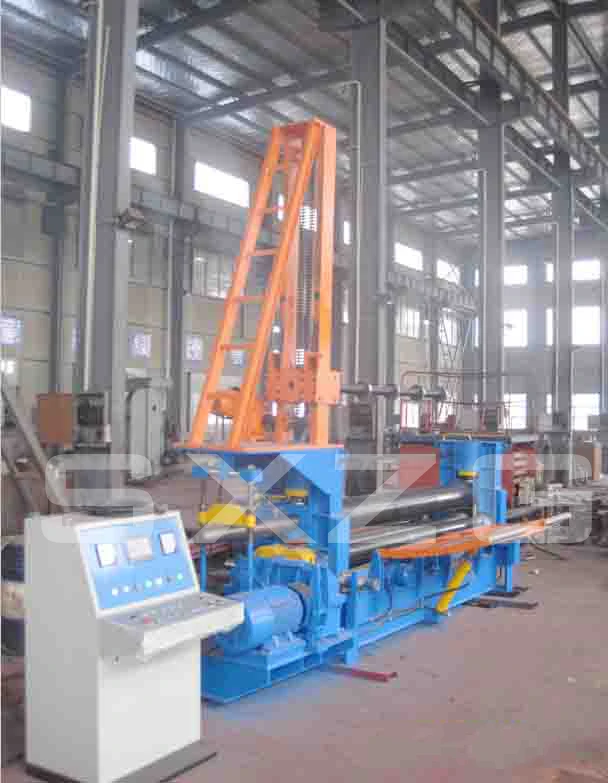

Upper Roller Universal CNC Rolling Machine
Support
Top , left and right support

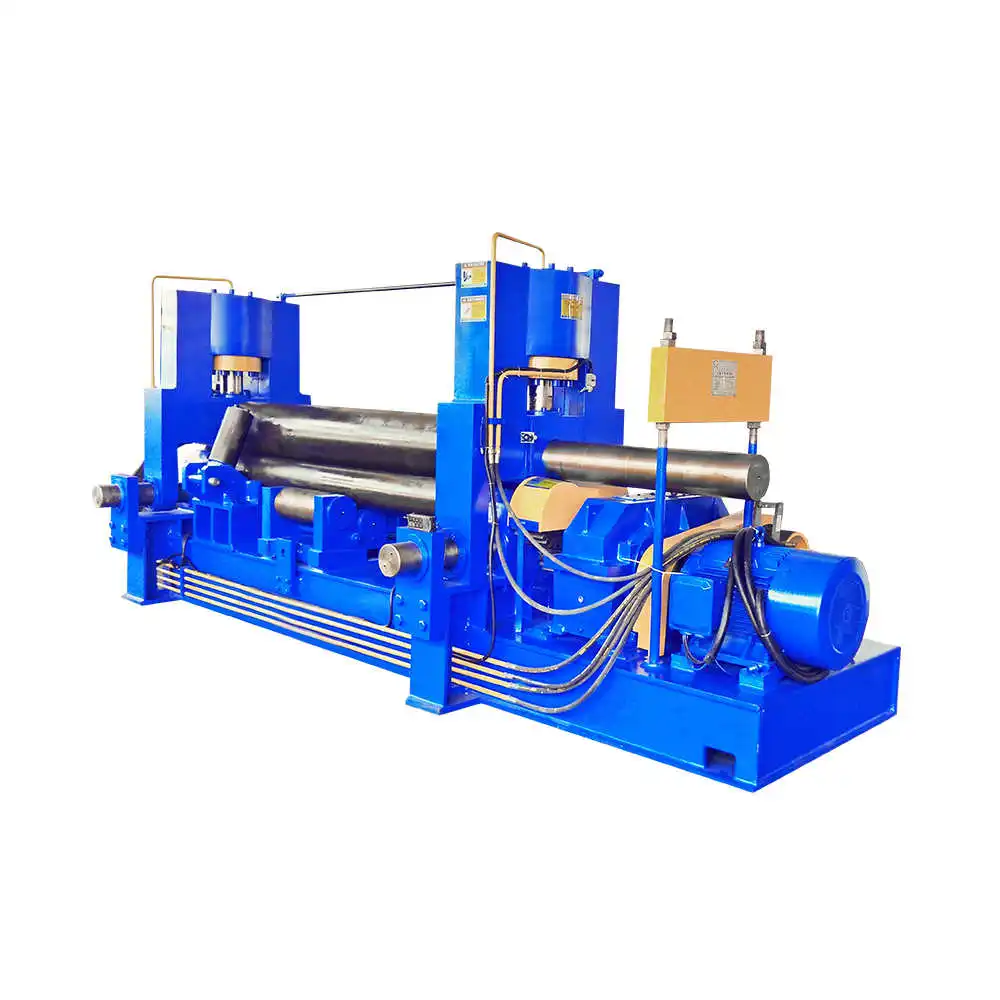

Bending rolling machine
RELEASE DEVICE
Hydraulic drop-end for easy removal finished ferrule
Hydraulic drop-end for easy removal finished ferrule
Hydraulic system
1.The vertical elevation is hydraulic driving, which is achieved bu the action of the oil in the hydraulic cylinder on the position
Hydraulic system
2.The horizontal shift is achieved through the torques from the lead screw cabinet ,worm and the structure of screw and worm.
Support Roller for Hydraulic rolling machine
Coiling Device
Size information
Model | Bending thickness(mm) | Pre-bending thickness(mm) | Bending width(mm) | Top roller diameter(mm) | Bottom Roller diameter(mm) | Motor(KW) |
W11S-4x2500 | 4 | 3.5 | 2500 | 200 | 125 | 4 |
W11S-6x2500 | 6 | 5 | 2500 | 210 | 125 | 4 |
W11S-8x2500 | 8 | 6.5 | 2500 | 235 | 135 | 5.5 |
W11S-10x2500 | 10 | 8 | 2500 | 250 | 145 | 7.5 |
W11S-12x2500 | 12 | 10 | 2500 | 265 | 145 | 7.5 |
W11S-12x3000 | 12 | 10 | 3000 | 290 | 150 | 11 |
W11S-16x2500 | 16 | 13 | 2500 | 300 | 165 | 15 |
W11S-16x3000 | 16 | 13 | 3000 | 330 | 180 | 15 |
W11S-20x2500 | 20 | 16 | 2500 | 330 | 180 | 15 |
W11S-20x3000 | 20 | 16 | 3000 | 380 | 200 | 18.5 |
W11S-25x2500 | 25 | 20 | 2500 | 380 | 220 | 22 |
W11S-25x3000 | 25 | 20 | 3000 | 410 | 235 | 30 |
W11S-30x3000 | 30 | 25 | 3000 | 450 | 250 | 30 |
W11S-30x4000 | 30 | 25 | 4000 | 550 | 275 | 45 |
Workpiece Samples

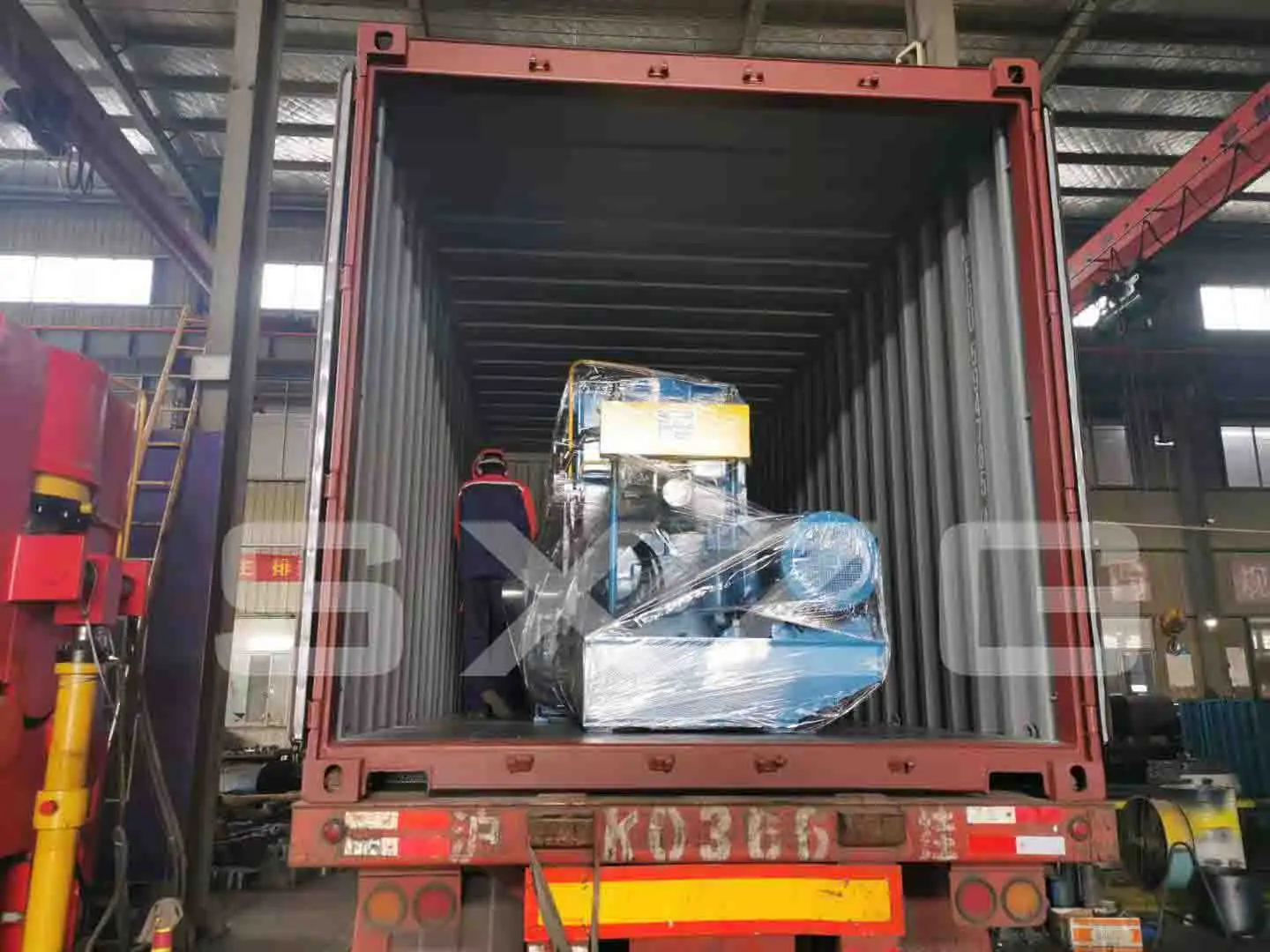

Packing&Shipping
1. Our wooden case is after fumigation treatment. Needn't timber inspection,saving shipping time
2. All the spare parts of the machines were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
3. The outmost is wooden case with fixed formwork
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
