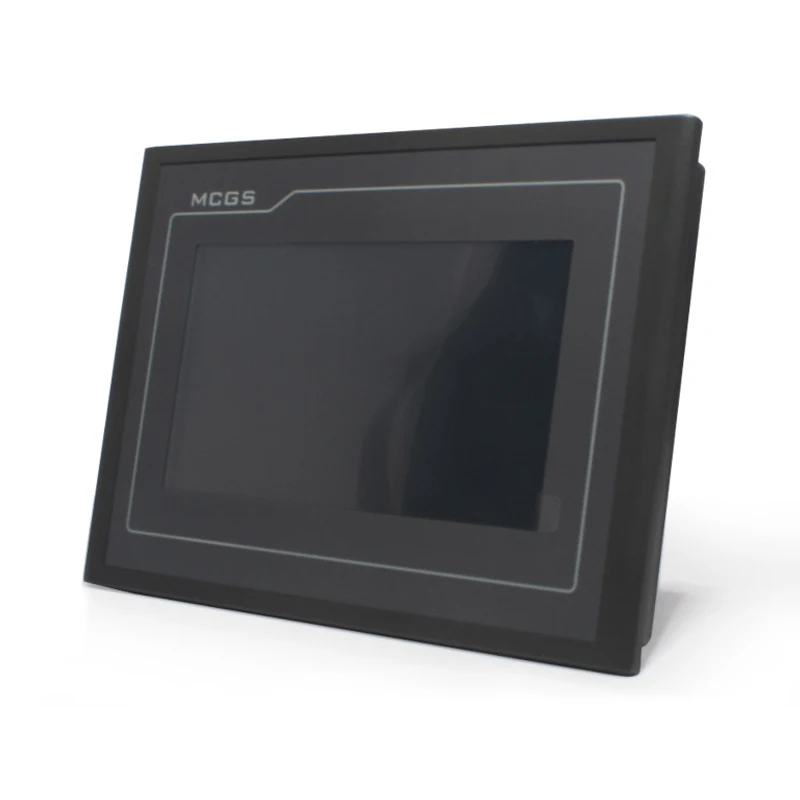

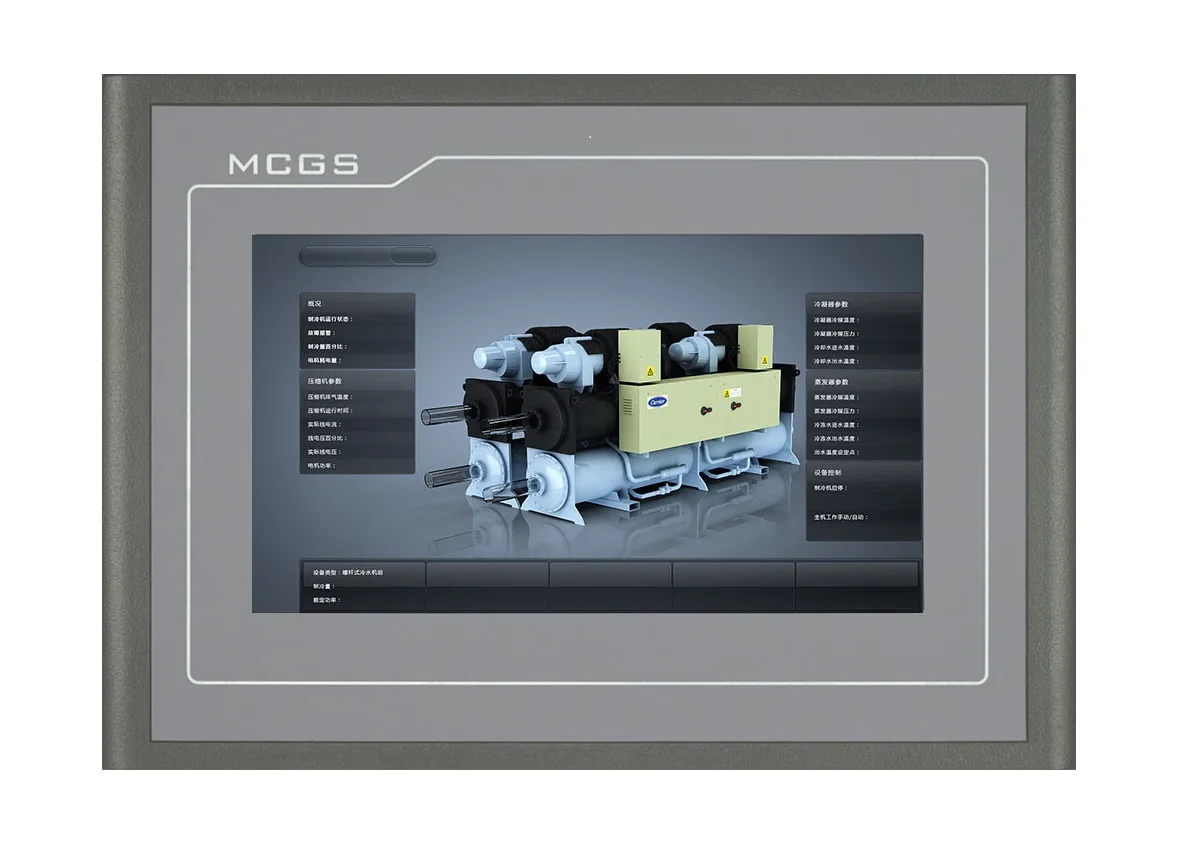

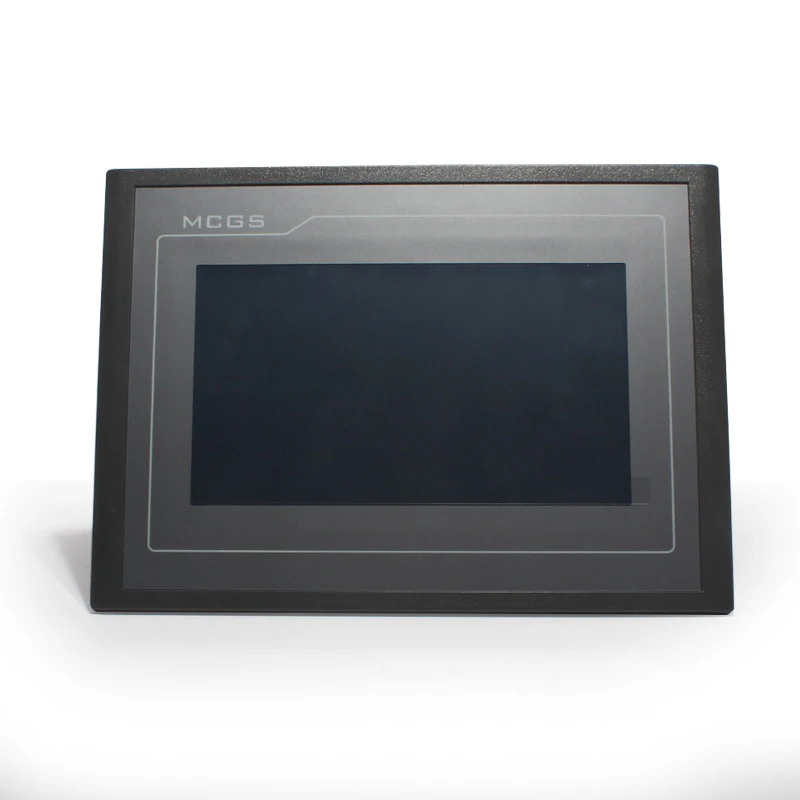

7 inch HMI embedded pc industrial touch screen Panel pc human machine interface
- Category: >>>
- Supplier: Foshan Deweixun Intelligent Technology Co. Ltd.
Share on (1600635938659):
Product Overview
Description
Products Description
Product Paramenters
Technical data | ||||||||
According to | Display | 7” TFT | ||||||
Hvga | 800 x 480 | |||||||
Brightness(cd/ ㎡) | 300 | |||||||
Contrast | 500: 1 | |||||||
Backlight type | LED | |||||||
Backlit life | >30,000 Hour | |||||||
According to the color | 16.7M | |||||||
LCD visual Angle (T/B/L/R) | 70/50/70/70 | |||||||
Distance (mm) | 0.1926(H) x 0.179(V) | |||||||
Touch panel | type | Four wire resistance type | ||||||
Touch Accuracy | Action zone length (X) + 2%, width (Y) + 2% | |||||||
Memory | Flash memory (Flash) | 128 MB | ||||||
Memory (RAM) | 128 MB | |||||||
CPU | 32-bit RISC 528MHz | |||||||
Input power | 10.5-28VDC | |||||||
Power consumption | 550mA@12VDC;300mA@24VDC | |||||||
power isolation | built-in | |||||||
Withstand VoltageKV | 500VAC (1 min) | |||||||
Insulation Resisance | Over 50Ω at 500VDC | |||||||
anti-vibration | 10 to 25Hz (X, Y, Z axis 2G for 30 minutes) | |||||||
Specification | PCBcoating | not have | ||||||
Shell material | Engineering plastics | |||||||
External dimensions W*H*D | 200.4x146.5x34mm | |||||||
The size of hole | 192 x 138mm | |||||||
The weight of the | About 0.52 kg | |||||||
installation | Panel installation | |||||||
Protection grade | NEMA4/IP65 compliant front panel | |||||||
Storage ambient temperature | •20°~60°C (-4°~140°F) | |||||||
Operating ambient temperature | 32°~ 122°F | |||||||
Relative ambient humidity | 10% to 90% (non-condensing) | |||||||
certification | CE | CE Marked | ||||||
software | Easy Builder Pro | Limited to simplified Chinese EasyBuilder Pro V5.07.01 or an updated version | ||||||
