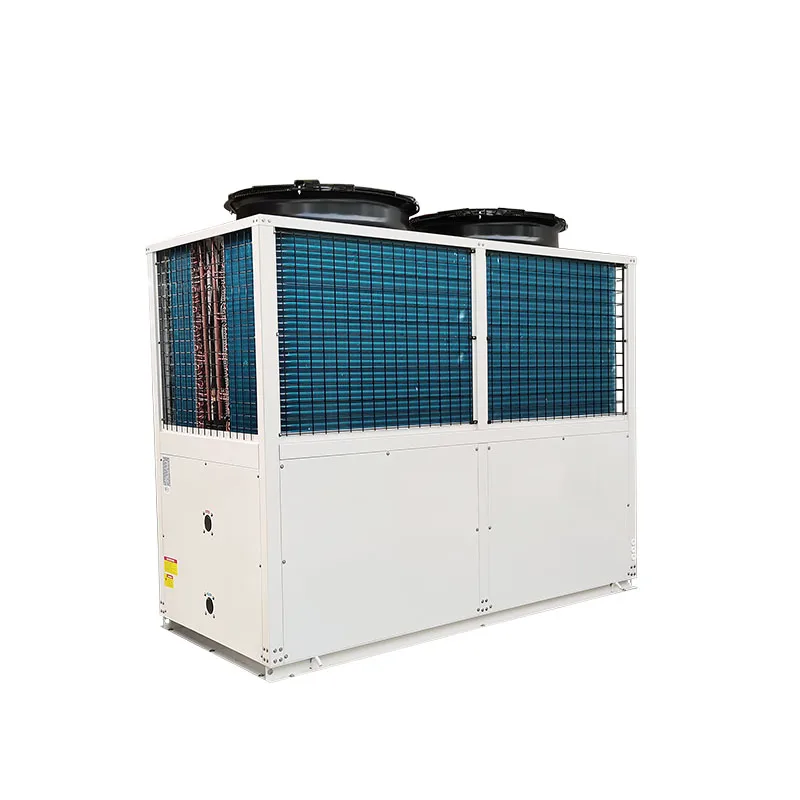

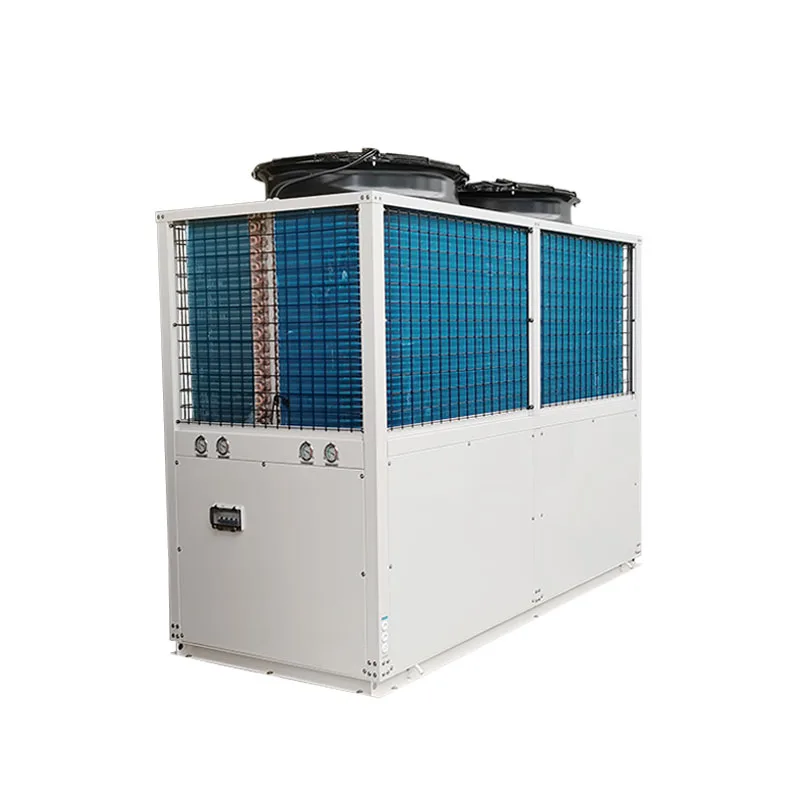

Commercial industrial use high temp air source heat pump 80 degc for radiator heating/food drying
- Category: Water Heaters >>>
- Supplier: Guangdong Shunde O.S.B. Environmental Technology Co. Ltd.
Share on (1600635943276):
Product Overview
Description
Product Description

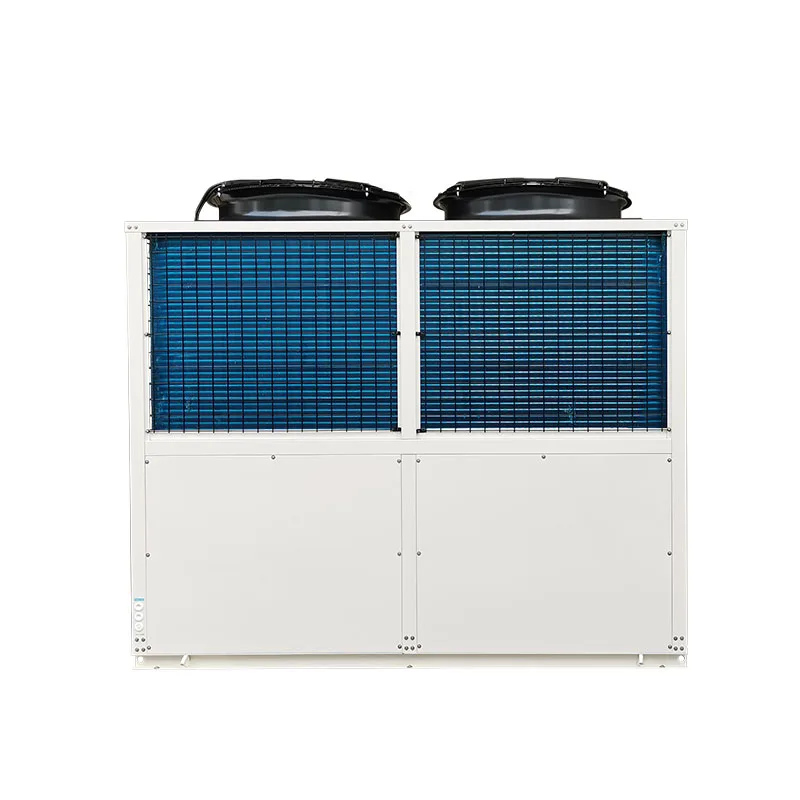

High Temperature Air Source Heat Pumps
13-70 kw
*Green gas R134a, use high efficiency Japanese brand compressor
*Compact design, use SAGINOMIYO EEV to adjust gas flow more accurately
*Timer setting function on digital LCD wire controller, user’s friendly
*Adjustable 1-5 deg c temp differential from set point temp.
*Automatic defrosting function available.
*Automatic adjustment of set point temperature in accordance with outdoor temp.
*Automatic back up element on while air temp too low function included.
Technical data
| Model | BH35-096T | BH35-128T | BH35-150T | |
| Refrigerant | R134 | R134 | R134 | |
| Rated heating capacity | KW | 47.1 | 60 | 73.8 |
| BTU | 160700 | 204700 | 251700 | |
| COP | 4.2 | 4.3 | 4 | |
| Heating power input | KW | 11.21 | 14 | 18.5 |
| Running current | A | 21.3*3 | 26.7*3 | 35.2*3 |
| Fan power input | w | 250*3 | 750*2 | 1738*2 |
| Power supply | V/Ph/Hz | 380/3/50 | 380/3/50 | 380/3/50 |
| Max outlet water temp | ° C | 80 | 80 | 80 |
| Applicable ambient temp | ° C | -7~43 | -7~43 | -7~43 |
| Water flow volume | M3/H | 7.8 | 10.3 | 12 |
| Water pressure drop | kPa | 60 | 60 | 60 |
| Compressor | Scroll(SANYO) | Scroll(Copeland) | Scroll(Copeland) | |
| Fan direction | Vertical | Vertical | Vertical | |
| Fan speed | RPM | 860 | 1360 | 1289 |
| Noise level | dB(A) | 68 | 72 | 77 |
| Compressor qty | PC | 3 | 4 | 2 |
| Fan motor qty | PC | 3 | 2 | 2 |
| Water connections | Inch | 2" | 2" | 2" |
| Net dimension (LxWxH) | mm | 2037*1037*1360 | 2000*1100*2000 | 2260*1100*1900 |
| Packing dimension (LxWxH) | mm | 2165*1125*1535 | 2070*1190*2130 | 2290*1130*2100 |
| Net weight | KG | 425 | 680 | 850 |
| Gross weight | KG | 512 | 712 | 930 |
Our Services
1. We are a professional designer and manufacturer of heat pump of 19+ years.
2. Our products can be OEM,and the package can be your design.
3. On line technical supports.
4. Strong & Reliable gurantee.

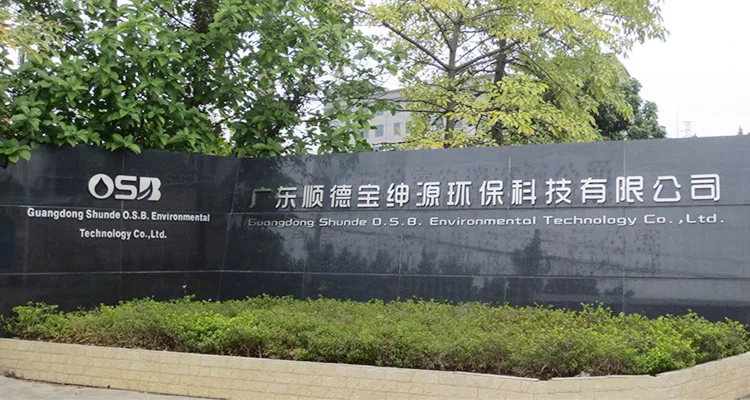

Company Information
