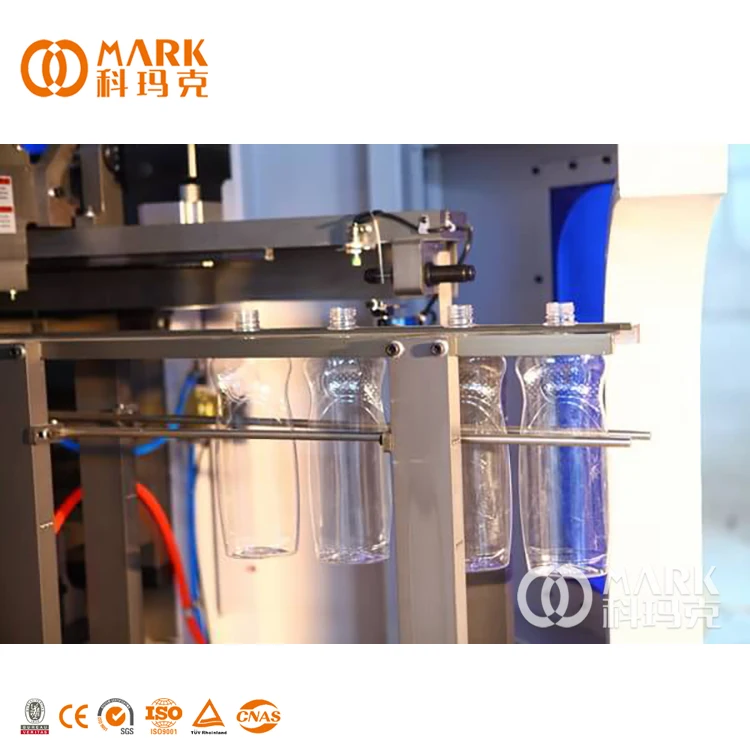

4000 12000 BPH Pet Blowing Machine Automatic Plastic Blow Molding Machine For Commercial
- Category: >>>
- Supplier: Zhangjiagang Comark Machinery Co. Ltd.
Share on (1600635967650):
Product Overview
Description

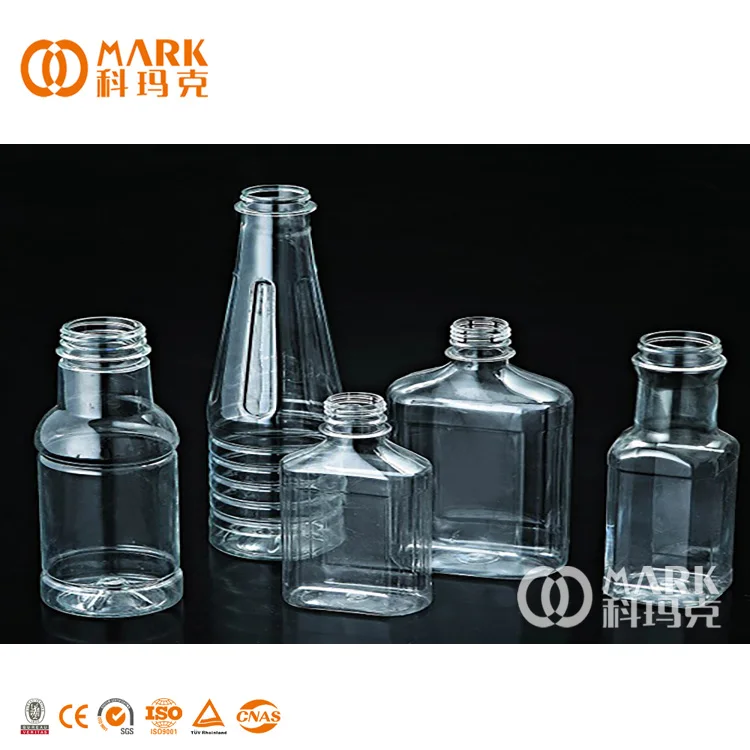

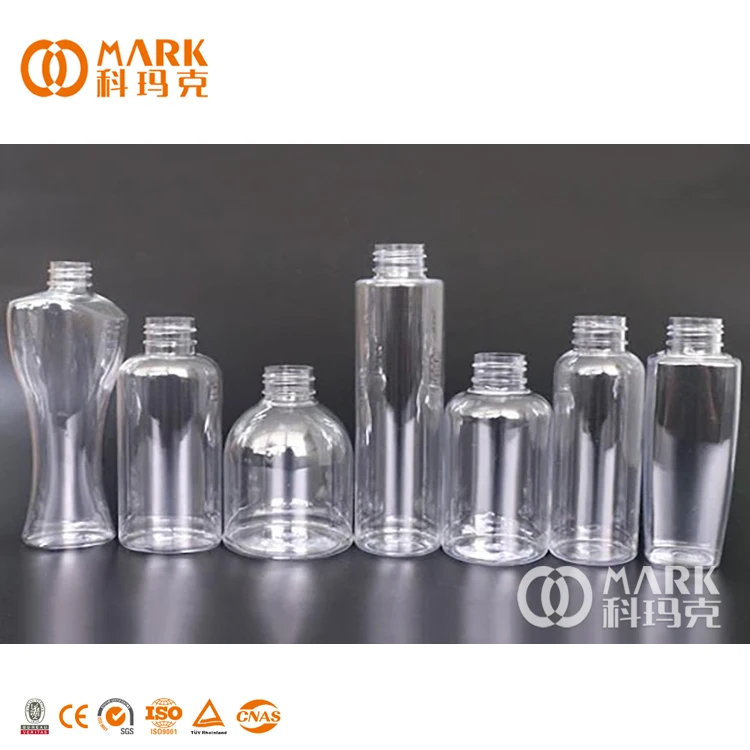

Final Products
Production Description

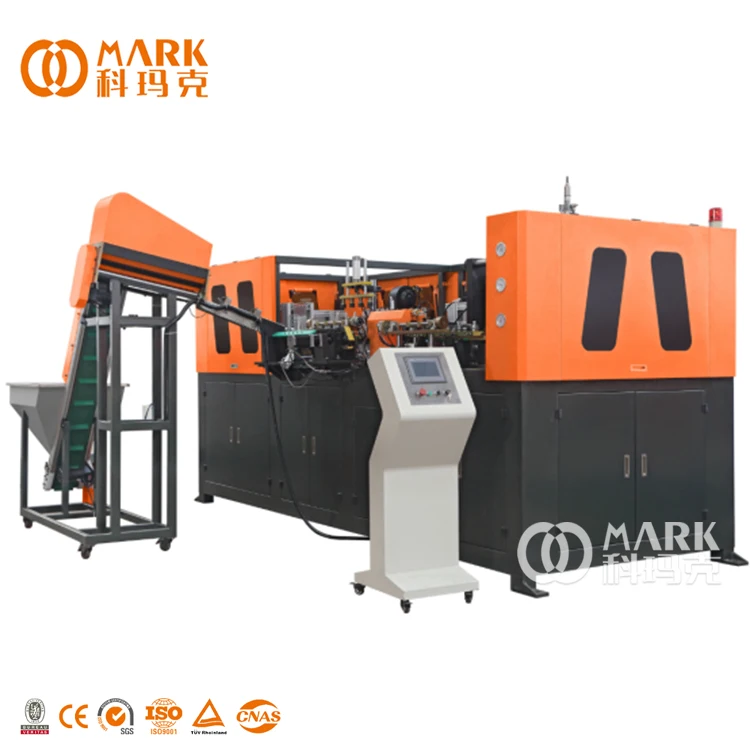

4000-12000 BPH Pet Blowing Machine Automatic Plastic Blow Molding Machine For Commercial

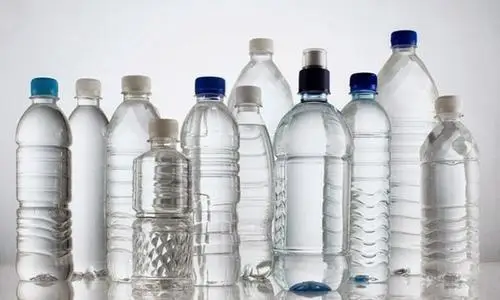

Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

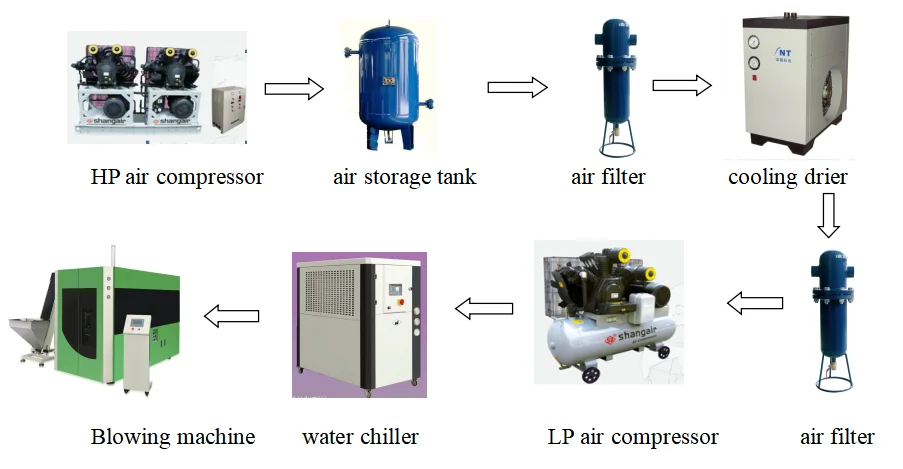

--------blowing machine connecting diagram--------

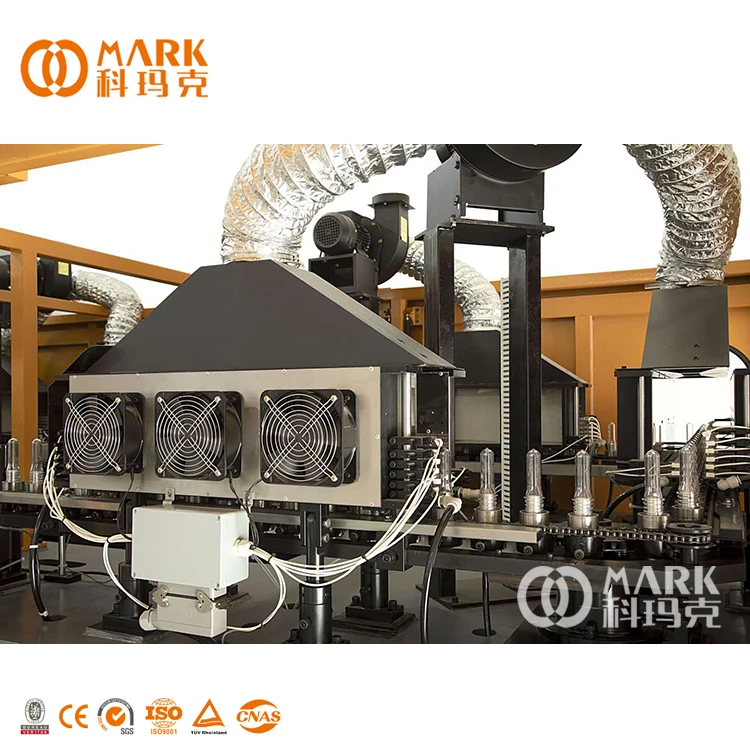

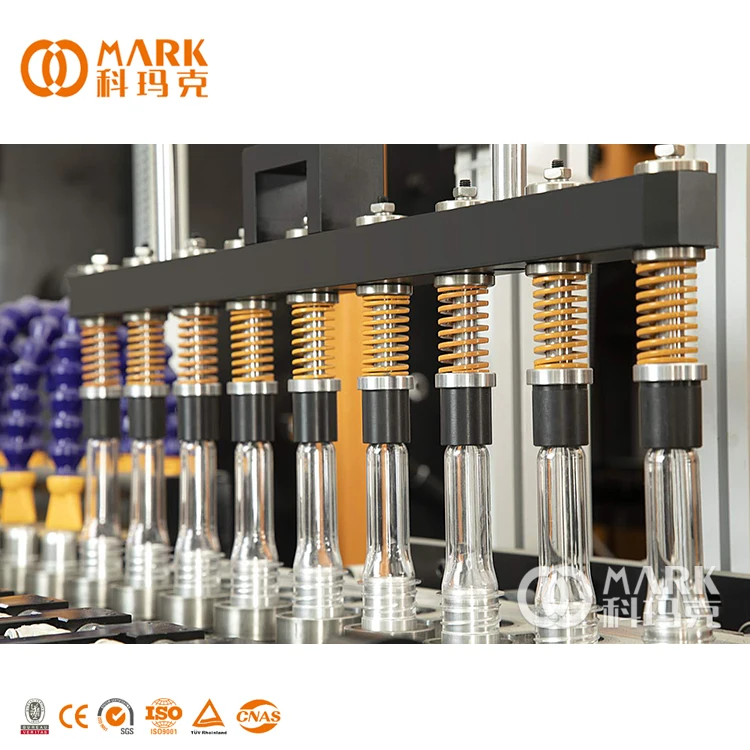

Product Details
---------Technical Parameter---------
Unit | CO-4T | ||
Theoretical output | Pcs/h | 4000 | |
PRODUCT | Max. Volume | L | 1.5 |
Max. height | mm | 360 | |
Max. diameter | mm | 105 | |
MOULD | Number of cavities | / | 4 |
.mould plate dimension(LxH) | mm | 600×360 | |
mould thickness | mm | 188 | |
Mould opening stroke | mm | 110 | |
ELECTRICAL | Power | 220-380V / 50-60Hz | |
Total power | KW | 25 | |
Heating power | KW | 22 | |
AIR SYSTEM | Operation pressure | Mpa | 0.8-1.0 |
Action air consuming | M3/min | ≥1.6 | |
Blowing pressure | Mpa | 2.4-4.0 | |
Blowing air consuming | M3/min | ≥2.4 | |
MACHINE | Main body dimension(LxWxH) | M | 3.4×1.9×2.5 |
Main body weight | KG | 2600 | |
Preform autoloader | M | 1.9×1.9×2.2 | |
Preform automatic weight | KG | 200 |

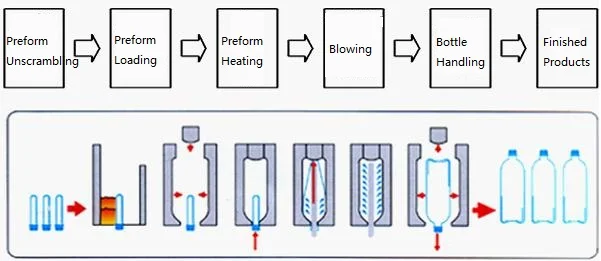

----------Blow Molding Processing Flow----------
Successful Production Video
Want to know more message, contact us with your hesitate! Inquiry us now!
Why Choose Us
Zhangjiagang Comark Packaging Machinery Co.,ltd
Zhangjiagang Comark Packaging Machinery Co., Ltd. is located in Zhangjiagang Economic Development Zone on the Bank of the Yangtze River. It has an international standard plant of 20000 square meters. It is an enterprise specializing in the R & D and production of beverage packaging machinery.Our team has more than 20 professional technical R & D personnel, 2 doctors of food science and technology, 5 masters and 15 senior professional engineers. This provides a favorable guarantee for the stable operation of the machine with high output. Our company's equipment is of high quality and can operate stably.We have more than 15 years of packaging experience. We understand market supply and demand and can provide market analysis, project budget, equipment and technology configuration, machines installation and operator training, etc. We always provide turnkey solutions and related services.

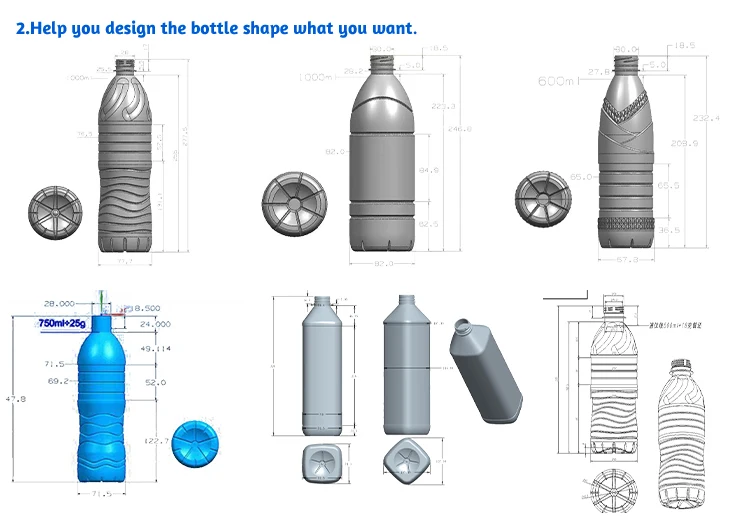

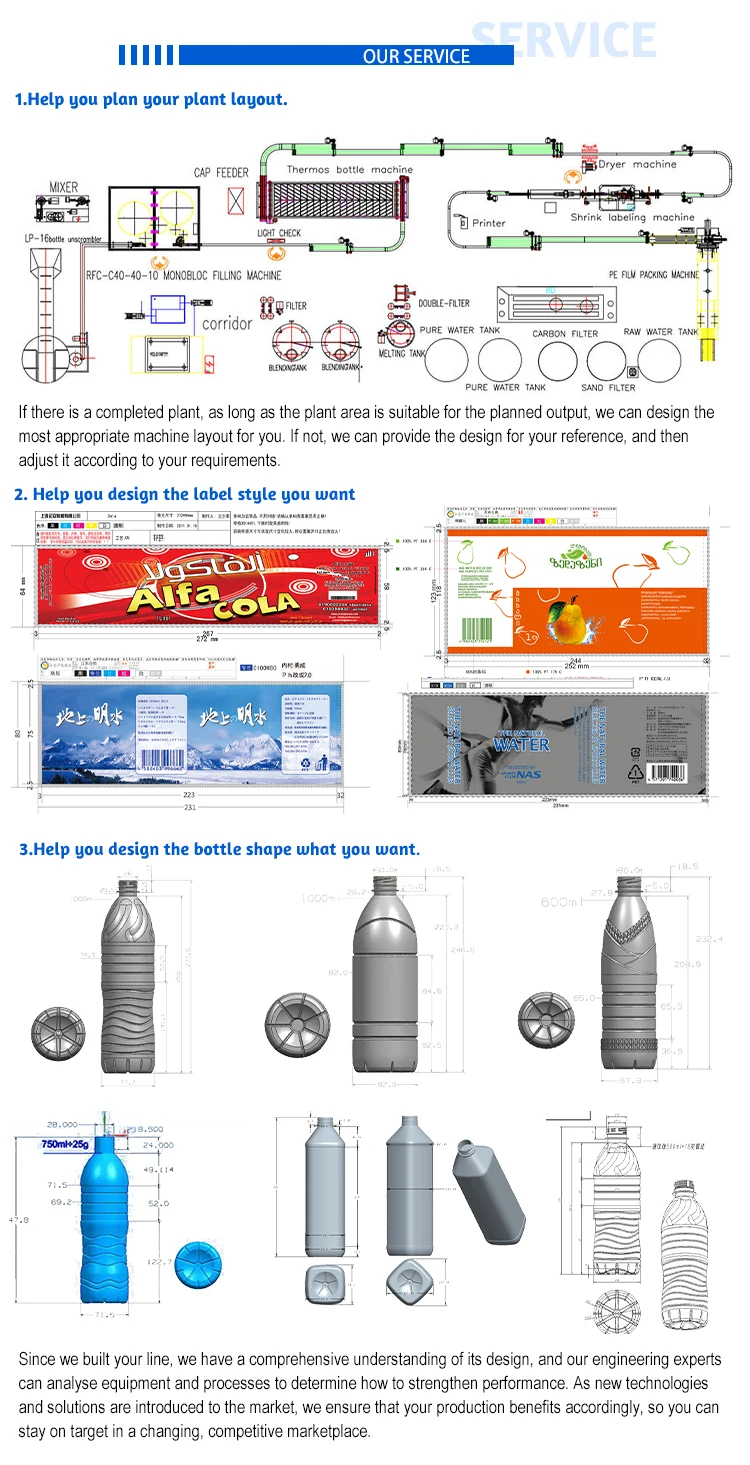

Help you design the bottle shape that you want
After Scales Service
Optional Service
Test Service
FAQ
Q:How to find COMARK Machinery?
A:Search Alibaba, Made in China, Google, Youtube and find suppliers and manufacturer and not traders
Visit exhibition in different countries
Send Comark Machine an request and tell your basic inquiry
Comark Machine sales manager will reply you in short time and add instant chatting tool
Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and customer budget .
Visit exhibition in different countries
Send Comark Machine an request and tell your basic inquiry
Comark Machine sales manager will reply you in short time and add instant chatting tool
Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and customer budget .
A2:We have the bottle shape design according to customer inquire. We also can provide the machines layout for you according your factory figure plan.
A3:We will send our professional engineer to your factory as soon as you get all your machines ready, for installation, testing and teaching your technicians how to run the machines.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you. You can come to China.Check it!
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you. You can come to China.Check it!
Q:What's your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
A:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
