Gold Colored Flatware pvd coating plant/Kitchen Utensils Kids Pvd Coating Cutlery machine

Product Overview

Description







 Detailed Product Description

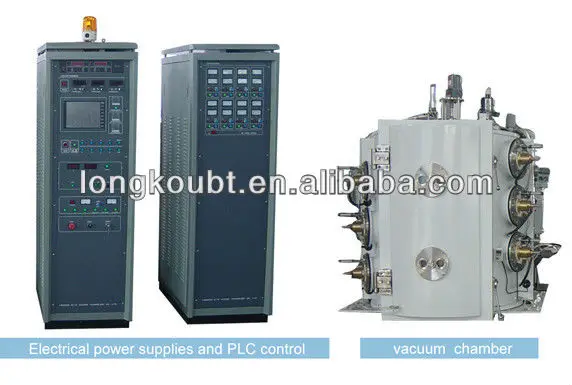

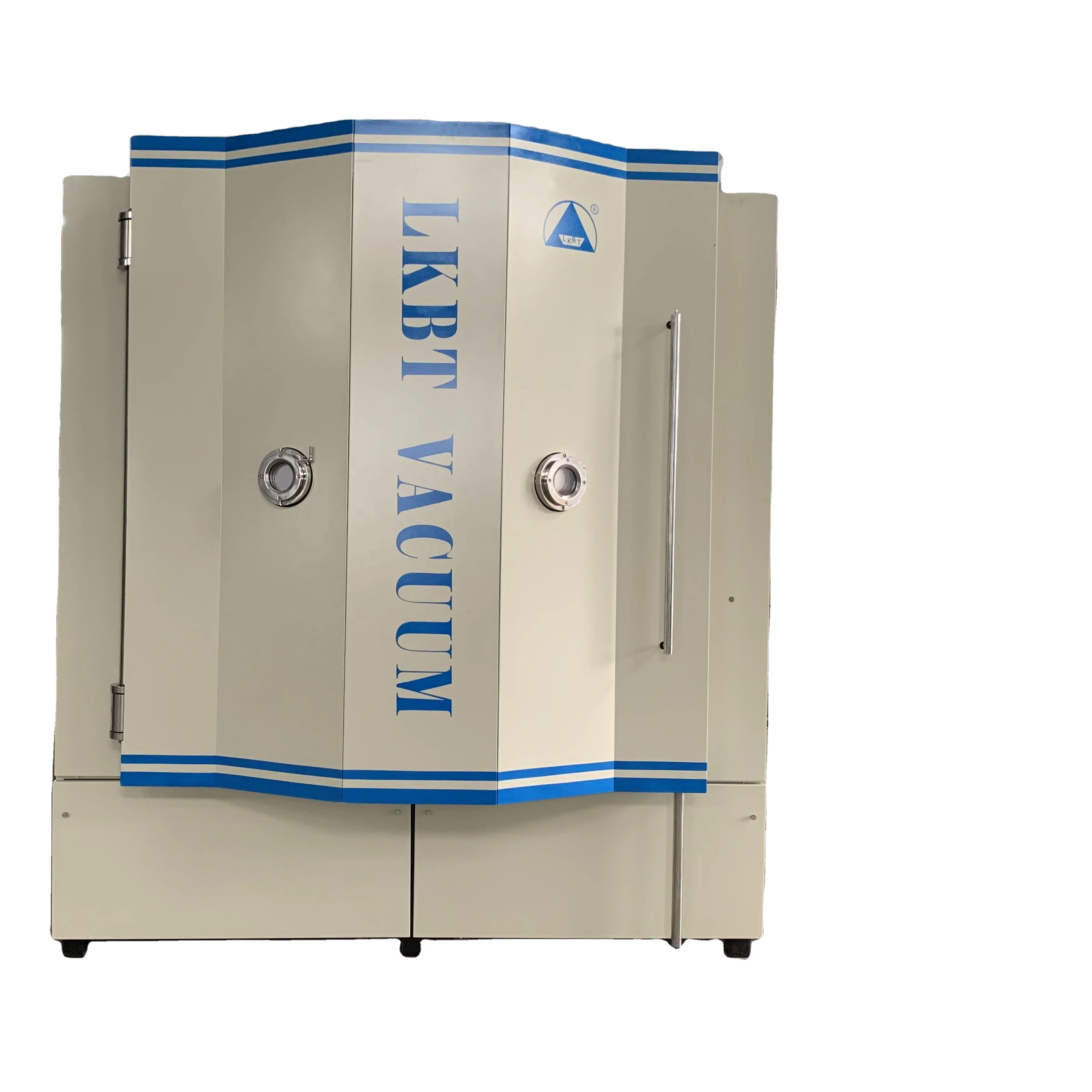

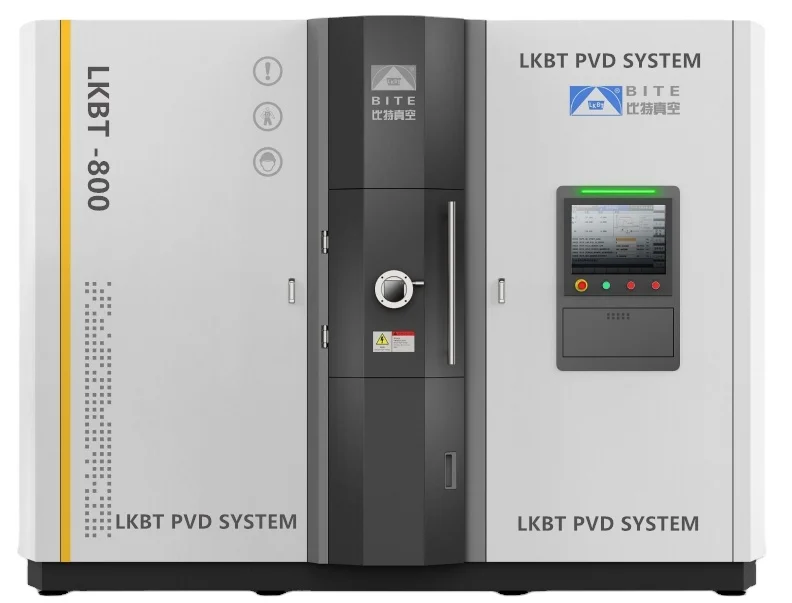

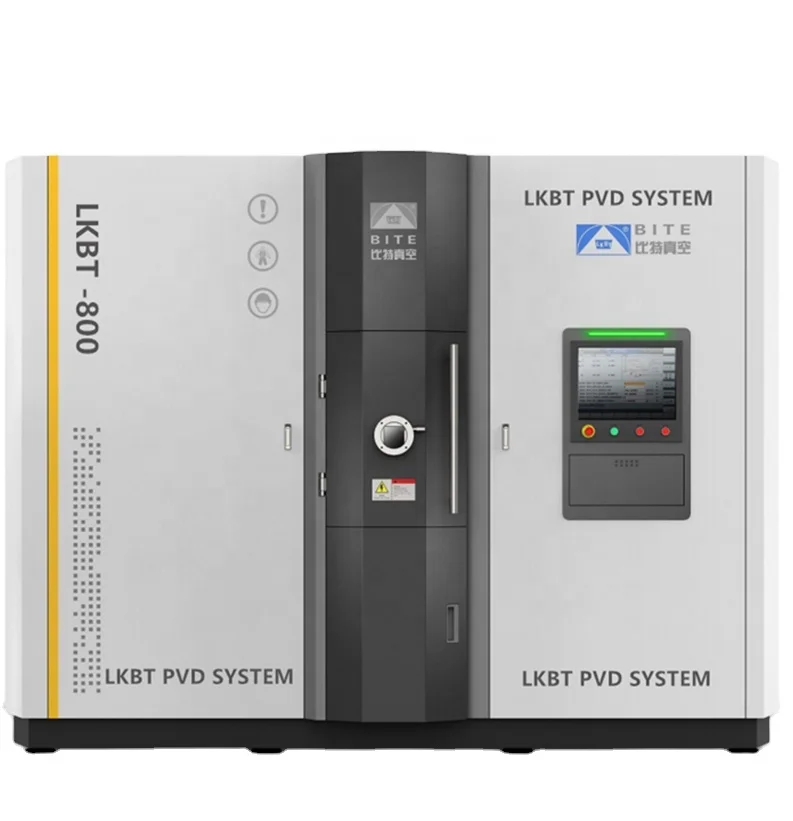

 vacuum coating machine









This equipment is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.



Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.







Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment

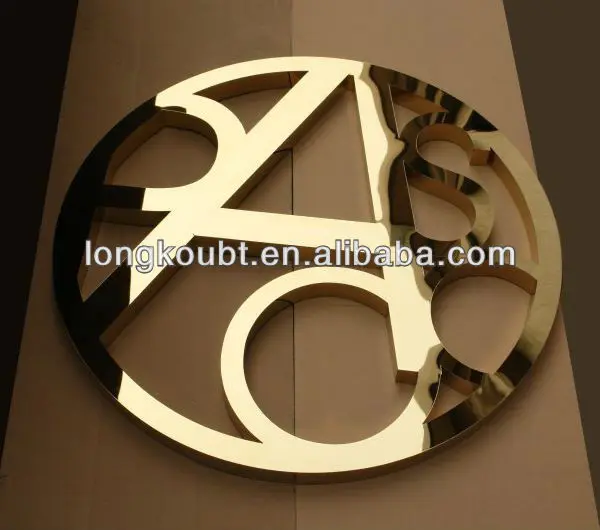

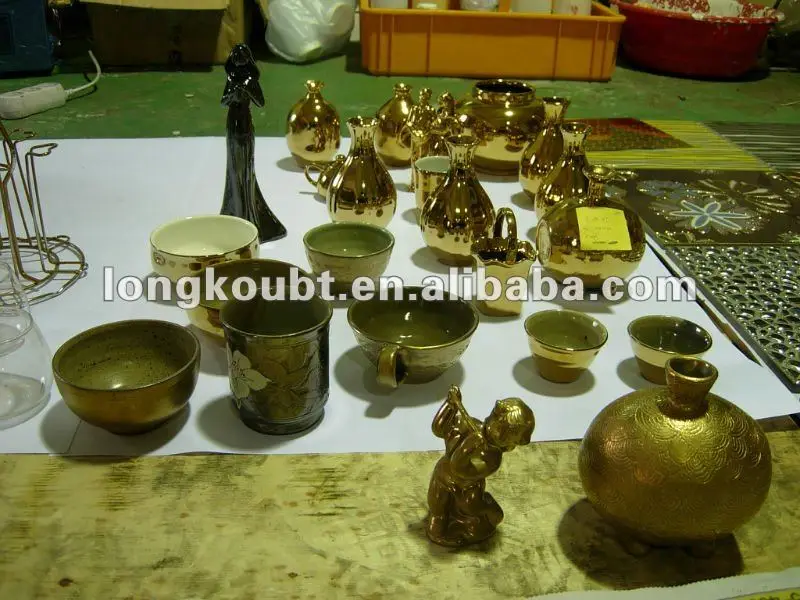

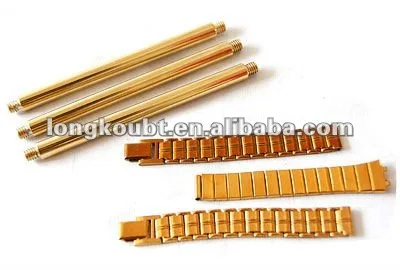

This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, Door handles,watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .























  Ion coating gold equipment main model and parameters



parameters type	700 type	800 type	900 type	1000 type
dimension of vacuum chamber	700×1000	800×1000	900×1000	1000×1000
pumping speed	1×105Pa~3×10-3Pa≤20min
limit vacuum	≤1×10-3Pa

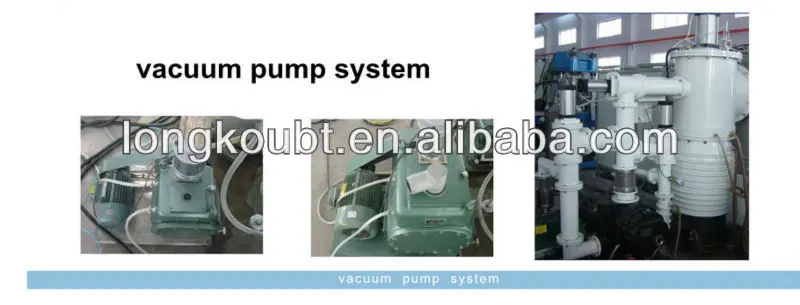

system form a complete set	KT-400/2X-70 2X-15	KT-500/2X-70 2X-15	KT-500/2X-70 2X-15	KT-600/2X-70 2X-15/ZLD-600
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)
heating methods	Edge installation of stainless steel heating tube
ion bombardment	direct current 1000V or contravariant impulse 1000V high voltage bombardment
vent system	Mass flow controller control input gas
arc target amount	4	4	6	8
magnetron target amount	one plane target	one plane target	one plane target	one plane target
working methods	plc semi-auto control or pc+plc auto control
working gas	Ar N2 O2
total power	30KW	35KW	45KW	50KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)
