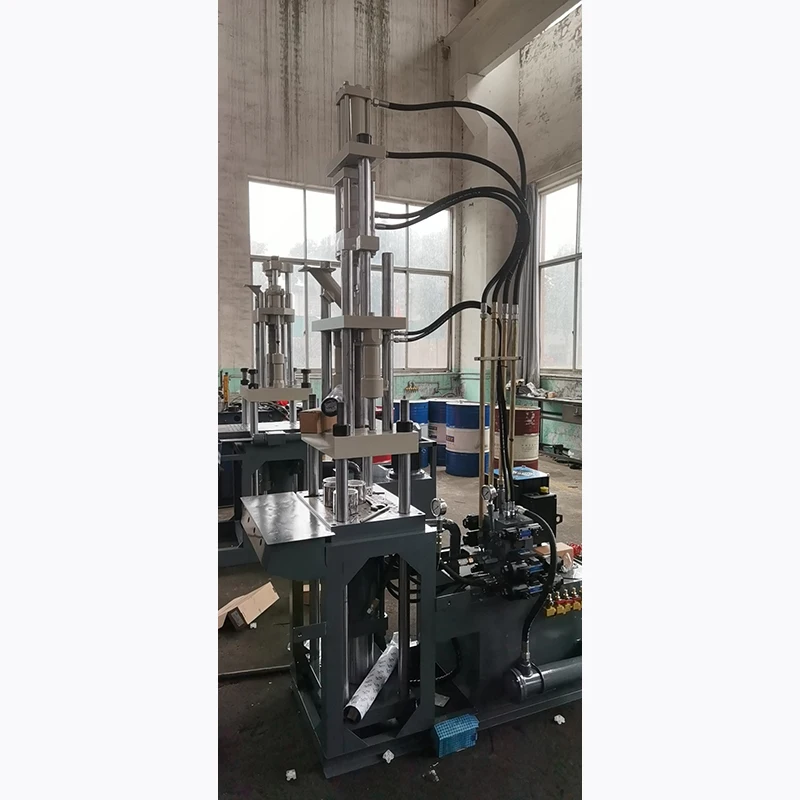

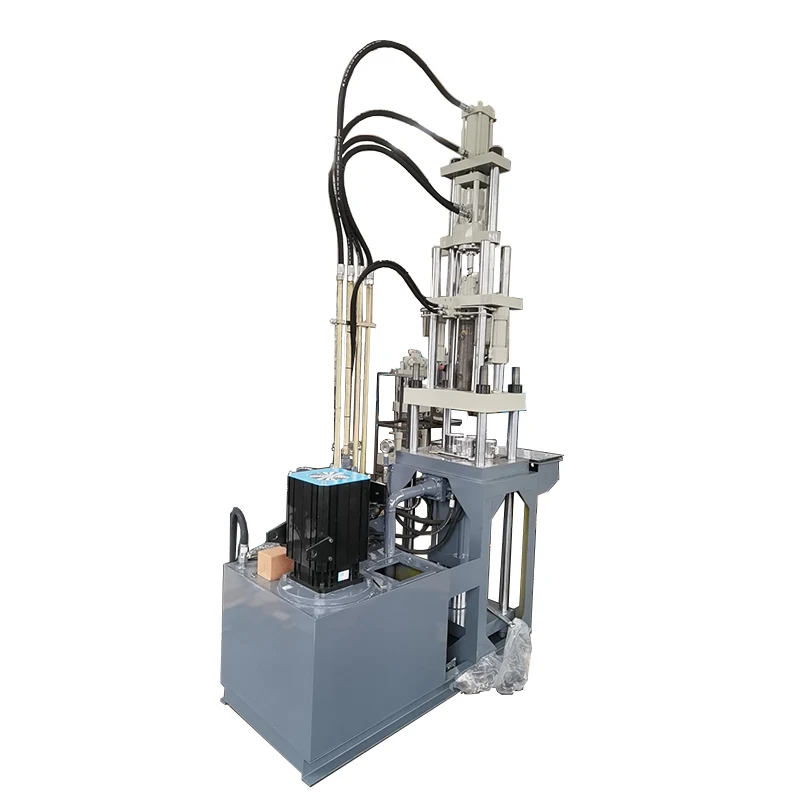

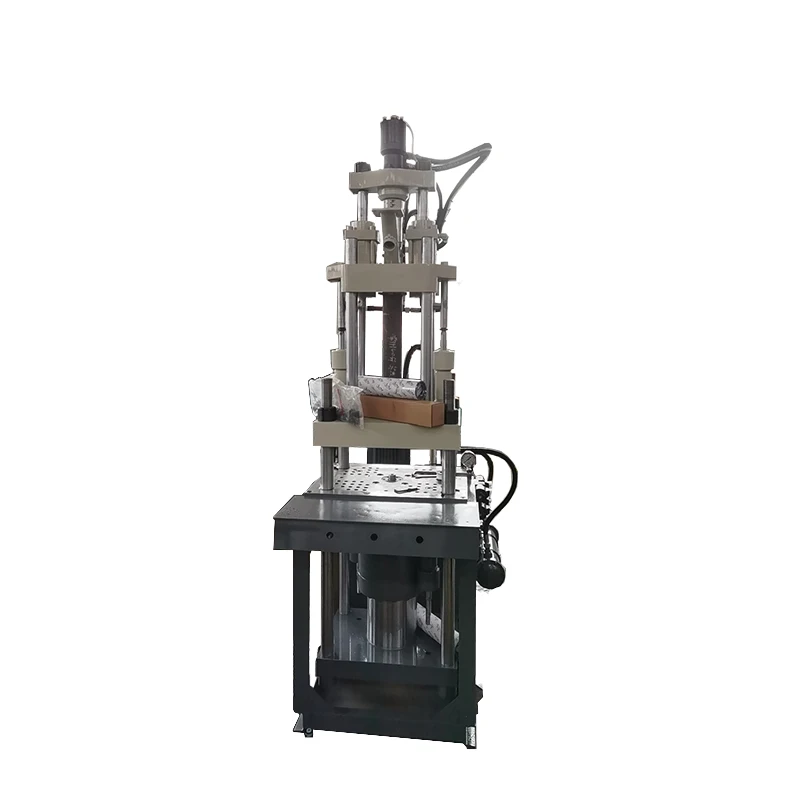

USB data cable connection manufacturing machine Vertical injection molding machine

Product Overview

Description

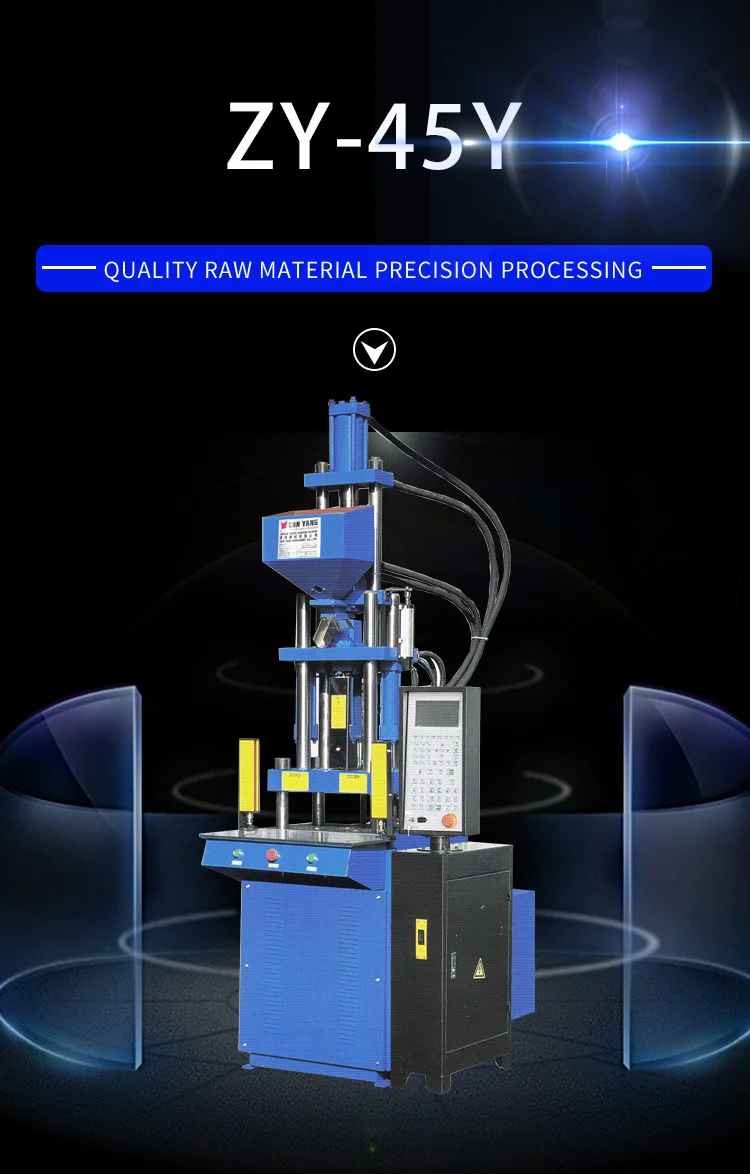

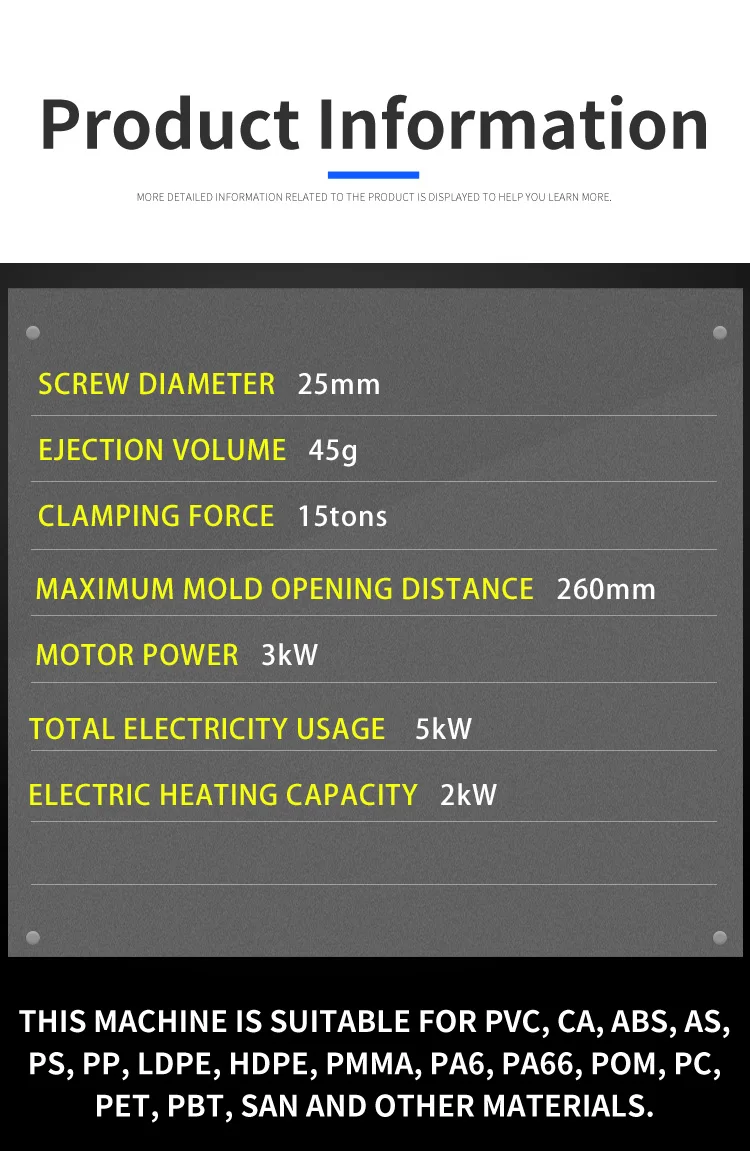

ltem/Model			ZY-45Y	ZY-63Y		ZY-100Y		ZY-250Y		ZY-600Y
			——	A	B	A	B	A	B	A	B
lnjection volume	Screw Diameter	mm	25	25	30	35	40	45	50	55	60
	lnjection Pressure	MPA	110	180	144	146	130	140	113	121	102
	Theoretical Shot	cm²	49	50	63	75	105	250	350	480	565
	Max.Shot Weight	g	45	49	56	92	115	320	327	435	510
	Injection Rate	g/s	32	42	55	85	105	135	145	174	205
	Temperature Control	ZONE	2+1	2+1		3+1		3+1		4+1
	Screw Speed	r/min	0-200	0-200		0-160		0-160		0-160
Clamping System	Clamping Means	——
	Clamping Force	t	15	30		45		100		145

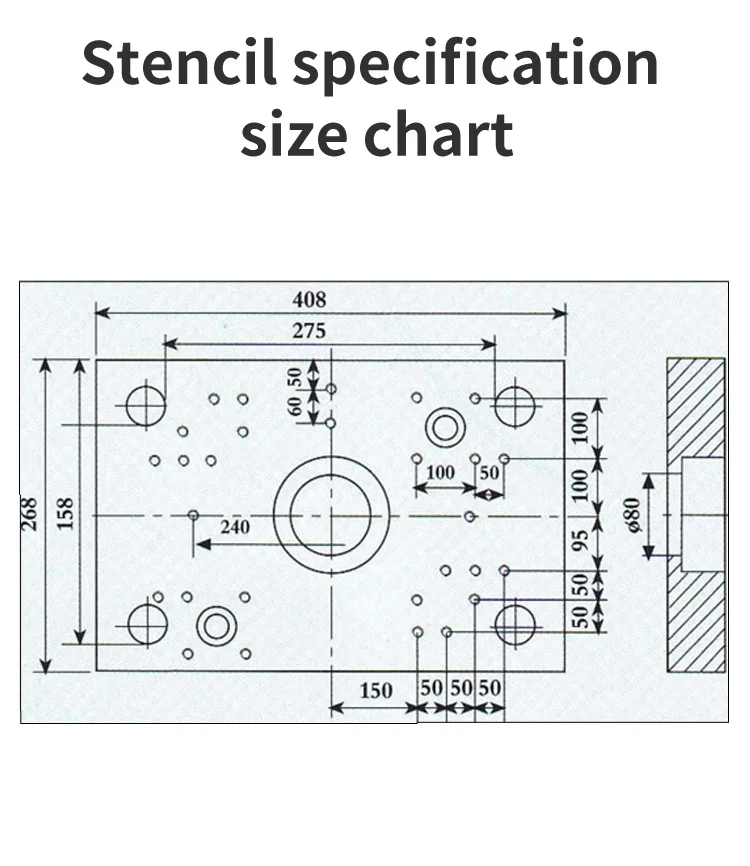

	Plater Size	mm	425x290	520x370		585x435		735x570		860x660
	Distance Between Tie Bar	mm	280x150	355x205		400x250		490x330		600x400
	Fired Molds	mm	40x100	100x160		150x200		250x300		300x350
	Molds Opening Storke	mm	160	180		200		250		300
	Max Open Daylight	mm	260	340		350		500		650
	Ejector Force/Ejector Stoke	t/mm	1.3/35	1.3/40		1.3/40		2.5/80		4.0/80
Hydraulic pressure and power	Max Hydaulic Pressure	kg/cm²	140	140		140		140		140
	Pump Output	L	80	160		180		200		250
	Pump Motor Power	kW	3	5.5		5.5		11		15
	Barrel Heating power	kW	2	2.7		6		7.5		12
	Total electricity usage	kW	5	6.7		11.5		18.2		27
Others	Machine Weight	t	0.75	1.1		1.3		2.5		3.5
	Machine Dimensions	mm	1250x850x2300	1600x1000x2300		1700x1025x2350		1700x1300x2550		1900x1500x2850

Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
