linux iptv set top box

CPU

Main Chip

GX6702H1

O.S

Linux

CPU Frequency

1500DMIPS 32bit

Flash

16MB

DDR3

128MB

System

IPTV protocol

HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP.

Video Decoder

Video Decoder

HEVC/H.265,H.264,MPEG-4,H.263 P3,AVS,AVS plus,MPEG-2,MPEG-1

Video Output

CVBS*1, HDMI1.4

Video Format

PAL/NTSC

Aspect Ratio

4:3/16:9

Resolution

1080p, 1080i, 720p, 576p, 480p, etc

Audio Decoder

Audio Decoder

MPEG1 I/II, MP3,MPEG-4 AAC and AAC plus,DRA,

Audio Mode

Left/Right/Stereo

Sampling Frequency

32KHz, 44.1KHz, 48KHz

Front Panel Sample

LED Indicator

Dual Color LED(Green for working, Red for Standby)

IR Sensor

38KHz

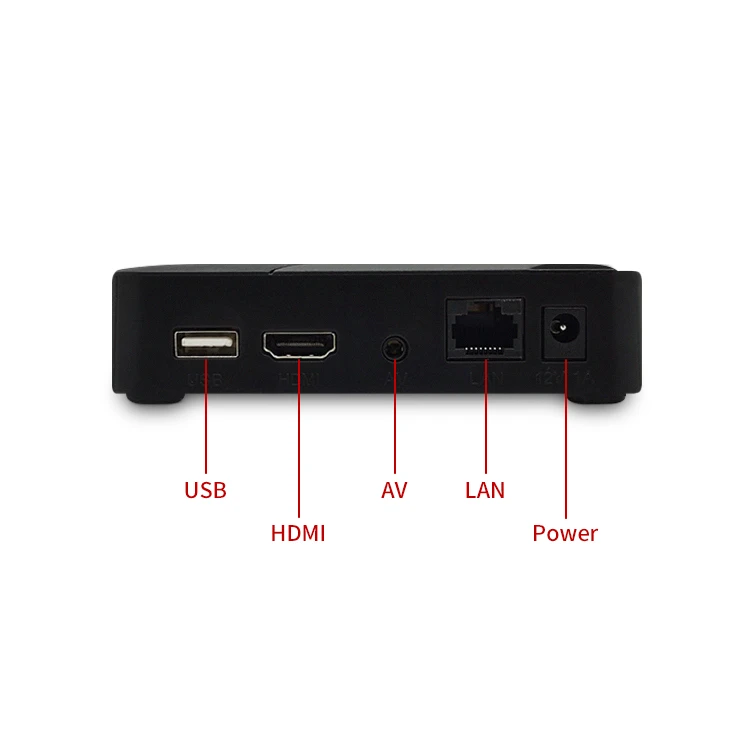

Rear Panel Sample

RCA Output

1*AV Jack at 3.5

USB2.0

1

HDMI

HDMI1.4

Power Adaptor Socket

12V=1A

LAN Port

10M/100M Ethernet/RJ-45

Wifi Module(optional)

802.11 for 2.4GHZ band
