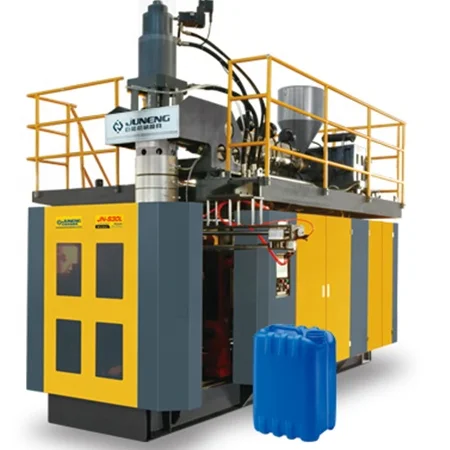

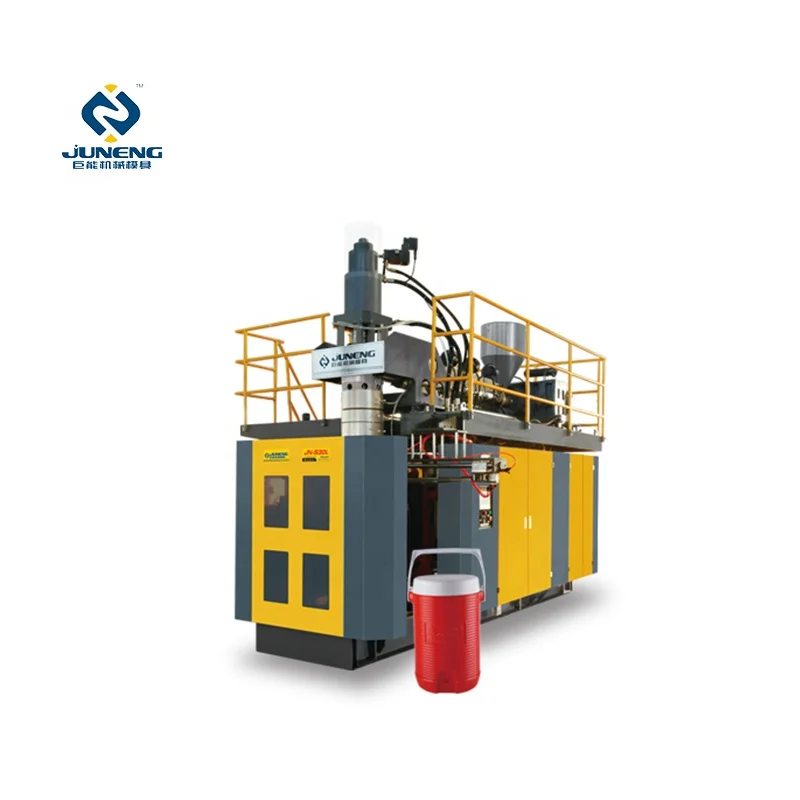

30L Automatic Extrusion Blow Molding Machine plastic container blowing machine HDPE jerrycan 20L
- Category: >>>
- Supplier: Taizhou Huangyan Juneng Machine & Mould Co. Ltd.
Share on (1600636218271):
Product Overview
Description
30L-60L Pp Blow Moulding Machine Automatic Extrusion Machine Blow Plastic Bottle Machine
| Max. Product Volume | L | JN-S30L |
| Dry cycle | PC/H | 600 |
| Screw diameter | MM | 80 |
| screw L/D ratio | L/D | 24-26 |
| screw motor power | KW | 30-37 |
| screw heating capacity | KW | 6.2-8.2 |
| No. of heating zone | Zone | 4 |
| output of HDPE | KG/H | 100-120 |
| oil pump driver power | KW | 2 |
| clamping force | KN | 215 |
| mold stroke | MM | 350-800 |
| size of mold(W*H) | MM | 550*650 |
| Moving distance | MM | 300 |
| Max. Die diameter(W*H) | MM | 5.28 |
| Die heat capacity | KW | 4.4 |
| Blowing pressure | MPA | 0.8 |
| Air volume | M3/Min | 0.8 |
| Cooling water pressure | MPA | 0.3 |
| water consumption | L/Min | 60 |
| weight of machine | Ton | 12 |
| size of machine | M | 4.5*2.1*3.8 |
