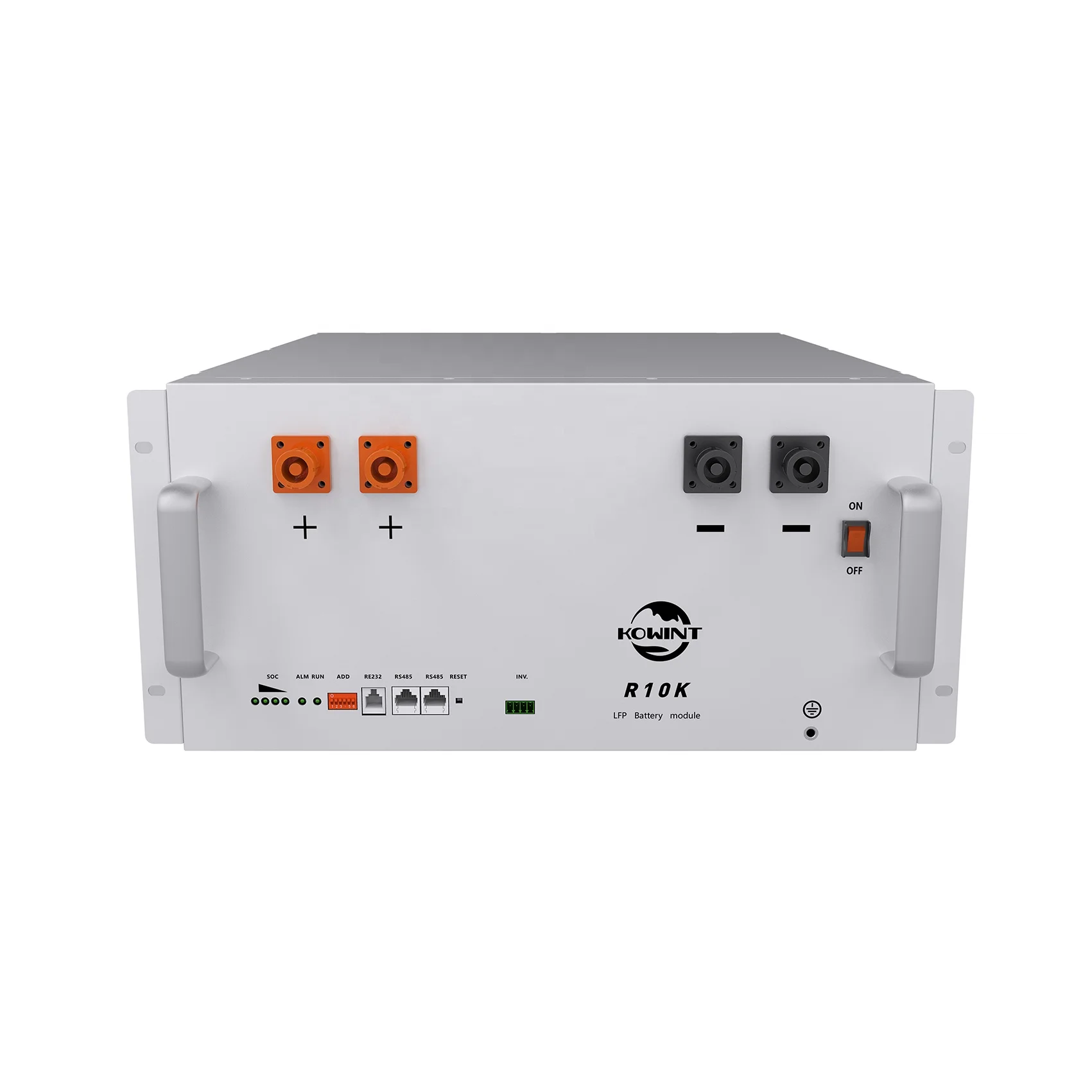

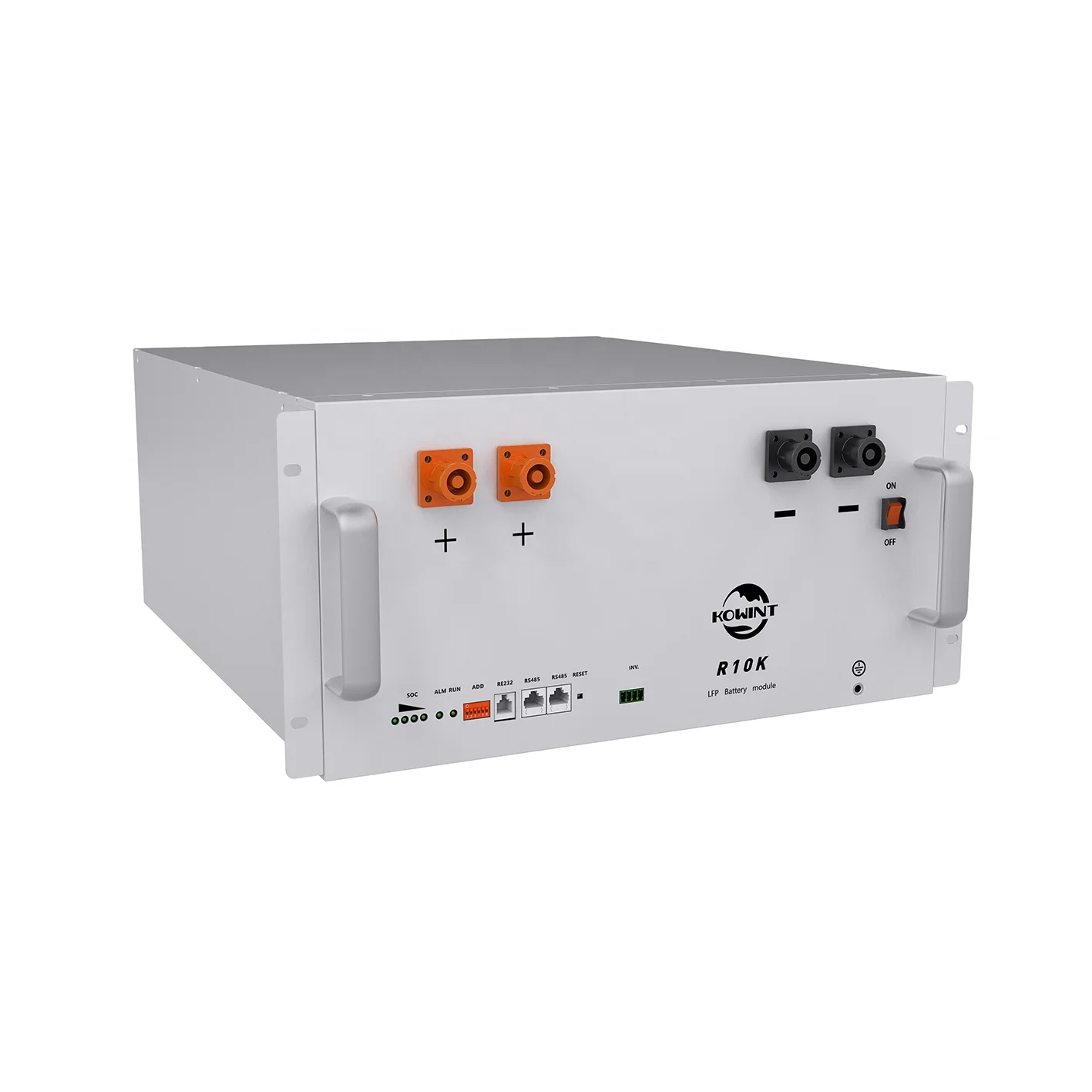

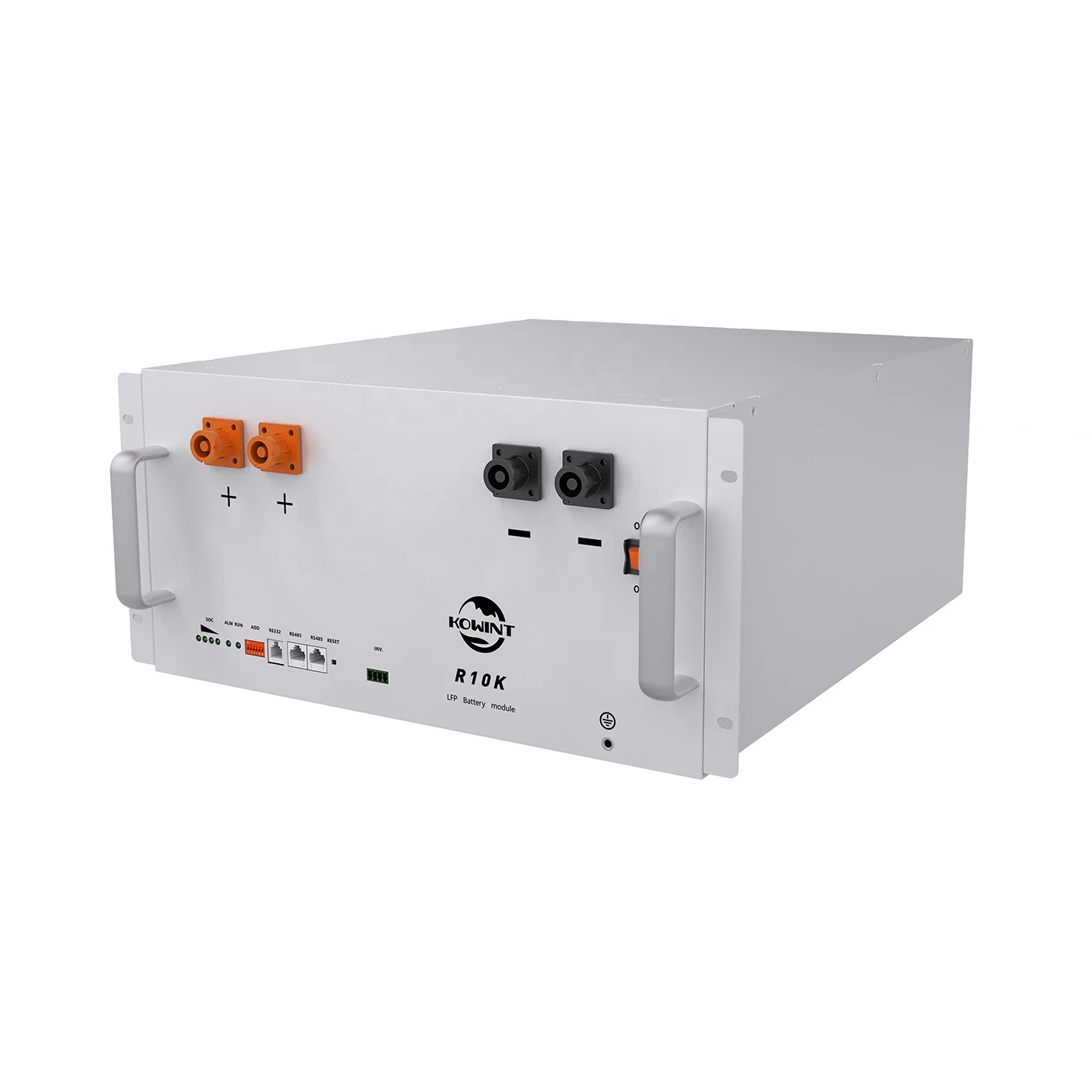

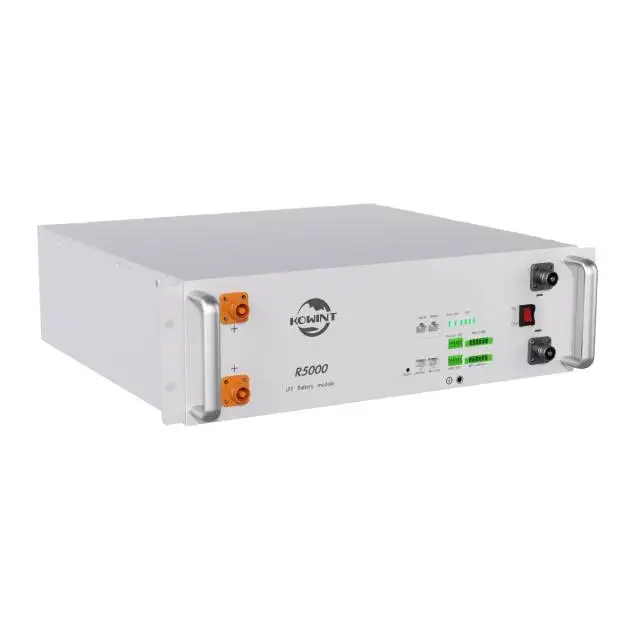

KOWINT Lithium Ion Solar Battery 10kwh 48V 200ah Server Rack Lifepo4 Battery Pack 51.2V 5kwh 10kwh 15kwh 20kwh 30kwh
- Category: >>>
- Supplier: Kowint Energy (shenzhen) Co. Ltd.
Share on (1600636276233):
Product Overview
Description
Product Description
Specification
Item | Unit | Value | Remark | ||||
Product Name | - | 25.6V 200AH | 51.2V 100AH | 51.2V 200AH | |||
Cell Model | - | 205Ah/3.2V | 105Ah/3.2V | 205Ah/3.2V | |||
Combination Mode | - | 1P8S | 1P16S | 1P16S | |||
Nominal Capacity | Ah | 200 | 100 | 200 | |||
Rated energy | Wh | 5120 | 5120 | 10240 | |||
Initial Internal Resistance | mΩ | ＜50 | AC 1KHz | ||||
Rated Voltage | V | 25.6 | 51.2 | 51.2 | |||
Recommend Charge Voltage | V | 28.4 | 56.8 | 56.8 | Unit cell max. charge voltage not exceed 3.55V | ||
Recommend Discharge Cut-off Voltage | V | 23.4 | 46.8 | 46.8 | Unit cell min. discharge voltage not lower than 2.93V | ||
Standard Charge Current | A | 20 | 20 | 20 | 0.2C | ||
Max. Charge Current | A | ≤100 | ≤100 | ≤100 | |||
Standard Discharge Current | A | 50 | 50 | 50 | |||
Max. Discharge Current | A | ≤100 | ≤100 | ≤100 | |||
Operating Temperature | ℃ | -0~+55℃ | Charge | ||||
-20~ +55℃ | Discharge | ||||||
Shell type | - | Painted metal | |||||
Weight | kg | 55 | 55 | 100 | About | ||
Dimension | mm | 408(L)*440(W)*132(H) Exclude extended part, handle, wiring terminal | 580(L)*440(W)*220(H) Exclude extended part, handle, wiring terminal | Standard 3U size | |||
446(L)*482.6(W)*132(H) Outer Max. dimension | 618(L)*482.6(W)*220(H) Outer Max. dimension | ||||||

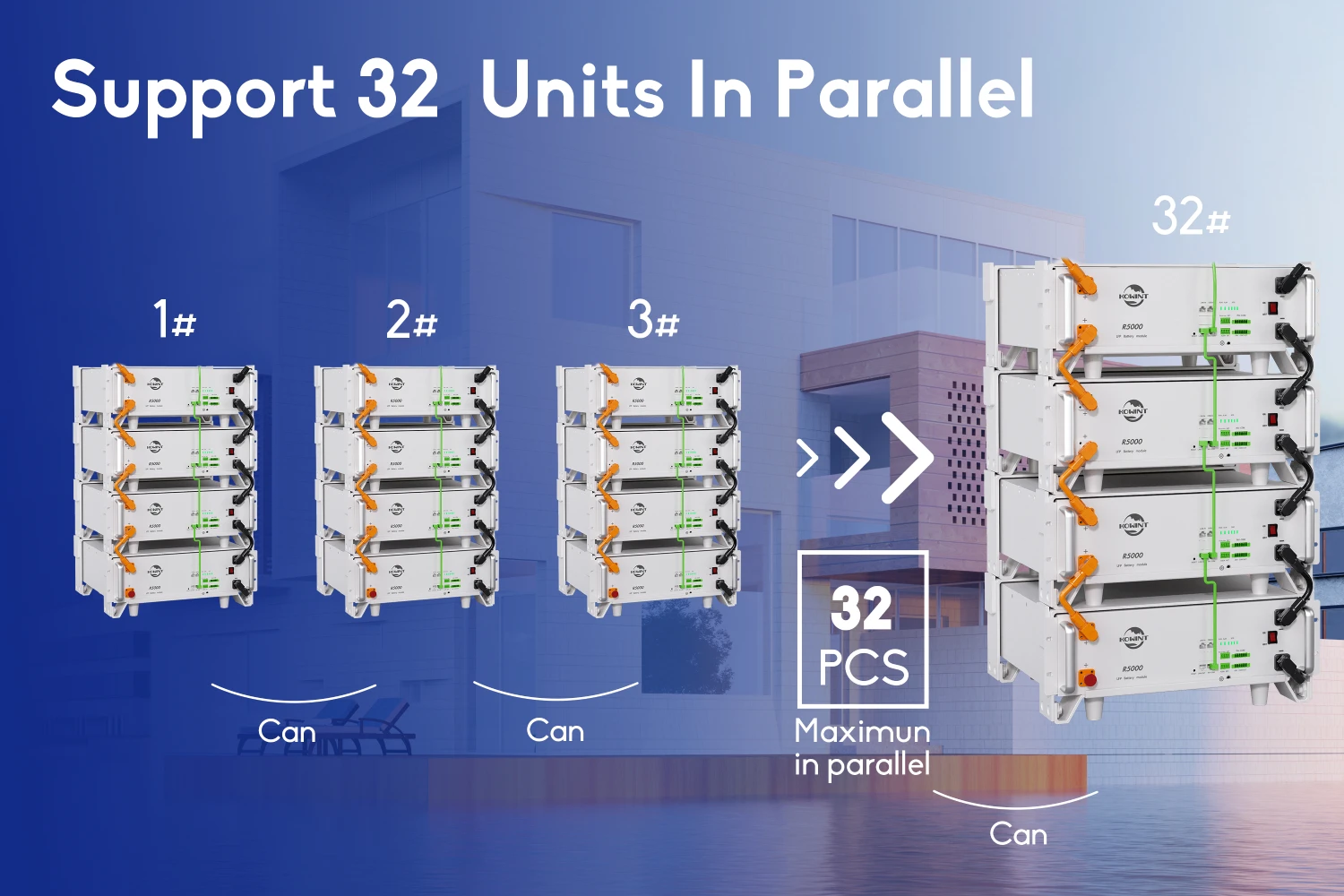

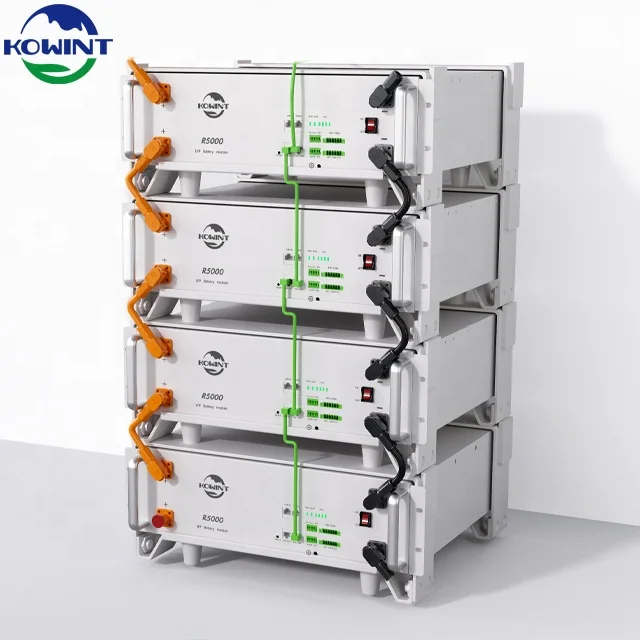

Support 32PCS Batteries to connect in parallel

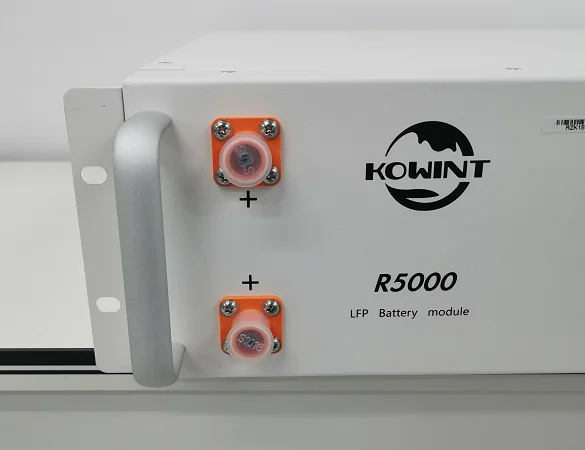

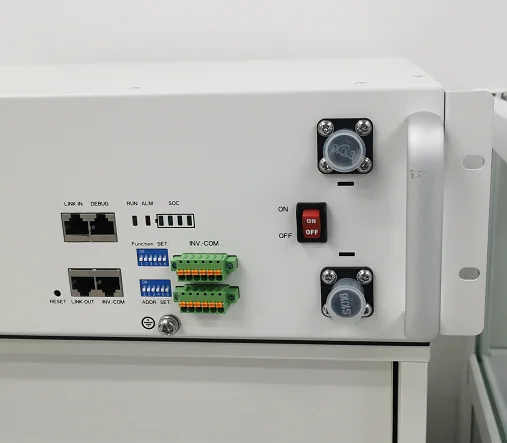

Product Details
Built in our Core BMS
New Grade A Battery Cells
Compatible Inverter Brand

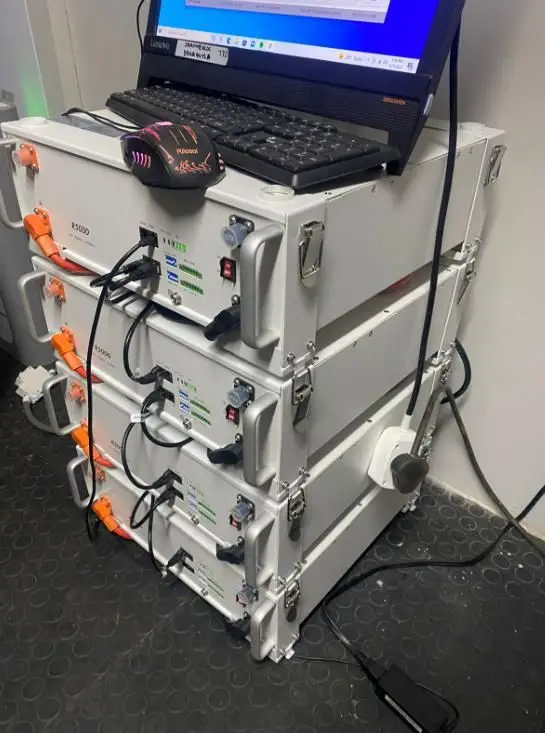

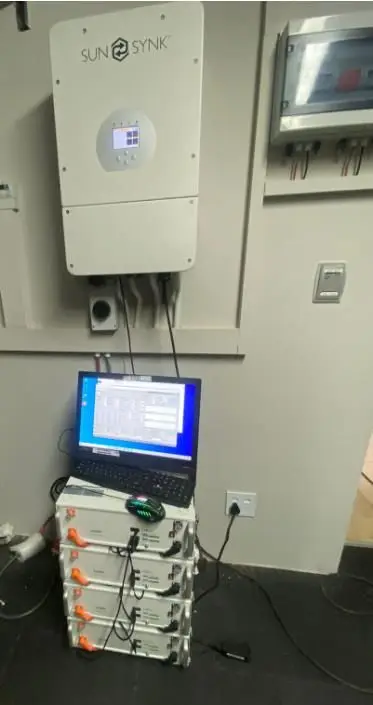

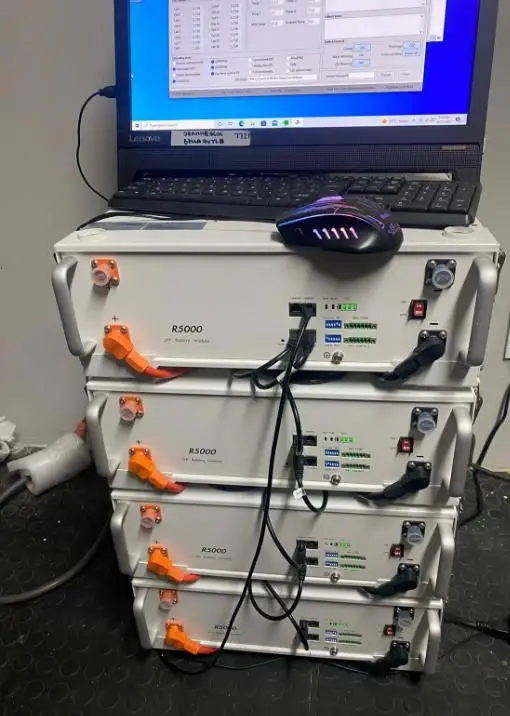

Project Show
Recommend Products
Company Profile
KOWINT ENERGY (SHENZHEN) CO., LTD. established in 2014, is a high-tech enterprise focusing on the R&D, design, production and sales of lithium battery energy storage systems, BMS, EMS and lithium battery modules.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
Factory
Intelligent Factory Equipment + Advanced Technology Product Line
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
