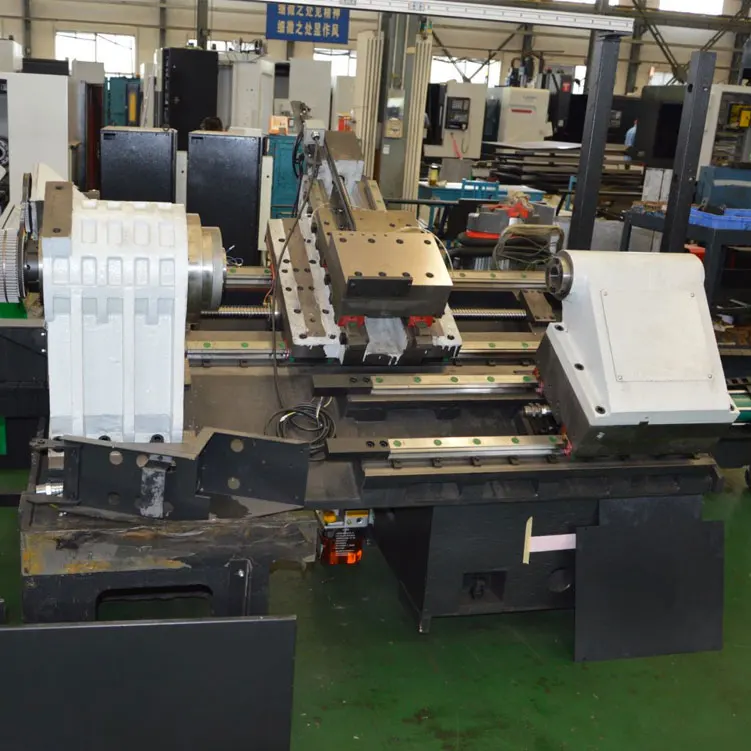

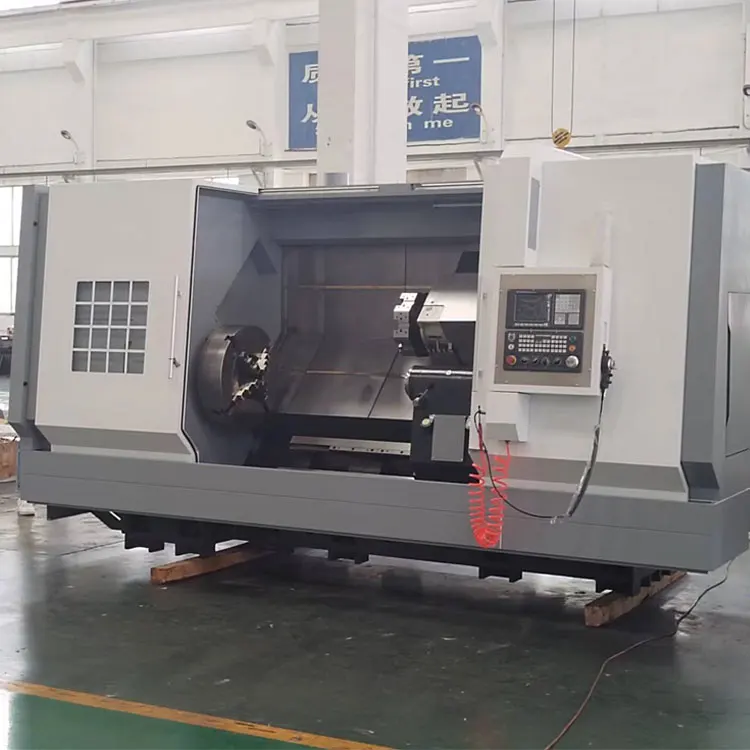

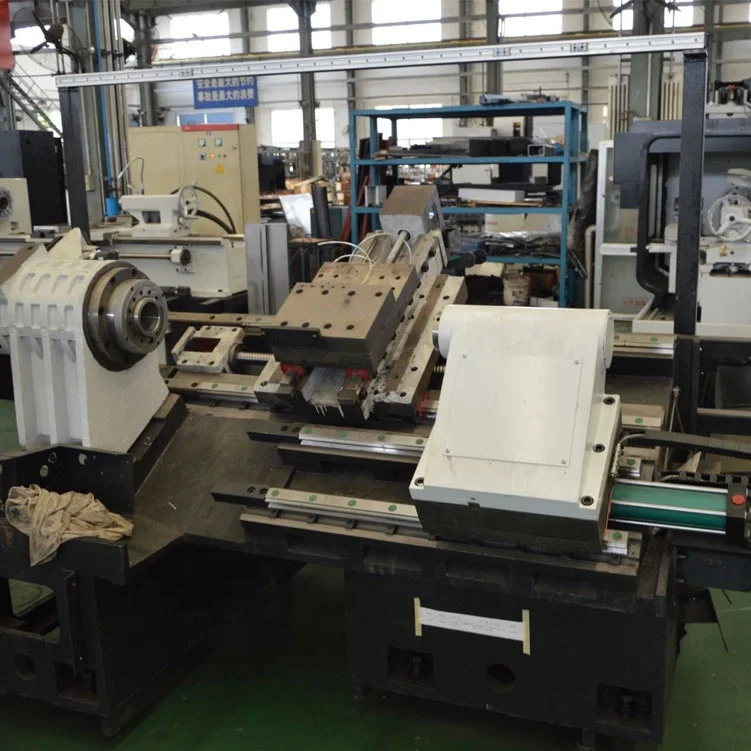

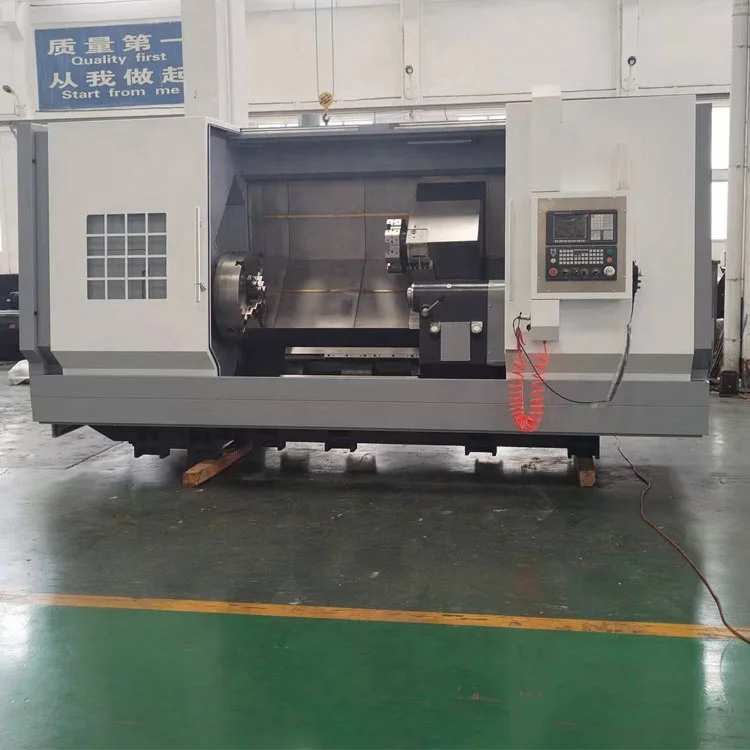

Factory Supply TCK700 Slant Type CNC Slant Bed Lathe
- Category: >>>
- Supplier: Shandong Jiucheng Machine Tool Co. Ltd.
Share on (1600636332885):
Product Overview
Description
SPECIFICATION | UNIT | TCK700 |
Max. swing dia. over bed | mm | 700 |
Max. swing dia. over slide | mm | 500 |
Center distance | mm | 1000/1500 |
Spindle nose | - | A2-8/A2-11 |
Diameter of spindle through hole | mm | 88/105 |
Spindle speed range | r/min | 2500/1800 |
Spindle shift mode | - | Stepless speed regulation |
Motor power of spindle | kw | 15/18.5 |
Chuck type | - | Hydraulic chuck |
Chuck size | lnch | 12 |
X axis rapid traverse | m/min | 20 |
Z axis rapid traverse | m/min | 20 |
X axis servo motor torque | N.m | 18 |
Z axis servo motor torque | N.m | 18 |
X axis travel | mm | 350 |
Z axis travel | mm | 1100/1650 |

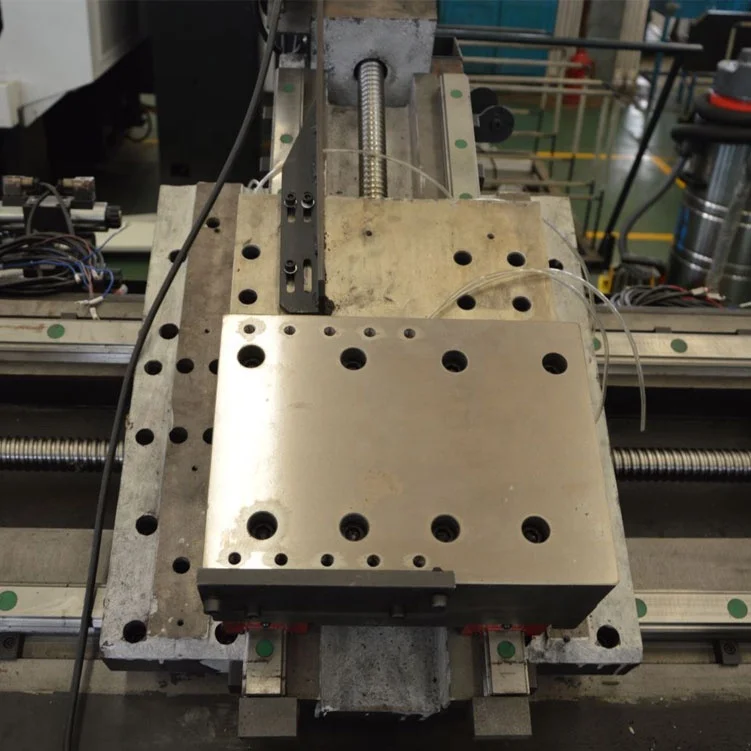

Guide way type | - | linear guide rail |

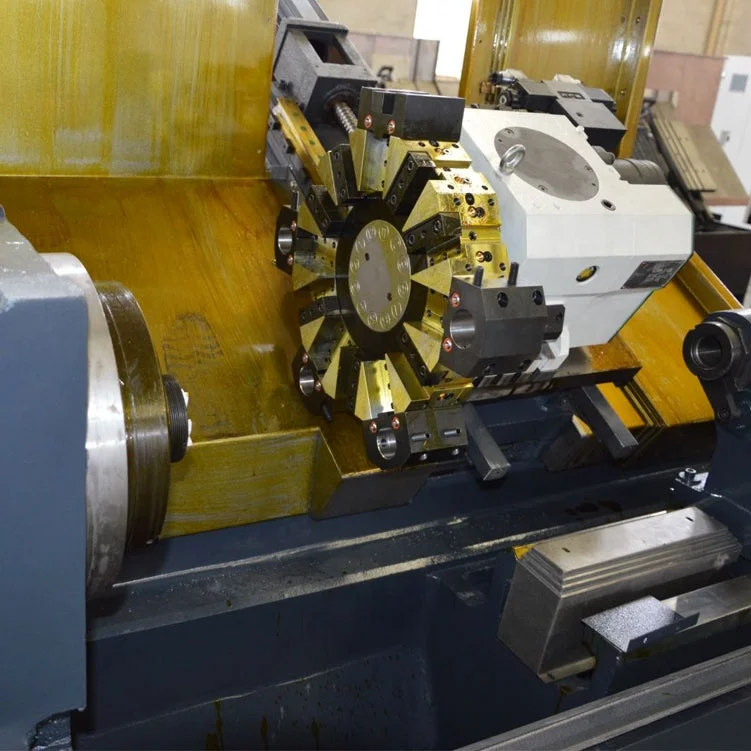

Tool post type | - | 8/12 Station |
Tool shank size (square cutting tool/boring cutting tool) | mm | 25*25/Ø32 |
Tail stock type | - | hydraulic |
Tail stock quill dia | mm | 150 |
Tail stock quill trave | mm | 150 |
Tail stock quill taper | - | MT5# |
Net weight | kg | 7000/7500 |
Machine dimension (L*W*H) | mm | 5000/5500*2250*2200 |
Q: What is the minimum order quantity (MOQ)?
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
