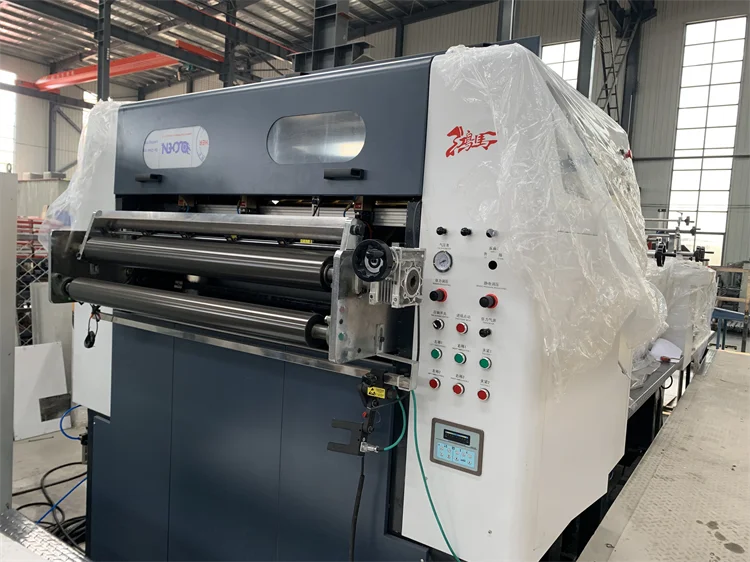

1100 paper cross cutting machine,jumbo roll paper cutting machine,paper cutter machine
- Category: >>>
- Supplier: Cangzhou Yuyuan Imp & Exp Trade Co. Ltd.
Share on (1600636459273):
Product Overview
Description
Product Description
Usage:
This machine is suitable to cut the jumbo roll material to sheets. GSM range：40-450.Material:paper, coated paper,adhesive sticker paper,paper&film laminated,plastic film,PVC and so on.
This machine is suitable to cut the jumbo roll material to sheets. GSM range：40-450.Material:paper, coated paper,adhesive sticker paper,paper&film laminated,plastic film,PVC and so on.
Performance And Characteristics
We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.
We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.
Adopts pneumatic shaft materials loading system with much easy operation and convenience.
It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)
It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation).
The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material.
The machine can automatic to trimming and stacking the finished sheets.
It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)
It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation).
The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material.
The machine can automatic to trimming and stacking the finished sheets.
Structural characteristics of :

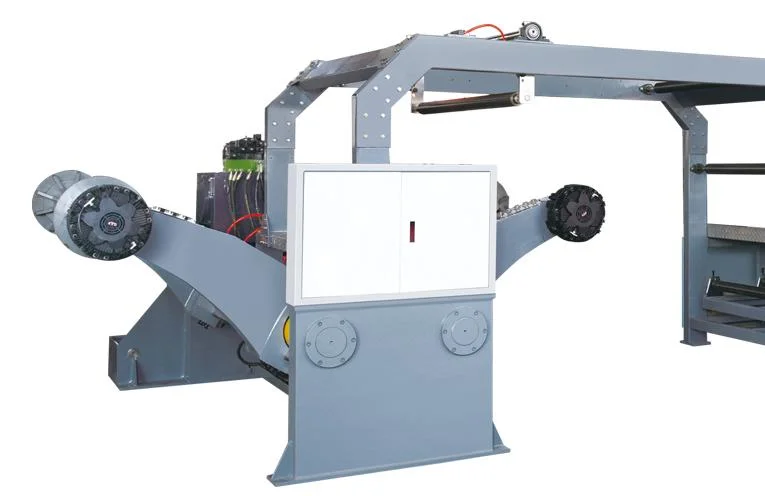

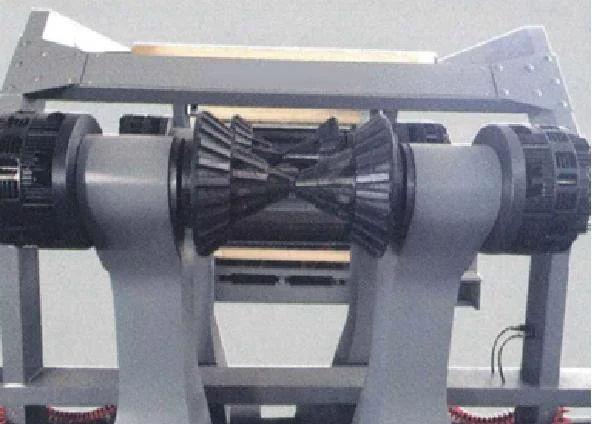

* Taper cast iron paper holder, suitable for 3-12 inch reel paper.
* Tension control adopts multi-point brake, automatic tension control, save labor, time and effort.
* Symmetrical structure can be installed and cut two rolls of original tube paper at the same time.
* The use of hydraulic drive, can complete the base paper lifting, clamping, loosening, moving alignment.
* Taper cast iron paper holder, suitable for 3-12 inch reel paper.
* Tension control adopts multi-point brake, automatic tension control, save labor, time and effort.
* Symmetrical structure can be installed and cut two rolls of original tube paper at the same time.
* The use of hydraulic drive, can complete the base paper lifting, clamping, loosening, moving alignment.
* The front section adopts light alloy fog roller, reasonable design of the backbending frame, can ensure the flat paper.
* High precision synchronous belt wheel, manufacturing accuracy of more than 6 levels, low noise, smooth transmission.
* The host adopts Shanghai Dequchi servo drive motor, Germany Kirby servo drive, high quality, quick response and accurate action.
* The paper feed adopts Shanghai Dequchi frequency conversion motor, Taiwan FateK frequency conversion driver

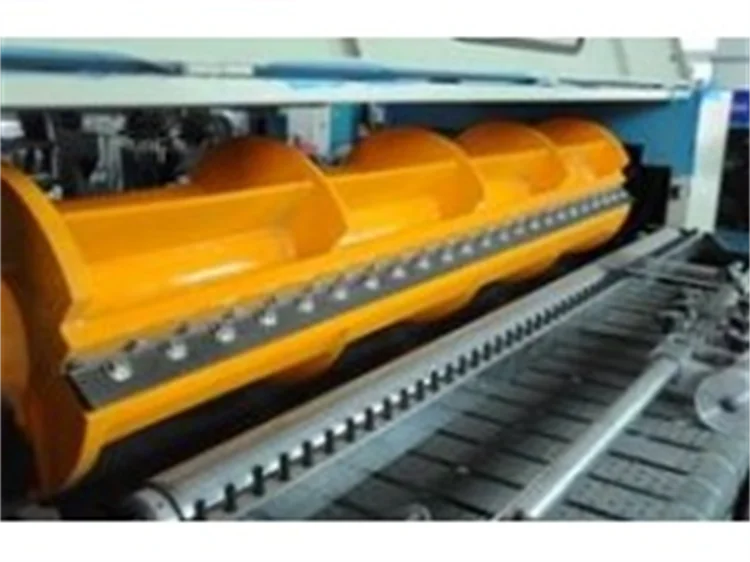

* Tungsten steel blade, tungsten steel welding edge, long blade life (up to one year)
* High precision synchronous belt wheel, manufacturing accuracy of more than 6 levels, low noise, smooth transmission.
* The host adopts Shanghai Dequchi servo drive motor, Germany Kirby servo drive, high quality, quick response and accurate action.
* The paper feed adopts Shanghai Dequchi frequency conversion motor, Taiwan FateK frequency conversion driver
* Tungsten steel blade, tungsten steel welding edge, long blade life (up to one year)
* Conveying is divided into two sections: the first section of high-speed conveying, so that the cut white paper quickly out of the cutter shaft; The second section of slow transmission, so that the white paper superposition operation; Quick access to the code stack. Between the first and second conveying, equipped with suction device, so that whiteboard paper stacking neatly, stacking into a stack.

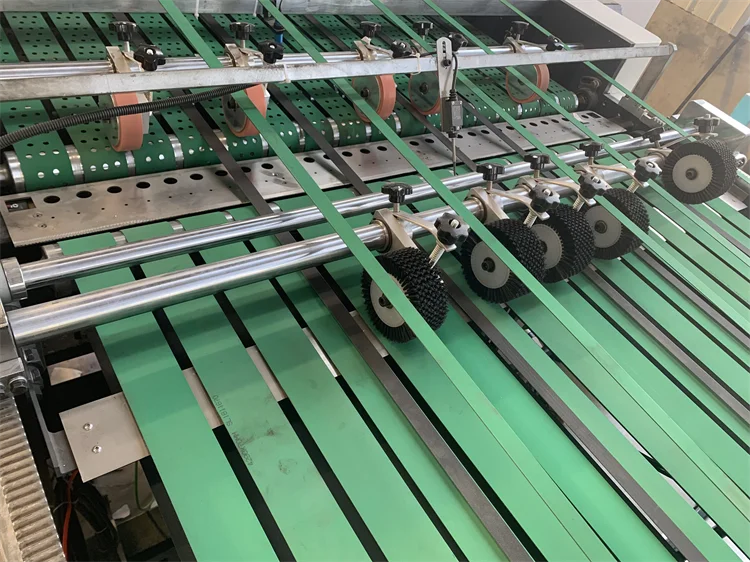

* The rear section is provided with two groups of paper pressing wheel, one of which can adjust the position before and after according to the length of paper cutting.
* Maximum length of paper cut 1500mm.
* The rear section is provided with two groups of paper pressing wheel, one of which can adjust the position before and after according to the length of paper cutting.
* Maximum length of paper cut 1500mm.

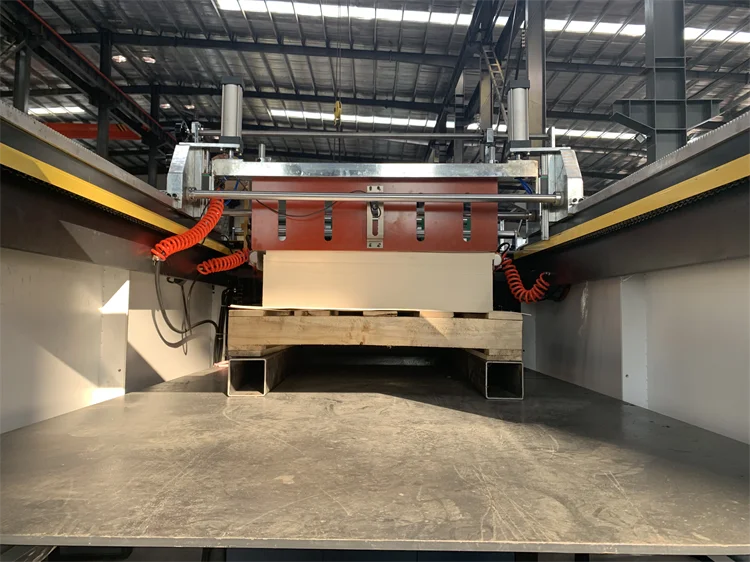

* The stacking department is equipped with front beat paper, side beat paper and backsplash device. The front beat paper is an electric mechanical swing device; The side patting paper is controlled by pneumatic vibration valve, so that the white paper is stacked neatly and aesthetically. The tailgate device can adjust the position according to the length of the whiteboard.

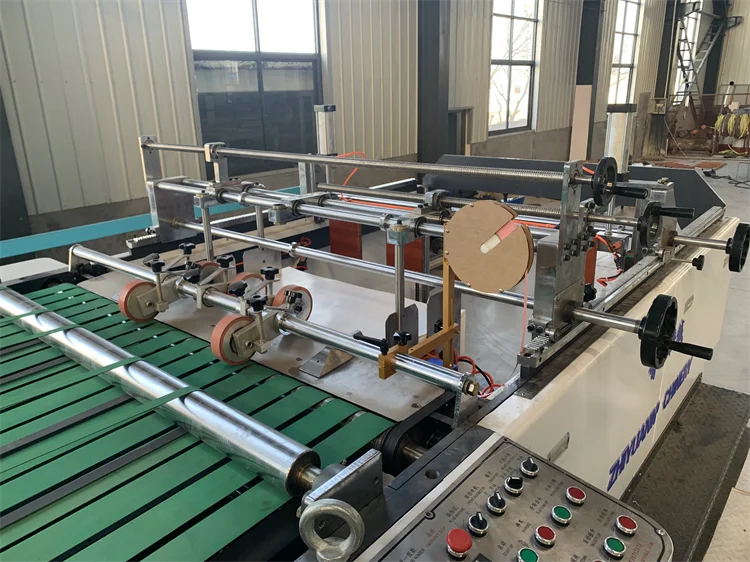

* The stacking part is equipped with marking device, automatic counting, inserting marking paper.
* Maximum stacking height 1500mm.
Specification
Technical parameter | ||
Max width mother roll | 1600mm | |
Max diameter mother roll | 1400mm | |
Max mother roll weight | 1200KG | |
Cutting speed | 150-180 times/min | |
Cutting type | Guillotine knife | |
Cutting length | 20-800mm | |
Cutting capability | 40-450gsm | |
Precision | ±0.2mm | |
Speed regulation control | Frequency converter | |
Total Power | 11KW | |
Power input | 380V,50HZ,3PH | |
Dimension | 4500*2200*1500 | |
Total weight | 4500KG | |
Drive system | ||
Cutting Motor | 3.0KW | |
Feeding Motor | 1.5KW | |
Main Motor | 4.4KW,Yaskawa Servo | |
Frequency converter | 2.2KW，SINEE | |
Feeding roller | Rubber roller | |
Transmit roller | Aluminum roller | |
Transmit way | Synchronous belt | |
Pressing way | Cylinder | |
Bearing | Renben | |
Control system | ||
PLC | Panasonic，Japan | |
Touching screen | Weivien,China Taiwan | |
Tension control | Full automatic | |
EPC(edge postion correct） | Ultrasonic sensor | |
EPC precision | ±0.2mm | |
Count meter | Full automatic | |
Automatic stop | Setting in PLC touch screen | |
Marking machine | Automatically set the number of tabs | |
Cutting equipment | ||
Guillotine knife | 2PCS | |
Blade knife | 3PCS | |
Adjustment way | Freely by manual | |
Unwinding equipment | ||
Unwinding type（optional） | 3inch, pneumatic shaft | |
Lifting up way | Cylinder control | |
Guide way | Right&Left 150mm | |
Related Products
Packing & Delivery
Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Company Profile

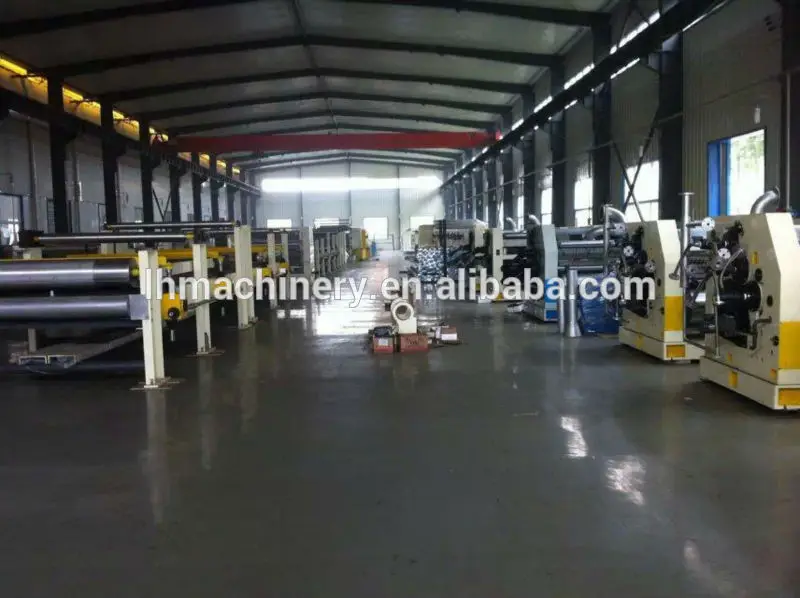

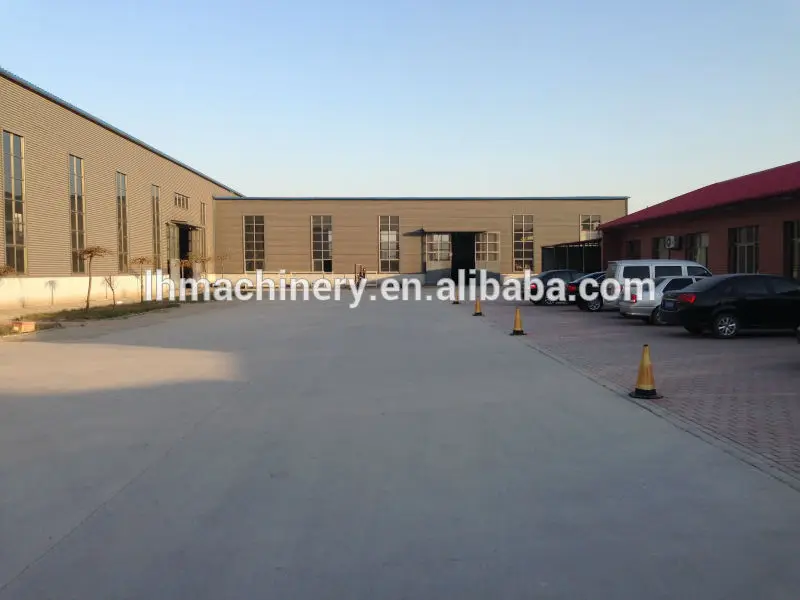

Hebei LIHENG Packaging machinery Co.,LTD, located at DONGGUANG county economic development zone east. Beilian jingjin, south by shandong, with cangzhou iron lion, wuqiao acrobatic world adjacent; The beijing-shanghai railway, 104 national highway and beijing-fuzhou expressway adjacent to it, has convenient transportation and excellent production environment.
