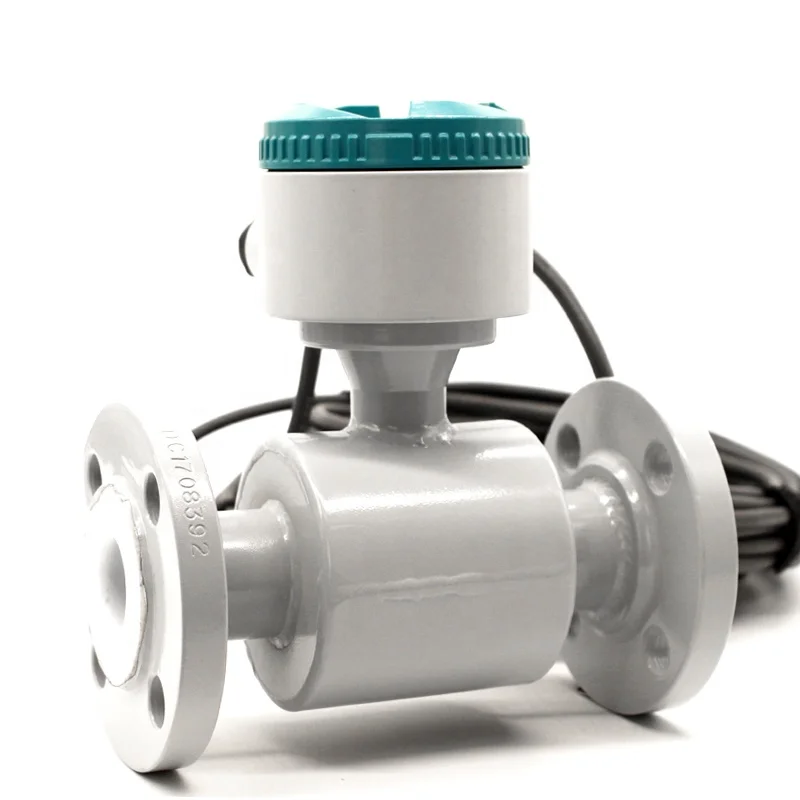

high accuracy water pulse counter meter electromagnetic acid resistant flow meter magnetic water caudalimetro price

Product Overview

Description

high accuracy water pulse counter meter electromagnetic acid resistant flow meter magnetic water caudalimetro price

WHY CHOOSE US?
Refined Material, Accurate Measurement



ENVIRONMENTAL TEST

High & low temperature test, different humidity test

Make sure instruments can resist any harsh environment

• Main Performances Parameters

Size	DN3-DN3000mm
Nominal Pressure	0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa)
Accuracy	+/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional)
Liner	PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode	SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium

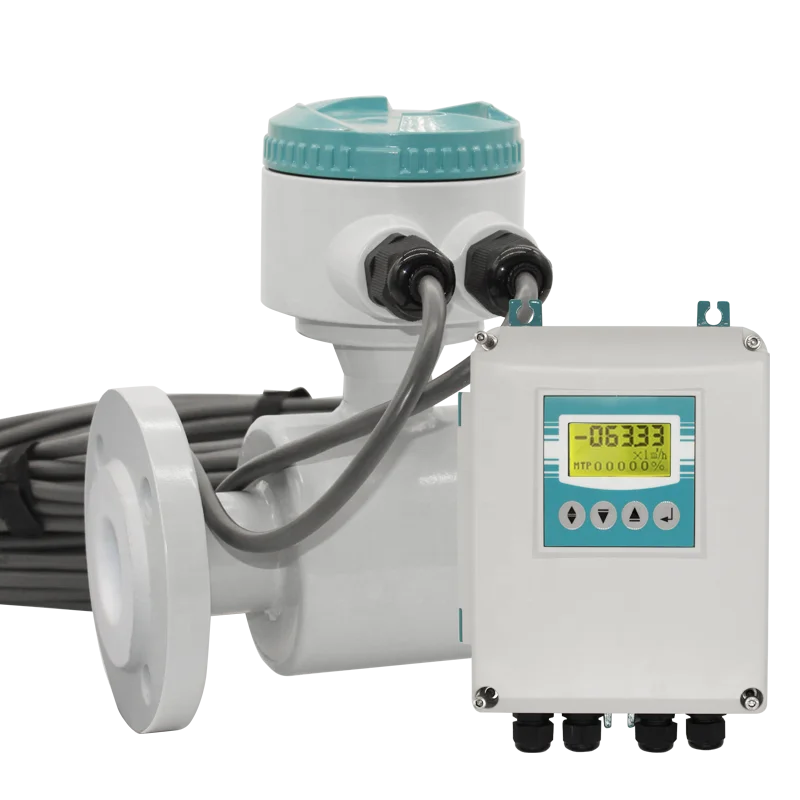

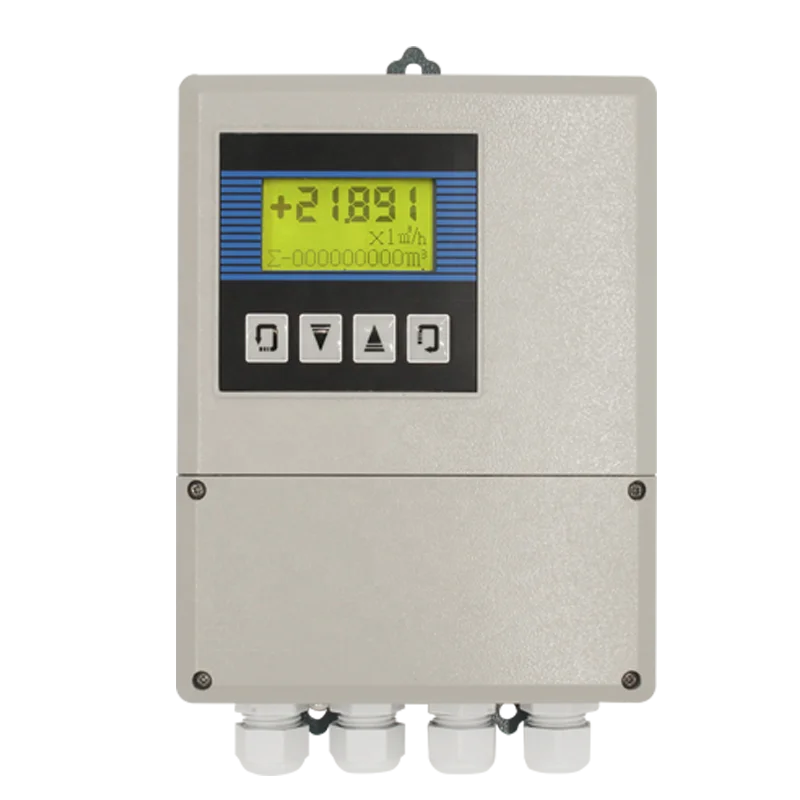

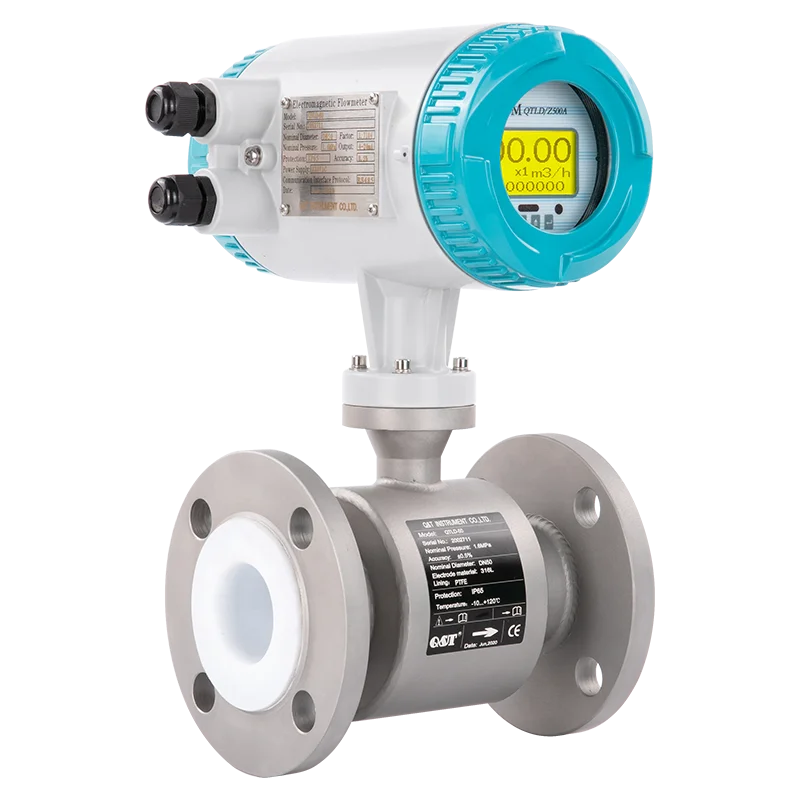

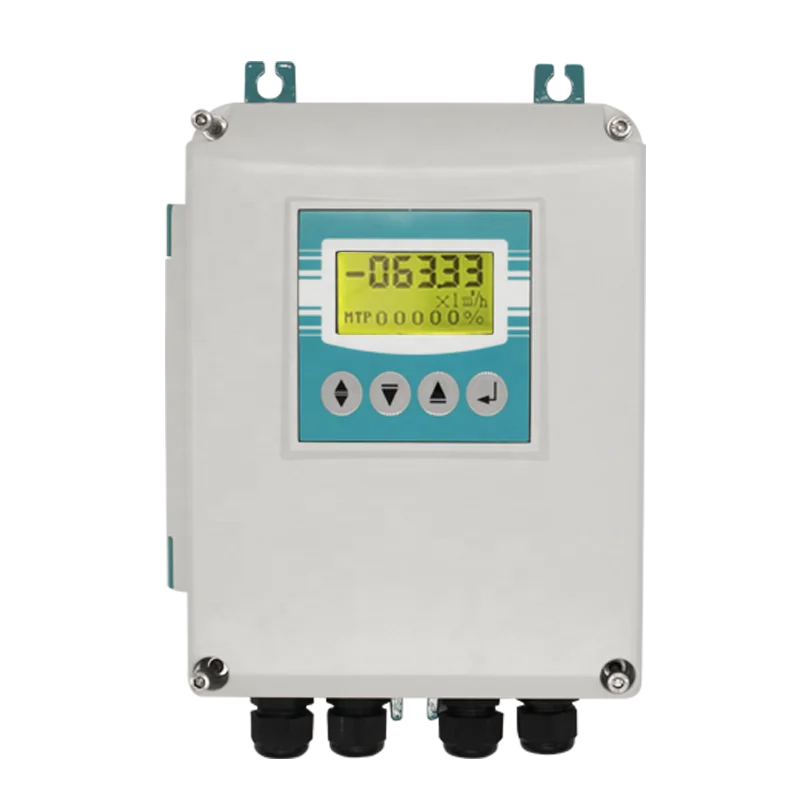

Structure Type	Integral type, remote type, submersible type, ex-proof type
Medium Temperature	-20~+60 degC(Integral type)
	Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC Remote type(PTFE/PFA/FEP) -10~+160degC
Ambient Temperature	-20~+60deg C
Ambient Humidity	5-100%RH(relative humidity)
Measuring Range	Max 15m/s
Conductivity	>5us/cm
Protection Class	IP65(Standard); IP68(Optional for remote type)
Process Connection	Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional)
Output Signal	4-20mA/Pulse
Communication	RS485(Standard), HART(Optional),GPRS/GSM (Optional)
Power Supply	AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional)
Power Consumption	<20W
Alarm	Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis	Empty Pipe Alarm, Exciting Alarm
Explosion Proof	ATEX



• Main Performances Of The Electrode Materials

Electrode Material	Application
SUS316L	Applicable in water, sewage and low corrosive medium; Widely used in industries of petrol, chemistry, carbamide etc.
Hastelloy B	Having strong resistance to hydrochloric acid of any consistence which is below boiling point. Resistable against vitriol,phosphate, hydrofluoricacid, organic acid etc which are oxidable acid, alkali and non-oxidable salt.
Hastelloy C	Be resistant to oxidable acid such as nitric acid, mixed acid as well as oxidable salt such as Fe+++,Cu++ and sea water
Titanium	Applicable in seawater, and kinds of chloride, hypochlorite salt, oxidable acid (including fuming nitric acid), organic acid, alkali etc. Not resistant to a pure reducing acid (such as sulphuric acid, hydrochloric acid) corrosion. But if acid contains antioxidant (such as Fe+++,Cu++) is greatly reduce corrosion
Tantalum	Having strong resistance to corrosive mediums that is similar with glass. Almost applicable in all chemicals mediums except for hydrofluoric acid, oleum and alkali
Platinum-iridium	Almost be applicable in all chemical mediums except fortis, ammonium salt



• Velocity-Flow Range Table

 Remark:Suggest flow velocity range 0.5m/s-15m/s
