Industrial Mini Computer I7 10510U Dual LAN 6 RS232/422/485 4K GPIO PS/2 VGA HD Fanless Desktop PC
- Category: >>>
- Supplier: Shenzhen Helor Cloud Computer Co. Ltd.
Share on (1600636532220):
Product Overview
Description
Product Description
Notice : The price shown of this page is H45G Industrial PC i5-8250U NO RAM NO SSD Price. Contact me for more info and prices.
Main Features:
- High-end performance In-tel Core Proceessors Inside- 2x DDR4 memory slots, enabling you add two memory, max support 16GBx2;
- Support three storage, 1x mSATA SSD, 1x 2.5inch SATA, and 1x M.2 2280 SSD ( PCIe type, support NVMe );
- COM1 to COM 4 support adjust to RS232, RS422 or RS485 in BIOS; COM5 COM6 support RS232.
- 2*Gigabit Ethernet, 4*USB3.0, 2*USB2.0, 1x LTP, 1x PS/2, 1x MIC, 1x SPK
- 3pin phoenix DC input, support a wide voltage from DC 9V to 36V
- Besides the power button, mini pc with extra 1x 2pin power switch, and mini PC support ATX/AT model switch;
- Support watch dog, wake up on LAN, PXE, automatically power on aftre power restore.
- OS support Win10, Win8, Linux, WES7/8 and more

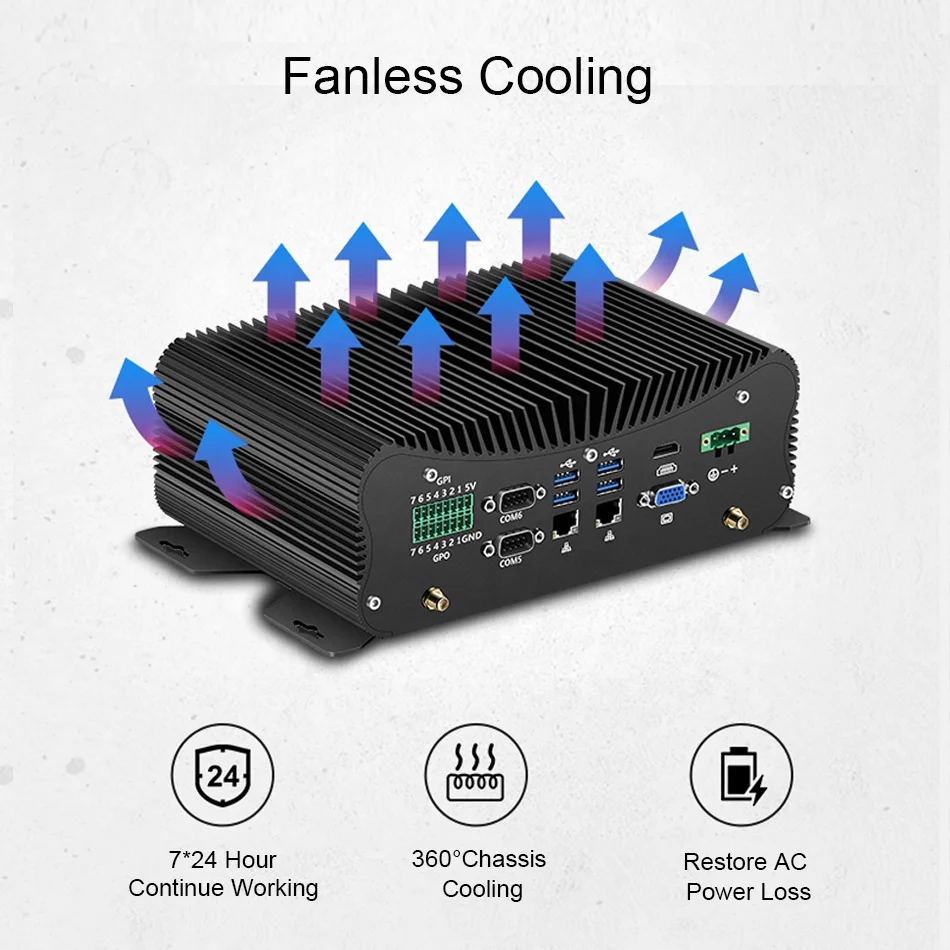

- Aluminum case, fanless passive cooling, offering you noiseless experience
- Wireless dual-band 2.4/5.0G WiFi and BT 4.0;
- 2*Mini PCIE for WiFi/3G/4G modules, with 1x SIM slot
Processors | In-tel Core i5-7267U, 4M Cache, 2 cores, 4 threads, 3.10 GHz, max turbo 3.50 GHz In-tel Core i5-8250U, 6M Cache, 4 cores 6 threads, 1.60 GHz, max turbo 3.40 GHz In-tel Core i5-10210U, 6M Cache, 4 cores, 8 threadsm 1.20GHz, max turbo 4.20GHz In-tel Core i7-10510U, 8M Cache, 4 cores, 8 threadsm 1.80GHz, max turbo 4.90GHz |
Memory | DDR4 260-pin, SODIMM x2，max to 32GB ( 16GB x2 ) |
Ethernet | 10\\100\\1000mbps Intel 211AT, support for network wake up |
I/O | 4 x USB3.0，2 x USB2.0 |
6 x Serial ports（COM1 COM2 COM3 COM4 support RS232/RS485/RS422; COM5 COM5 support RS232 ） | |
1 x LPT | |
1 x H-D, 1 x VGA | |
1 x PS/2 ( support keybaord or mouse ) | |
14 x GPIO（7 input，7 output） | |
1 x Power Button, 1x 2-pin power switch, 1 x Reset Button，1 x Clear CMOS Button | |
1 x 3-pin phoenix DC input, support voltage DC 9V to 36V | |
1 x MIC 3.5mm,1 x MIC 3.5mm | |
1 x ATX/AT switch | |
2 x WiFi antennas connectors, applied for WiFi/3G/4G model | |
Storage | 1x mSATA SSD ( default install this type hard drive if you buy with SSD ) |
1x M.2 NVME SSD 2280 ( PCIe ) | |
1x 2.5 inch HDD/SSD | |
Expansibility | Mini-PCIe x 1 half height size，support WiFi bT module |
Mini-PCIe x 1 full height size, support 3G/4G module, WiFi bT module | |
IO x 1, support LPC，USB，PCIE, SIM card slot | |
OS Support | Windows8 Windows10 ubuntu/LINUX/CENTOS |
Other function | Watch dog, one-key restore, PXE, wake up on LAN, automatically power on after power restore |
Power Adapter | AC100-240V IN, DC12V-5A Output |
Construction | Fanless passive cooling |
Material | Aluminum alloy |
Dimension | 249 x 150 x 86 mm |
Netweight | 2.2 Kg |
Storage Temp. | -30℃ to +70℃ |
Operating Temp. | -20℃ to +60℃ |
RH | 10%~90% @30℃，Non-condensing |
Package List | 1x Mini PC 1x AC Adapter (AC100-240V IN, DC12V-5A Out ) 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cable 1x User manual |
Company Profile
Shenzhen Helor Cloud Computer Co,. ltd(HLY) ,located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer.Developed more than 50 kinds of own products, applied in different fields for AI, office working, education, entertainment, advertising, transport, military, industrial, etc....Our mini pc had sold in more than 60 countries and regions, annual sales exceed one million units.
HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.
HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.
We have more than 100 employees. Experienced technical group , reliable and dedicated sales department and responsible production team constitute the backbone of our enterprise.Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our engineers are outstanding in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.So ODM\\OEM is highly welcome.From design, production and installation to excellent after-sales, HLY clients are assured of the highest level of quality and service.
Packaging&Shipping
① Power adapter:
We have multiple specifications of power supplies, which are selected by default based on your shipping address.If you have special demands, please contact us in time.
EU,UK,US,AU,Brazil,etc.
EU,UK,US,AU,Brazil,etc.
② Payment:
We are supporting L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.
③ Shipping Methods:
Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation. ( choose as you prefer)
FAQ
1,How about the waranty?
A:The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.
2,Can i print my logo on your mini pc?
A:Yes,please provide your logo file, and we will confirm the design effect to you before production.we also doing OEM\\ODM.
3,What is the MOQ?
A:We can sell one sample for your test.
4,How long the package will ready after I buy the mini pc?
A: It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.
5,Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
A:The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.
2,Can i print my logo on your mini pc?
A:Yes,please provide your logo file, and we will confirm the design effect to you before production.we also doing OEM\\ODM.
3,What is the MOQ?
A:We can sell one sample for your test.
4,How long the package will ready after I buy the mini pc?
A: It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.
5,Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
