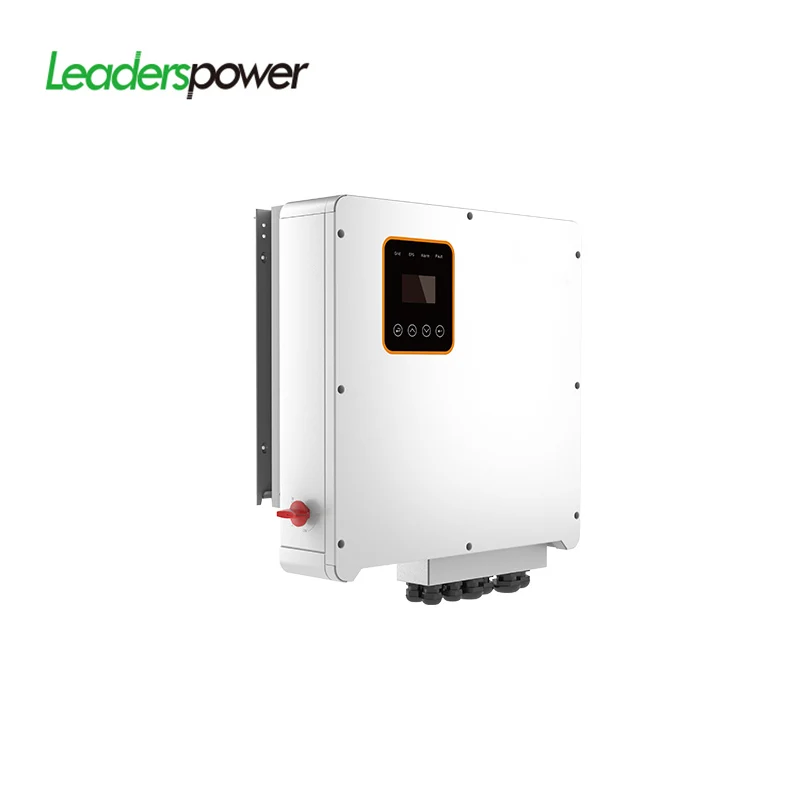

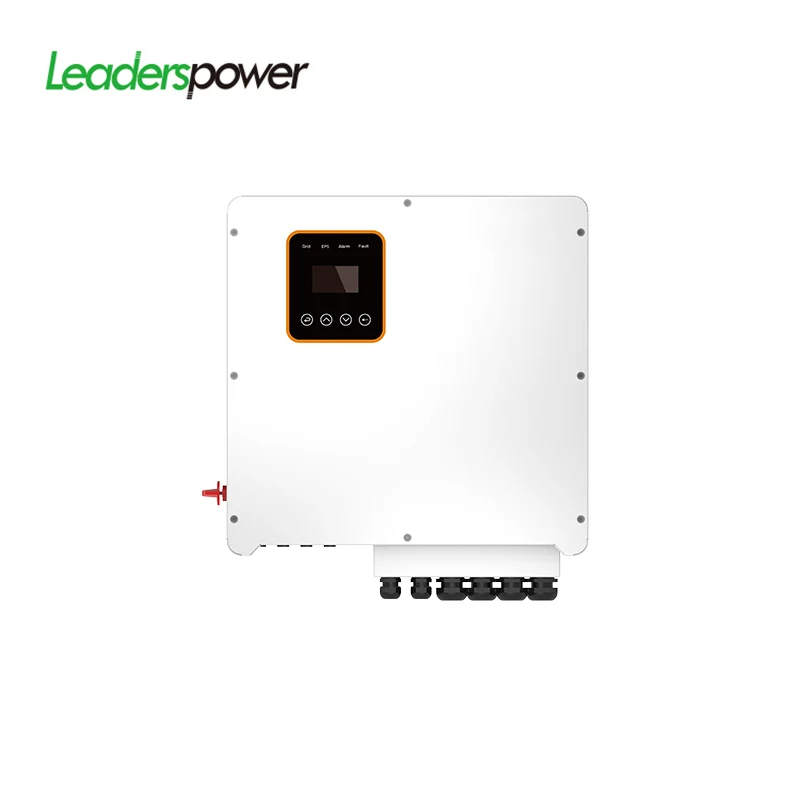

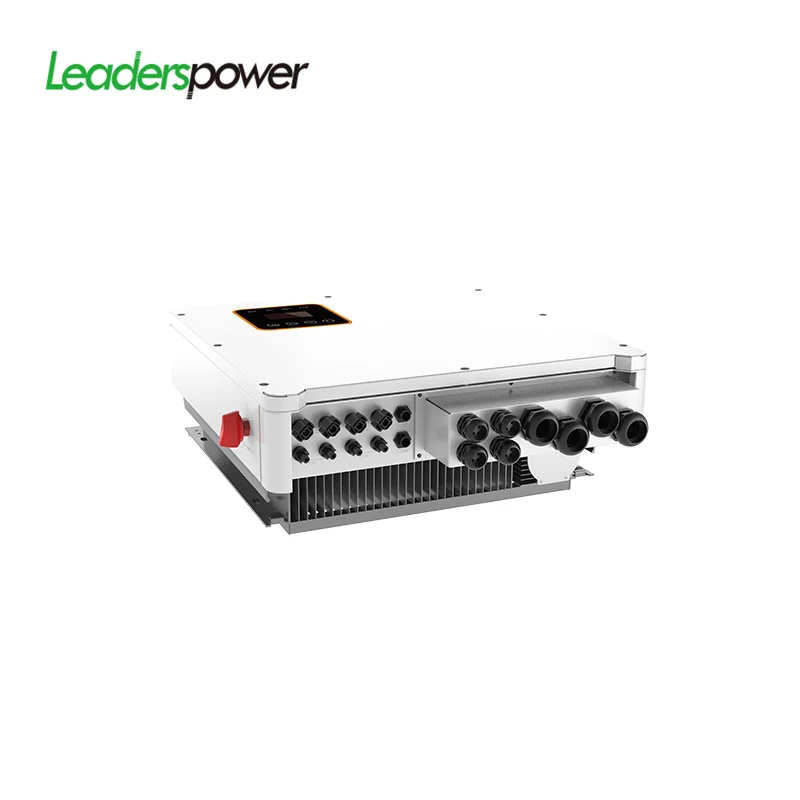

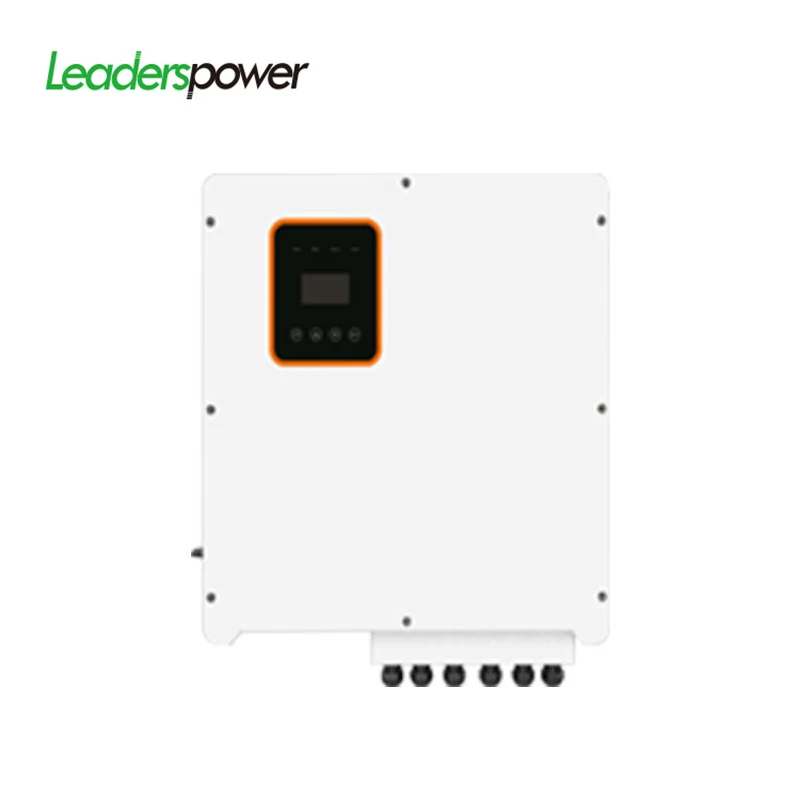

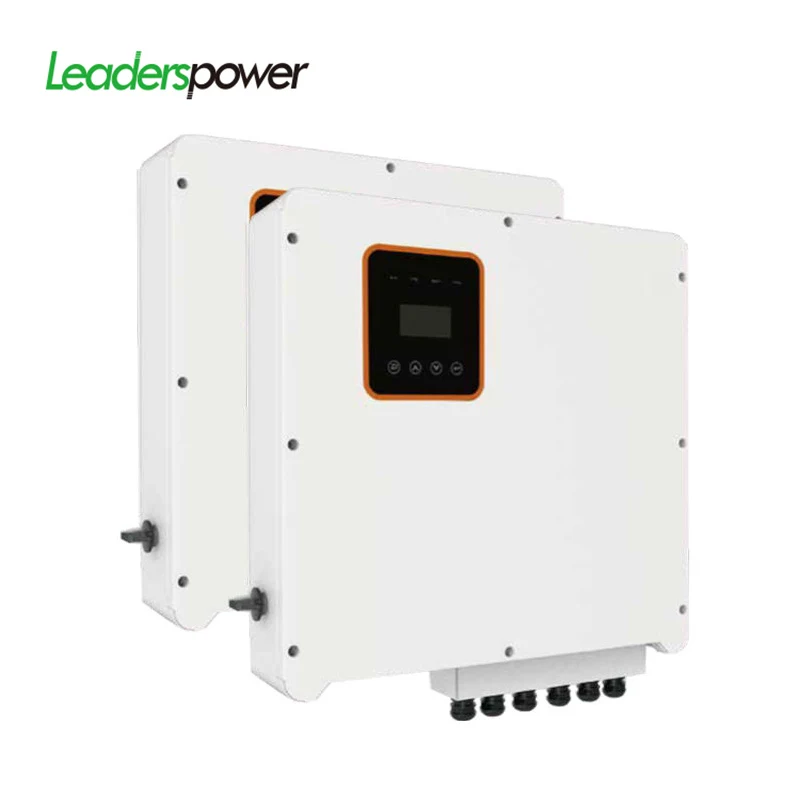

three phase ESS hybrid inverter off grid hybrid mppt 12kw inverters solar 8000w 8kw 3 phase solar inverter
- Category: >>>
- Supplier: Shenzhen Leaderspower Technology Co. Ltd.
Share on (1600636533089):
Product Overview
Description
H3 series three phase ESS hybrid inverter have three power rated, including 8kW, 10kW and 12kW, compatible with single-phase load and three-phase load, support 100% unbalanced load, and the maximum efficiency can reach 97.9%.
Features
(1) Wide input voltage range
(2) Compatible with lead-acid batteries, lithium-ion batteries and others
(3) Light weight, smart operation
(4) Natural cooling, low noise
(5) IP65 protection level
(6) Space saving due to wall mounted design
(7) LCD touch screen display
(8) Built-in anti-backflow function
(9) Battery reverse polarity protection
(10) Smart home energy management system
(11) Power dispatching and demand side response management
(12) Distributed virtual power station management
Features
(1) Wide input voltage range
(2) Compatible with lead-acid batteries, lithium-ion batteries and others
(3) Light weight, smart operation
(4) Natural cooling, low noise
(5) IP65 protection level
(6) Space saving due to wall mounted design
(7) LCD touch screen display
(8) Built-in anti-backflow function
(9) Battery reverse polarity protection
(10) Smart home energy management system
(11) Power dispatching and demand side response management
(12) Distributed virtual power station management
Specifications | ||||||
Technical specification | 8KW H3 | 10KW H3 | 12KW H3 | |||
Input (PV) | ||||||
Max. power(kW) | 12 | 15 | 18 | |||
MPPT voltage range(V) | 180~850 | |||||
MPPT tracker/strings | ||||||
AC output | ||||||
Rated output power(kVA) | 8 | 10 | 12 | |||
Grid voltage/range(V) | 400/360~440 | |||||
Frequency (Hz) | 50 /60 | |||||
THDi | <3% | |||||
Battery | ||||||
Battery voltage range(V) | 125~600 | |||||
Rated charge/discharge current(A) | 40 | 40 | 50 | |||
Communication interface | CAN/RS485 | |||||
EPS output | ||||||
Rated power (kVA) | 8 | 10 | 12 | |||
Rated output voltage(V) | 400 | |||||
Automatic switching time (ms) | <20 | |||||
General data | ||||||
DC Max. efficiency | 97.90% | 98.20% | 98.20% | |||
Dimensions W * D * H (mm) | 530*200*600 | |||||
Weight（kg） | 29 | |||||
Certificates | CE、TUV | |||||
ShenZhen Leaderspower Technology Co., Ltd.
Shenzhen Leaderspower Technology Co., Ltd. is located in Shenzhen, China. We are a team of professionals with experience in selling home and outdoor PV products.
Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.
Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.
Q1: Are you manufacturer? |
A: Yes, we are professional brand manufacturer with many years experience. |
Q2: When can I get the quotation? |
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority. |
Q3: Can you do the design for us? |
A: Yes. We have a professional designing team provide free desing for you, just tell us your ideas and we will help to carry out your ideas into perfect products. It is also ok if you do not have the complete files. Send us high resolution images, we can design the layout you want,until you are satisfied. |
Q4: What is your terms of delivery? |
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you. |
Q5: What kind of payment methods do you accept? |
A: Credit Card, Online Bank Payment, T/T, Boleto, Pay Later, Paypal, Wechat, Alipay and so on. |
Q6: Can I visit your company and factory in China? |
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces. |
