Регулируемый размер мини Eps 3d машина для изготовления стеновых панелей
- Category: >>>
- Supplier: Hangzhou,Bes,Technology,Co.,Ltd.
Share on:
Product Overview
Description
MAIN FEATURES
1.The eps machine adopts PLC and touch screen for automatic mould opening,mould closing,material feeding,steaming,temperature keeping,air cooling,de-moulding and ejecting;
2.The machine sets up high-pressure blower for suction the material;adopts penetration of theory forming and the cycle of
comvection cooling,low moisture content.
3.The machine is welded from high-quality profile steel,which is subjected to heat treatment,ensuring high strength of the machine without deformation,and possibility of bearing the expansion force of the high-density product;
4.Adopting advanced moulding technique,the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block;
Note:
1.Block conveying line and electronic weighing scale for the machines is optional;
2.With digital rotary coder to adjust mould size automatically,it is optional;
2.The machine sets up high-pressure blower for suction the material;adopts penetration of theory forming and the cycle of
comvection cooling,low moisture content.
3.The machine is welded from high-quality profile steel,which is subjected to heat treatment,ensuring high strength of the machine without deformation,and possibility of bearing the expansion force of the high-density product;
4.Adopting advanced moulding technique,the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block;
Note:
1.Block conveying line and electronic weighing scale for the machines is optional;
2.With digital rotary coder to adjust mould size automatically,it is optional;

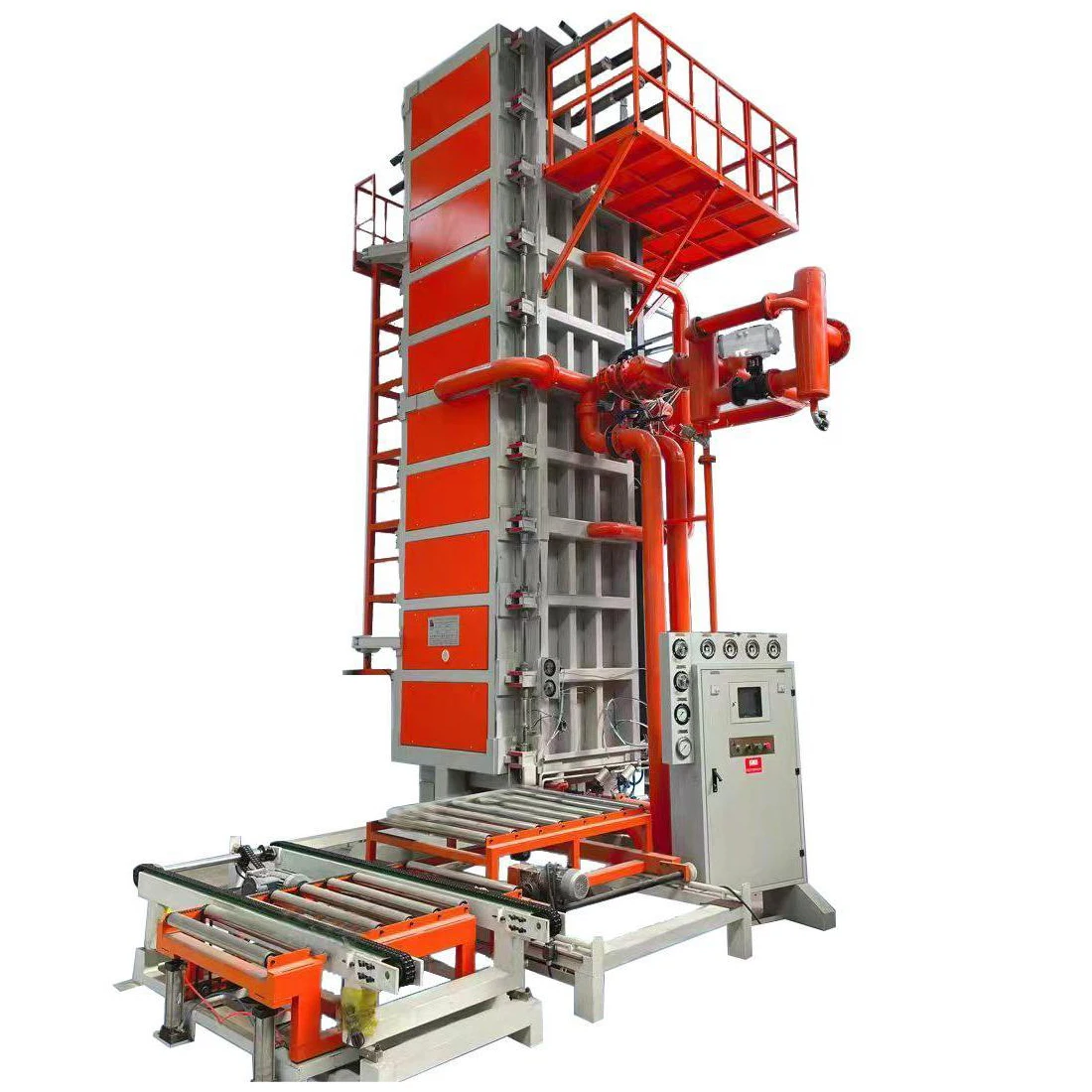

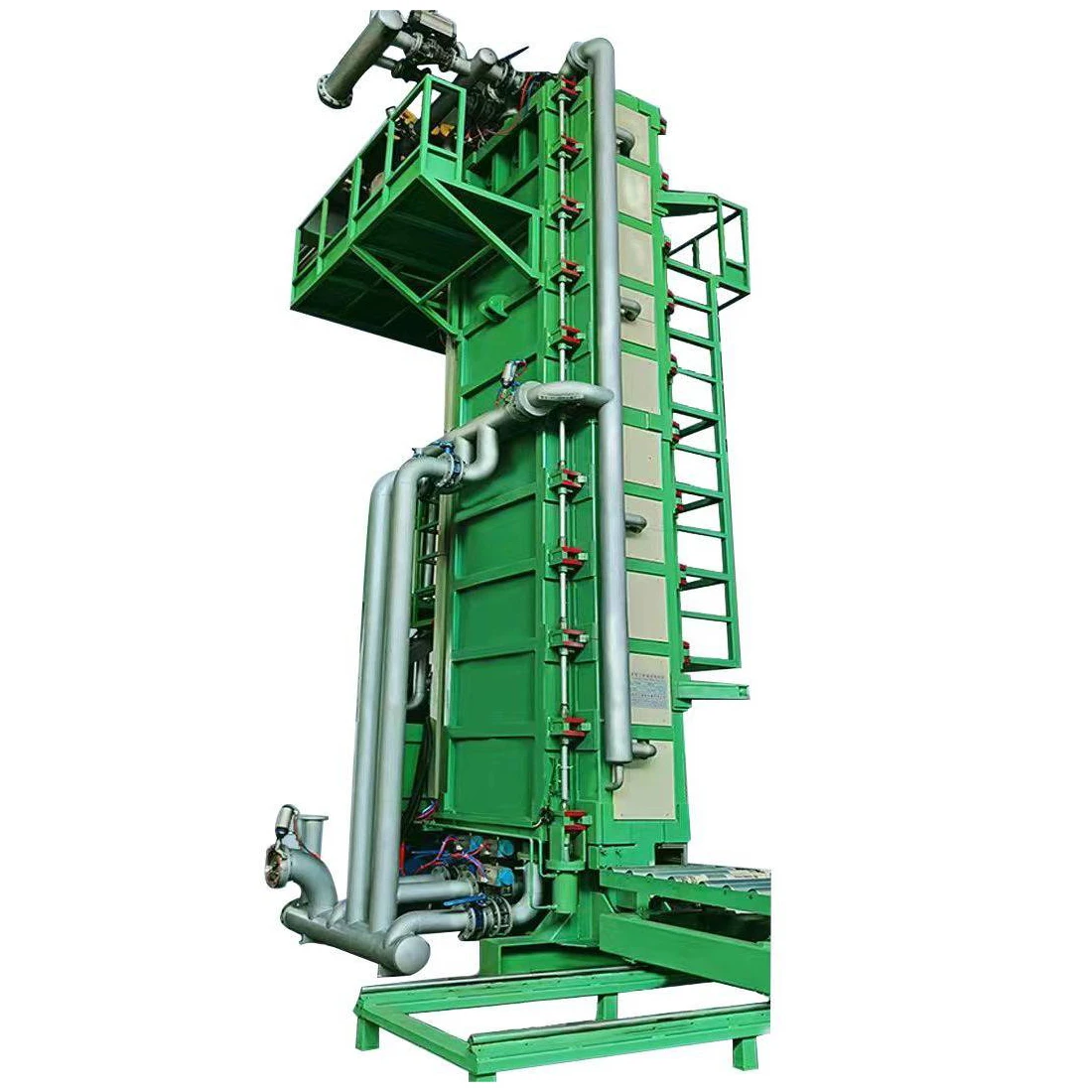

BES-PBA-200-800 Air Cooling Block MouldIng Machine | ||||||||||||
Item | BES-PBF-200 | BES-PBF-300 | BES-PBF-400 | BES-PBF-600 | BES-PBF-800 | |||||||
Mould Cavity Size | 2040*1240 *630(mm) | 3060*1240 *630(mm) | 4080*1240 *630(mm) | 6100*1240 *630(mm) | 8120*1240 *630(mm) | |||||||
Block size | 2000*1200 *600(mm) | 3000*1200 *600(mm) | 4000*1200 *600(mm) | 6000*1200 *600(mm) | 8000*1200 *600(mm) | |||||||
Steam | Entry Consumption Pressure | DN100 20-30kg/cycle 0.8Mpa | DN100 30~40kg/cycle 0.8Mpa | DN150 45~55kg/cycle 0.8Mpa | DN150 60~70kg/cycle 0.8Mpa | DN200 80~100kg/cycle 0.8Mpa | ||||||
Compressed Air | Entry Consumption Pressure | DN50 1--1.5m3/cycle 0.6Mpa | DN50 1.5--1.8m3/cycle 0.6Mpa | DN50 1.8--2m3/cycle 0.6Mpa | DN50 2--2.3m3/cycle 0.6Mpa | DN50 2.2--2.5m3/cycle 0.6Mpa | ||||||
Drainage | Steam vent Condensate | ¢125mm ¢125mm | ¢150mm ¢125mm | ¢200mm ¢150mm | ¢200mm ¢150mm | ¢250mm ¢200mm | ||||||
Throughput | 15kg/m3 | 5-12min/cycle | 6-15min/cycle | 7-18min/cycle | 8-18min/cycle | 10-18min/cycle | ||||||
Connected Load | 9.5KW | 11KW | 13KW | 13KW | 16.5KW | |||||||
Overall Dimension | 4000*2200 *2900(mm) | 5030*2270 *2900(mm) | 6600*2250 *2250(mm) | 8500*2700 *2900(mm) | 11300*2800 *3100(mm) | |||||||
Weight | 4200kgs | 6000kgs | 8500kgs | 9500 kgs | 13800 kgs | |||||||
Room Height | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm | |||||||
Remark:We customized make machines as per customer's requirement | ||||||||||||
FAQ
1. Q: Where is your company located? How can I visit there?
A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.
2. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
3. Q: What's the MOQ?
A: Our MOQ is 1 Set.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
6. Q: What's the delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
7. Q: What is the payment terms?
A: T/T, L/C, at sight
8. Q: How does your factory carry out quality control?
A: We attach great importance to quality control. Every part of our products has its own QC.
9. Q: What certificate do you have?
A: We have, CE, Also we can apply any certificate if you need if the qty is OK.
A: Our factory is located in Hangzhou City, Zhejiang Province, China. Welcome to visit us.
2. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
3. Q: What's the MOQ?
A: Our MOQ is 1 Set.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
6. Q: What's the delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
7. Q: What is the payment terms?
A: T/T, L/C, at sight
8. Q: How does your factory carry out quality control?
A: We attach great importance to quality control. Every part of our products has its own QC.
9. Q: What certificate do you have?
A: We have, CE, Also we can apply any certificate if you need if the qty is OK.
