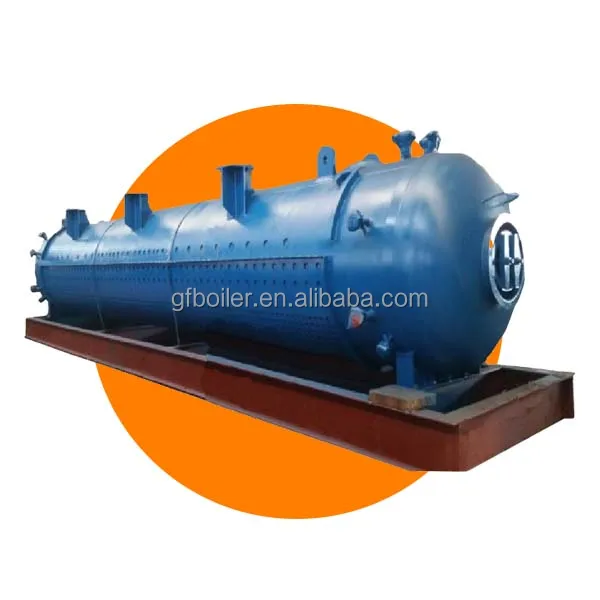

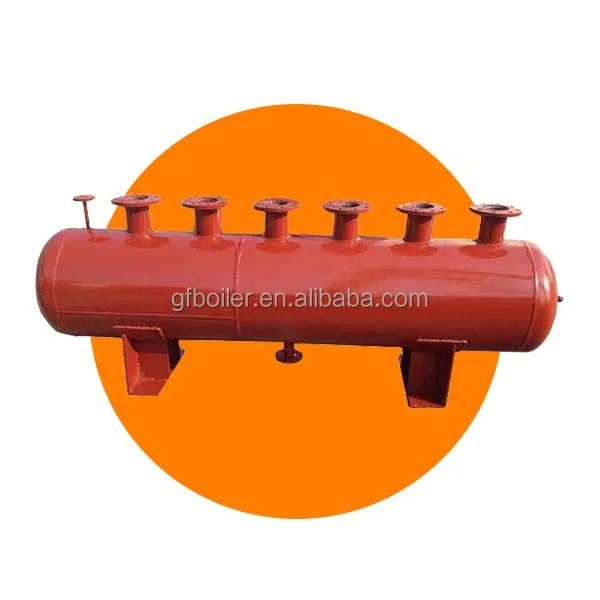

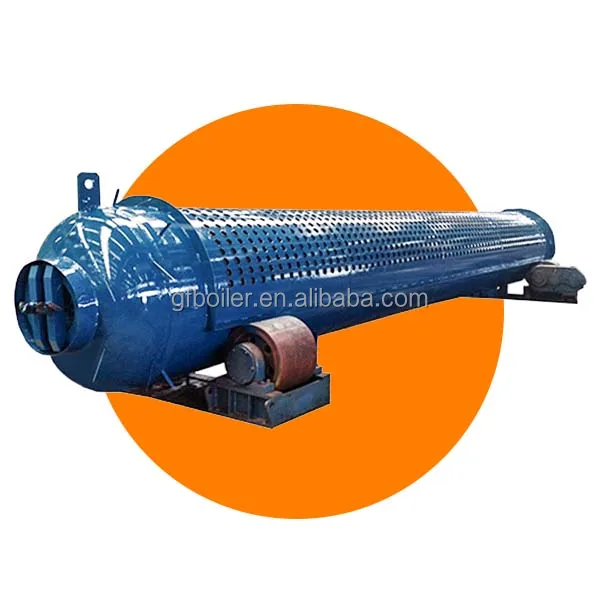

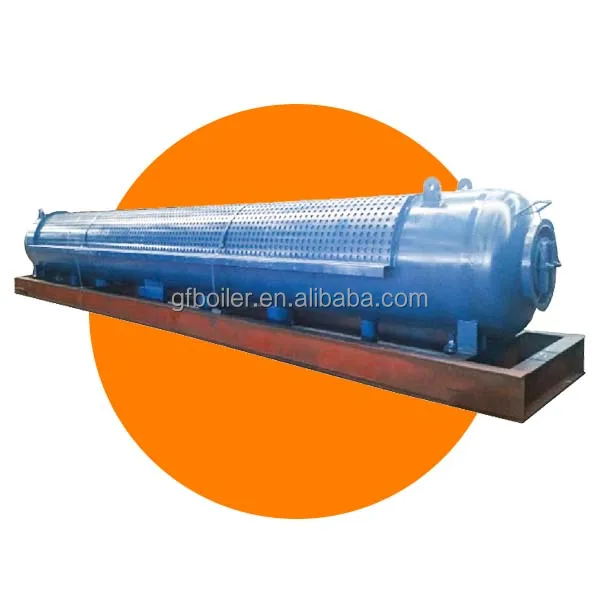

Customer Design Gas Boiler Spare Parts Steam Boiler Drum
- Category: >>>
- Supplier: Jiangsu Gang Feng Boiler Co. Ltd.
Share on (1600637101341):
Product Overview
Description
Product Paramenters
Products Description
Product Name | Boiler Steam Drum ( Steam Water Separator ) |
Applied Area | Natural circulation boiler |
Drum Shell Plate Material | - Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70 - Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353 |
Drum Head Material | Same as shell |
Nozzle Tube Material | As per design |
Standard | China GB, ASME, EN |
Manufacturer Grade | China A Grade, ABS Certificated, TUV Certificated |
Working Temperature | Saturation Temperature at rated pressure |
Working Pressure | 1.6 MPa ~ 22.5 MPa |
Shell Plate Thickness (Drum Wall Thickness) | ≤150 mm |
Drum Diameter | ≤3,200 mm |
Drum Length | ≤25,000 mm |
Welding | - Shell : SMAW, SAW - Nozzle tube : GTAW (TIG), SMAW |
Welding NDT | - Shell longitudinal seam : 100% RT, 100% UT - Shell circumferential seam : 100% RT, 15% UT - Nozzle tube angle seam : 100% UT, 100% MT |
Related Products
Boiler air preheater
Boiler drum
Boiler economizer
.
Boiler superheater
Boiler waterwall panel
Why Choose Us
SUZHOU ORL POWER ENGINEERING CO.,LTD
ORL is a leading compamy of manufacturing industrial boilers, power plant boilers and boiler parts(including steam drum,waterwall panel,heater,economizer,evaporator,superheater,H-finned economizer,spirial fin tube,air preheater,fleu etc.)We supply clients with seamless steel tubes/pipes(ASME,EN or BS).
Certificates
Verification Certificates of equipments:ISO 9001:2015;ISO4001:2015;ISO45001:2018;CE certificate;CNAS;IAF, etc..
FAQ
Q1:How long is the warranty period?
We provide 12 months warranty for all spare parts(exclude fragile parts).
Q2:How do you control the quality?
1) All GF machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3:What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts.
Such as the innovation patent squeegee design.
Q4:What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q5:Are you a factory or trading company, where are you located？
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
We provide 12 months warranty for all spare parts(exclude fragile parts).
Q2:How do you control the quality?
1) All GF machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3:What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts.
Such as the innovation patent squeegee design.
Q4:What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q5:Are you a factory or trading company, where are you located？
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
